Modular Systems > National Instruments > MXI-Express x4 Series




Or speak to a sales representative for additional information:
PXIe-PCIe8375 Request for Availablility
PXIe-PCIe8375, Fiber-Optic, MXI-Express Kit
Need an Official Quote?
National Instruments PXIe-PCIe8375 MXI-Express Kit

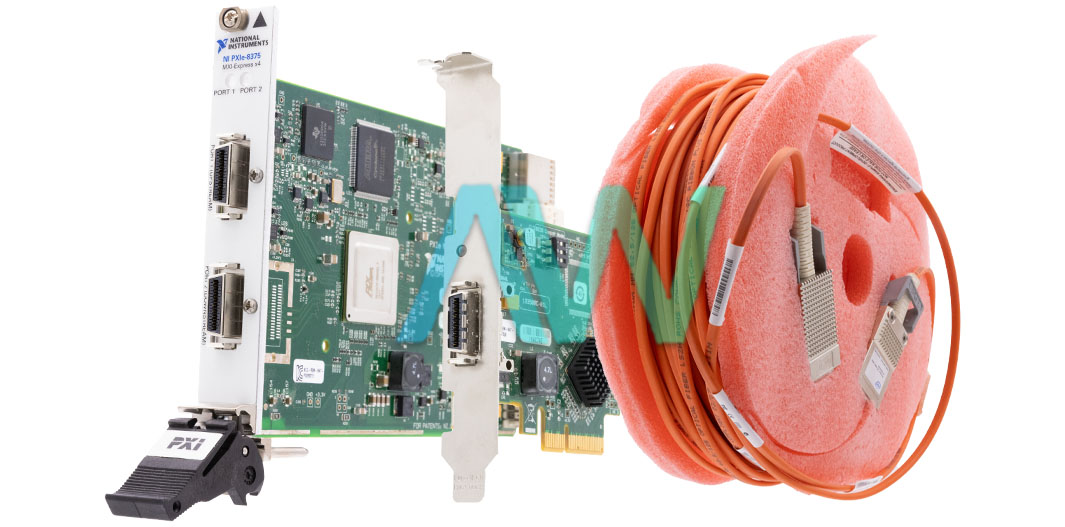

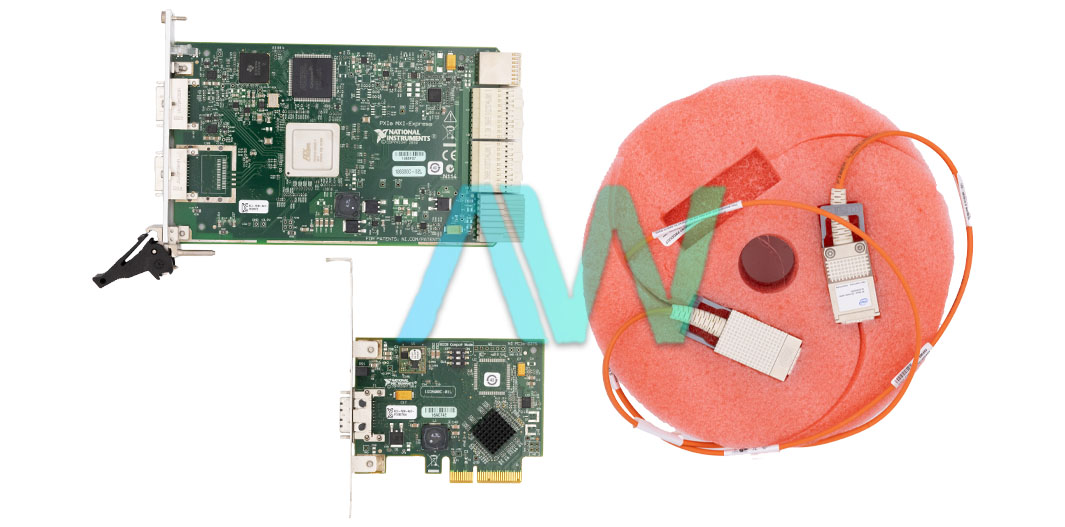

The NI PXIe-PCIe8375 (Part Number: 781039-01) enables users to directly control PXI Express systems with cabled PCI Express technology. The NI PXIe-PCIe8375 consists of a PCIe-8375 board in a PC, which is linked to a PXIe-8375 in slot 1 of a PXI Express chassis with an x4 MXI-Express fiber-optic cable. The user can choose to buy the kit with all required parts included for convenience or they can buy them each individually. The MXI-Express x4 high-bandwidth serial link has the capability to utilize high-performance desktop computers, servers, and workstations to control PXI Express systems. This NI MXI-Express Kit has compatibility with NI rack-mount controllers, as well as Dell and Hewlett-Packard computers.
With the use of the fiber-optic National Instruments PXIe-PCIe8475 MXI-Express Kit, the user can electrically separate their PXI Express measurement hardware from their PC with extended length cabling to 100 m maximum. The PCIe-8375 offers a single cabled PCI Express link; the link width is x4. A link contains four x1 PCI Express lanes. The PXIe-8375 joins the PCI Express link to the PCI Express bus utilized in the PXI Express chassis backplane. The outcome is that all PXI and PXI Express modules show up as PCI boards in the computer.
The user can utilize a MXI-Express x4 for PXI Express link with an application written for a PXI system controlled with a PCI or PCI Express remote controller. This can be accomplished with the NI PXIe-PCIe8375; the user does not have to make any changes to their software.
Model | PXIe-PCIe8375 |
---|---|
Manufacturer | National Instruments |
Part Number | 781039-01 |
Series | MXI-Express x4 Series |
Type | MXI-Express Kit |
PCI Express Link | 1 |
Sustained Throughput | 838 MB/s maximum |
Supported Cable | Fiber-Optic |
Warranty | 2-3 Year Warranty |
PXIe-PCIe8375 Manual | User Manual and Maintenance Manual Available for Download |
Price | Contact a sales representative for a quote. |
Associated part numbers for the PXIe-PCIe8375:
781039-01
National Instruments PXIe-PCIe8375 Frequently Asked Questions
Question: What are the dimensions of the PXIe-PCIe8375?
Answer: Each part of the PXIe-PCIe8375 has different dimensions. The PCIe-8375 is 3.5 by 2.72 in. The PXIe-8375 is 3.9 by 6.3 in.
Question: What are the slot requirements for the NI PXIe-PCIe8375?
Answer: The NI PXIe-PCIe8375 slot requirements are a single PCI Express x4 slot for the PCIe-8375 and a single 3U PXI Express system controller slot for the PXIe-8375.
Question: What does it mean when the LED blinks red on the PXIe-PCIe 8375?
Answer: When the LED blinks red on the PXIe-PCIe 8375, it means the power is out of the specifications. This can be caused by the device not getting the correct power from the host computer or backplane or by the device being harmed.
Question: How many Fiber-Optic ports does the PXIe-8375 have on the front panel?
Answer: The PXIe-8375 has two Fiber-Optic on the front panel.
Part Number | Kit Type | Modules Used | Cable Type |
---|---|---|---|
781039-01 | X4 MXI-Express Kit | - PCIe-8375 MXI-Express Device for PXI Remote Control - PXIe-8375 PXI Remote Control Module | 10 Meter, x4 MXI-Express Fiber Optic Cable |
PXIe-PCIe8375 PDF Manuals
PCIE 8375 SPECIFICATIONS AND SAFETY2C ENVIRONMENTAL2C AND REGULATORY INFORMATION.PDF
