PXIe-8384, MXI-Express Interface, PXI Bus Extension Module

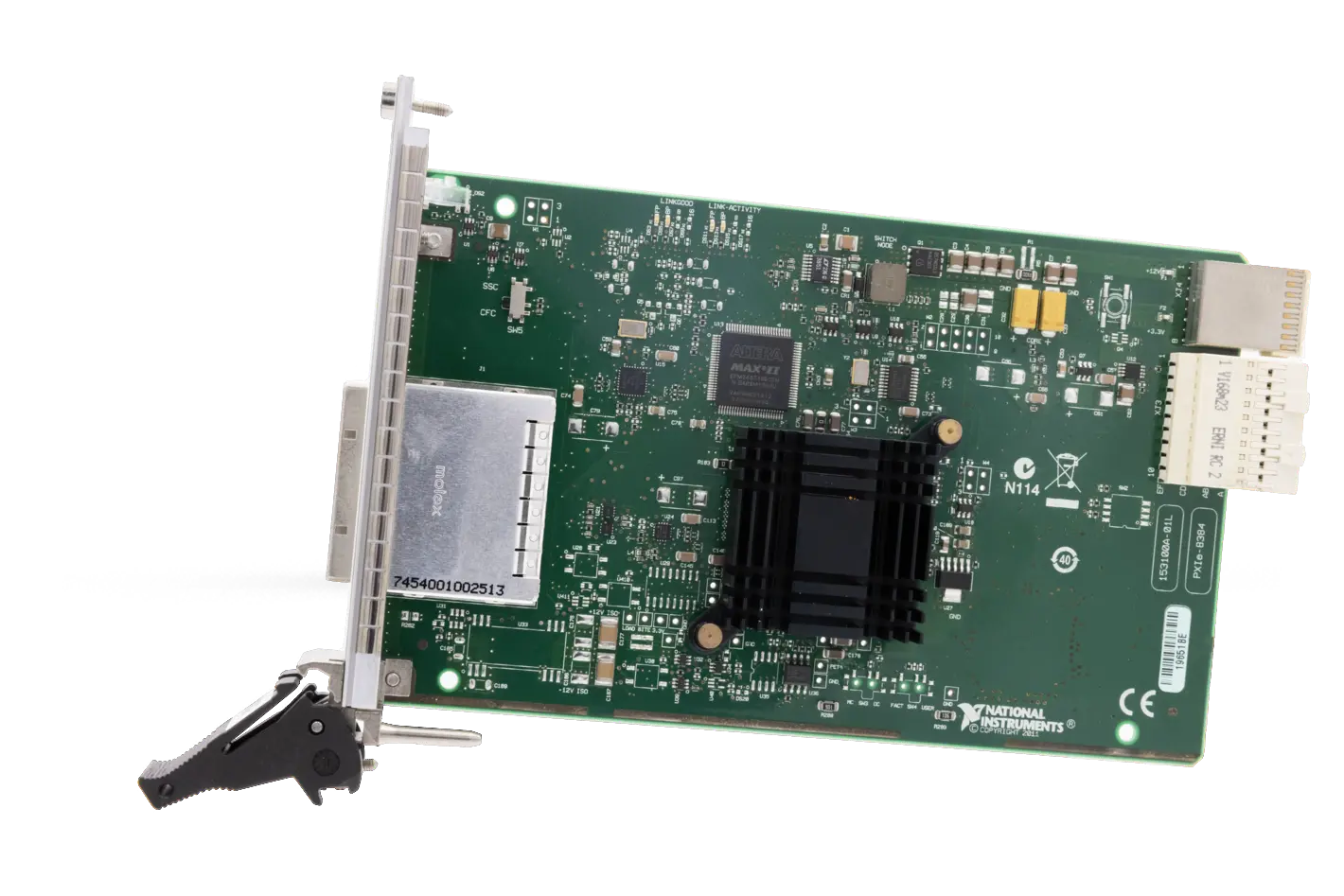

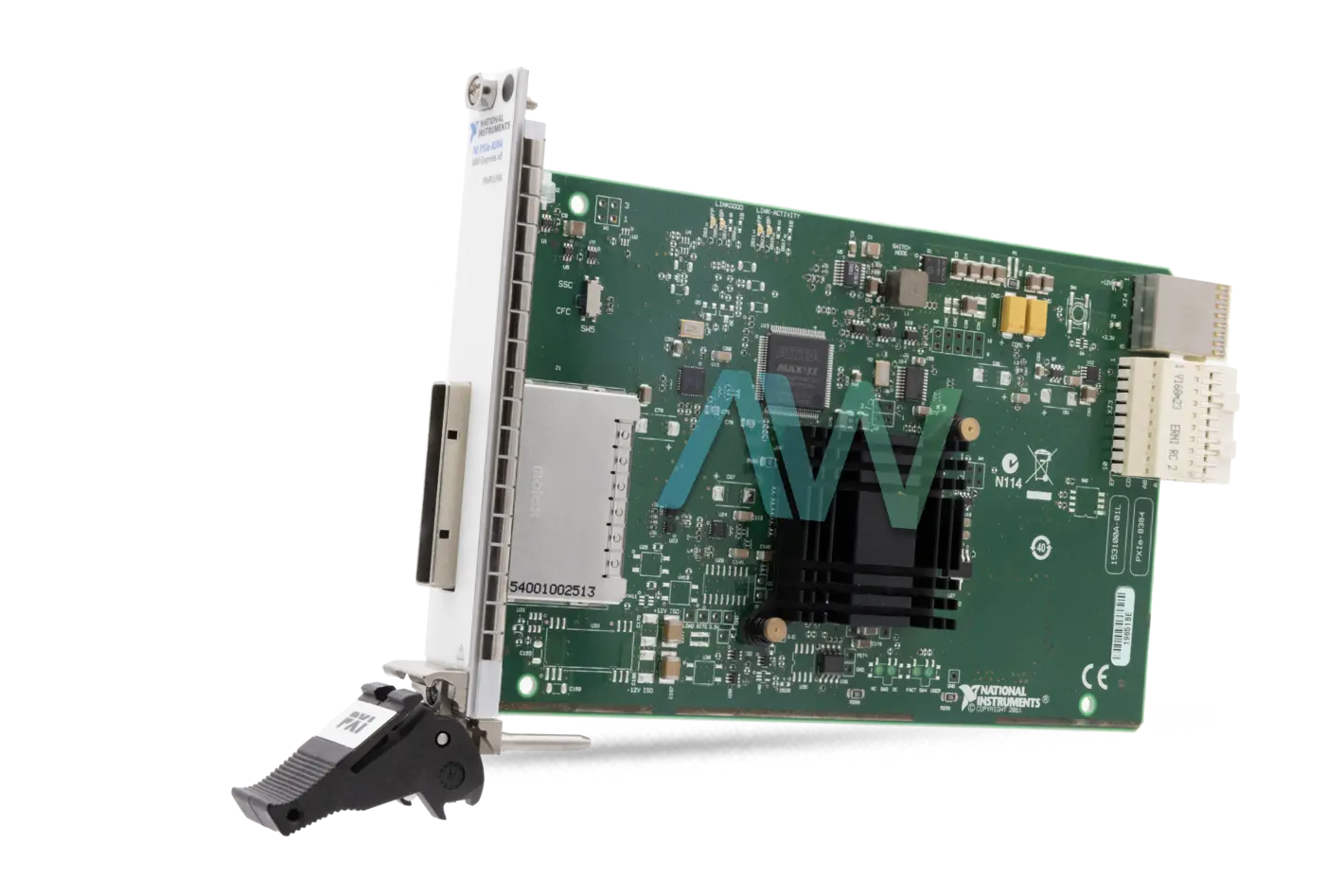

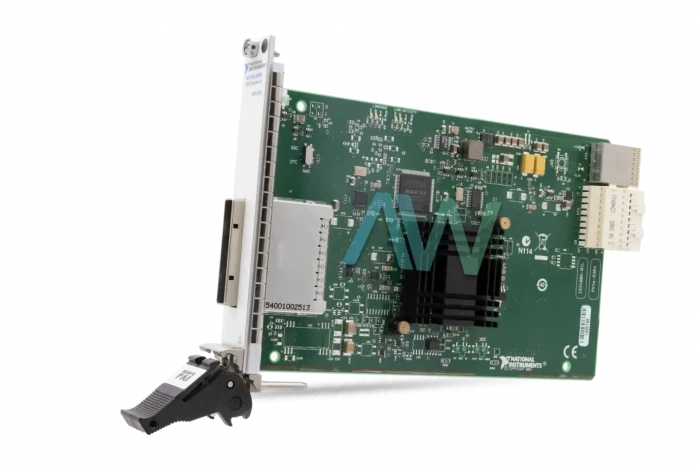

National Instruments PXIe-8384 PXI Bus Extension Module
The PXIe-8384 (Part Number: 782363-01) is an advanced PXI Bus Extension Module from National Instruments. A user can create multi-chassis PXI systems using the NI PXIe-8384 module. These PXI systems interface to a single computer. Up to eight PXI systems can be interfaced to the same system computer using the PXIe-8384. This system can be a PXI controller or a PC connected to a device. This module extends the PXI bus through a peripheral slot of a PXI chassis. It enables the configuration of multi-chassis systems. The NI PXIe-8384 also supports interfacing with non-PXI devices. Extension devices include RAID Arrays and Software Defined Radio/Reconfigurable Radio Devices.
The National Instruments PXIe-8384 PXI Bus Extension Module uses x8 Gen2 PCI Express links. It is a software-transparent link, so interconnections require no programming. It simplifies the process of creating a multi-chassis setup and allows all connected components to operate as one system. For a cabled PCI Express link, all PXI and PXIe modules appear as PCI boards within the computer itself. Different cabling and bandwidth options are available to meet varying application throughput needs. The PXIe-8384 module supports both copper and fiber optic cables. The link can transmit data in both directions simultaneously. The maximum rate of data transmission is 4 GBps. The NI PXIe-8384 module requires one PXI Express or CompactPCI Express peripheral slot for operation.
The driver for the PXIe-8384 Bus Extension Module supports the following platforms: Windows 2000/XP/Server 2003/Vista/7/8/8.1/10. Also, the PXIe-8381 is compatible with the PXI Express Hardware Specifications, Revision 2.0.
Model | PXIe-8384 |
---|---|
Part Number | 782363-01 |
Manufacturer | National Instruments |
Type | PXI Bus Extension Module |
MXI Communication Level | MXI-Express Gen2 x8 |
Supported Cable Type | Copper and Fiber Optic |
MXI Bandwidth | 4 GB/s |
Dimensions | 6.3 x 3.9 in. |
Weight | 0.37 lb. |
Warranty | 2-3 Year Warranty |
PXIe-8384 Manual | User Manual and Maintenance Manual Available for Download |
Price | Contact a sales representative for a quote. |
Associated part numbers for PXIe-8384:
National Instruments PXIe-8384 Frequently Asked Questions
Question: What is the maximum cable length for the PXIe-8384?
Answer: The PXIe-8384 has a maximum cable length of 5 m.
Question: What are the slot requirements for the NI PXIe-8384?
Answer: The slot requirements for the NI PXIe-8384 are one peripheral slot (PXI Express or CompactPCI Express).
Question: What are the power requirements for the PXIe-8384?
Answer: The power requirements for the PXIe-8384 are 500 mA typical current or 800 mA maximum current at +3.3 V, 450 mA typical current or 750 mA maximum current at +12 V, and 5 mA typical current or 20 mA maximum current at +5 V Aux.
Question: Which operating systems will work with the NI PXIe-8384 module?
Answer: The NI PXIe-8384 module will work with the majority of operating systems, including Windows, Macintosh OS, Linux, and Solaris.
