PXIe-PCIe8381 Request for Availablility
PXIe-PCIe8381, Gen 2 X8, 1 Port, 3m Copper Cable, MXI-Express Kit
Need an Official Quote?

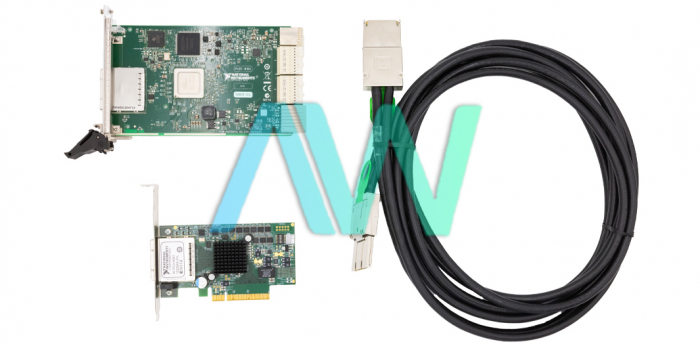

NI PXIe-PCIe8381 MXI-Express Kit
The PXIe-PCIe8381 (Part Number: 782522-01) is a Gen2 x8 MXI-Express interface system for PXIe. This kit supports up to 5 meter cable length and offers software-transparent links that don’t need to be programmed. In the standard configuration, the NI PXIe-PCIe8381 kit operates with a PCIe-8381 connected to a PXIe-8381. The PXIe host device incorporated in this kit comes with a single port and supports communication through a copper x8 PCIe link.
The PXIe-PCIe8381 is an ideal solution for the remote control of PXI Express systems. You can use this MXI-Express Kit to achieve up to 3.2 GB/s sustained throughput per direction. The modules incorporated in this kit only work with MXI-Express x8 copper cables. Each module in the kit has 1 port. More PXI Express Chassis can be linked if you install another PCIe-8381 in a compatible slot. By using the PXIe-8384 daisy chain interface, remote controlling a multi-chassis system through NI PXIe-PCIe8381 MXI-Express Kit is also possible.
| Model | PXIe-PCIe8381 |
|---|---|
| Manufacturer | NI |
| Part Number | 782522-01 |
| Type | MXI-Express Kit |
| Ports | 1 |
| Cable Length | 3 m |
| Cable Type | Copper |
| Cable Support | MXI-Express x8 |
| MXI Communication Level | MXI-Express Gen2 x8 |
| Warranty | 2-3 Year Warranty |
| PXIe-PCIe8381 Manual | User Manual and Maintenance Manual Available for Download |
| Pricing | Contact a Sales Representative for a quote. |
Associated part numbers for the PXIe-PCIe8381:
782522-01
NI PXIe-PCIe8381 Frequently Asked Questions
Question: What is the National Instruments PXIe-PCIe8381?
Answer: The PXIe-PCIe8381 is a remote control interface module by National Instruments. This module is designed to connect a host PC to a PXI Express (PXIe) chassis.
Question: What are the key features of the National Instruments PXIe-PCIe8381?
Answer: With its fast data transfer rates, low latency, and support for x4 lane configurations for improved performance and scalability, the PXIe-PCIe8381 is equipped with PCI Express technology.
Question: What applications are best suited for the PXIe-PCIe8381?
Answer: In research and development settings, the PXIe-PCIe8381 is perfect for automated test equipment (ATE), complex signal processing applications, and high-speed data collecting.
Question: How does the PXIe-PCIe8381 improve system performance?
Answer: The PXIe-PCIe8381 offers high data transfer speeds and low latency connectivity by leveraging PCI Express technology, guaranteeing quicker and more dependable performance for demanding applications.
| Part Number | Kit Type | Modules Used | Cable Type |
|---|---|---|---|
| 782522-01 | Gen 2 X8 MXI-Express Kit | - PCIe-8381 MXI-Express Remote Controller - PXIe-8381 PXI Remote Control Module | 3 Meter, x8 MXI-Express Copper Cable |
