IEEE-1284 In Stock | Ships Today
IEEE-1284, 6 Inch, A Female to C Male Connection, Cable Assembly
Need an Official Quote?
National Instruments IEEE 1284 Parallel Port Cable
National Instruments' IEEE 1284 (Part Number: 777169-01) Parallel Port Cable facilitates point-to-point and parallel communication between two compatible devices, including PXI controllers and PCs. It enables bi-directional 8-bit parallel data transfer, facilitating smooth communication between linked devices. It is based on the IEEE 1284 parallel interface standard.

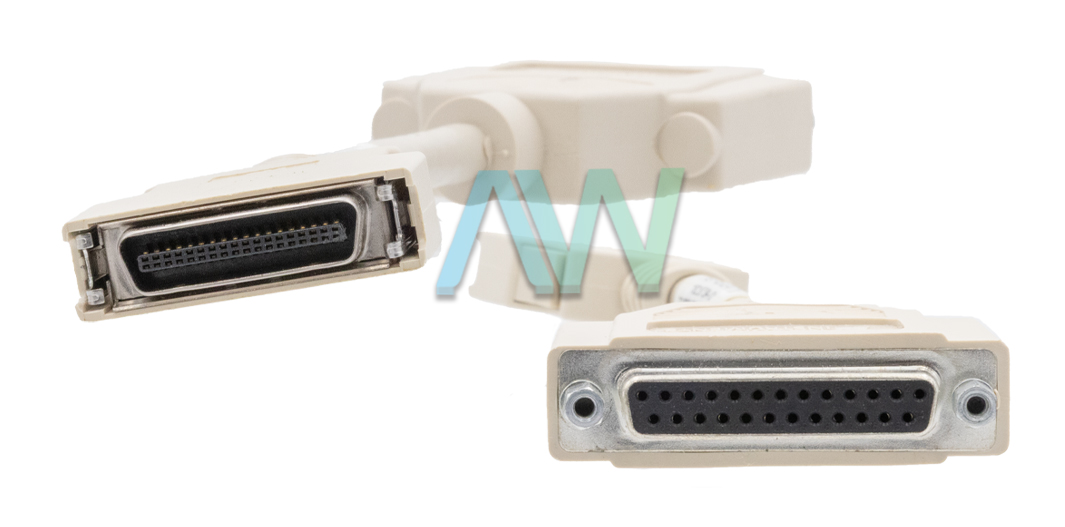

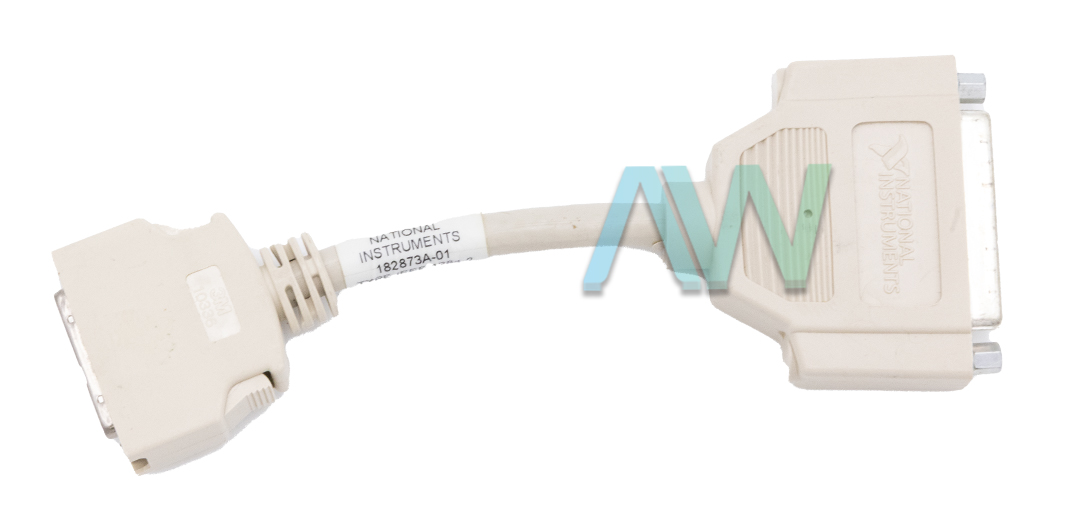

This cable has a male IEEE 1284 connector (Type C) on one end and a female IEEE 1284 parallel plug (Type A) on the other. On many PXI embedded controllers, the male end of the cable attaches directly to the female parallel port, and the female end can be joined to the male connector of a conventional printer cord. It serves primarily as an adapter, extending connectivity to the standard parallel printer connector found on PXI controllers and other devices that are compatible. The cable, which is 6 inches long, offers a practical and small way to connect PXI devices to accessories.
When using PXI-based systems, the National Instruments IEEE 1284 cable is a necessary accessory. It provides reliable communication between the controller and external devices and is compatible with a range of PXI controllers, including the NI PXI-8102 RT. In industrial control, data acquisition (DAQ), and test and measurement applications where bi-directional data transfer is necessary, this connection is extremely helpful. By enabling customers to merge outdated parallel port peripherals into contemporary PXI-based platforms, it streamlines system settings.
This parallel port cable is an optional device that comes with some PXI controllers, such the NI PXI-8102 RT. It is very useful for people who want to increase the capability of their PXI systems. Designed to accommodate high-performance PXI systems that need parallel port connections, the cable is sturdy and small at the same time.
Using the IEEE 1284 cable in conjunction with the dual-core Intel Celeron-based embedded controller NI PXI-8820, one may create a highly adaptable and portable PC-based platform that can be utilized for a variety of industrial automation, testing, and measuring applications.
| Model Name | IEEE 1284 |
|---|---|
| Part Number | 777169-01 |
| Part Type | Parallel Port Cable |
| Cable Length | 6 inches |
| Connector A | IEEE 1284 Female Parallel (Type A) |
| Connector B | IEEE 1284 Male Parallel (Type C) |
| Communication Standard | IEEE 1284 Bi-Directional Parallel Interface |
| Compatibility | PXI Controllers, PCs, and Peripheral Devices |
| Data Transfer Rate | Supports up to 2 MB/s |
| Application | Industrial Control, DAQ, Test and Measurement |
