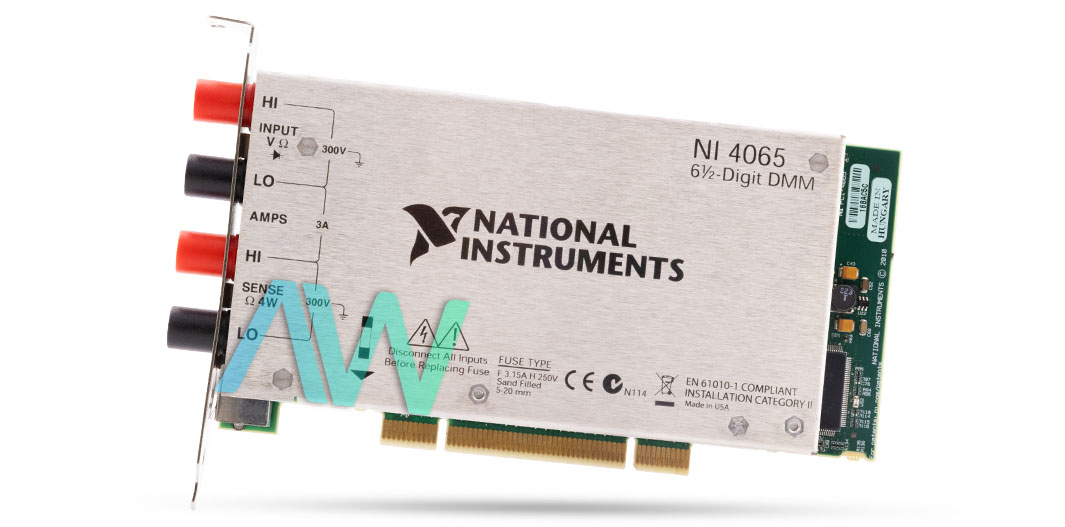

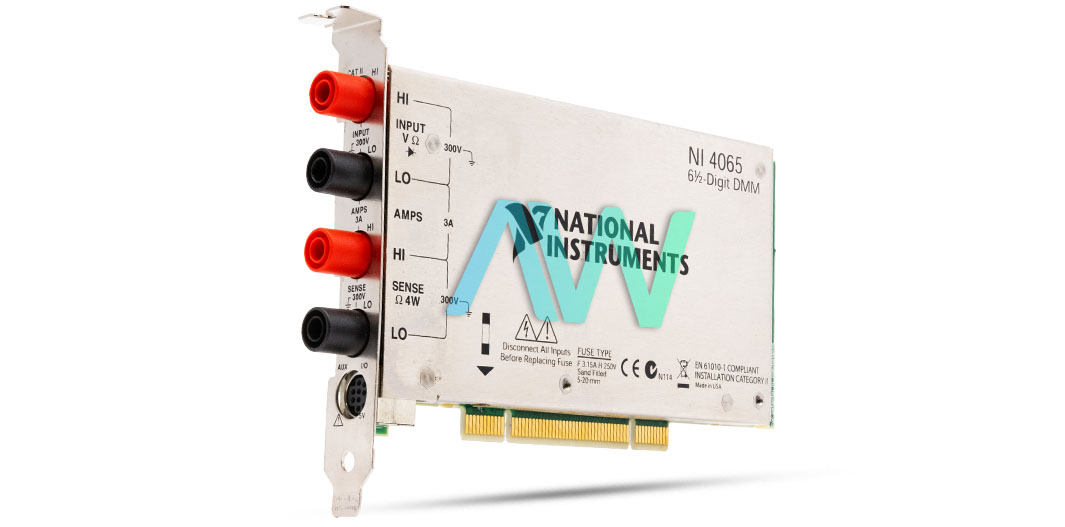

National Instruments 779770-01 Digital Multimeter Device
The National Instruments part number 779770-01 from is the identifying part number for the PCI-4065 Digital Multimeter Device. This DMM is a high precision device designed for a wide range of applications including the industrial environments, laboratory measurements. It has a resolution of 6½ that offers a reading rate ranging from 0.6 to 10 S/s for 50 to 60 Hz and an RMS noise level of 0.06 to 0.25 within 10 V range, thus with these resolution it is able to provide accurate reading and measurement. The 779770-01 also offers multiple measurement functions including the DC and AC voltage, DC and AC current and resistance measurement.
It can measure the DC voltage from 100 mV to 300 V ranges with an accuracy of up to (15 ppm of reading + 7 ppm of range), AC Voltage from 200 mV to 300 V ranges, with frequency range 10 Hz to 100 kHz and accuracy up to 0.2%, DC Current 10 mA to 3 A ranges with an accuracy of (50 ppm of reading + 100 ppm of range) and AC current of 10 mA to 3 A ranges, with frequency range 10 Hz to 5 kHz and accuracy up to 0.3%. The 779770-01 device features low noise levels that makes it suitable for measurements in low voltage applications. It also offers various speed settings that allows the users to adjust between accuracy and measurement speed according to the users desire.
This Digital Multimeter Device is built to operate at suitable temperature of 0 to 40 degrees Celsius with relative humidity of 10% to 90%, RH noncondensing while its ambient storage temperature is -40 to 70 degrees Celsius with relative humidity of 5% to 95%, noncondensing. This device is degree 2 rated in terms of pollution rating while it can be mounted at maximum height of 2000 meters and is intended for indoor use only.
Physically, the 779770-01has a compact structure with dimensions of 18.3 cm × 2.0 cm × 12.0 cm (7.2 in. × 0.8 in. × 4.7 in.) and weighs 325 g (11.5 oz). To operate this device, less than 3 Watts of power is required from the PCI motherboard.
| Part Number | 779770-01 |
| Model Name | PCI-4065 |
| Part Type | Digital Multimeter Device |
| Resolution | 6½ digits |
| DC Voltage Measurement | 100 mV to 300 V ranges, accuracy up to ±(15 ppm of reading + 7 ppm of range) |
| AC Voltage Measurement | 200 mV to 300 V ranges, frequency range 10 Hz to 100 kHz, accuracy up to 0.2% |
| DC Current Measurement | 10 mA to 3 A ranges, accuracy up to ±(50 ppm of reading + 100 ppm of range) |
| AC Current Measurement | 10 mA to 3 A ranges, frequency range 10 Hz to 5 kHz, accuracy up to 0.3% |
| Resistance Measurement | 100 Ω to 100 MΩ ranges, 4-wire and 2-wire, accuracy up to ±(20 ppm of reading + 8 ppm of range) |
| Warm-Up Time | 30 minutes |
779770-01 PDF Manuals
NI 4065 6C2BD DIGIT DIGITAL MULTIMETER CALIBRATION PROCEDURE.PDF
PCI 4065 PCIE 4065 PXI 4065 LETTER OF VOLATILITY.PDF
