PCIe-6361 In Stock | Ships Today
PCIe-6361, 16 Analog Input Channels, 68-Pin VHDCI I/O Connector, Multifunction I/O Device
Need an Official Quote?

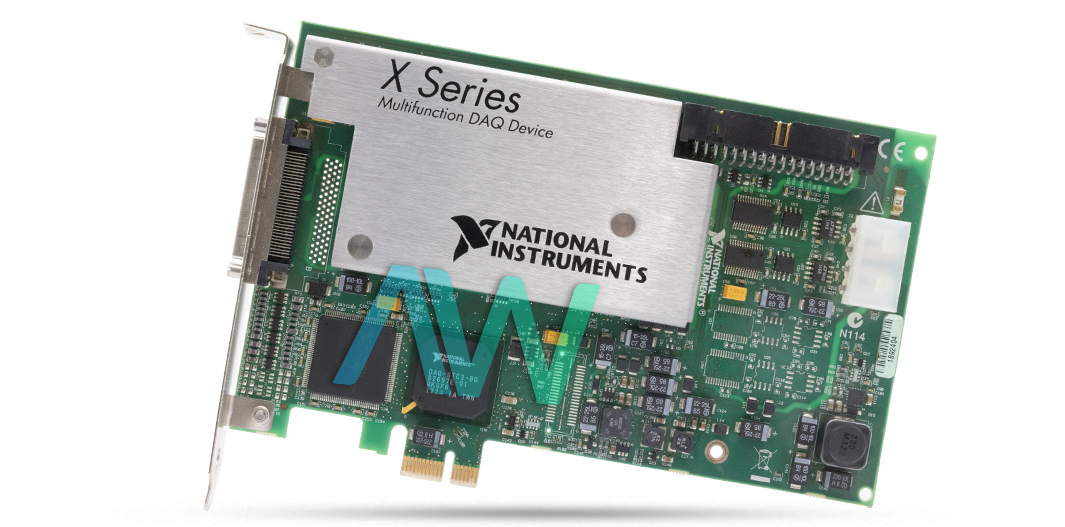

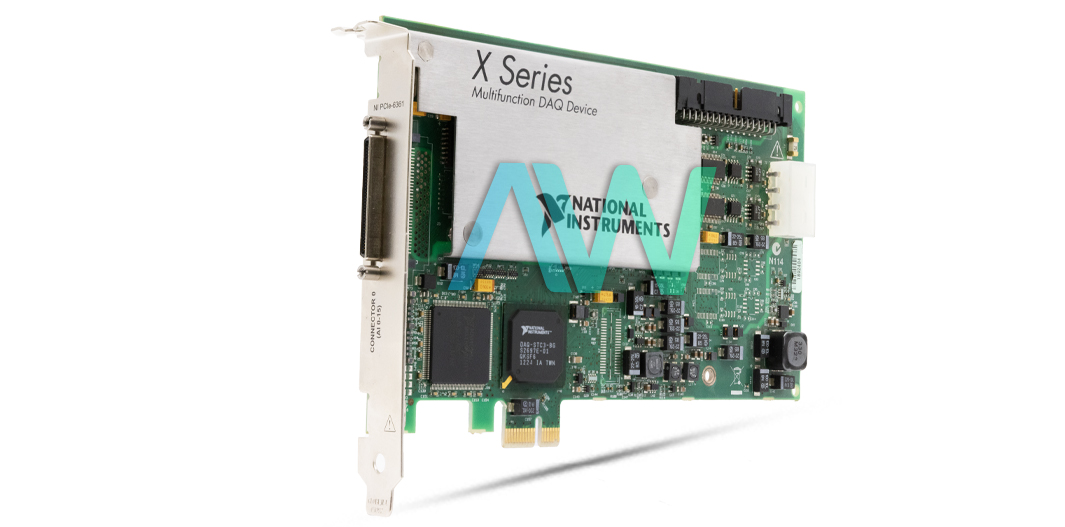

National Instruments PCIe-6361 Multifunction I/O Device
The PCIe-6361 (Part Number: 781050-01, 193522C-03L, 193522B-03L), developed by National Instruments, is a multifunction DAQ (Data Acquisition) device designed to offer high-performance functionality for various industrial automation applications. It makes use of the high-throughput PCI Express bus, multicore-optimized driver software, and four 32-bit counters/timers in addition to digital and analog I/O.
Applications for the device range from simple data logging to control and test automation. With the help of the on-board NI-STC3 timing and synchronization technology, it offers sophisticated timing functions. This contains retriggerable measuring tasks and separate analogue and digital timing engines. By using simple graphical programming software, users can create user-defined measurement systems for data logging using the PCIe-6361. For jobs like hardware validation, manufacturing floor monitoring, or scientific studies, it enables exact viewing, analysis, and data logging.
In control systems, the PCIe-6361 makes it easier to link sensors and actuators to a computer, allowing control systems to be made specifically for the needs of a certain application. It provides improved single-point I/O performance with its low-latency PCI Express interface, which is especially useful for applications that require deterministic operation. The PCIe-6361 provides sixteen single-ended or eight differential analogue input channels with a 16-bit resolution. It offers multiple coupling options and input ranges, with a maximum sample rate of 1.00 MS/s for multichannel aggregate sampling and 2.00 MS/s for single-channel sampling. It also has high input impedance and all-analogue input channel overvoltage protection.
Analog output capabilities include two channels with 16-bit resolution, offering update rates of up to 2.86 MS/s for single-channel and 2.00 MS/s for simultaneous dual-channel operation. It supports various output ranges and coupling options, with low output impedance and overdrive protection. For digital I/O and PFI (Peripheral Function Input), the PCIe-6361 provides a total of 24 channels, individually programmable as input or output. It features pull-down resistors, input voltage protection, and ground reference.
| Model | PCIe-6361 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 781050-01, 193522C-03L, 193522B-03L |
| Series | X Series |
| Type | Multifunction I/O Device |
| Analog Input Channels | 16 (16-Bit, 2.00 MS/s) or 08 differential |
| Analog Output Channels | 2 (16-Bit, 2.86 MS/s) |
| Digital Inputs | 16 |
| Digital Outputs | 8 |
| Timing I/O | 4 Counter/Timer I/O (32 bits, 100 MHz) |
| Frequency Generator Channels | 1 |
| Phase-Locked Loop (PLL) | 1 |
| I/O Connector | 1 68-pin VHDCI |
| Power Requirements | +3.3 V, +12 V -- 0.59 A, 4.6 W, 5.4 W |
| Dimensions | 3.9 in. × 6.6 in. |
| Weight | 0.35 lb. |
| Driver Software | NI-DAQmx 9.0 |
| Warranty | 2-3 Year Warranty |
| PCIe-6361 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for the PCIe-6361:
193522A-03L, 193522B-03L, 193522C-03L, 193522D-03L, 781050-01
National Instruments PCIe-6361 Frequently Asked Questions
Question: Which type of slots can my DAQ PCIe 6361 be used in?
Answer: The DAQ PCIe 6361 can be inserted into the PCI Express x1 slot on your motherboard.
Question: How do I get rid of crosstalk on the digital analog inputs on the NI PCIe-6361.
Answer: Crosstalk on the NI PCIe-6361usually indicates that you need to do impedance matching with your device or check to see if unconnected channels are included in your scan.
Question: Why is my PCIe-6361 NI not showing up in Measurement and Automation Explorer 5.1?
Answer: Make sure the latest version of the NI-DAQmx Device Driver is installed and your computer is running the NI Device Loader service.
| Accessory Type | Model Name | Part Number |
|---|---|---|
| Cable | SHC68-68-EPM | 192061-01 (1 m) |
| 192061-02 (2 m) | ||
| 192061-05 (5 m) | ||
| 192061-0R5 (0.5 m) | ||
| RC68-68 | 187252-01 (1 m) | |
| 187252-0R25 (0.25 m) | ||
| 187252-0R5 (0.5 m) | ||
| Shielded Connector Block | SCB-68A | 782536-01 |
| Shielded BNC Connector | BNC-2110 | 777643-01 |
| Rack-Mountable Accessory | BNC-2090A (Rackmount) | 779556-01 |
| Terminal Block | TB-2706 | 779183-01 |
| Connector Block | TBX-68 | 777141-01 |
| CB-68LP (Vertical Mount) | 777145-01 | |
| CB-68LPR (Right Angle Mount) | 777145-02 | |
| - | - | - |
PCIe-6361 PDF Manuals
DAQ GETTING STARTED GUIDE FOR PCI PCI EXPRESS.PDF
DAQ GETTING STARTED READ ME FIRST NI DAQMX AND DAQ DEVICE INSTALLATION GUIDE.PDF
NI 62XX 63XX PINOUT LABELS FOR THE SCB 68 NOTE TO USERS.PDF
NI 62XX 63XX PINOUT LABELS FOR THE SCB 68A NOTE TO USERS.PDF
NI 6361 DEVICE SPECIFICATIONS.PDF
NI PCIE 6351 53 61 63 LETTER OF VOLATILITY.PDF
