The PCI-6711 PXI Analog Output Device from NI features 4 Output Channels, 7 Trigger Lines, and 3 DMA Channels.
Need an Official Quote?

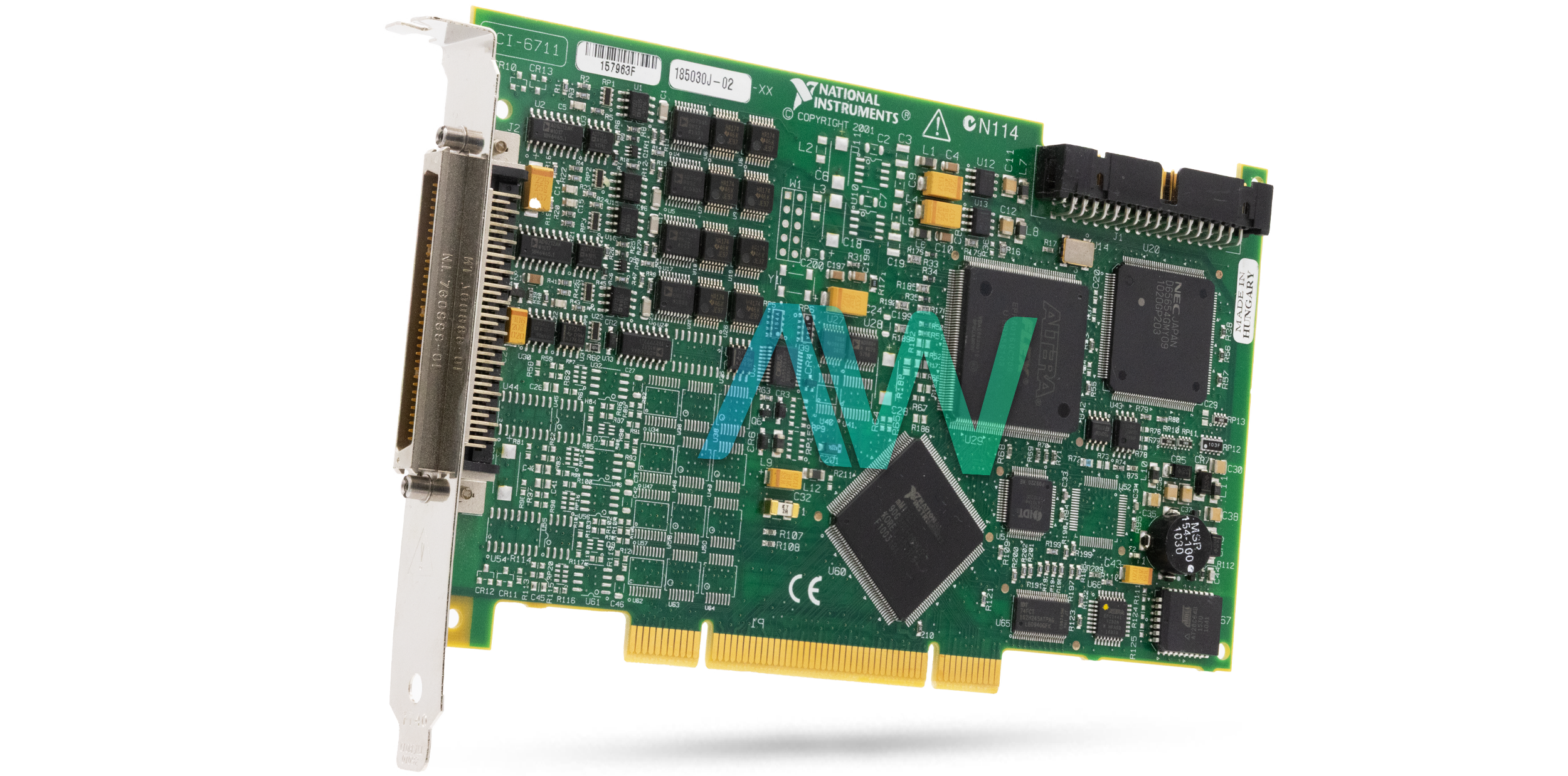

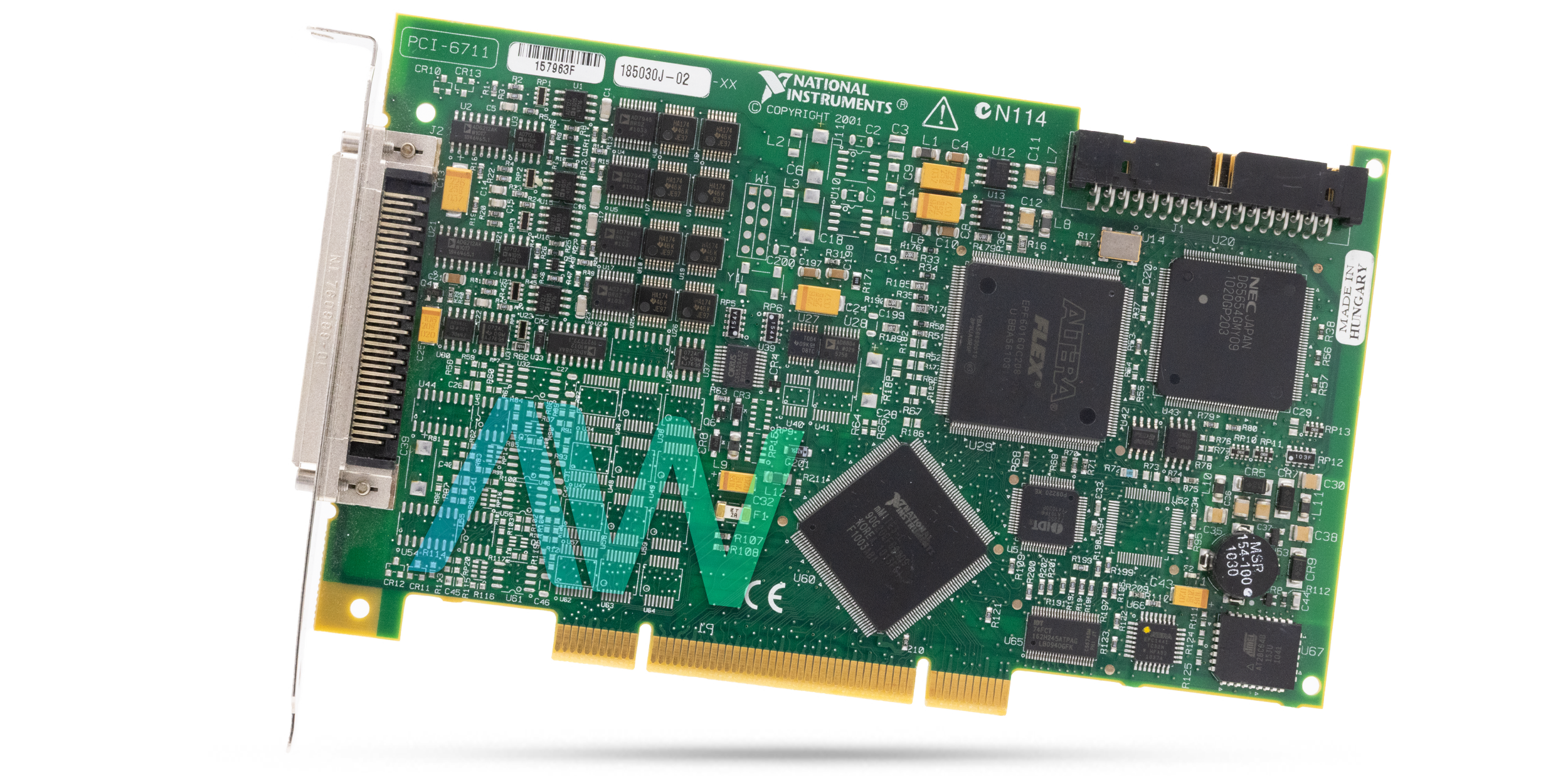

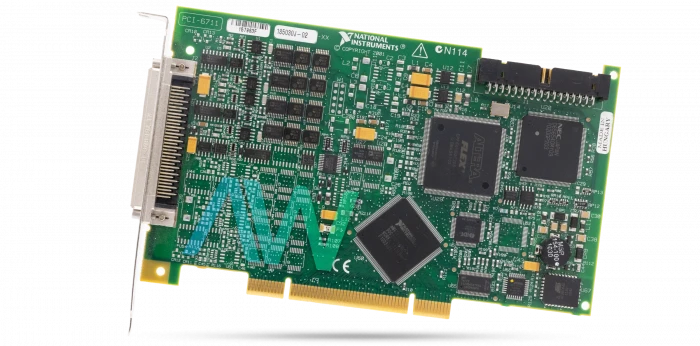

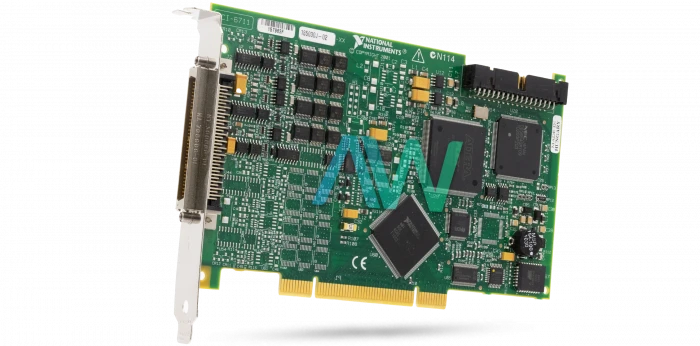

National Instruments PCI-6711 Analog Output Device
National Instruments created the PCI-6711 (Part Number: 777740-01), a high-speed, flexible analog output device designed for a range of control and waveform output applications in industrial automation. With its simultaneous multichannel updates, it is perfect for deterministic control, power supply management, stimulus-response, and sensor/signal modeling jobs. It has extensive capability with eight 5 V TTL/CMOS digital I/O lines, two 24 bit, 20 MHz counter/timers, and digital triggering capabilities. The PCI‑6711 can replace standalone PID controllers, low-speed arbitrary waveform generators, and function generators.
It makes it possible to precisely manipulate every data point in order to define both complex and common waveforms, such as sine, square, or sawtooth. With its 12-bit digital-to-analog converter (DAC) per channel, this device can be used with PXI, PCI, or CompactPCI. It can update voltage outputs at up to Ms/S/channel. Two 24-bit counter/timers are also included for timing I/O, in addition to eight lines of TTL-compatible digital I/O.
Notably, the PCI‑6711 is switchless and jumperless, thanks to the National Instruments MITE bus interface chip, which connects it to the PCI I/O bus. This feature simplifies setup as interrupts and base memory addresses are software-configured. The 6711 makes use of the National Instruments DAQ-STC system timing controller for time-related operations. This timing controller consists of three timing groups that manage general-purpose counter/timer and analog output functions. It provides up to 50 ns of timing resolution.
The PCI-6711 has a Real-Time System Integration (RTSI) bus to help with synchronization issues. This bus allows timing and trigger signals to be routed between different features. In response to a shared trigger or timing event, this guarantees smooth coordination of measurement operations. In terms of the PCI-6711's output features, it provides 12 bits (1 in 4,096) of resolution through 8 voltage outputs for 6713 devices and 4 voltage outputs for 6711 devices.
Model | PCI-6711 |
---|---|
Manufacturer | National Instruments |
Part Number | 777740-01 |
Type | Analog Output Device |
Analog Output Channels | 4 (12-Bit, 1 MS/s) |
Digital Inputs/Outputs | 8 (5 V TTL/CMOS Compatibility) |
Timing I/O | 2 Counter/Timer I/O (24 bits, 20 MHz) |
I/O Connector | 68-pin male SCSI-II |
Power Requirements | +5 V -- 0.8 A |
Dimensions | 6.87 × 4.2 in. |
Software Driver | NI-DAQmx Measurement & Automation Explorer configuration utility |
Warranty | 2-3 Year Warranty |
PCI-6711 Manual | User Manual and Maintenance Manual Available for Download |
Price | Contact a sales representative for a quote. |
Associated part numbers for the PCI-6711:
1850.3, 185027-01, 185030-02, 185030A-02, 185030B-02, 185030C-02, 185030D-02, 185030F-02, 185030G-02, 185030H-02, 185030J-02, 185030K-02L, 777740-01
National Instruments PCI-6711 Frequently Asked Questions
Question: Is it possible to add external memory to the PCI-6711?
Answer: No, it is not possible to add external memory to the PCI-6711.
Question: What is the maximum source/sink current of the analog outputs on the PCI 6711?
Answer: The maximum source/sink current of the analog outputs on the PCI 6711 is +/- 5 mA.
Question: I made a simple VI for taking one analog input value on Channel 0. I ran the VI and Error -10403 occurred on my NI PCI-6711. The error message said, “The specified device does not support the requested action (the driver recognizes the device, but the action is inappropriate for the device).” How can I resolve this error?
Answer: The NI PCI-6711 is an Analog Output Device and does not have any analog input channels, so the action is impossible.
PCI-6711 PDF Manuals
AO WAVEFORM CALIBRATION PROCEDURE FOR NI DAQMX.PDF
ANALOG OUTPUT SERIES USER MANUAL.PDF
DAQ GETTING STARTED GUIDE FOR PCI PCI EXPRESS.PDF
DAQ GETTING STARTED READ ME FIRST NI DAQMX AND DAQ DEVICE INSTALLATION GUIDE.PDF
NI 6711 6713 6731 6733 CALIBRATION PROCEDURE.PDF
NI 6711 6713 DAQCARD 6715 SPECIFICATIONS.PDF
NI 671X 673X CALIBRATION PROCEDURE.PDF
NI 67XX PINOUT LABELS FOR THE SCB 68 NOTE TO USERS.PDF
NI 67XX PINOUT LABELS FOR THE SCB 68A NOTE TO USERS.PDF
