PXIe-5663E Request for Availablility
NI PXIe-5663E, 10 MHz to 6.6 GHz, SMA Female Connectors, PXI Vector Signal Analyzer
Need an Official Quote?

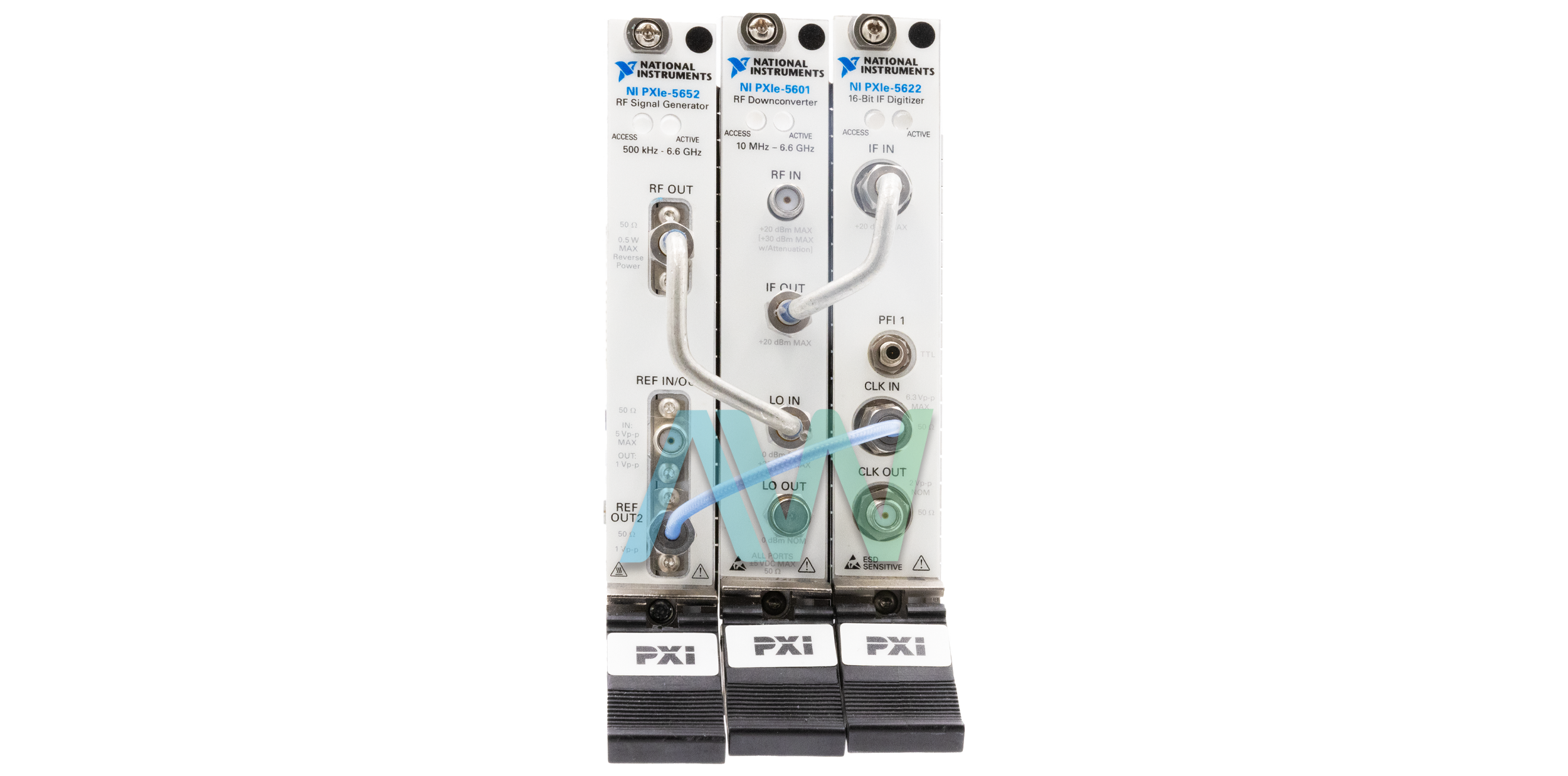

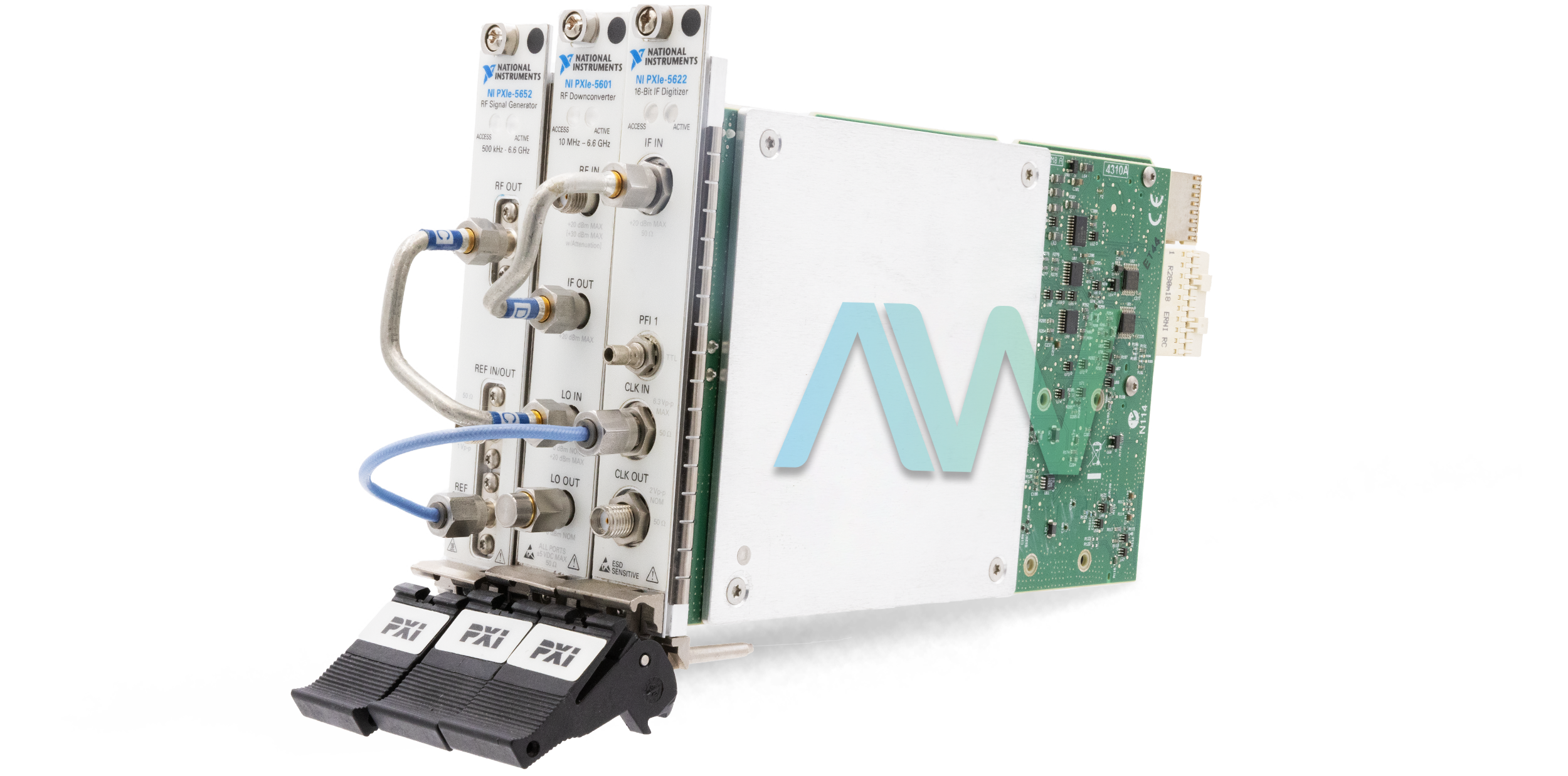

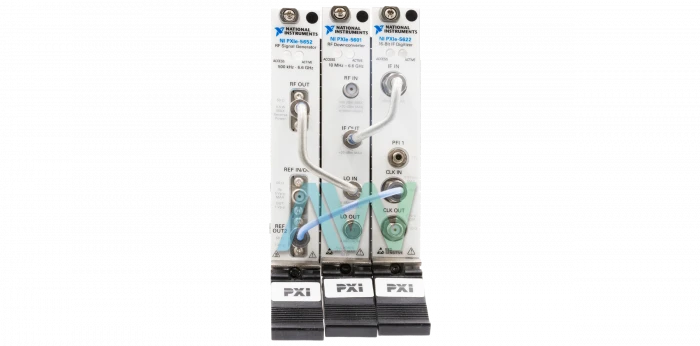

National Instruments PXIe‑5663E PXI Vector Signal Analyzer
The PXIe-5663E (Part Numbers: 781259-01, 781260-01, 781259-02, 781260-02, 781339-02, 781339-03, and 781339-04) is a Vector Signal Analyzer from National Instruments. Boasting a frequency range of 10 MHz to 6.6 GHz, the PXIe-5663E is not a singular device- in fact, the model name refers to three distinct modules working together. These modules include an RF Signal Downconverter (the PXIe-5601), a convenient IF Digitizer (the PXIe-5622), and an RF Analog Signal Generator (the PXIe-5652). By synchronizing multiple instruments, the NI PXIe-5663E provides versatile functionality from one convenient location. The onboard FPGA of the analyzer makes it an excellent choice for a wide range of test and measurement applications.
There are plenty of I/O connection options offered by the PXIe-5663E analyzer. The IF Digitizer module is equipped with SMA female connectors for both IF IN, CLK IN, and CLK OUT- and it boasts 16 bits of resolution. The RF Signal Downconverter also utilizes an SMA female connector, for both LO IN and LO OUT. This device allows for AC coupling, and has a nominal impedance of 50 Ω. The final module, the RF Analog Signal Generator, uses SMA female connections for it’s front panel.
The power requirements of the NI PXIe-5663e is determined by the specifications for the different modules. For a voltage of +3.3 VDC, the RF Signal Downconverter draws a power of 640 mA, while the IF Digitizer draw 1.75 A. The RF Analog Signal Generator of the PXIe-5663e draws in a power of 1.00 A. For a power rail of +12 VDC, the power required for these modules is 740 mA, 2.25 A, and 1.00 A respectively.
By supporting an instantaneous bandwidth up to 50 MHz and a tuning resolution of 533 nHz, the NI PXIe‑5663E is well suited for applications such as adjacent channel leakage ratio (ACLR) measurements and spurs and harmonics measurements. The device has an operating temperature range of 0 °C to 55 °C, and a storage temperature range of -40 °C to 71 °C. All together, the NI PXIe‑5663E weighs in at 1,245 g (43.9 oz).
| Model | PXIe-5663E |
|---|---|
| Part Numbers | 781259-01, 781260-01, 781259-02, 781260-02, 781339-02, 781339-03, 781339-04 |
| Manufacturer | National Instruments |
| Type | PXI Vector Signal Analyzer |
| Bandwidth | 50 MHz |
| Third-Order Intercept | +21 dBm |
| Onboard Memory Size | 64 MB or 256 MB |
| Dimensions | 8.5 x 0.8 x 5.1 in. (for each separate unit) |
| Weight | Combined Unit: 43.9 oz. |
| Warranty | 2-3 Year Warranty |
| PXIe-5663E Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for the PXIe-5663E:
781258-01, 781258-02, 781259-01, 781259-02, 781260-01, 781260-02, 781339-02, 781339-03, 781339-04, 780486-01, 780486-02, 780566-01, 780566-02
National Instruments PXIe-5663E Frequently Asked Questions
Question: What models comprise the PXIe-5663E?
Answer: The PXIe-5663E is comprised of the PXIe-5601 RF Signal Downconverter, PXIe-5622 IF Digitizer, and PXIe-5652 RF Analog Signal Generator.
Question: Why does the PXIe-5663E Vector Signal Analyzer have 7 part numbers?
Answer: The PXIe-5663E Vector Signal Analyzer has multiple part numbers with varying specifications available. For example, part number 781259-01 has 64 MB onboard memory size, 10 MHz to 3.4 GHz frequency range, and 1 channel. Part number 781260-01 has 64 MB onboard memory size, 10 MHz to 6.6 GHz, and 1 channel. Part number 781259-02 has 256 MB onboard memory size, 10 MHz to 3.4 GHz frequency range, and 1 channel. Next, part number 781260-02 has 256 MB onboard memory size, 10 MHz to 6.6 GHz frequency range, and 1 channel. Part number 781339-02 has 256 MB onboard memory size, 10 MHz to 6.6 GHz frequency range, and 2 channels. Then, part number 781339-03 has 256 MB onboard memory size, 10 MHz to 6.6 GHz frequency range, and 3 channels. Finally, part number 781339-04 has 256 MB onboard memory size, 10 MHz to 6.6 GHz frequency range, and 4 channels.
Question: Does the NI PXIe-5663E have a preamplifier?
Answer: No, the NI PXIe-5663E does not have a preamplifier.
Question: Which instrument driver can be used with the PXIe-5663E?
Answer: The NI-RFSA version 2.3 or later can be used with the PXIe-5663E.
| Part Number | Unique Attribute(s) |
|---|---|
| 781258-01 | - 64 MB of Onboard Memory - Uses the PXIe-5650 Signal Generator (1.3 GHz) - Uses Part Number 780412-01 of the PXIe-5622 IF Digitizer |
| 781258-02 | - 256 MB of Onboard Memory - Uses the PXIe-5650 Signal Generator (1.3 GHz) - Uses Part Number 780412-02 of the PXIe-5622 IF Digitizer |
| 781259-01 | - 64 MB of Onboard Memory - Uses the PXIe-5651 Signal Generator (3.3 GHz) - Uses Part Number 780412-01 of the PXIe-5622 IF Digitizer |
| 781259-02 | - 256 MB of Onboard Memory - Uses the PXIe-5651 Signal Generator (3.3 GHz) - Uses Part Number 780412-02 of the PXIe-5622 IF Digitizer |
| 781260-01 | - 64 MB of Onboard Memory - Uses the PXIe-5652 Signal Generator (6.6 GHz) - Uses Part Number 780412-01 of the PXIe-5622 IF Digitizer |
| 781260-02 | - 256 MB of Onboard Memory - Uses the PXIe-5652 Signal Generator (6.6 GHz) - Uses Part Number 780412-02 of the PXIe-5622 IF Digitizer |
| 781339-02 | - 2 Input Channels - 256 MB of Onboard Memory - Uses the PXIe-5652 Signal Generator (6.6 GHz) - Uses 2 of the PXIe-5622 IF Digitizer and 2 of the PXIe-5601 Downconverter |
| 781339-03 | - 3 Input Channels - 256 MB of Onboard Memory - Uses the PXIe-5652 Signal Generator (6.6 GHz) - Uses 3 of the PXIe-5622 IF Digitizer and 3 of the PXIe-5601 Downconverter |
| 781339-04 | - 4 Input Channels - 256 MB of Onboard Memory - Uses the PXIe-5652 Signal Generator (6.6 GHz) - Uses 4 of the PXIe-5622 IF Digitizer and 4 of the PXIe-5601 Downconverter |
PXIe-5663E PDF Manuals
GETTING STARTED WITH THE NATIONAL INSTRUMENTS 6.6 GHZ MIMO PLATFORM.PDF
MAINTAIN FORCED AIR COOLING NOTE TO USERS.PDF
NI 5663E CALIBRATION PROCEDURE.PDF
NI FM RDS TOOLKIT SPECIFICATIONS.PDF
NI GSM EDGE TOOLKIT 1.1 SPECIFICATIONS.PDF
NI LTE TOOLKIT SPECIFICATIONS.PDF
NI PXIE 5663E GETTING STARTED GUIDE.PDF
NI WCDMA HSPA TOOLKIT SPECIFICATIONS.PDF
PXI VECTOR SIGNAL ANALYZERS PRODUCT FLYER.PDF
PXI VECTOR SIGNAL GENERATORS PRODUCT FLYER.PDF
PXIE 5663E LETTER OF VOLATILITY.PDF
Why Buy From Apex Waves:
Verified
"Hand carrying parts to fedex directly to make sure I get them overnight. Great service"
"They were very helpful to get me the test equipment that I need."
PXIe-5663E
Modular Systems > National Instruments > PXI Analyzers
NI PXIe-5663E, 10 MHz to 6.6 GHz, SMA Female Connectors, PXI Vector Signal Analyzer
1-800-915-6216
- Description
- Technical Specifications
- FAQ
- Part Variations
- Manuals & PDFs

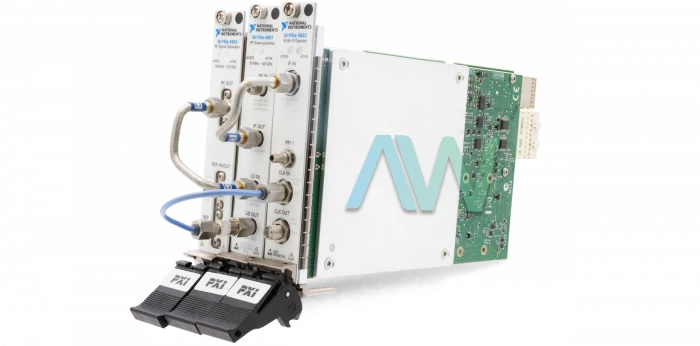

National Instruments PXIe‑5663E PXI Vector Signal Analyzer
