PXIe-8521 In Stock | Ships in 5-10 Days
PXIe-8521, 4-Port, PXI Automotive Ethernet Interface Module
Need an Official Quote?

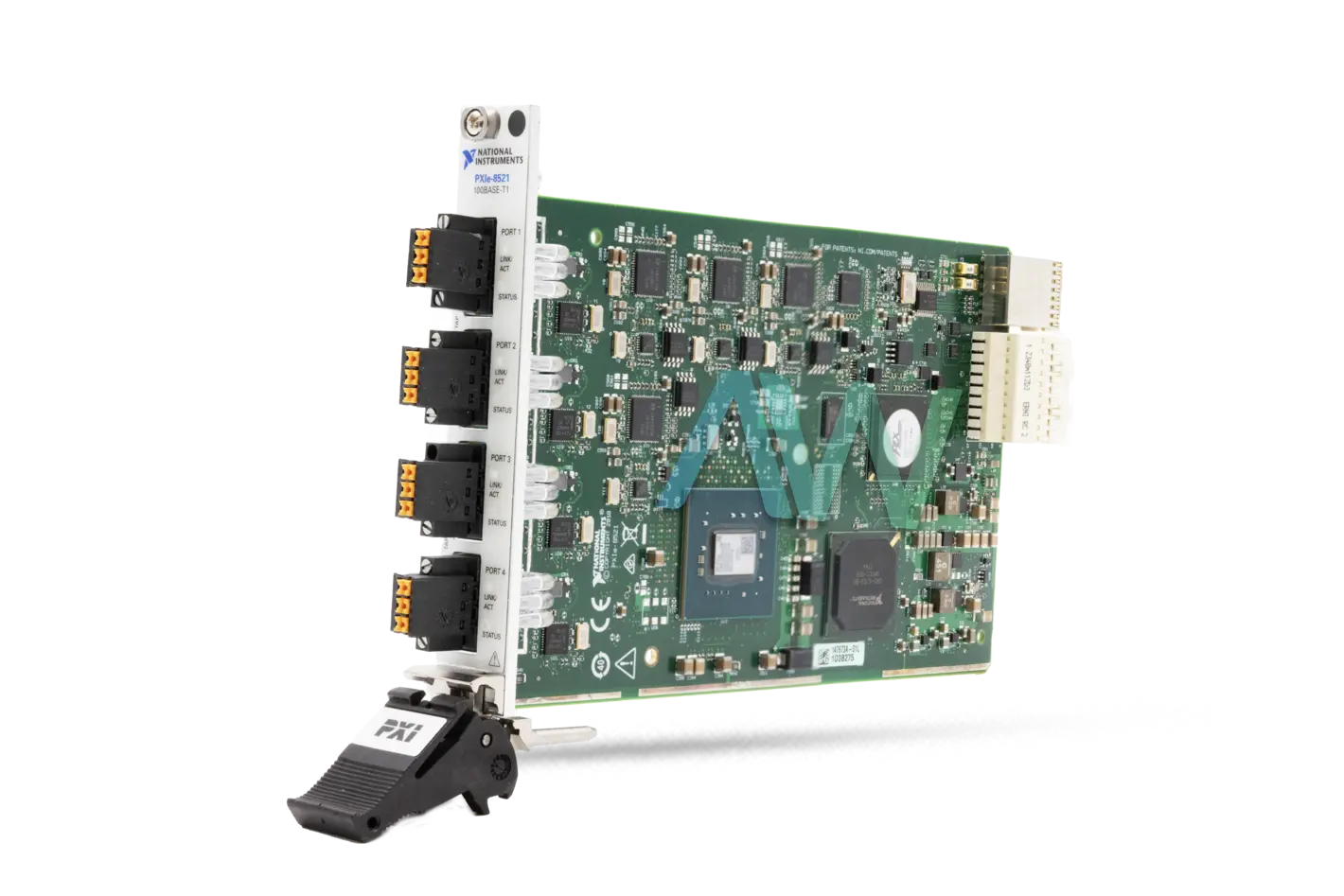

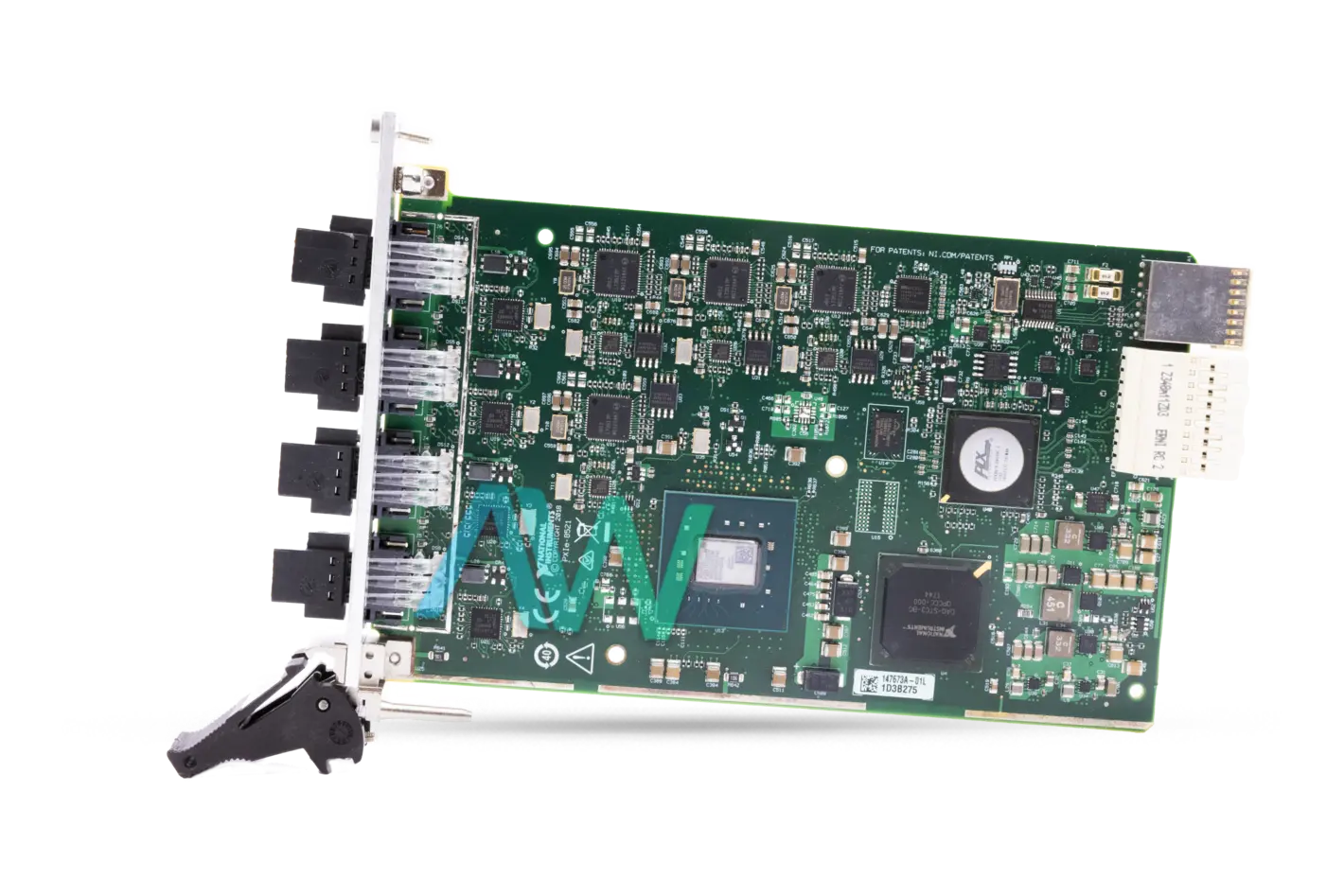

National Instruments PXIe-8521 PXI Automotive Ethernet Interface Module
The PXIe-8521 (Part Numbers: 786771-01,147673B-02L ) is a PXI Automotive Ethernet Interface Module. The PXIe-8521 module is a module created by National Instruments. The NI PXIe-8521 module is launched with part numbers 786771-01 and 147673B-02L. The PXIe-8521 module belongs to the family of products made for PXI Express bus slots by NI. National Instruments created the NI-XNET driver software for developing applications with this module. The NI PXIe-8521 module is assembled with 4 ports.
The NI PXIe-8521 is a 100BASE-T1 unshielded twisted pair (UTP) PXI Automotive Ethernet Interface Module. The NI PXIe-8521 is perfect for developing applications that involve Automotive Ethernet to validate and assess automotive electronic control units (ECUs). This Automotive Ethernet Interface Module supports a maximum of four independent endpoints. The NI PXIe-8521 module can additionally support a maximum of 2 network terminal access points.
The National Instruments PXIe-8521 PXI Automotive Ethernet Interface Module is produced with many useful features, such as onboard hardware timestamping. The front panel of the PXIe-8521 module is equipped with several LED indicators, which allow the user to monitor the network link and activity. This module also can act as a maximum of four individual 802.1AS masters or slaves. This feature enables the module to synchronize with an external network and the remainder of a PXI system. The NI PXIe-8521 is manufactured as a Gen 2 x4 PXI Express, rev 1.0 compliant module. The PXIe-8521 contains Weidmuller BLF 3.50, 3-position I/O connectors. The NI PXIe-8521 module is built with a network tap latency of 1.73 μs.
Model | PXIe-8521 |
---|---|
Manufacturer | National Instruments |
Part Number | 786771-01, 147673B-02L |
Type | PXI Automotive Ethernet Interface Module |
Ports | 4 |
Form Factor | Gen 2 x4 PXI Express, specification rev 1.0 compliant |
Slot Compatibility | x1, x4, x8 and x16 PXI Express or PXI Express hybrid slots |
I/O Connectors | Weidmuller BLF 3.50, 3-position |
Dimensions | 6.0 in. x 3.9 in. |
Weight | 6.0 oz. |
Warranty | 2-3 Year Warranty |
PXIe-8521 Manual | User Manual and Maintenance Manual Available for Download |
Price | Contact a sales representative for a quote. |
Associated part numbers for the PXIe-8521:
147673A-01L, 147673B-01L, 147673B-02L, 147673B-03L, 147673B-99L, 147673C-01L, 200564A-01, 200800A-01, 786771-01
PXIe-8521 PDF Manuals
PXIE 8521 LETTER OF VOLATILITY.PDF
PXIE 8521 SAFETY ENVIRONMENTAL AND REGULATORY INFORMATION.PDF
Driver Downloads for PXIe-8521
OS Compatibility:
Win XP 32-bit, Win 7 32-bit, Win 10 32-bit
Why Buy From Apex Waves:
"Hand carrying parts to fedex directly to make sure I get them overnight. Great service"
"They were very helpful to get me the test equipment that I need."
PXIe-8521
Modular Systems > National Instruments > PXI Automotive Ethernet Interfaces
PXIe-8521, 4-Port, PXI Automotive Ethernet Interface Module
1-800-915-6216
- Description
- Technical Specifications
- Manuals & PDFs
- Drivers

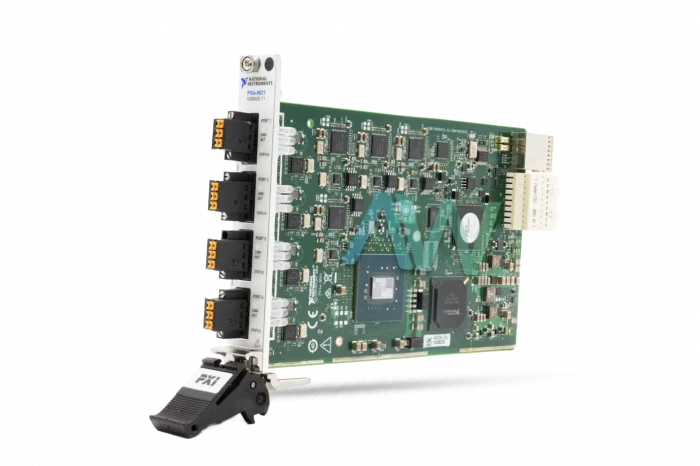

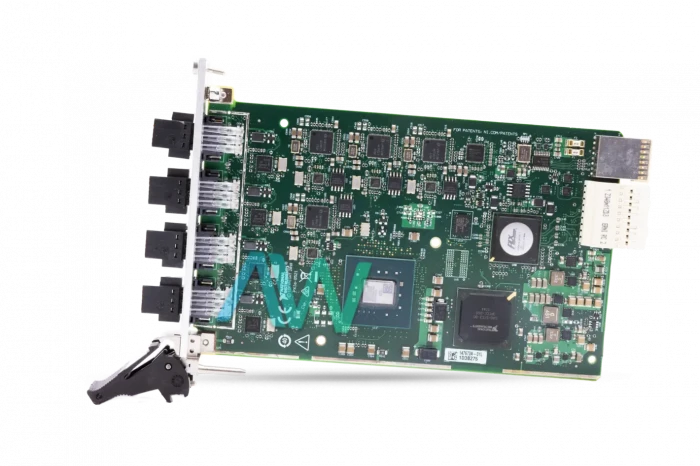

National Instruments PXIe-8521 PXI Automotive Ethernet Interface Module
