PXI-2800 In Stock | Ships in 5-10 Days
PXI-2800, 4-Slot, PXI Carrier Module for SwitchBlock Relay Cards
Need an Official Quote?

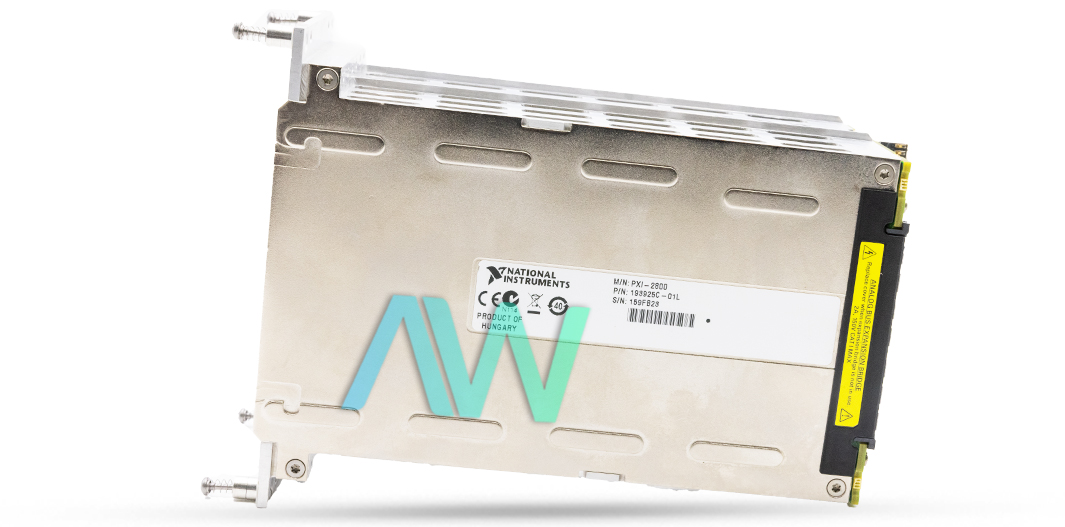

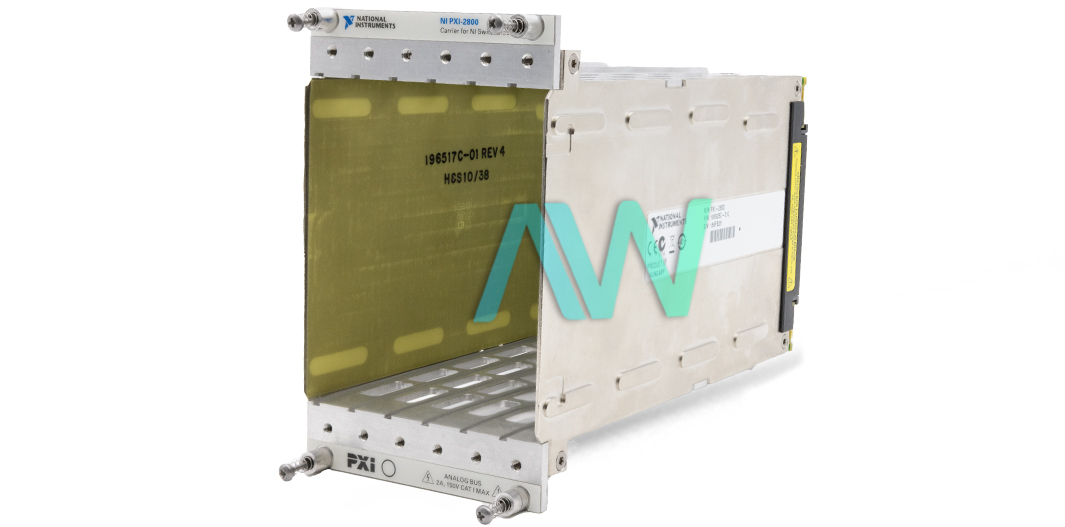

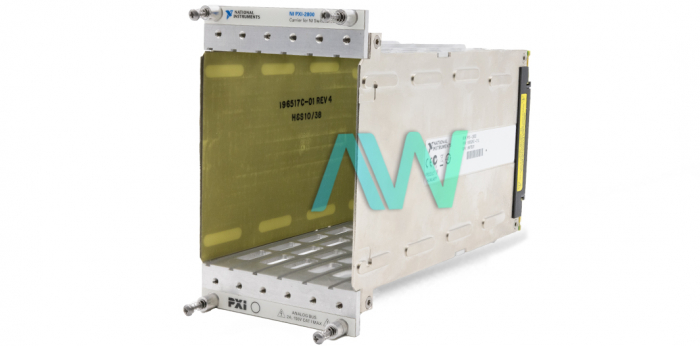

National Instruments PXI-2800 PXI Carrier Module for SwitchBlock
The National Instruments PXI-2800 (Part Number: 781420-00) is a framework module for SwitchBlock that can hold up to six SwitchBlock relay cards and takes up four PXI slots. By interfacing a few SwitchBlock relay cards through the bus, an integrated system integrator, the user can easily make huge arrays that have more than 2,000 crossing points on four PXI slots and more than 8,000 crossing points on a single PXI chassis. Intended for mechanized test frameworks with high channel counts, SwitchBlock cards give intuitive option to setup, routing, programming and maintenance of the switch. This arrangement of new relay cards incorporates multiple two-wire switches for differential estimation and 16 row switches that deliver a more noteworthy number of simultaneous associations for extensive switching applications. The NI PXI-2800 Carrier Module offers a Switch Executive switch-management software that lets the user graphically arrange a switch framework one relay at a time for total control or to automatically route signals across multiple relay cards by indicating endpoints. By combining Switch Executive with LabView framework-design software, the user can arrange various route groups to configure, program, and maintain large matrix setups.
SwitchBlock involves an expandable carrier that suits up to six relay cards, while occupying only four slots in a PXI chassis. Up to four SwitchBlock carriers can be combined to form internally routed matrices with as many as 8832 crosspoints in a single PXI chassis.
Model | PXI-2800 (781420-00) |
---|---|
Manufacturer | National Instruments |
Type | PXI Carrier Module |
Maximum Current | 2 A |
Maximum Voltage | 150 V, CAT 1 |
Compatible Modules | PXI, PXIe, cPCI modules |
Dimensions | 7.4 x 3.2 x 5.1 in. |
Weight | 1 lb, 4 oz. |
Warranty | 2-3 Year Warranty |
PXI-2800 Manual | User Manual and Maintenance Manual Available for Download |
Price | Contact a sales representative for a quote. |
Associated part numbers for the PXI-2800:
165964A-03, 165964B-03, 193925A-01L, 193925B-01L, 193925C-01L, 193925D-01L, 200038A-01, 781420-00
Associated NSNs for the PXI-2800:
5998-01-654-3886 (5998016543886)
National Instruments PXI-2800 Frequently Asked Questions
Question: What is the power requirement for the NI PXI-2800?
Answer: The NI PXI-2800 has a power requirement of 5 W at 3.3 V and 20 W at 5 V.
Question: How many slots does the PXI-2800 have?
Answer: The PXI-2800 has four slots.
Question: Which accessories are available for the PXI-2800 Carrier Module?
Answer: The PXI-2800 Carrier Module has one accessor available for purchase: the NI 2806 Expansion Bridge for NI SwitchBlock (Part number: 781420-06).
Question: What is the operating temperature range for the PXI-2800?
Answer: The PXI-2800 has an operating temperature range of 0 to 55 degrees C.
PXI-2800 PDF Manuals
NI PXI-2800 LETTER OF VOLATILITY.PDF
NI PXI-2800 SPECIFICATIONS.PDF
NI SWITCHBLOCK GETTING STARTED GUIDE.PDF
PXI-2800 LETTER OF VOLATILITY.PDF
PXI-2800 Diagrams
Driver Downloads for PXI-2800
OS Compatibility:
Win XP 32-bit, Win 7 32-bit, Win 10 32-bit
