PXIe-1084 In Stock | Ships Today
NI PXIe-1084, PXI Express, 47 to 440 Hz Frequency, 786397-01, 784058-01, PXI Chassis
Need an Official Quote?

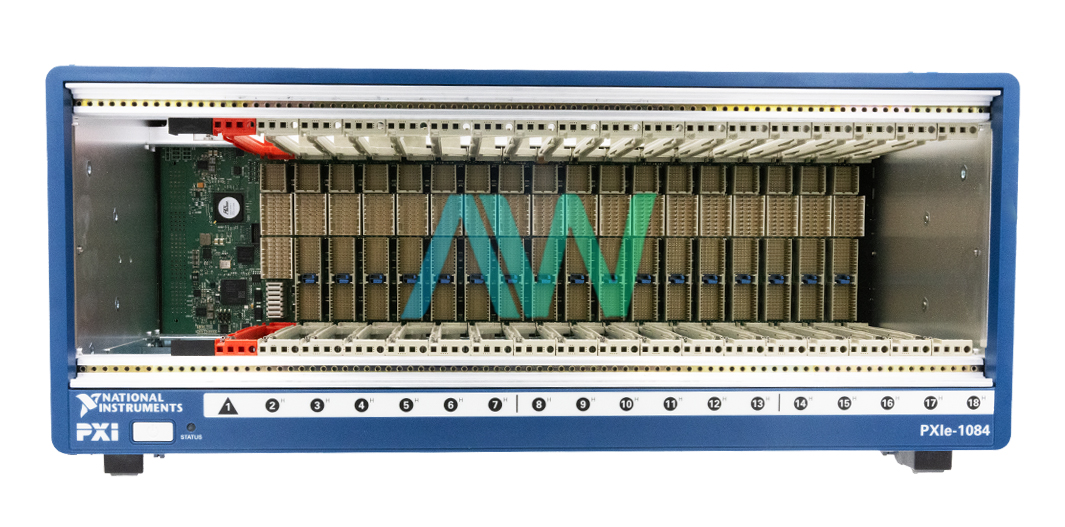

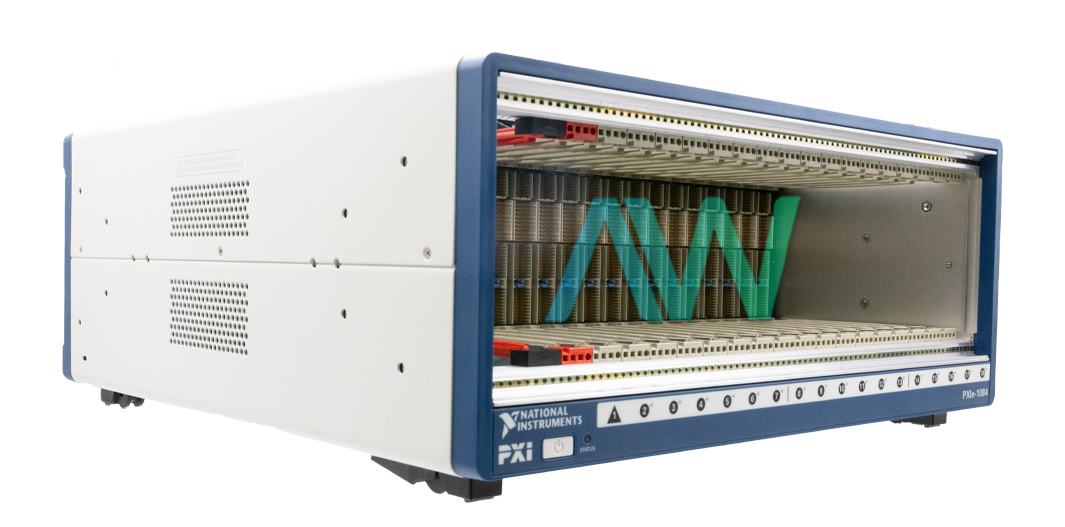

National Instruments PXIe-1084 PXI Chassis
The PXIe-1084 (Part Numbers: 786397-01, 784058-01) by National Instruments is a high-performance test and measurement chassis intended to satisfy a range of industrial application requirements. It enables versatility in instrumentation module placement with an all-hybrid backplane and a hybrid connector type in each peripheral slot. The PXIe-1084 has a strong power and cooling system that can dissipate up to 58 W per slot, ensuring reliable operation even under demanding conditions. Its forced air circulation system, which consists of three 210 CFM fans for module cooling and one 70 CFM fan for secondary cooling, keeps the power supply and module temperatures at ideal levels.
With an operational voltage range of 90 to 264 VAC, the chassis accommodates a broad input rating of 100 to 240 VAC at 50/60 Hz and 100 to 120 VAC at 400 Hz. Additionally, with a typical efficiency of 85%, it can handle an input frequency range of 47 to 440 Hz. For enhanced timing and synchronization capabilities, the PXIe-1084 offers an option for external clock and trigger routing, facilitated by a rear-panel 15-pin connector and inhibit mode switch.
When it comes to environmental adaptability, the chassis operates within an ambient temperature range of 0°C to 50°C for peripheral slots with up to 38 W power consumption per slot and 0°C to 40°C for slots with up to 58 W power consumption per slot. It satisfies the low temperature tolerance of MIL-PRF-28800F Class 3 and high temperature tolerance of MIL-PRF-28800F Class 4 for slots dissipating up to 58 W. The chassis can sustain operational random vibration at 0.3 grms (5 to 500 Hz) and operational shock up to 30 g peak (11 ms half-sine pulse).
The PXIe-1084 is equipped with a low-jitter 10 MHz System Reference Clock (PXI_CLK10) with ±25 ppm accuracy for system synchronization. Its precision spans the working temperature range and has a maximum slot-to-slot skew of 250 ps. It maintains an unloaded signal swing of 3.3 V ±0.3 V, a duty factor between 45% and 55%, and a maximum jitter of 5 ps RMS phase-jitter (10 Hz–1 MHz range).
| Model | PXIe-1084 |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 784058-01 and 786397-01 |
| Type | PXI Chassis |
| Hybrid Slots | 17 Hybrid Peripheral Slots, One System Slot (total 18 slots) |
| Chassis Power Supply Type | AC Power Input: 100–240 VAC, 50/60 Hz, and 100–120 VAC, 400 Hz |
| Onboard Clock Type | VCXO (Voltage-Controlled Crystal Oscillator), ±25 ppm Accuracy |
| Slot Cooling Capacity | Up to 58 W per slot, Total Chassis Cooling Capacity of 650 W |
| Dimensions | 6.97 in. x 17.54 in. x 18.25 in. |
| Weight | 29.8 lb. |
| Total Power | 2-3 Year Warranty |
| PXIe-1084 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for the PXIe-1084:
130343A-01, 130343B-01, 132921A-01, 132921B-01, 140172B-01L, 140661A-01L, 140661A-02L, 140661B-01L, 140661B-02L, 140661C-01L, 140661C-02L, 147363A-01, 147363B-01, 158381A-01L, 158381A-99L, 158381B-01L, 158381B-02L, 158381B-99L, 158381C-01L, 158381C-02L, 158381C-99L, 158381D-01L, 158381D-02L, 158381E-01L, 158381E-02L, 158381E-99L, 158381F-01L, 158381F-02L, 158539A-01L, 158539A-98L, 158539B-01L, 158539B-02L, 158539C-01L, 158539C-02L, 158539D-01L, 158539E-01L, 158539E-02L, 158966A-01L, 158966B-01L, 158966C-01L, 158966C-02L, 158966C-03L, 158966C-21L, 158966C-99L, 158966D-21L, 158966E-01L, 158966E-03L, 158966E-21L, 158966F-01L, 158966F-03L, 158966F-21L, 158966G-01L, 158966H-01L, 158966H-21L, 192985A-01L, 192985A-02L, 192985A-04L, 200244A-01, 200412A-01, 200577A-01, 200786A-01, 784058-01, 785668-01, 786397-01
National Instruments PXIe-1084 Frequently Asked Questions
Question: What does a blinking red power supply LED on the PXIe-1084 indicate?
Answer: A blinking red power supply LED indicates that the supply is operating outside of it's specification.
Question: How do I clean the interior of the PXIe-1084?
Answer: The interior of the chassis can be cleaned by using a dry, low-velocity stream of air or a soft-bristle brush.
Question: Does the PXIe-1084 have expansion slots?
Answer: Yes, the PXIe-1084 has three system controller expansion slots.
PXIe-1084 PDF Manuals
18 SLOT PXI BACKPLANE INSTALLATION GUIDE.PDF
PXIE 1084 LETTER OF VOLATILITY.PDF
PXIE 1084 TIMING AND SYNC LETTER OF VOLATILITY.PDF
Why Buy From Apex Waves:
Verified
"Hand carrying parts to fedex directly to make sure I get them overnight. Great service"
"They were very helpful to get me the test equipment that I need."
PXIe-1084
Modular Systems > National Instruments > PXI Carrier Modules
NI PXIe-1084, PXI Express, 47 to 440 Hz Frequency, 786397-01, 784058-01, PXI Chassis
1-800-915-6216
- Description
- Technical Specifications
- FAQ
- Manuals & PDFs

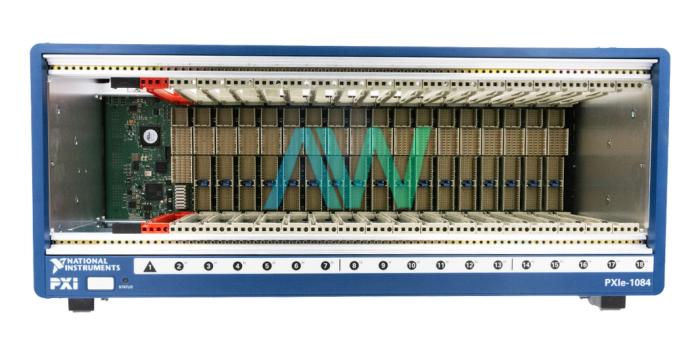

National Instruments PXIe-1084 PXI Chassis
