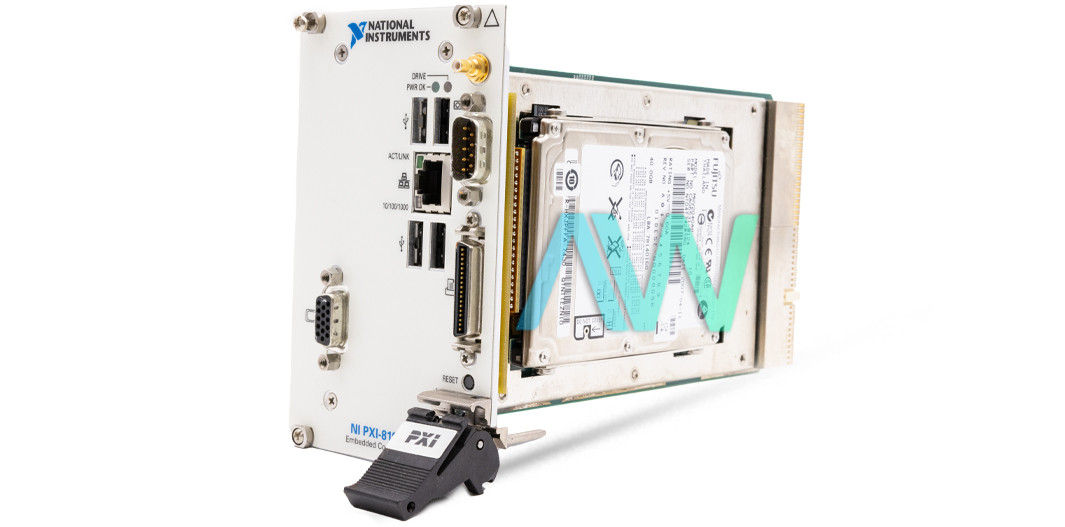

National Instruments 779910-01 PXI Controller
National Instruments part number 779910-01 is an identifying part number for the PXI-8195, a PXI Controller. The NI 779910-01 has a 48kHz Single-Channel PID Loop. This module incorporates a Gigabit Ethernet port (10/100/1000 BaseTX), along with an integrated hard drive, serial connectivity, and various other peripherals. It leverages the Mobile Intel 915GM Express chipset, ensuring optimal stability, flexibility, and performance. Equipped with the PCI Express bus, the 915GM Express chipset facilitates full-rate Gigabit Ethernet and an ExpressCard interface.
This National Instruments PXI Controller boasts a comprehensive array of onboard peripherals, including 10/100/1000 BaseTX Ethernet, GPIB (IEEE 488.2) Interface, Serial Port, Parallel Port, USB 2.0 Ports, ExpressCard/34 Slot, Watchdog/Trigger SMB, and PS/2 Keyboard/Mouse Connector. Its ExpressCard/34 slot allows users to expand functionality by adding another Gigabit Ethernet port or various additional peripheral I/O options like Bluetooth, IEEE 1394, 802.11 wireless LAN, and various memory adaptors. The NI 779910-01 operates using the NI-DAQmx driver software, ensuring compatibility with software packages and application development environments (ADEs) like LabVIEW, LabWindows/CVI, or Measurement Studio. Configuration is facilitated through the Measurement & Automation Explorer (MAX) tool.
The supports booting from multiple sources, including the internal IDE hard drive, a network PXE server (within the same subnet), external SCSI hard drive, external CD-ROM (via SCSI adapter), and external USB mass storage devices like CD-ROMs or USB hard drives. This NI Controller operates using the NI-DAQmx driver software, which is compatible with software packages and application development environments (ADEs) like LabVIEW, LabWindows/CVI, and Measurement Studio.
Configuration of the controller can be performed using the Measurement & Automation Explorer (MAX) tool.
| Part Number | 779910-01 |
|---|---|
| Model Name | PXI-8195 |
| Part Type | PXI Controller |
| Standard RAM | 256 MB |
| CPU | 1.5 GHz Celeron M 370 |
| Slot Requirements | 1 system slot and 3 controller expansion slots |
| Compatibility | Fully compatible with PXI specification |
| Maximum current | 3.2 A |
| Storage Temperature Requirement | –20 to 65 °C |
| Weight | 1.7 lb |
779910-01 PDF Manuals
NI PXI 8195 8196 INSTALLATION GUIDE.PDF
NI PXI 8195 8196 USER MANUAL AND SPECIFICATIONS.PDF
PXI EXPRESS EMBEDDED CONTROLLERS PRODUCT FLYER.PDF
PXI 8196_8195 DIMENSIONAL DRAWING.PDF
