785546-01
Modular Systems > National Instruments > PXI Controllers
| Description: | 785546-01, 8 GB, Four USB 2.0 Ports, 2.7 GHz, PXIe-8840 PXI Controller |
Need an Official Quote?
Or speak to a sales representative for additional information:
Phone:1-800-915-6216
Email:sales@apexwaves.com

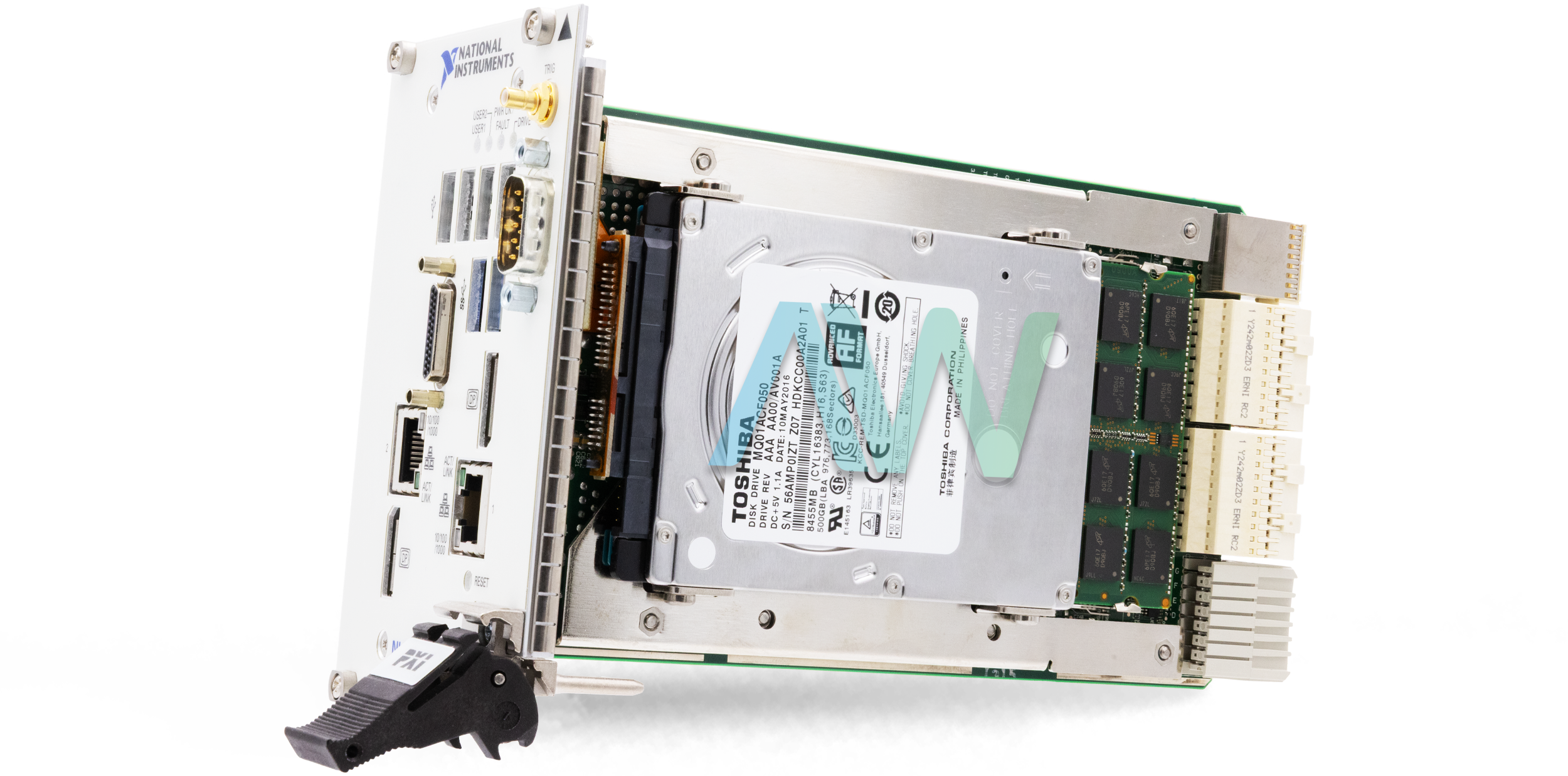

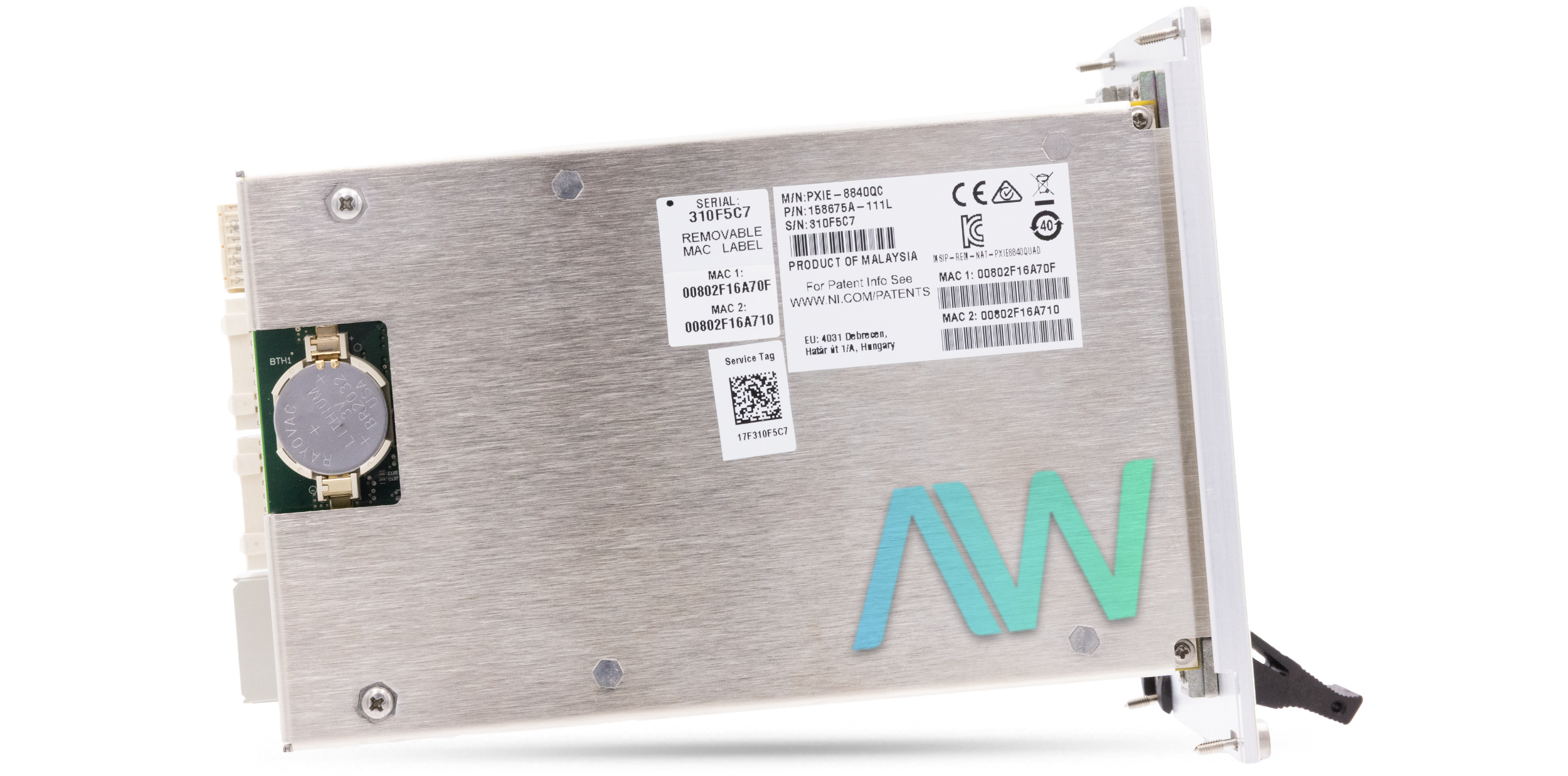

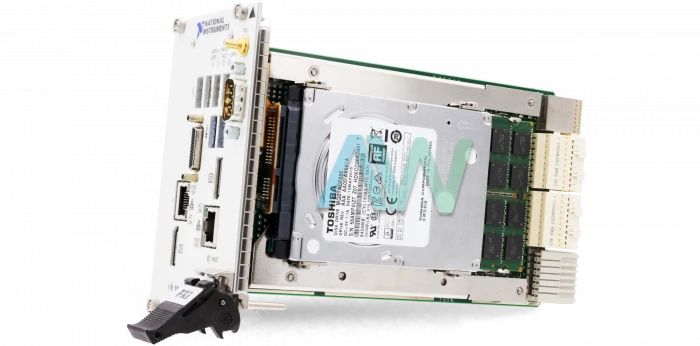

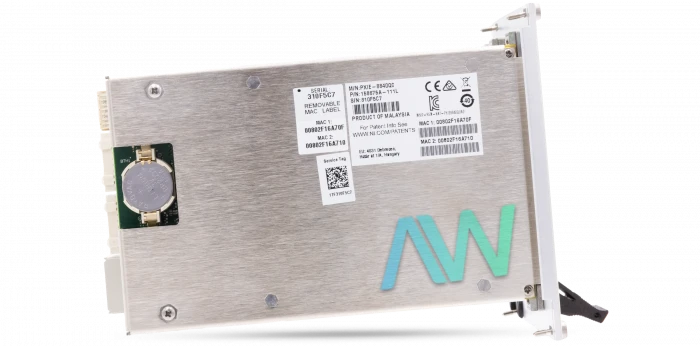

National Instruments 785546-01 PXI Controller
One of the most important parts of the PXIe-8840 Model series, the 785546-01 PXI Controller is made to perform well in activities requiring a lot of processing power and in modular instrumentation arrangements. This controller, which uses an Intel® CoreTM i5 4400E CPU clocked at 2.7 GHz, is intended for demanding industrial automation data gathering applications.
Along with four USB 2.0 connections, it also has two serial connectors, four USB 3.0, two USB 2.0, and two Gigabit Ethernet ports. This allows for a multitude of peripheral device connecting possibilities and seamless instrument integration. In addition, it features a PCI-based GPIB controller and an ExpressCard/34 expansion port, allowing for expansion based on need.
The 785546-01 comes with a minimum 250 GB Serial ATA hard disk and either 8 GB or 2 GB of DDR3L RAM in terms of memory and storage. Support for USB storage devices such as CD/DVD-ROM, mass storage devices, and floppy drives is another one of its data storage characteristics.
The 785546-01's front-panel features improve user comfort and system monitoring. These features include two LEDs that show PC status and a controller reset push button that may be used to initiate resets. A single-channel 1600 MHz DDR3L RAM configuration with a maximum capacity of 8 GB is supported by the controller.
The 785546-01 provides adaptable configuration options to satisfy particular application requirements with a PXI Express four Link Configuration of x4, x4, x4, x4, and a PXI Express two Link Configuration of x8, x8. In addition, it has many USB connections, one RS-232 serial port, and two DisplayPort video outputs for effective data transfer.
With its compatibility with top National Instruments software tools, like LabVIEW, Measurement Studio, and LabWindowsTM/CVITM, the 785546-01 controller offers outstanding control over PXI Express systems. These technologies let users collect data from many different sources and carry out in-depth data analysis.
The 785546-01 PXI Controller, pre-installed with Windows 7 Professional, provides users with a recognizable desktop experience. It is a dependable option for industrial automation and data collection applications because of its strong design and great performance characteristics.
| Part Number | 785546-01 |
|---|---|
| Model Name | PXIe‑8840 |
| Part Type | PXI Controller |
| Processor | Intel® CoreTM i5 4400E |
| Processor Speed | 2.7 GHz |
| Memory | Up to 8 GB DDR3L RAM |
| Storage | Minimum 250 GB Serial ATA HDD |
| Connectivity | 2x Gigabit Ethernet, 4x USB 2.0, 2x USB 3.0, 1x Serial Port |
| Expansion Slots | ExpressCard/34, PCI-based GPIB Controller |
| Operating System | Windows 7 Professional |
| Manufacturer | National Instruments |
