PXI-8108, 2.53 GHz Dual-Core Processor, PXI Controller
Need an Official Quote?

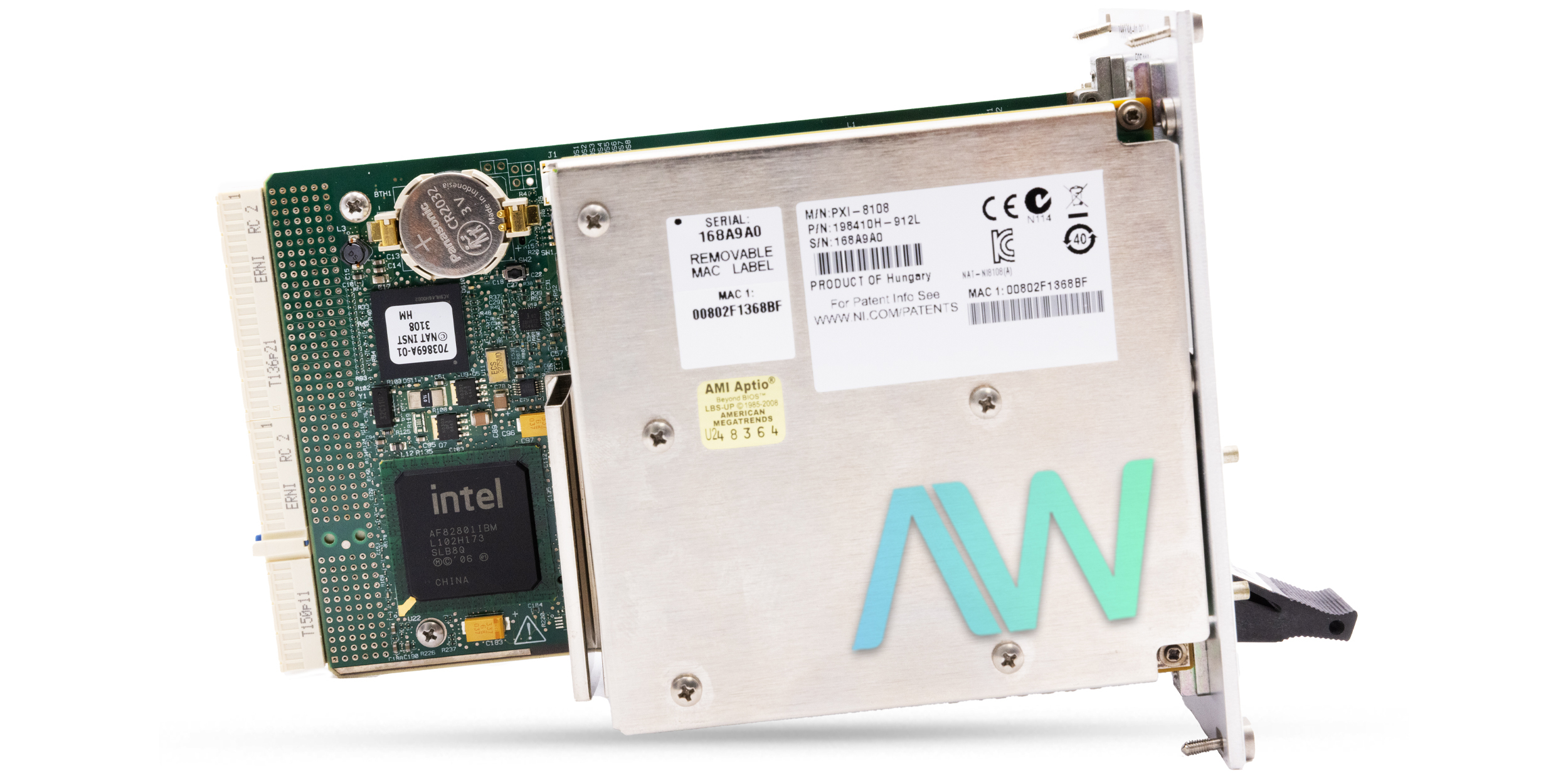

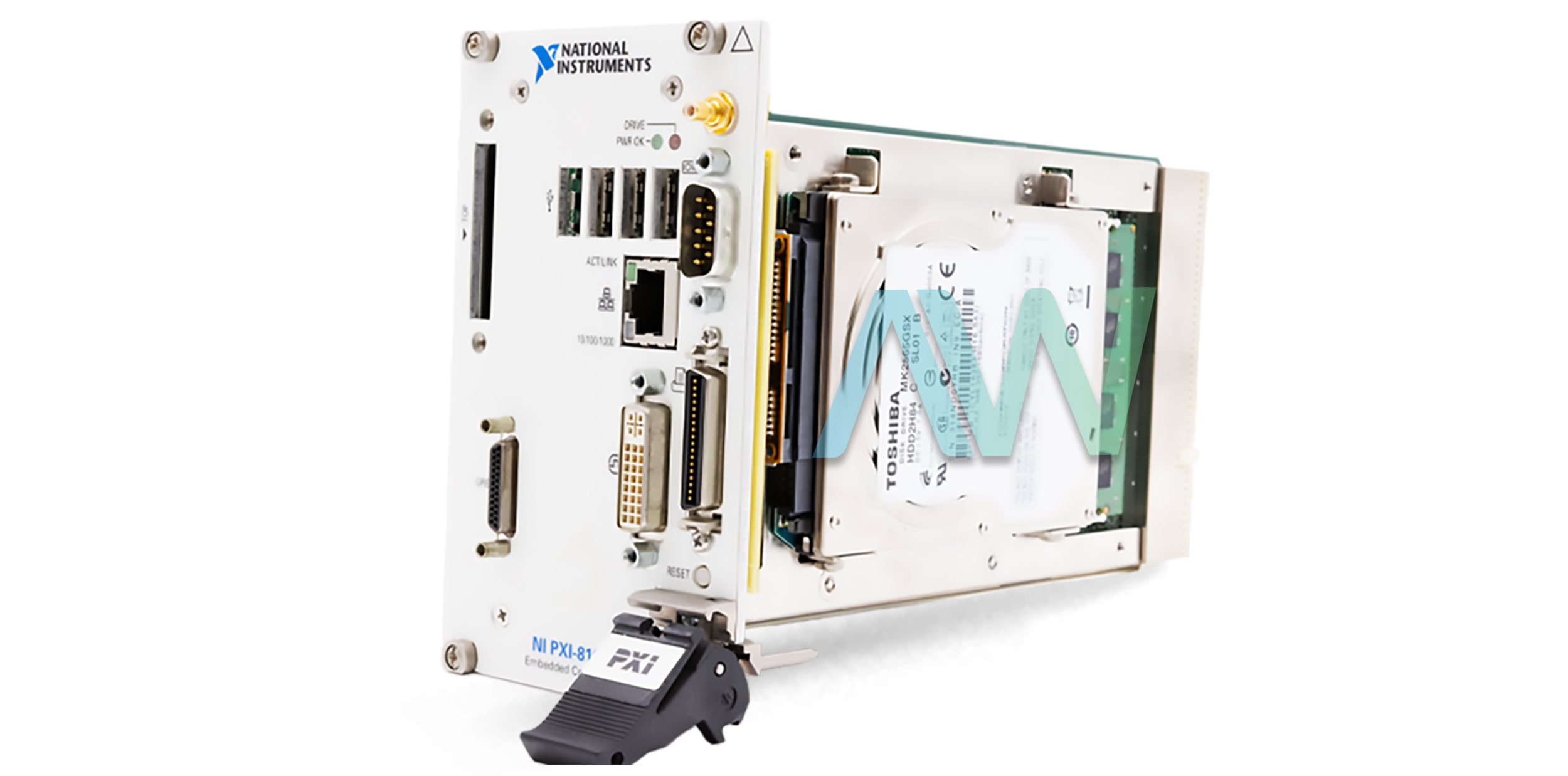

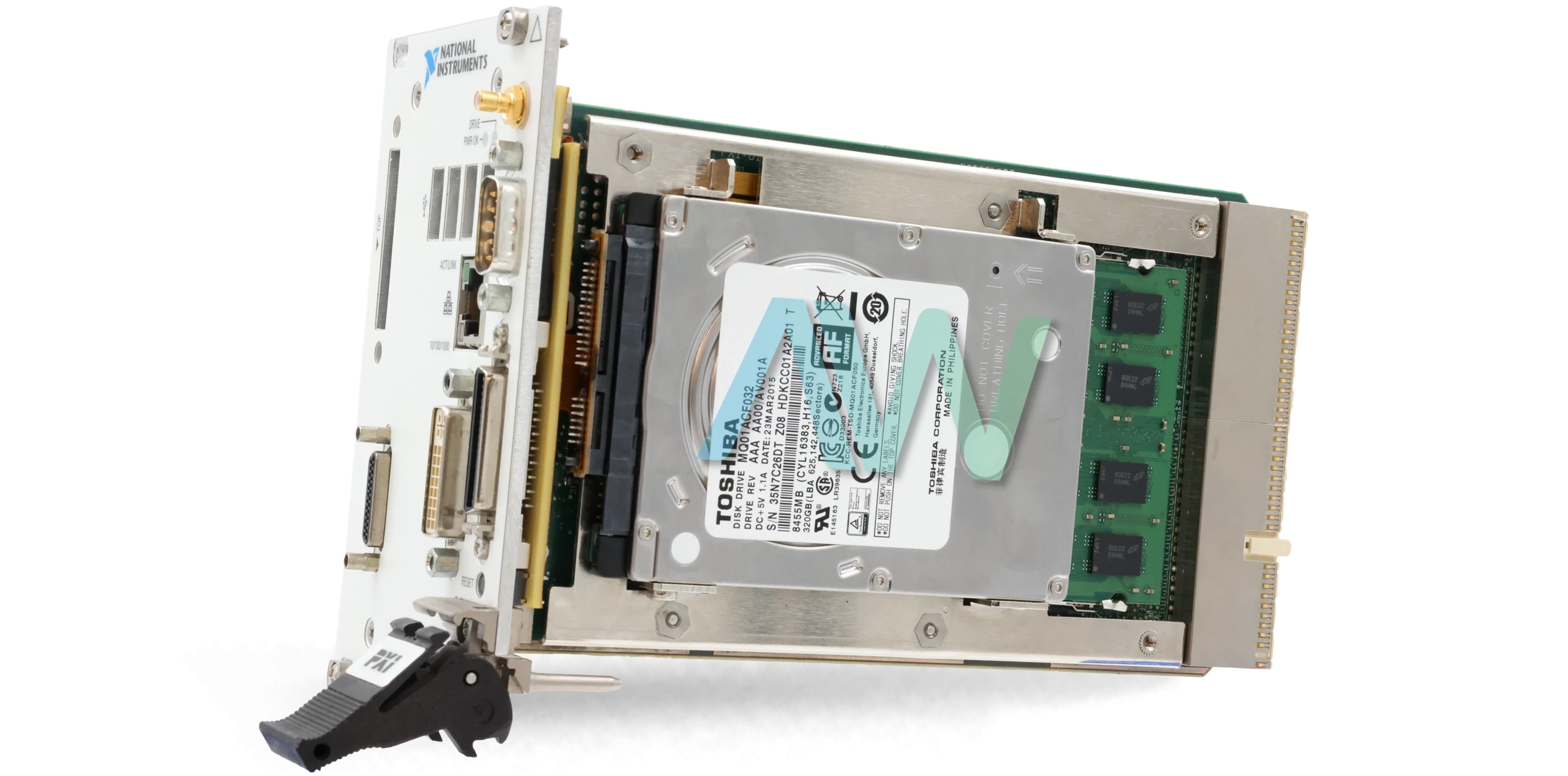

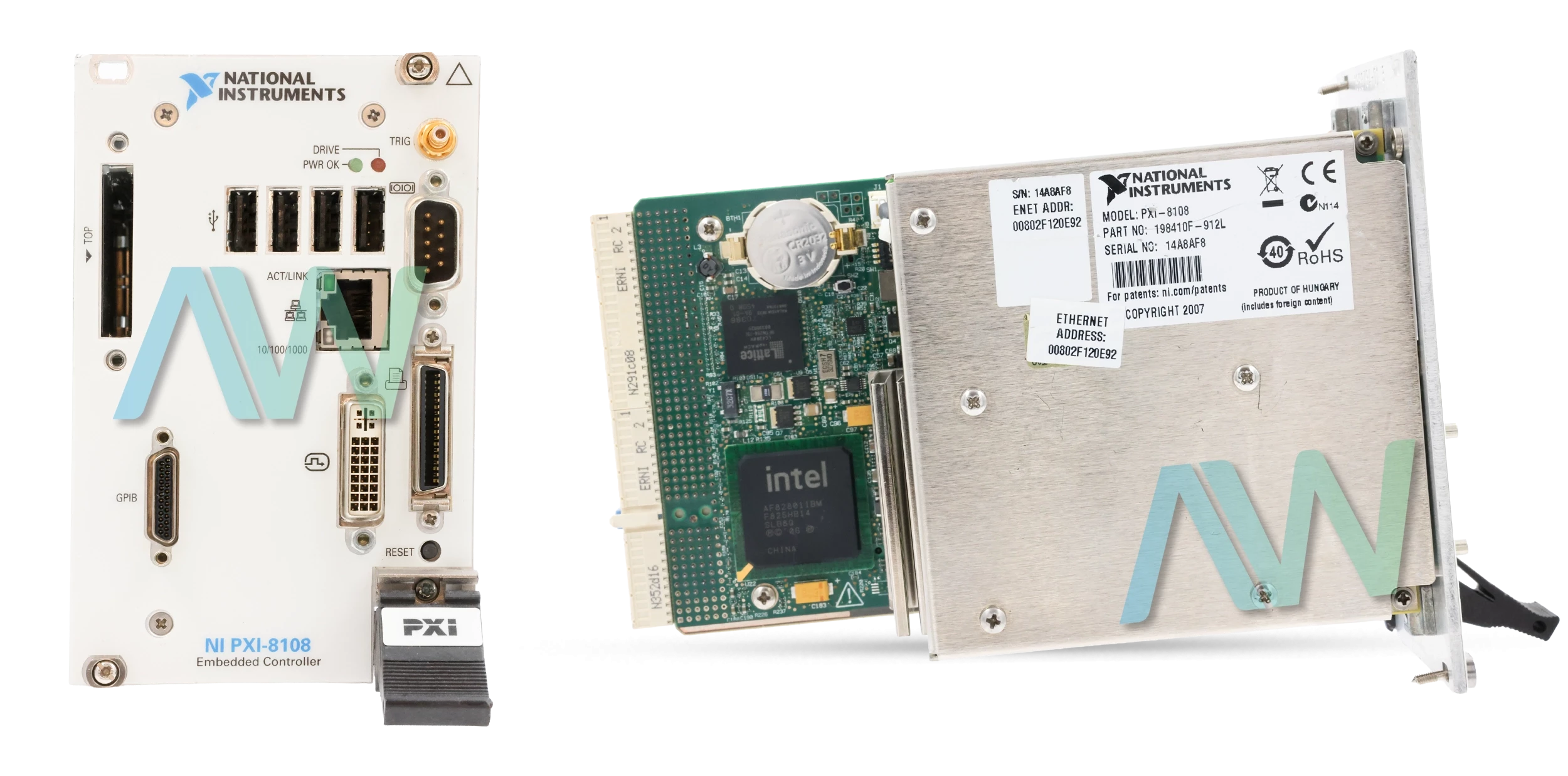

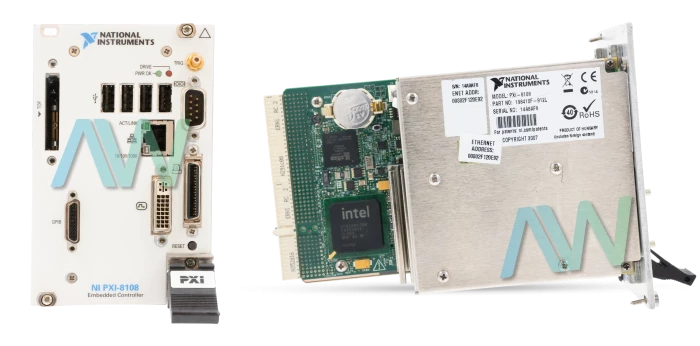

National Instruments PXI-8108 PXI Controller
Featured with an Intel Core 2 Duo T9400 processor (2.53 GHz dual core), 6 MB shared L2 Cache, 1 Dual-channel 800 MHz DDR2 RAM, and 80 GB SATA (5400 rpm) Hard Drive, the National Instruments NI PXI-8108 (Part Numbers: 780446-04, 780447-04, 780446-02, 780447-02, 780446-01, 780447-01) is a microprocessor-based Embedded Controller. The PXI-8108 Controller is offered with a pre-loaded operating system and is fully compatible with Windows 7, Windows Vista, and Windows XP. While Windows 10 can be successfully installed on the controller, the peripheral drivers may not achieve optimal functionality. For a solid video performance, this model comes with a Mobile Intel GM45 Express Chipset with an integrated graphics processing unit or GPU. Thus, the NI PXI-8108 can deliver realistic and intense 3D graphics with sharp images, smooth motion, fast rendering, and high detail. These hardware resources eliminate the requirement of a separate graphics card or other peripherals.
For connecting an external monitor, the NI PXI-8108 Embedded Controller comes equipped with a DVI-I video connector. This video connector supports both the VGA and Digital monitors. However, a VGA connector can only be connected with the help of a special DVI-I to VGA adaptor. Another great feature of this Embedded Controller is its tendency to support dual monitors since it can support simultaneous VGA and DVI output. With this feature, the user will be able to connect and operate an analog and a digital monitor or 2 x VGA monitors to their PXI system by using a VGA (female) and A DVI-I (male) to DVI-D (female) splitter.
The PXI-8108 can be used with several software tools such as LabVIEW, Measurement Studio, Lab Windows/CXI, Microsoft’s Visual Basic, Visual C++, Visual Studio .NET along with the NI-DAQmx driver. The device has various I/O interfaces with their corresponding external connectors. They are: Video I/O interface with a DVI-I (24-pin DSUB) connector, a Serial interface with a COM 1 (9-pin DSUB) connector, an Ethernet interface with a LAN (RJ45) connector, a Parallel interface with a parallel port (36-pin champ) connector, a USB (4 ports) interface with a USB 4-pin Series A stacked receptacle, a PXI trigger interface with a trigger (SMB) connector, a GPIB Controller interface with a GPIB (25-pin Micro D) connector, a ExpressCard/34 module interface with an ExpressCard/34 slot connector.
This Controller utilizes dual-channel 800 MHz DDR2 SDRAM, which makes it an ideal solution for data-intensive applications with the requirement of significant analysis. Users with more challenging applications can always consider upgrading to 4 GB RAM, which is offered in 1 x 4 GB DIMM configuration. Additional PXI-8108 manuals can be found under the "Manuals & PDFs" tab.
PXI-8108 Obsolete Status has been announced by National Instruments, but the controller will still be available for purchase and repairs by Apex Waves.
| Model | PXI-8108 |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 780446-04, 780447-04, 780446-02, 780447-02, 780446-01, 780447-01 |
| HTS Code | 8471500000 |
| Type | PXI Controller |
| CPU | Intel Core 2 Duo T9400 (2.53 GHz dual core) |
| L2 Cache | 6 MB shared |
| Standard RAM | 1 GB |
| Dimensions | 3.2 x 5.1 x 8.5 in. |
| Weight | 2.02 lb. |
| Warranty | Three Year Warranty |
| PXI-8108 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for the PXI-8108:
1.9841E-18, 196685B-712L, 196827A-01L, 196827B-01L, 196827C-01L, 196827D-01L, 196912A-01L, 196912B-01L, 198410A-01, 198410A-023, 198410A-012, 198410A-023L, 198410A-012L, 198410A-712, 198410A-712L, 198410A-723, 198410A-723L, 198410A-812, 198410A-812L, 198410A-823, 198410A-823L, 198410B-012L, 198410B-023L, 198410B-712, 198410B-712L, 198410B-716L, 198410B-723, 198410B-723L, 198410B-812L, 198410B-823L, 198410C-012L, 198410C-023L, 198410C-712L, 198410C-716L, 198410C-723L, 198410C-812L, 198410C-823L, 198410D-012, 198410D-012L, 198410D-023, 198410D-023L, 198410D-712L, 198410D-716L, 198410D-723L, 198410D-812L, 198410D-823L, 198410E-012L, 198410E-023L, 198410E-712, 198410E-712L, 198410E-716L, 198410E-723, 198410E-723L, 198410E-812L, 198410E-823L, 198410F-012L, 198410F-023L, 198410F-712L, 198410F-716L, 198410F-723L, 198410F-812L, 198410F-823L, 198410F-912L, 198410F-923L, 198410G-012L, 198410G-023L, 198410G-712L, 198410G-716L, 198410G-723L, 198410G-812L, 198410G-823L, 198410G-912L, 198410G-923L, 198410H-012L, 198410H-023L, 198410H-712L, 198410H-716L, 198410H-723L, 198410H-812L, 198410H-823L, 198410H-912L, 198410H-923L, 198410J-012L, 198410J-023L, 198410J-712L, 198410J-716L, 198410J-723L, 198410J-812L, 198410J-823L, 198410J-912L, 198410J-923L, 198410K-712L, 198410K-723L, 780446-00, 780446-01, 780446-02, 780446-04, 780446-11, 780446-33, 780447-00, 780447-01, 780447-02, 780447-04, 780447-33, 780492A-030, 780492B-030, 780492C-030, 781471-01
Associated NSNs for the PXI-8108:
5998-01-592-5408 (5998015925408), 5998-01-616-5709 (5998016165709)
National Instruments PXI-8108 Frequently Asked Questions
Question: What are the PXI-8108 drivers called?
Answer: The PXI-8108 drivers are NI-VISA and NI-488.2.
Question: Is changing the PXI 8108 BIOS settings necessary to configure the model correctly?
Answer: No, changing the PXI 8108 BIOS settings is not necessary. In fact, many users do not need to utilize the BIOS setup because the Controller comes with default settings that will work for most configurations.
Question: Why are there four part numbers for the National Instruments NI PXI-8108?
Answer: The National Instruments NI PXI-8108 has several part numbers with different temperature ranges and software installed. For example, part number 780446-04 has Windows 7 32-bit installed and is the basic model. Part number 780447-04 also has Windows 7 32-bit installed but has an extended temperature range. Part number 780446-02 is the basic model with Windows Vista installed and part number 780447-02 is the extended temperature model with Windows Vista.
Question: What temperature ranges are available for the NI PXI-8108?
Answer: The basic NI PXI-8108 model has an operating temperature range of 5 to 50 degrees C and a storage temperature range of -40 to 65 degrees C. The extended temperature version of the NI PXI-8108 has an operating temperature range from 0 to 55 degrees C and a storage temperature from -40 to 70 degrees C.
Question: Is the PXI-8108 RT compatible with the PXI-1050 chassis?
Answer: Yes, the PXI-1050 and PXI-8108 are compatible since they are both PXI (not PXIe).
Question: Since it only has one DVI port, can I set up dual monitors with the PXI-8108?
Answer: Yes, a DVI-I connector allows you to break the signal out to a DVI as well as VGA connector using a splitter.
PXI-8108 PDF Manuals
2.26 GHZ INTEL CORE 2 DUO QUAD CORE REAL TIME EMBEDDED CONTROLLER FOR PXI DATASHEET.PDF
2.26 GHZ QUAD CORE EMBEDDED CONTROLLER FOR PXI DATASHEET.PDF
2.53 GHZ DUAL CORE EMBEDDED CONTROLLER FOR PXI DATASHEET.PDF
2.53 GHZ INTEL CORE 2 DUO REAL TIME EMBEDDED CONTROLLERS FOR PXI DATASHEET.PDF
ARCHIVED NI PXI 8101 8102 8108 8110 LETTER OF VOLATILITY.PDF
ARCHIVED NI PXI-8108 INSTALLATION GUIDE.PDF
ARCHIVED NI PXI-8108 LETTER OF VOLATILITY.PDF
ARCHIVED NI PXI-8108 USER MANUAL AND SPECIFICATIONS.PDF
CARDBUS AND PCMCIA CARRIER FOR PXI COMPACTPCI DATA SHEET DATASHEET.PDF
GETTING STARTED WITH THE LABVIEW REAL TIME MODULE.PDF
HIGH VALUE REAL TIME EMBEDDED CONTROLLERS FOR PXI DATASHEET.PDF
PXI EXPRESS EMBEDDED CONTROLLERS PRODUCT FLYER.PDF
PXI-8108 Diagrams
Driver Downloads for PXI-8108
OS Compatibility:
Win XP 32-bit, Win 7 32-bit, Win 10 32-bit
Why Buy From Apex Waves:
Verified
"Hand carrying parts to fedex directly to make sure I get them overnight. Great service"
"They were very helpful to get me the test equipment that I need."
PXI-8108
Modular Systems > National Instruments > PXI Controllers
PXI-8108, 2.53 GHz Dual-Core Processor, PXI Controller
1-800-915-6216
- Description
- Technical Specifications
- FAQ
- Manuals & PDFs
- Drivers
National Instruments PXI-8108 PXI Controller
Featured with an Intel Core 2 Duo T9400 processor (2.53 GHz dual core), 6 MB shared L2 Cache, 1 Dual-channel 800 MHz DDR2 RAM, and 80 GB SATA (5400 rpm) Hard Drive, the National Instruments NI PXI-8108 (Part Numbers: 780446-04, 780447-04, 780446-02, 780447-02, 780446-01, 780447-01) is a microprocessor-based Embedded Controller. The PXI-8108 Controller is offered with a pre-loaded operating system and is fully compatible with Windows 7, Windows Vista, and Windows XP. While Windows 10 can be successfully installed on the controller, the peripheral drivers may not achieve optimal functionality. For a solid video performance, this model comes with a Mobile Intel GM45 Express Chipset with an integrated graphics processing unit or GPU. Thus, the NI PXI-8108 can deliver realistic and intense 3D graphics with sharp images, smooth motion, fast rendering, and high detail. These hardware resources eliminate the requirement of a separate graphics card or other peripherals.
For connecting an external monitor, the NI PXI-8108 Embedded Controller comes equipped with a DVI-I video connector. This video connector supports both the VGA and Digital monitors. However, a VGA connector can only be connected with the help of a special DVI-I to VGA adaptor. Another great feature of this Embedded Controller is its tendency to support dual monitors since it can support simultaneous VGA and DVI output. With this feature, the user will be able to connect and operate an analog and a digital monitor or 2 x VGA monitors to their PXI system by using a VGA (female) and A DVI-I (male) to DVI-D (female) splitter.
The PXI-8108 can be used with several software tools such as LabVIEW, Measurement Studio, Lab Windows/CXI, Microsoft’s Visual Basic, Visual C++, Visual Studio .NET along with the NI-DAQmx driver. The device has various I/O interfaces with their corresponding external connectors. They are: Video I/O interface with a DVI-I (24-pin DSUB) connector, a Serial interface with a COM 1 (9-pin DSUB) connector, an Ethernet interface with a LAN (RJ45) connector, a Parallel interface with a parallel port (36-pin champ) connector, a USB (4 ports) interface with a USB 4-pin Series A stacked receptacle, a PXI trigger interface with a trigger (SMB) connector, a GPIB Controller interface with a GPIB (25-pin Micro D) connector, a ExpressCard/34 module interface with an ExpressCard/34 slot connector.
This Controller utilizes dual-channel 800 MHz DDR2 SDRAM, which makes it an ideal solution for data-intensive applications with the requirement of significant analysis. Users with more challenging applications can always consider upgrading to 4 GB RAM, which is offered in 1 x 4 GB DIMM configuration. Additional PXI-8108 manuals can be found under the "Manuals & PDFs" tab.
PXI-8108 Obsolete Status has been announced by National Instruments, but the controller will still be available for purchase and repairs by Apex Waves.
| Model | PXI-8108 |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 780446-04, 780447-04, 780446-02, 780447-02, 780446-01, 780447-01 |
| HTS Code | 8471500000 |
| Type | PXI Controller |
| CPU | Intel Core 2 Duo T9400 (2.53 GHz dual core) |
| L2 Cache | 6 MB shared |
| Standard RAM | 1 GB |
| Dimensions | 3.2 x 5.1 x 8.5 in. |
| Weight | 2.02 lb. |
| Warranty | Three Year Warranty |
| PXI-8108 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
National Instruments PXI-8108 Frequently Asked Questions
Question: What are the PXI-8108 drivers called?
Answer: The PXI-8108 drivers are NI-VISA and NI-488.2.
Question: Is changing the PXI 8108 BIOS settings necessary to configure the model correctly?
Answer: No, changing the PXI 8108 BIOS settings is not necessary. In fact, many users do not need to utilize the BIOS setup because the Controller comes with default settings that will work for most configurations.
Question: Why are there four part numbers for the National Instruments NI PXI-8108?
Answer: The National Instruments NI PXI-8108 has several part numbers with different temperature ranges and software installed. For example, part number 780446-04 has Windows 7 32-bit installed and is the basic model. Part number 780447-04 also has Windows 7 32-bit installed but has an extended temperature range. Part number 780446-02 is the basic model with Windows Vista installed and part number 780447-02 is the extended temperature model with Windows Vista.
Question: What temperature ranges are available for the NI PXI-8108?
Answer: The basic NI PXI-8108 model has an operating temperature range of 5 to 50 degrees C and a storage temperature range of -40 to 65 degrees C. The extended temperature version of the NI PXI-8108 has an operating temperature range from 0 to 55 degrees C and a storage temperature from -40 to 70 degrees C.
Question: Is the PXI-8108 RT compatible with the PXI-1050 chassis?
Answer: Yes, the PXI-1050 and PXI-8108 are compatible since they are both PXI (not PXIe).
Question: Since it only has one DVI port, can I set up dual monitors with the PXI-8108?
Answer: Yes, a DVI-I connector allows you to break the signal out to a DVI as well as VGA connector using a splitter.
PXI-8108 PDF Manuals & Diagrams
PXI-8108 PDF Manuals
2.26 GHZ INTEL CORE 2 DUO QUAD CORE REAL TIME EMBEDDED CONTROLLER FOR PXI DATASHEET.PDF
2.26 GHZ QUAD CORE EMBEDDED CONTROLLER FOR PXI DATASHEET.PDF
2.53 GHZ DUAL CORE EMBEDDED CONTROLLER FOR PXI DATASHEET.PDF
2.53 GHZ INTEL CORE 2 DUO REAL TIME EMBEDDED CONTROLLERS FOR PXI DATASHEET.PDF
ARCHIVED NI PXI 8101 8102 8108 8110 LETTER OF VOLATILITY.PDF
ARCHIVED NI PXI-8108 INSTALLATION GUIDE.PDF
ARCHIVED NI PXI-8108 LETTER OF VOLATILITY.PDF
ARCHIVED NI PXI-8108 USER MANUAL AND SPECIFICATIONS.PDF
CARDBUS AND PCMCIA CARRIER FOR PXI COMPACTPCI DATA SHEET DATASHEET.PDF
GETTING STARTED WITH THE LABVIEW REAL TIME MODULE.PDF
HIGH VALUE REAL TIME EMBEDDED CONTROLLERS FOR PXI DATASHEET.PDF
PXI EXPRESS EMBEDDED CONTROLLERS PRODUCT FLYER.PDF
PXI-8108 Diagrams
