PXI-8155 Request for Availablility
PXI-8155, 166 MHz or 233 MHz MMX Processor, PXI Controller
Need an Official Quote?

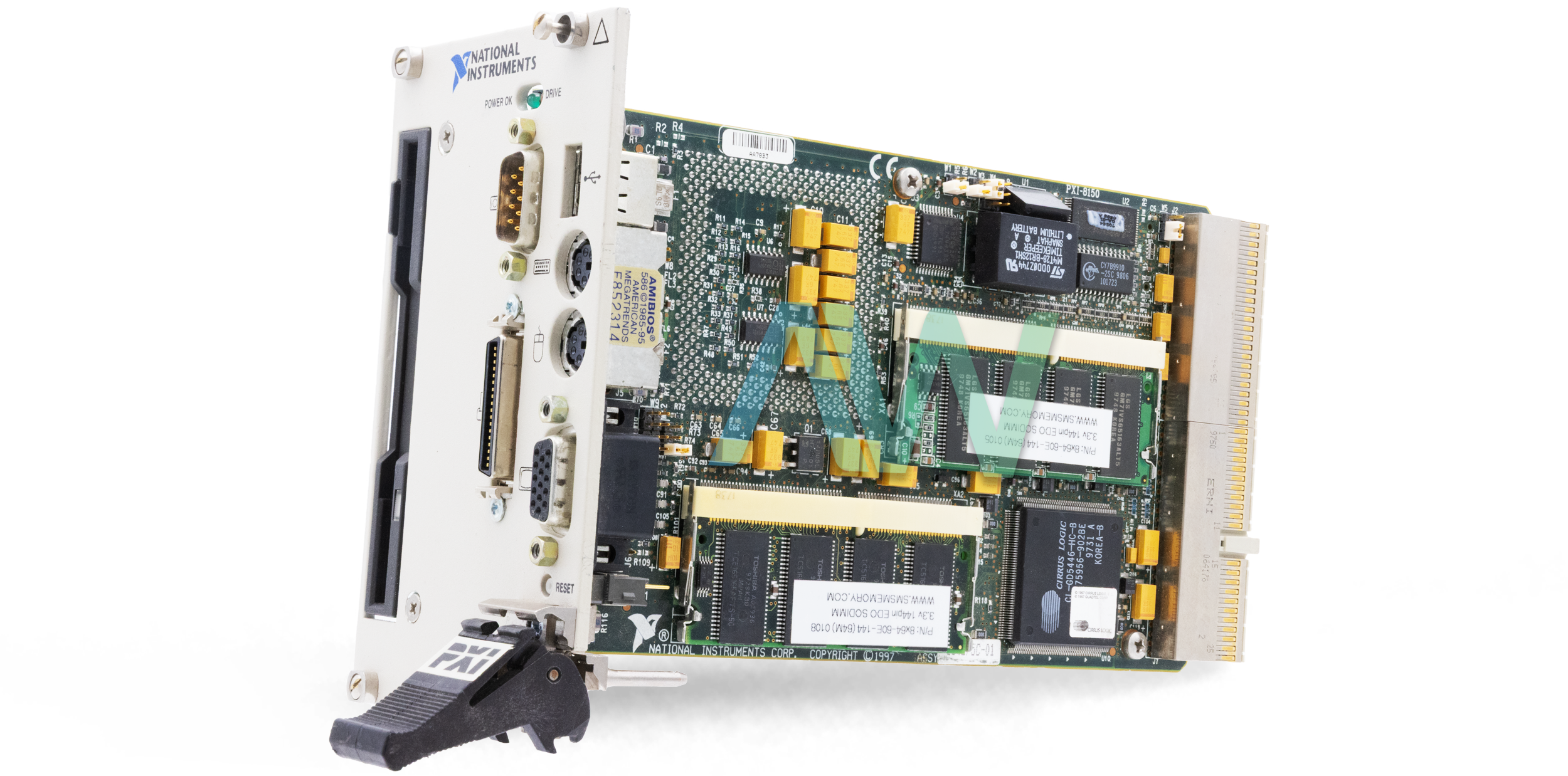

National Instruments PXI-8155 PXI Controller
Featured with all the standard I/O built in, the National Instruments PXI-8155 is a high-performance embedded computer. This controller utilizes state-of-the-art packaging and technology to create a completely PC-compatible controller for the PXI. This model comes equipped with onboard PCI video and is still capable of connecting to the PXI bus without a PCI-to-PCI bridge. Thus, it preserves the entire 132 MB/s PCI bandwidth for the remaining PXI boards. The PXI-8155 supports masters in all 7 PXI slots. The inclusion of various PC peripherals enables the user to install their own, custom-designed peripheral devices in all available PXI slots.
For mass storage of data, this embedded computer offers a 1.44 MB floppy drive and a 2.5 in. Hard drive (2 GB). The other peripheral I/O included are: 1 Super VGA, 1 serial port, 1 IEEE 1284 parallel port, 1 USB connector, 16 MB installed EDO DRAM, and 1 PS/2 keyboard and mouse. With this module, the user will be able to have the total memory upgraded easily, since its memory sockets are kept accessible to the user.
To achieve full PXI system slot control of a PXI based system, the user can utilize the NI PXI-8155. When plugged into the system slot of a PXI chassis, this controller provides master/slave functionality to all available slots in the system. For peripheral expansion, this model uses the ISA bus and PCI local bus. Its PCI bus can achieve a top throughput of 132 MB/s since it is a 32-bit multi-master bus.
PXI-8155 Obsolete Status has been announced by National Instruments, but the controller will still be available for purchase and repairs by Apex Waves.
| Model | PXI-8155 |
|---|---|
| Manufacturer | National Instruments |
| Type | PXI Controller |
| Processor | 166 MHz MMX or 233 MMX Processor |
| Slot Requirements | 1 system slot and 3 controller expansion slots |
| Maximum RAM | 64 MB |
| Floppy Drive | 1.44 MB |
| Dimensions | 3.2 x 5.1 x 8.5 in. |
| Weight | 2.4 lb. (with 16 MB DRAM installed) |
| Warranty | 2-3 Year Warranty |
| PXI-8155 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for the PXI-8155:
186190F-210, 186190F-220, 186190F-310, 186190F-320, 186190F-410, 186190F-420, 186190G-210, 186190G-220, 186190G-310, 186190G-320, 186190G-410, 186190G-420, 186190G-510, 186190H-010, 186190H-020, 186190H-210, 186190H-220, 186190H-310, 186190H-320, 186190H-410, 186190H-420, 186190H-510, 186190H-610, 186190H-620, 777571-01, 777571-012, 777571-02, 777571-11, 777571-112, 777571-12, 777571-21, 777571-22, 777576B-02, 777576C-02, 777576D-02, 777580-00, 777580-01, 777580-012, 777580-02, 777580-03, 777580-11, 777580-112, 777580-12, 777580-21, 777580-22, 777883-00, 777883-03, 777883-31, 777883-312, 777883-32, 777883-322, 1.84596E-205, 1.84596E-215, 1.84596E-305, 1.8619E-205, 1.8619E-215, 1.8619E-305, 184414D-01, 184596A-210, 184596A-220, 184596A-310, 184596A-320, 184596B-220, 184596B-310, 184596B-320, 184596C-210, 184596C-220, 184596C-310, 184596C-320, 184596E-320, 184596F-220, 184596F-310, 184596F-320, 185359B-01, 185359C-01, 186190A-210, 186190A-220, 186190A-310, 186190A-320, 186190B-210, 186190B-220, 186190B-320, 186190B-420, 186190C-210, 186190C-220, 186190C-310, 186190C-320, 186190C-410, 186190C-420, 186190D-210, 186190D-220, 186190E-320, 186190E-410, 186190E-420
National Instruments PXI-8155 Frequently Asked Questions
Question: What front-panel I/O comes with the PXI-8155?
Answer: The PXI-8155 has a 3.5 in. 1.44 MB floppy drive, 2 GB hard drive minimum, super VGA with 2 MB EDO DRAM, ne serial port, an IEEE 1284 parallel port, a PS/2 keyboard and mouse, one USB connector, 16 MB EDO DRAM with Windows 95, 32 MB EDO DRAM with Windows NT, as well as installed software.
Question: How many front-panel LEDs are on the NI PXI-8155?
Answer: There are two front-panel LEDs on the NI PXI-8155 that indicate PC status.
Question: Which optional accessories are compatible with the PXI-8155?
Answer: There are a few optional accessories that can be used with the PXI-8155: a single-shielded 2 m GPIB cable and an enhanced parallel port adapter cable.
Question: Which slot does the NI PXI-8155 go in on a PXI mainframe?
Answer: The NI PXI-8155 should be installed in the system controller slot of a PXI mainframe.
PXI-8155 PDF Manuals
ARCHIVED GETTING STARTED WITH YOUR PXI 8150 SERIES FOR WINDOWS 95 NT.PDF
ARCHIVED PXI 1011 CHASSIS USER MANUAL AND SPECIFICATIONS.PDF
ARCHIVED PXI 8150 SERIES USER MANUAL AND SPECIFICATIONS.PDF
ARCHIVED READ ME FIRST PXI 8150 SERIES FOR WINDOWS 95 NT.PDF
PXI EXPRESS EMBEDDED CONTROLLERS PRODUCT FLYER.PDF
Why Buy From Apex Waves:
Verified
"Hand carrying parts to fedex directly to make sure I get them overnight. Great service"
"They were very helpful to get me the test equipment that I need."
PXI-8155
Modular Systems > National Instruments > PXI Controllers
PXI-8155, 166 MHz or 233 MHz MMX Processor, PXI Controller
1-800-915-6216
- Description
- Technical Specifications
- FAQ
- Manuals & PDFs

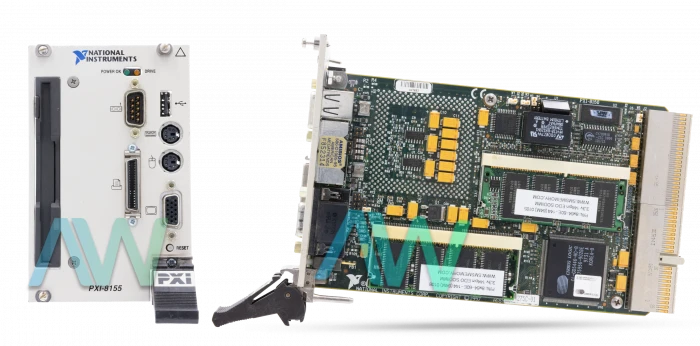

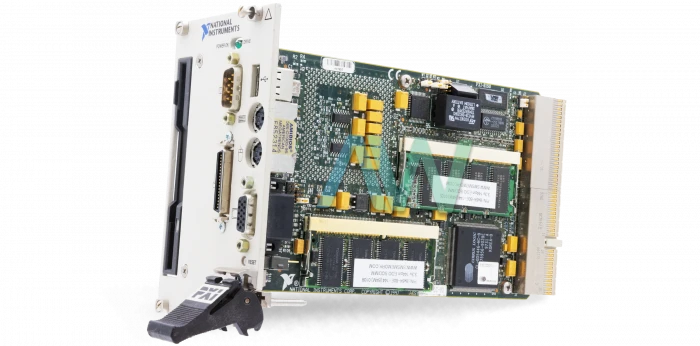

National Instruments PXI-8155 PXI Controller
