PXI-8156 Request for Availablility
PXI-8156, 166 or 233 MHz MMX Processor, PXI Controller
Need an Official Quote?

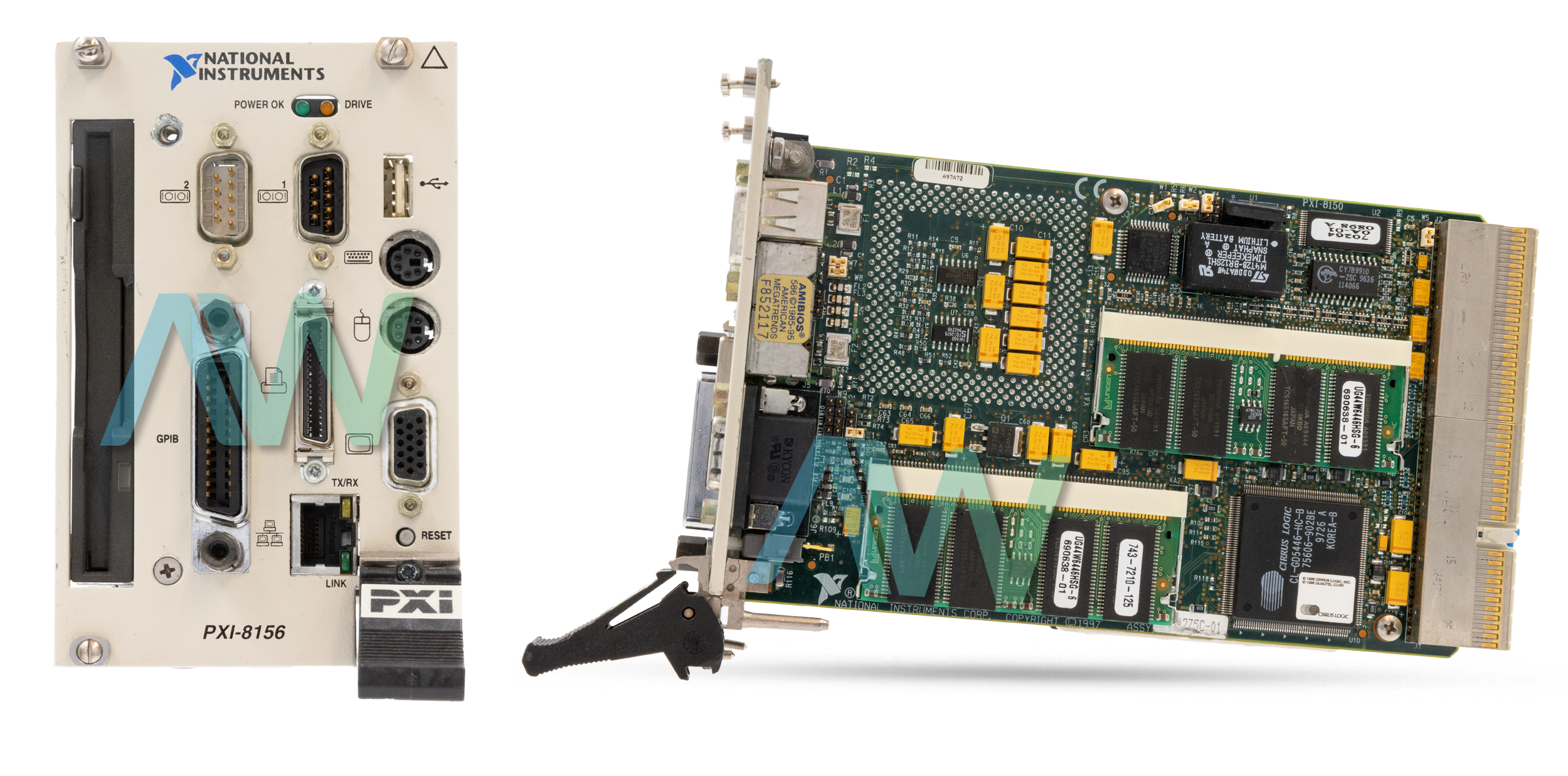

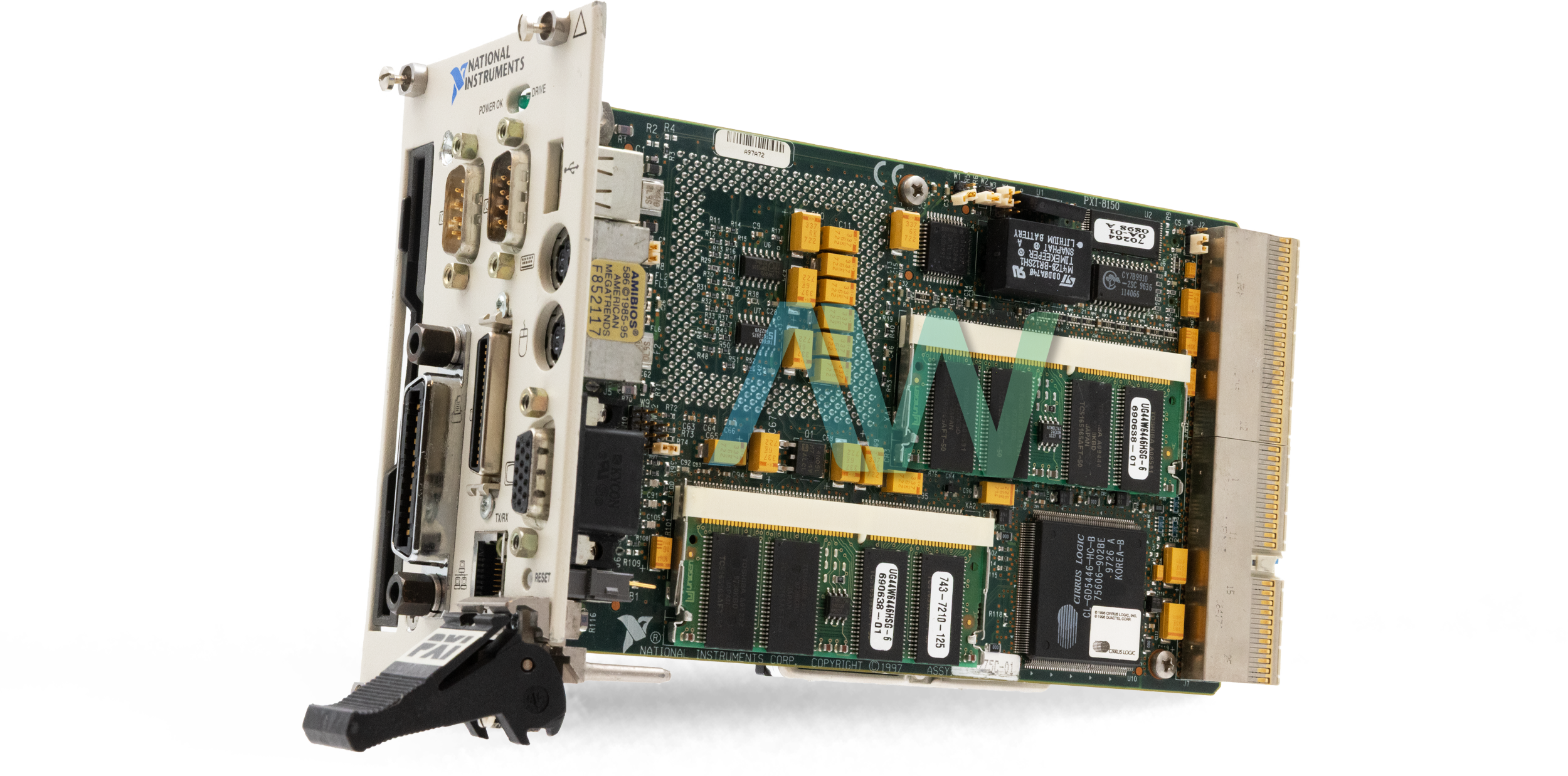

National Instruments PXI-8156 PXI Controller
Featured with complete PXI functionality through C function calls and interactive utility, the National Instruments PXI-8156 is a PXI/cPCI Embedded Controller. This model comes equipped with a 3.5 in. 1.44 MB floppy drive, a 2 GB hard drive (expandable), Super VGA, 2 RS-232 Serial ports, 1 Universal Serial Bus (USB) port, 1 PS/2-style keyboard board, 1 PS/2-style mouse port, 1 10BaseT Ethernet port, 1 Extended Capabilities Port (ECP), and 1 GPIB Port (24-pin standard GPIB connector). All of these I/O ports are provided on the front panel of the NI PXI-8156. Moreover, two front panel LEDs are provided to indicate device power and drive status. Two separate LEDs are provided to show Ethernet port status (TX/RX & LINK LEDs).
For peripheral expansion, this device relies upon the ISA bus and PCI local bus. The RSA bus is the powerful legacy peripheral bus used on older and modern PCs. The National Instruments PXI-8156 offers the user a variety of software options. This embedded controller is provided with the NI-488.2M software kit that enables the user to access NI-488.2M software for controlling external GPIB capable instruments by using the GPIB port. With this model, the user will be able to use the NI-VISA programming API to program serial, parallel, and GPIB devices easily.
The NI PXI-8156 has incorporated several peripherals that usually require add-in cards on Windows-based desktop computers. This Embedded Controller is designed for easy handling and allows the user to alter the amount of DRAM installed or to change any of the jumper settings easily.
PXI-8156 Obsolete Status has been announced by National Instruments, but the Controller will still be available for purchase and repairs by Apex Waves.
| Model | PXI-8156 |
|---|---|
| Manufacturer | National Instruments |
| Type | PXI Controller |
| CPU | Intel 166 MHz or 233 MHz MMX Pentium Processor |
| Slot Requirements | 1 system slot and 3 controller expansion slots |
| Serial Ports | 2 |
| DRAM | 128 MB maximum |
| Dimensions | 3.2 x 5.1 x 8.5 in. |
| Weight | 2.4 lb. (with 16 MB DRAM installed) |
| Warranty | 2-3 Year Warranty |
| PXI-8156 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for the PXI-8156:
1.84596E-206, 1.84596E-216, 1.84596E-306, 1.8619E-206, 1.8619E-216, 184414D-02, 184596-311, 184596-321, 184596A-211, 184596A-221, 184596A-241, 184596A-311, 184596A-321, 184596B-211, 184596B-221, 184596B-311, 184596B-321, 184596C-211, 184596C-221, 184596C-241, 184596C-311, 184596C-321, 184596D-241, 184596D-311, 184596D-421, 184596E-321, 184596E-411, 184596E-421, 184596F-211, 184596F-221, 184596F-311, 184596F-321, 184596F-421, 186190H-211, 185113B-01, 186190H-221, 185359B-02, 186190H-321, 185359C-02, 186190H-411, 185704C-01, 186190H-421, 186190A-211, 186190H-511, 186190H-621, 186190A-221, 186190H-911, 186190A-321, 186190A-411, 186699A-021, 186190A-511, 186699B-021, 186190B-211, 777572-00, 186190B-221, 777572-01, 186190B-321, 777572-012, 186190B-411, 777572-02, 186190B-511, 777572-11, 777572-112, 186190C-211, 777572-12, 186190C-221, 777572-21, 186190C-321, 777572-22, 186190C-411, 777576A-02, 186190C-421, 777576A-03, 186190C-511, 186190D-211, 777576A-12, 777576A-42, 186190D-221, 777576B-12, 186190E-321, 777576C-12, 186190E-411, 777576C-42, 186190E-421, 777576D-12, 186190E-511, 777581-00, 186190F-211, 186190F-221, 186190F-321, 186190F-411, 186190F-421, 186190F-511, 186190F-911, 777581-01, 186190G-211, 777581-012, 777581-02, 777581-03, 777581-11, 777581-112, 777581-12, 777581-21, 186190G-221, 777581-22, 186190G-321, 777581-32, 186190G-411, 777692-02, 186190G-421, 777884-00, 186190G-511, 777884-31, 186190G-911, 777884-312, 186190H-011, 777884-32, 186190H-021, 777884-322, 777884-33, 778014-01
National Instruments PXI-8156 Frequently Asked Questions
Question: Which types of front-panel I/O does the PXI-8156 have that are not on the PXI-8155?
Answer: The PXI-8156 has two serial ports instead of one, an IEEE 488.2 GPIB interface, and a 10BaseT Ethernet port. None of these front-panel I/O are on the PXI-8155.
Question: Which software types can be used with the NI PXI-8156?
Answer: The NI PXI-8156 can be used with NI-488.2M, NI-VISA, NI LabVIEW, and NI LabWindows/CVI.
Question: Which types of SO-DIMM modules can be used with the PXI-8156?
Answer: The following SO-DIMM modules can be used with the PXI-8156: 16 MB: 2 MB x 64 SO-DIMMs-60 ns, 32 MB: 4 MB x 64 SO-DIMMs-60 ns, or 64 MB: 8 MB x 64 SO-DIMMs-60 ns. NI strongly recommends only using their SO-DIMMs. Modules by other manufacturers are not certain to function correctly.
Question: What is the typical current for the PXI-8156 166 MHz MMX Processor model at +3.3 V voltage?
Answer: The typical current for the PXI-8156 166 MHz MMX Processor model at +3.3 V voltage is 3.8 A.
PXI-8156 PDF Manuals
ARCHIVED FP 2000 2010 2015 USER MANUAL.PDF
ARCHIVED GETTING STARTED WITH YOUR PXI 8150 SERIES FOR WINDOWS 95 NT.PDF
ARCHIVED LABVIEW REAL TIME RELEASE NOTES.PDF
ARCHIVED PXI 1000 USER MANUAL AND SPECIFICATIONS.PDF
ARCHIVED PXI 1020 USER MANUAL AND SPECIFICATIONS.PDF
ARCHIVED PXI 1025 MEGAPAC USER MANUAL.PDF
ARCHIVED PXI 8150 SERIES USER MANUAL AND SPECIFICATIONS.PDF
ARCHIVED READ ME FIRST PXI 8150 SERIES FOR WINDOWS 95 NT.PDF
PXI 1000B USER MANUAL AND SPECIFICATIONS.PDF
PXI EXPRESS EMBEDDED CONTROLLERS PRODUCT FLYER.PDF
Why Buy From Apex Waves:
Verified
"Hand carrying parts to fedex directly to make sure I get them overnight. Great service"
"They were very helpful to get me the test equipment that I need."
PXI-8156
Modular Systems > National Instruments > PXI Controllers
PXI-8156, 166 or 233 MHz MMX Processor, PXI Controller
1-800-915-6216
- Description
- Technical Specifications
- FAQ
- Manuals & PDFs

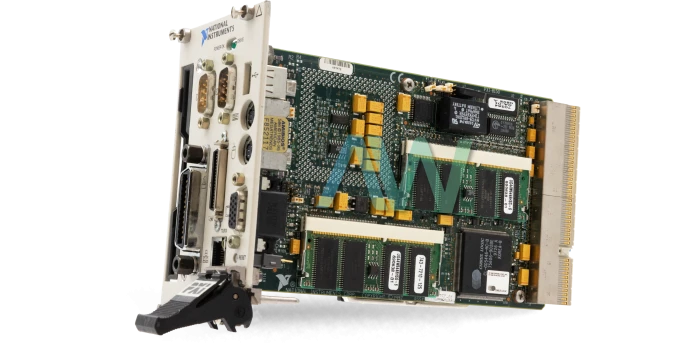

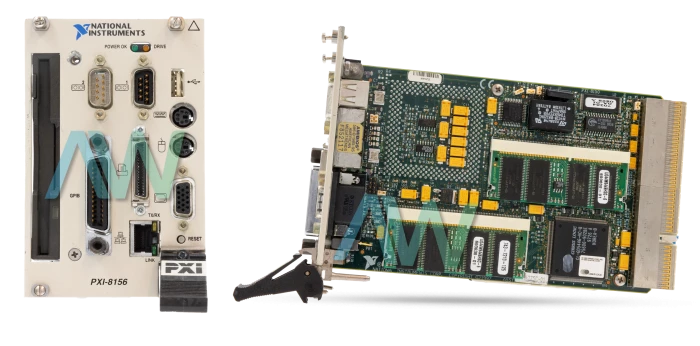

National Instruments PXI-8156 PXI Controller
