PXI-8176 In Stock | Ships Today
PXI-8176, 1.26 GHz Intel Pentium III CPU, PXI Embedded Controller
Need an Official Quote?

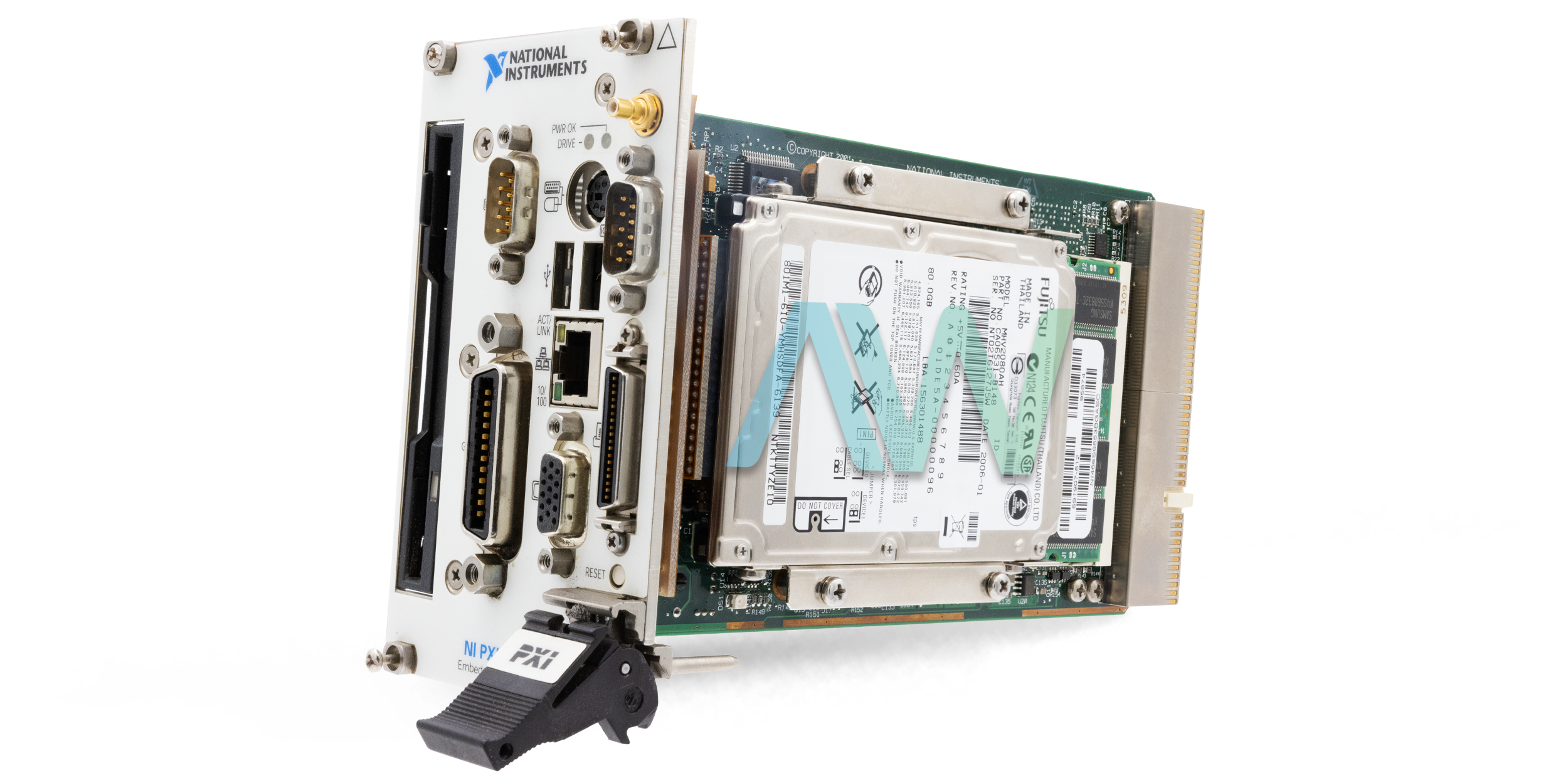

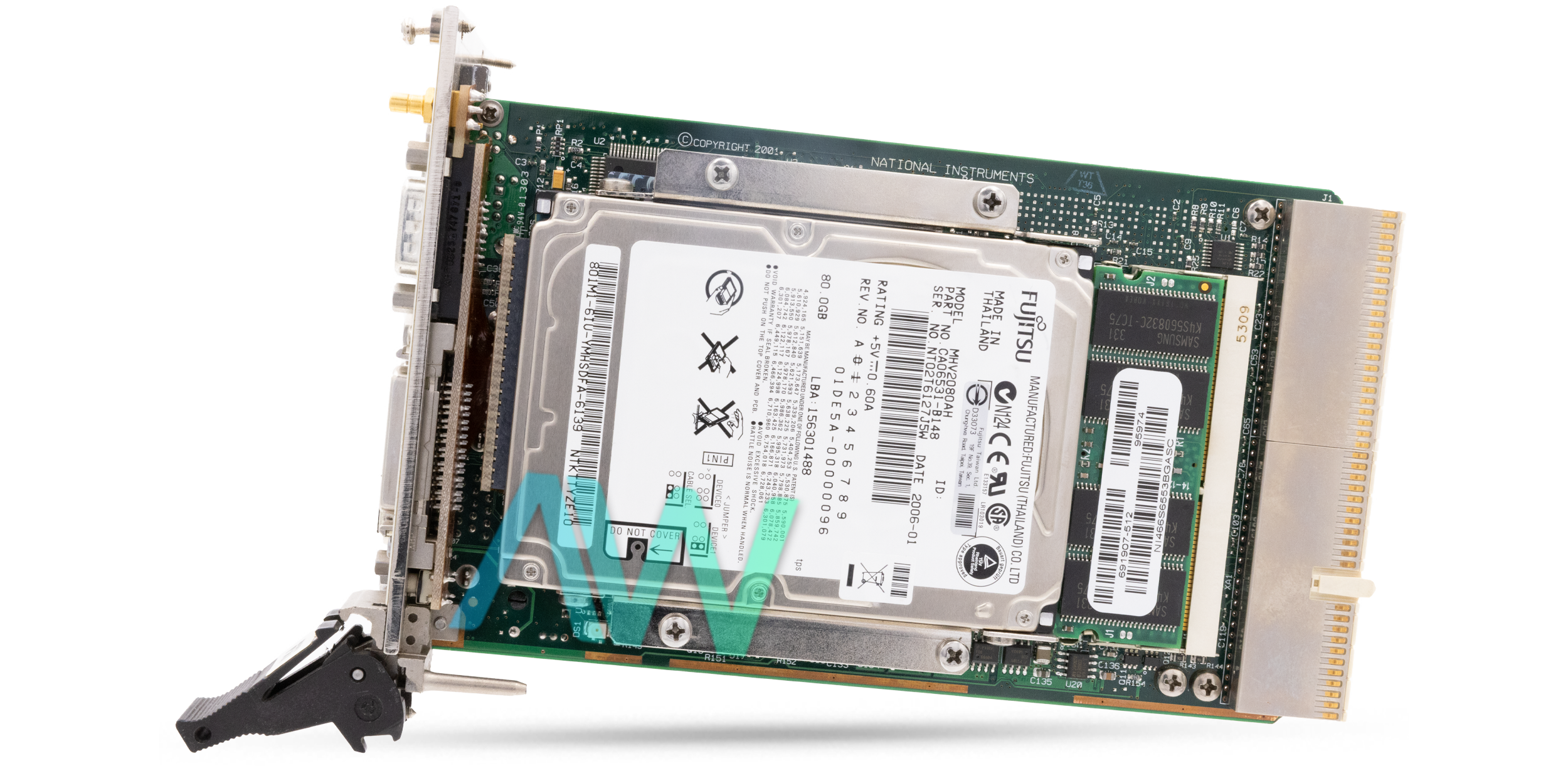

National Instruments PXI-8176 PXI Embedded Controller
The PXI-8176 (Part Numbers: 778468-00, 778468-01, 778468-02, 187317K-012 and 187317D-612) is a Pentium III Embedded Controller for CompactPCI and PXI. This high-performing Embedded Controller can be combined with a PXI chassis, such as the PXI-1020 or PXI-1025 for a small PC platform ideal for data acquisition. The NI PXI-8176 Controller has an internal USB-to-PS/2 adapter, which is activated automatically when the Controller is installed in the PXI-1020 or PXI-1025 Chassis. The PXI 8176 is one of the best performing models of the NI 8171 Series with a 1.26 GHz Pentium III processor, a GPIB interface, and up to 512 KB advanced transfer cache.
Several features of this model include PXI slots for measurement modules, a hard drive and floppy drive, two USB ports, and a VGA with dynamic memory video technology (DMVT). With DMVT, the result is stellar graphics and memory performance via Direct AGP and extremely efficient memory. The device is equipped with 1 system slot and 3 controller expansion slots. The NI PXI 8176 Embedded Controller can be used with the NI-DAQ driver software provided by National Instruments, and software packages/application development environments (ADES) such as the NI LabVIEW, LabWindows/CVI, Measurement Studio software, and NI-VISA.
The National Instruments PXI-8176 has 128 MB of SDRAM, but this can be upgraded to 256 MB. This Embedded Controller has 1280 x 1024 resolution at 24-bit color and 1600 x 1200 resolution at 256 colors, 44 W maximum power, and requires one system slot and three controller expansion slots. This model also has several accessories available for purchase at an additional cost, including: an external USB CD-ROM for software installation and upgrades, an IEEE 1284 parallel port adapter cable, and a parallel port converter cable to modify from a Type C connector to a DB-25 connector. The part numbers for these accessories can be found in the NI PXI-8176 manual, which is available for download on the apexwaves.com website. The device weighs 2.7 lbs., with the dimensions: 3.2 x 5.1 x 8.5 in.
PXI-8176 Obsolete Status has been announced by National Instruments, but this controller will still be available for purchase and repairs by Apex Waves.
| Model | PXI-8176 |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 778468-01, 778468-00, 778468-02, 187317D-612, |
| Series | NI 8171 Series |
| Type | PXI Embedded Controller |
| Slots | 1 system slot, 3 controller expansion slots |
| Interfaces | 100BaseTX Ethernet interface, GPIB (IEEE 488.2) Interface (optional) |
| Dimensions | 3.2 x 5.1 x 8.5 in. |
| Weight | 2.7 lb. |
| Warranty | Three Year Warranty |
| PXI-8176 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for the PXI-8176:
1.87317E-07, 187317A-012, 187317A-212, 187317A-612, 187317A-912, 187317B-012, 187317B-612, 187317C-012, 187317C-612, 187317D-012, 187317D-612, 187317E-612, 187317F-012, 187317F-612, 187317F-712, 187317G-012, 187317G-612, 187317G-712, 187317H-012, 187317H-612, 187317H-712, 187317J-012, 187317J-612, 187317J-712, 187317K-012, 187317K-612, 187317K-712, 187317L-012, 187317L-612, 187317L-712, 187317M-612, 187317M-712, 778468-00, 778468-01, 778468-02, 778468-33
Associated NSNs for the PXI-8176:
5998-01-517-0182 (5998015170182), 5998-01-513-2157 (5998015132157), 7021-01-511-3985 (7021015113985), 5998-01-513-2157 (5998015132157)
National Instruments PXI-8176 Frequently Asked Questions
Question: What is the difference between the part numbers for the PXI 8176?
Answer: The first part number for the PXI 8176, 778468-01, is for Windows 2000 operating systems. Part number 778468-00 is for localized OS systems, while part number 778468-02 is for Windows XP.
Question: If I have an NI PXI 8176 Controller with a 16 GB hard drive, can I replace the disk with a larger one?
Answer: Yes, the hard drive can be upgraded in the NI PXI 8176 Controller. However, one thing to keep in mind is that an 8.5 mm thick HD is suggested because a HD bigger than 9.5 mm will cover slot 2 in the chassis.
Question: While using a PXI-8176 Controller with a PXI-1010 Chassis, it runs slowly and takes a few minutes to load LabVIEW. How do I fix the loading problem?
Answer: If the PXI-8176 Controller has 128 MB RAM or less, the RAM can be upgraded to 256 or 512 MB to improve the speed.
Question: What is the typical power for the PXI-8176?
Answer: The typical power for the PXI-8176 is 30 W.
Question: What type of floppy drive does the NI PXI-8176 have?
Answer: The NI PXI-8176 has an Internal 3.5 in., 1.44 MB floppy drive.
PXI-8176 PDF Manuals
ARCHIVED GETTING STARTED WITH NI DISPLAY TEST.PDF
ARCHIVED LABVIEW REAL TIME MODULE USER MANUAL.PDF
PXI EXPRESS EMBEDDED CONTROLLERS PRODUCT FLYER.PDF
Why Buy From Apex Waves:
Verified
"Hand carrying parts to fedex directly to make sure I get them overnight. Great service"
"They were very helpful to get me the test equipment that I need."
PXI-8176
Modular Systems > National Instruments > PXI Controllers
PXI-8176, 1.26 GHz Intel Pentium III CPU, PXI Embedded Controller
1-800-915-6216
- Description
- Technical Specifications
- FAQ
- Manuals & PDFs

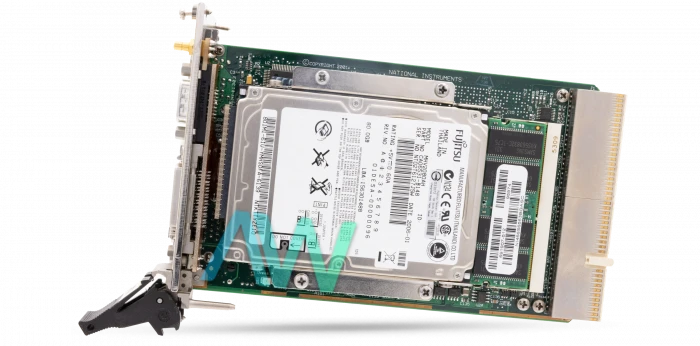

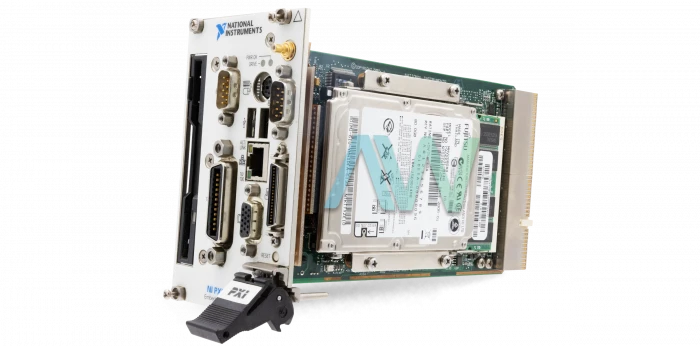

National Instruments PXI-8176 PXI Embedded Controller
