PXI-8187 In Stock | Ships Today
PXI-8187, 2.5 GHz Pentium 4-M Processor, PXI Controller
Need an Official Quote?

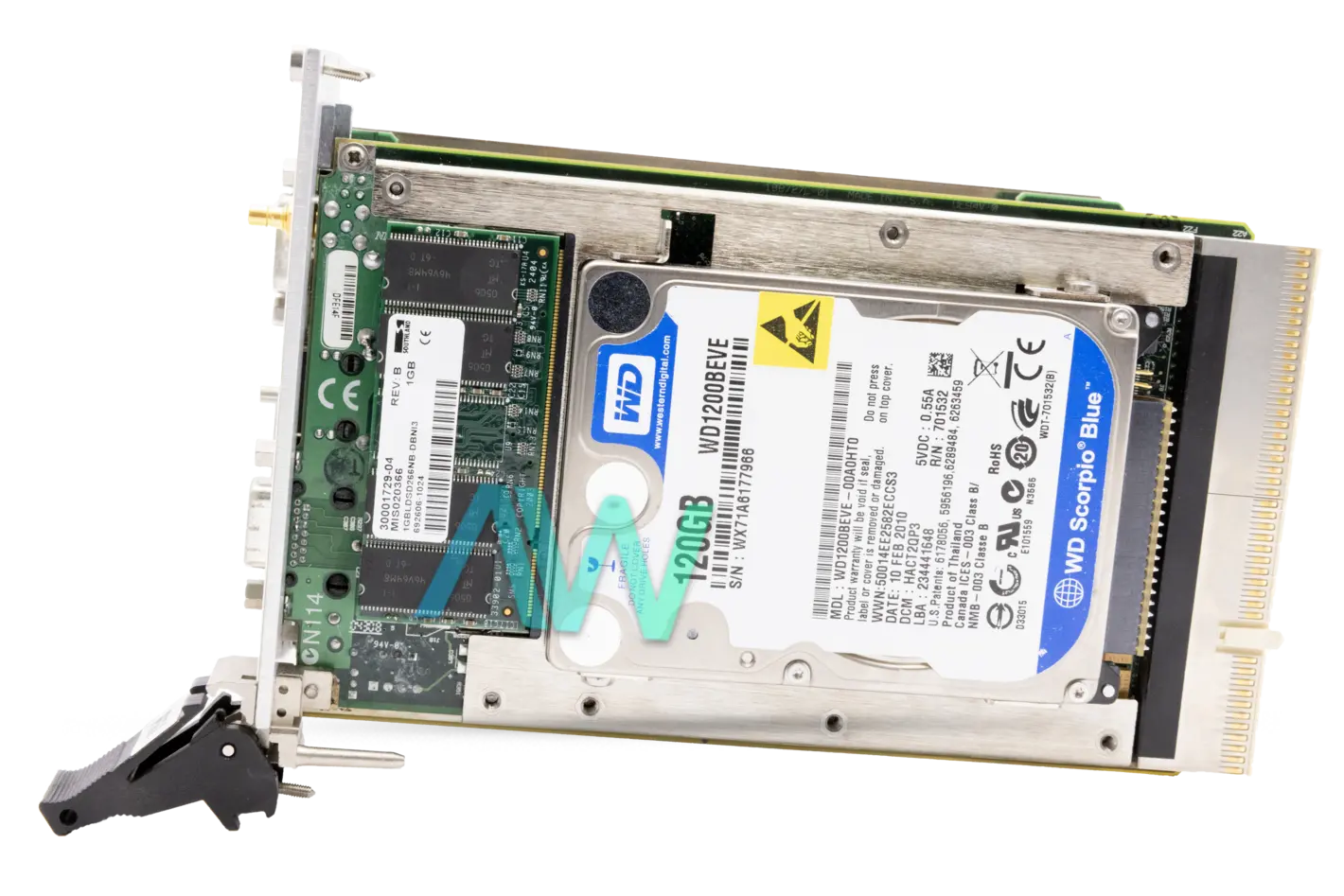

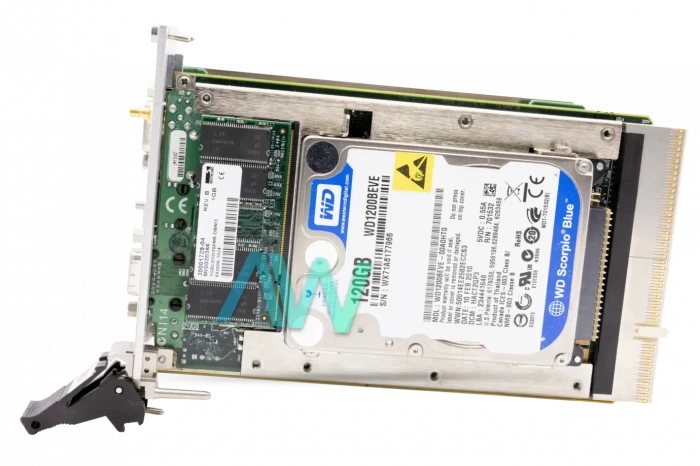

National Instruments PXI-8187 PXI Controller

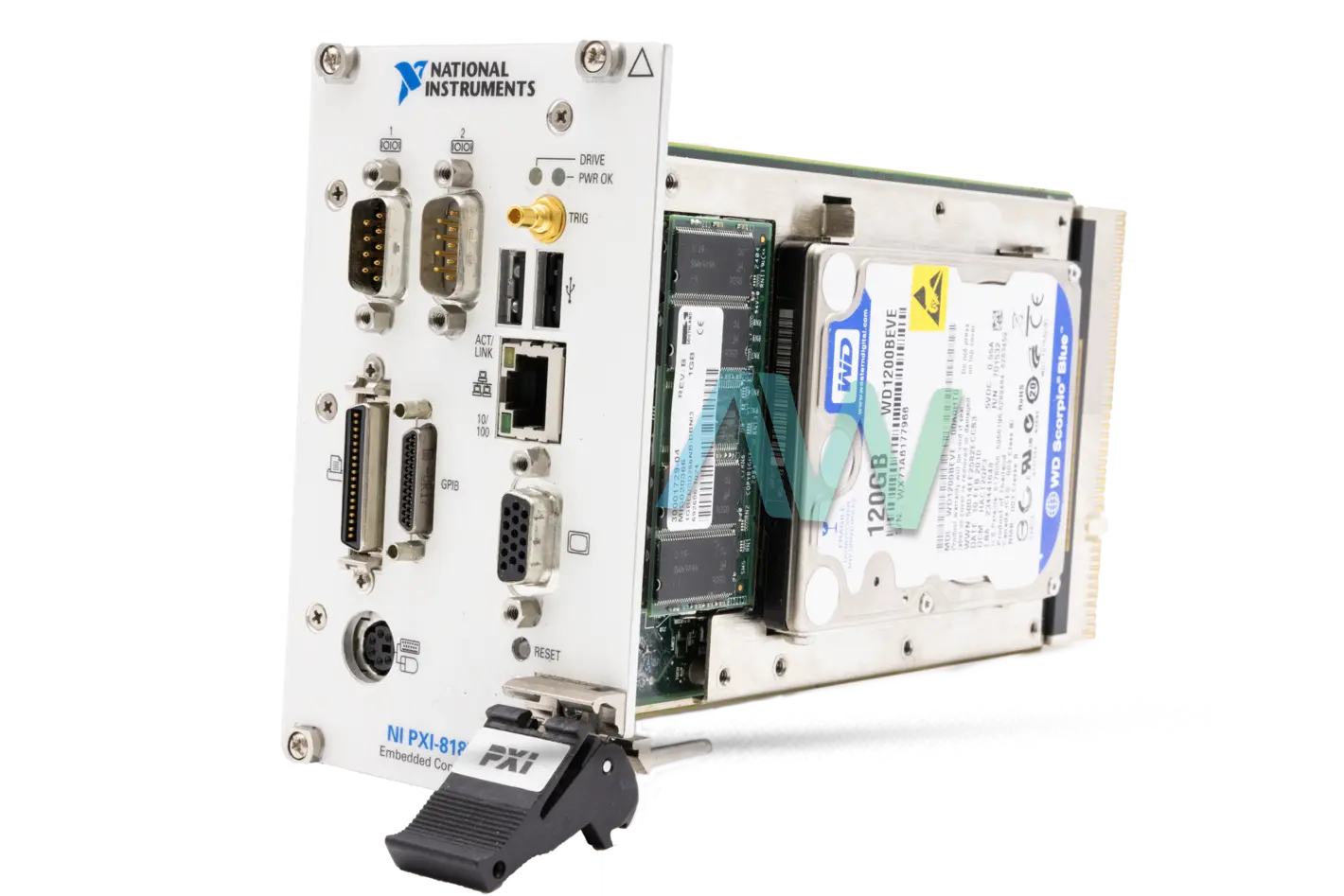

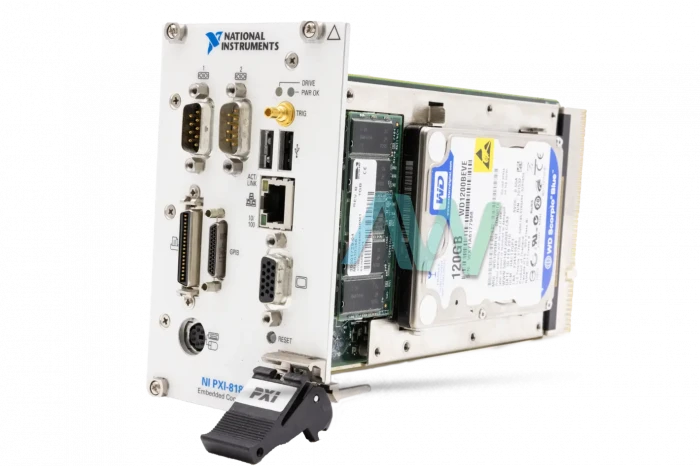

Featured with a 2.5 GHz Pentium 4-M processor, 256 MB RAM, and Microsoft Windows XP Operating System, the National Instruments PXI-8187 (Part Numbers: 779755-00, 779755-01, 779755-02, 779755-33, 779842-00, 779842-01, 779842-02, 779842-33, 189792B-013) is an Embedded Controller designed for PXI and CompactPCI systems. This model is an ideal solution for data acquisition and modular instrumentation applications. All the peripheral this system has are provided on the front panel. These peripherals include: one VGA (15-pin DSUB), two 16550 RS-232 serial port, one 10/100 Ethernet Port, one USB 2.0 Port, 1 x PS/2 (5-pin Din) Port, one Parallel Port (36-pin champ), and one GPIB (25-pin Micro D). The device is equipped with a 1 system slot and 3 controller expansion slots.
The NI PXI-8187 is a state-of-the-art integration between a microprocessor and almost all standard and extended PC peripherals. The National Instruments PXI-8187 comes with specialized software tools, which allows the user to recover the factory condition of the hard drive from a small, designated area of their hard drive. This protected area stores an image of the hard disk as it was provided at the time of delivery. The user can access that image by using a hotkey during the boot process of the PXI-8187. Besides, the user can also recover the factory-installed OS, using the included operating system installation disc with an external CD-ROM. In some cases, the user may want to replace the default operating system with a different operating system.
The NI PXI 8187 allows the user to install any compatible operating system through a USB CD-ROM. In some cases, the user can also consider installing an OS from a network. This Embedded PXI Controller 3U-size module requires 1 system slot and 3 expansion slots.
The device operates using the NI-DAQ driver software which is compatible with software packages/application development environments (ADEs) such as LabVIEW, LabWindows/CVI, Measurement Studio, and NI-VISA. It has a recommended operating temperature range of 0–55 °C.
PXI-8187 Obsolete Status has been announced by National Instruments, but the Controller will still be available for purchase and repairs by Apex Waves.
| Model | PXI-8187 |
|---|---|
| Part Numbers | 779755-00, 779755-01, 779755-02, 779755-33, 779842-00, 779842-01, 779842-02, 779842-33, 189792B-013 |
| Manufacturer | National Instruments |
| Type | PXI Controller |
| Slot Requirements | 1 system slot and 3 controller expansion slots |
| CPU | 2.5 GHz Pentium 4-M |
| Standard RAM | 256 MB |
| Dimensions | 3.2 x 5.1 x 8.5 in. |
| Weight | 2.2 lb. |
| Warranty | Three Year Warranty |
| PXI-8187 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for the PXI-8187:
1.89792E-18, 189792A-013, 189792A-023, 189792A-613, 189792A-623, 189792A-713, 189792A-723, 189792B-013, 189792B-023, 189792B-613, 189792B-623, 189792B-713, 189792B-723, 189792C-013, 189792C-023, 189792C-613, 189792C-623, 189792C-713, 189792C-723, 189792D-013, 189792D-023, 189792D-613, 189792D-623, 189792D-713, 189792D-723, 189792E-613, 189792E-623, 189792E-713, 189792E-723, 189792F-623, 189792F-723, 189792G-023, 189792G-623, 189792G-723, 779755-00, 779755-01, 779755-02, 779755-33, 779842-00, 779842-01, 779842-02, 779842-33
National Instruments PXI-8187 Frequently Asked Questions
Question: What are the differences between the part numbers for the PXI-8187?
Answer: There are two different versions of the PXI-8187: a base model and an extended temperature model. These variations come with different operating systems installed. Part number 779755-01 is the base model with Windows XP (English) and part number 779842-01 is the extended temperature model with Windows XP (English). Next, part number 779755-02 is the base model with Windows 2000 (English), while part number 779842-02 is the extended temperature model with Windows 2000 (English). Part number 779755-33 is the base model with LabVIEW Real-Time embedded software and part number 779842-33 also has LabVIEW Real-Time embedded software but is the extended temperature model. Lastly, part number 779755-00 has Localized OS installed and is the base model, while part number 779842-00 is the extended temperature version with Localized OS installed.
Question: What is the maximum current for the NI PXI-8187 at +3.3 V voltage?
Answer: The maximum current for the NI PXI-8187 at +3.3 V voltage is 5.0 A.
Question: What is the purpose of the SMB connector on the front panel of the PXI-8187?
Answer: The SMB connector on the front panel of the PXI-8187 can connect to or from a PXI backplane trigger line via software.
Question: How many front-panel LEDs are on the NI PXI-8187?
Answer: The NI PXI-8187 has two front-panel LEDs.
