PXI-8840 In Stock | Ships Today
PXI-8840, 2.6 GHz Quad-Core Processor, 8 GB Maximum Memory, Embedded PXI Controller
Need an Official Quote?

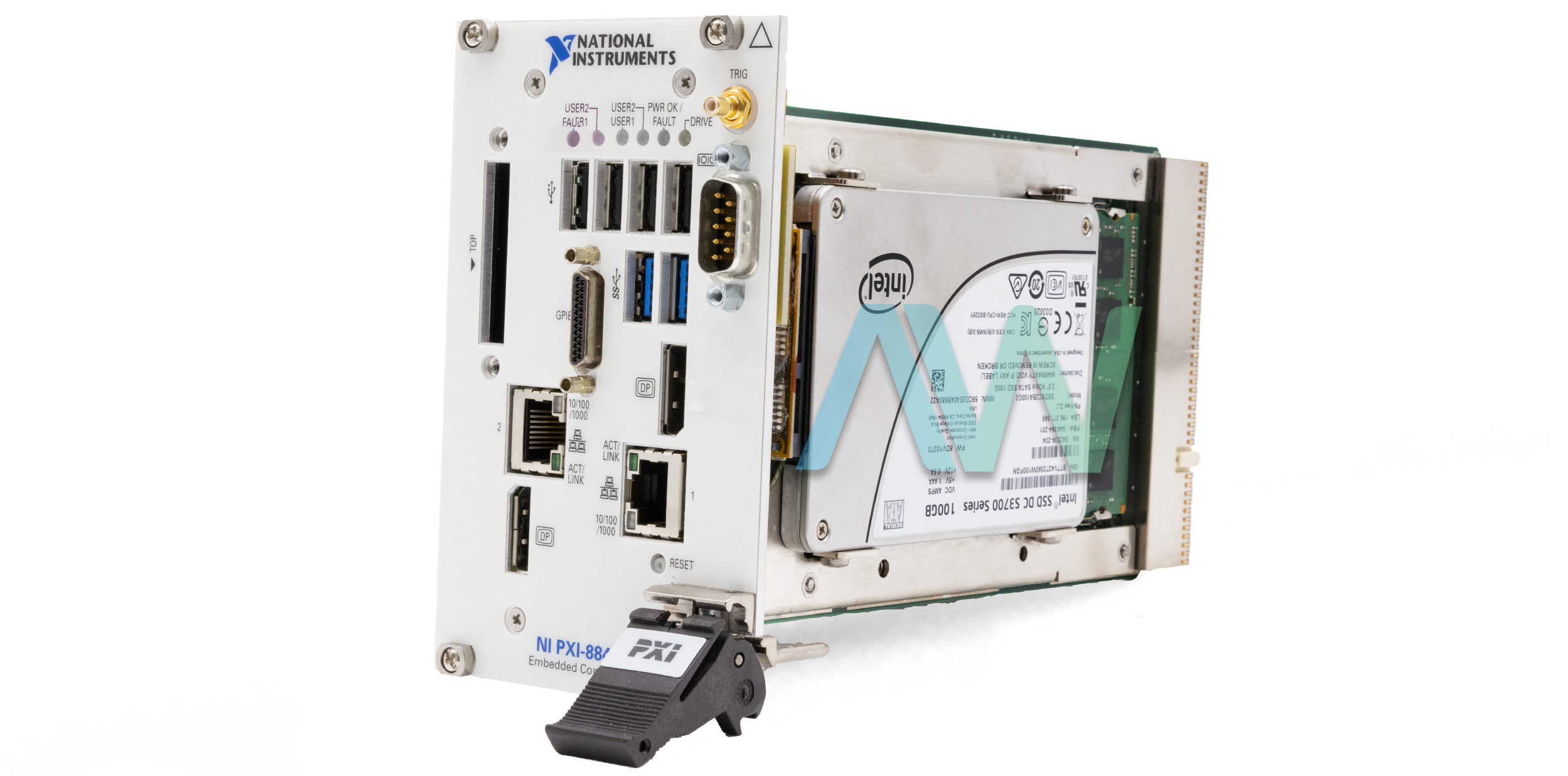

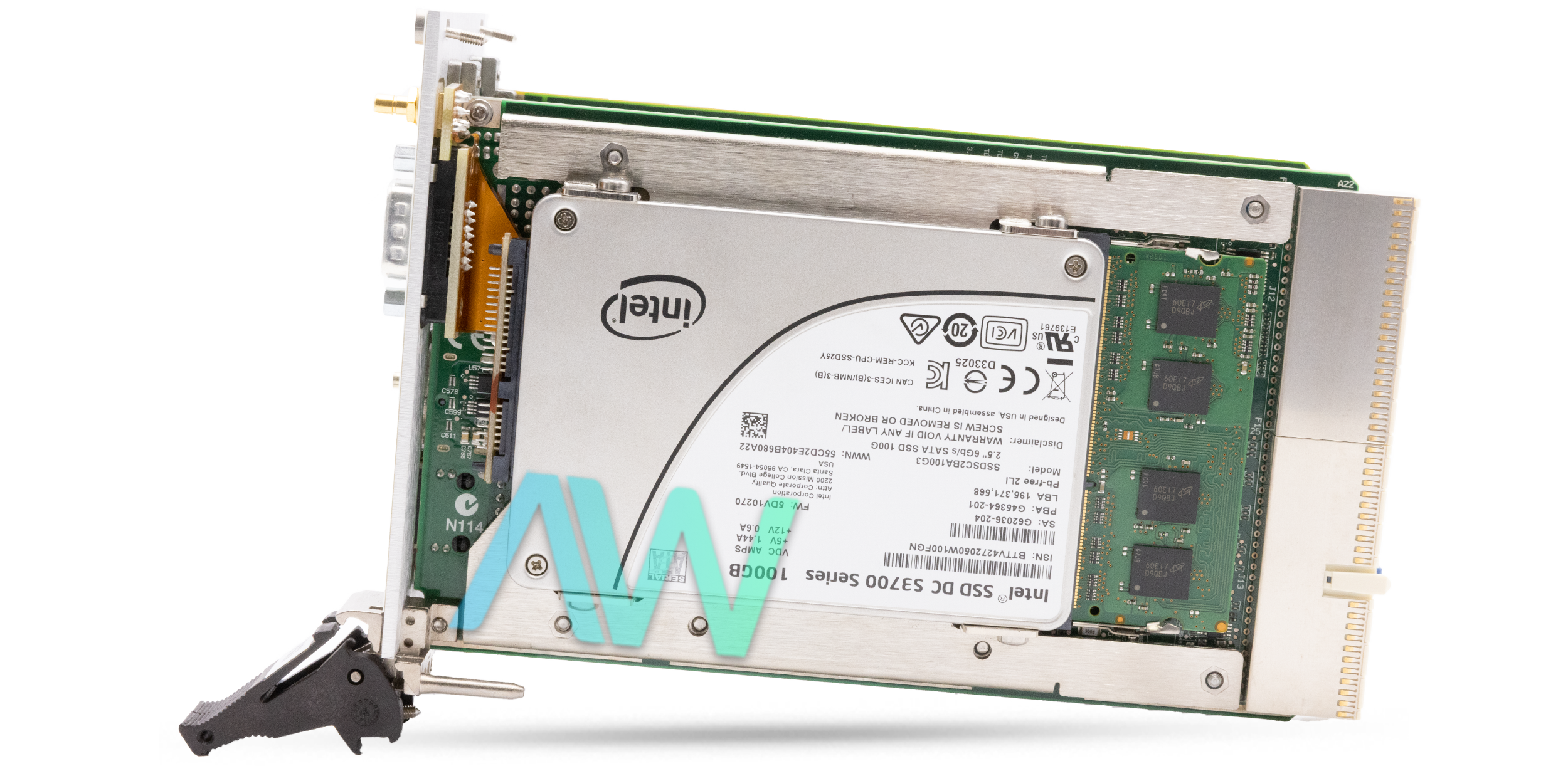

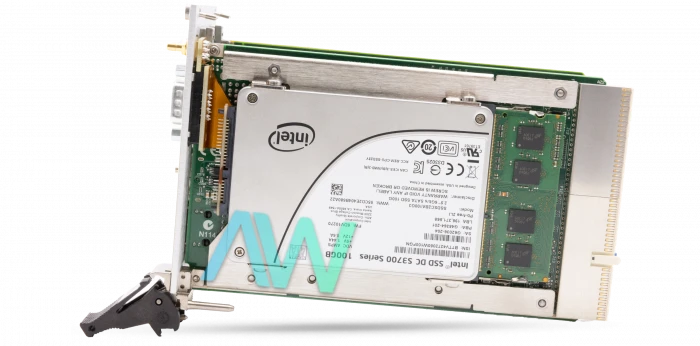

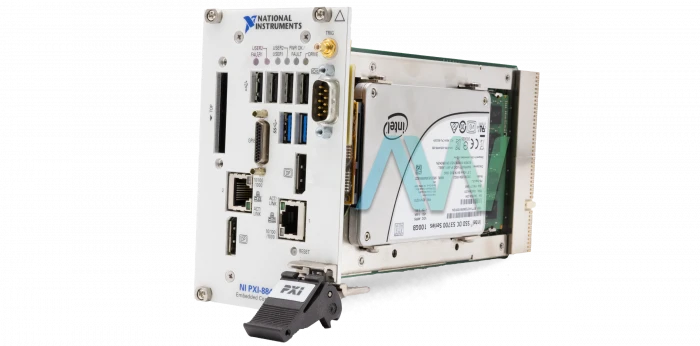

National Instruments PXI-8840 PXI Controller
The PXI-8840 (Part Numbers: 785780-04, 785780-01, 785780-33, 785543-01, 784193-04, 784193-33, and 155186B-112L) with a 2.6 GHz Quad-Core Processor is an inserted controller for PXI frameworks with an on-die L2 cache of 3 MB. The maximum system bandwidth for the device is 8 GB/s for the Intel Core i7- 5700EQ processor and 2 GB/s for the Intel Core i5-4400E processor. It can be utilized for applications for measured instrumentation with escalated handling and data acquisition. The PXI 8840 Controller incorporates two Ethernet ports (Gigabit) 10/100/1000BASE-TX, two USB 3.0 ports, and four USB 2.0 ports, as well as an integrated hard disk, 1 RS-232 serial port, 1 ExpressCard/34 slot, and other types of peripheral I/O.
The SMB connector on the NI PXI 8840 quad-core front board can associate with or from any PXI backplane trigger line. A trigger portion process is expected to keep two resources from associating with a similar trigger line, resulting in the trigger being double-driven and possibly damaging the hardware. Quad-core processors contain four cores, or computing engines, in one physical package. To expand the quantity of threads that you can process, the NI PXI 8840 consolidates Intel Hyper-Threading technology that takes every one of the four physical cores and splits the into two virtual cores, for a sum of eight virtual cores These eight virtual cores can execute eight computing tasks, which is advantageous in multitasking conditions like Windows 7. The PXI 8840 includes multithreaded framework development environments, such as NI LabVIEW that can take full advantage of the processing cores on the NI PXI 8840 via naturally separating their tasks independent threads.
In this model, applications must be architected to make four autonomous execution threads by implementing progress strategies, including: task parallelism, data parallelism, and pipelining. Notwithstanding, Intel introduced Turbo Boost technology to provide execution benefits to a wide range of uses without requiring the application to be optimized for multicore processors. The four-wide 3U PXI module weighs 2.77 lb. It has a recommended operating temperature range of 5 °C to 50 °C with an extended temperature option of 0 °C to 55 °C, storage temperature range of -40 °C to 65 °C also with an extended temperature option of -40 to 71 °C.
| Model | PXI-8840 |
|---|---|
| Part Numbers | 785780-01, 785780-04, 785780-33, 784193-04, 785543-01, 784193-33, 155186B-112L |
| Manufacturer | National Instruments |
| Type | PXI Controller |
| Processor Core | Intel Core i5 or i7 |
| Maximum Controller Bandwidth | 132 MB/s |
| On-die L2 Cache | 3 MB |
| Standard Storage | 320 GB, HDD |
| Ethernet | 2 GbE |
| USB Ports | Four USB 2.0 Ports, Two USB 3.0 Ports |
| Standard Memory | 4 GB |
| Board Dimensions | Four-wide 3U PXI Module |
| Weight | 2.77 lb. |
| Warranty | Three Year Warranty |
| PXI-8840 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for the PXI-8840:
156803A-01L, 156803A-04L, 156803B-01L, 156803C-01L, 156803D-01L, 156968A-012L, 156968A-112L, 156968A-912L, 156968B-012L, 156968B-112L, 156968B-912L, 156968C-012L, 156968C-112L, 156968C-912L, 156968D-012L, 156968D-112L, 156968D-912L, 156968E-011L, 156968E-012L, 156968E-111L, 156968E-112L, 156968E-911L, 156968E-912L, 156968F-011L, 156968F-111L, 156968F-112L, 156968F-211L, 156968F-251L, 156968F-281L, 156968F-311L, 156968F-351L, 156968F-911L, 156968F-912L, 156968G-111L, 156968G-311L, 156968G-351L, 158675A-211L, 158685A-04L, 158686A-011L, 158686A-012L, 158686A-111L, 158686A-112L, 158686A-211L, 158686A-251L, 158686A-281L, 158686A-311L, 158686A-351L, 158686A-912L, 158686B-111L, 158686B-112L, 158686B-311L, 158686B-351L, 783002-00, 783002-04, 783002-33, 783004-04, 784193-00, 784193-04, 784193-33, 784341-00, 784341-04, 784341-33, 785541-01, 785541-0115, 785541-0118, 785543-01, 785543-0115, 785543-0118, 785544-01, 785544-0115, 785544-0118, 785779-00, 785779-04, 785780-01, 785780-0115, 785780-0118, 785780-04, 785780-33
National Instruments PXI-8840 Frequently Asked Questions
Question: Why are there so many part numbers for the PXI 8840 Controller?
Answer: The PXI 8840 Controller has several different part numbers with varying specifications. First, part number 785780-01 has an Intel Core i5 Processor and a Windows 10 64-bit Controller OS. Second, part number 785780-04 has an Intel Core i5 Processor and a Windows 7 64-bit Controller OS. Next, part number 785780-33 has an Intel Core i5 Processor and a LabVIEW Real-Time Controller OS. Part number 784193-04 has an Intel Core i7 Processor and a Windows 7 64-bit Controller OS. Part number 785543-01 has an Intel Core i7 Processor and a Windows 10 64-bit Controller OS. Lastly, part number 784193-33 has an Intel Core i7 Processor and a LabVIEW Real-Time Controller OS.
Question: Does the NI PXI-8840 Quad-Core Controller have a removable hard drive?
Answer: No, the NI PXI-8840 Quad-Core Controller does not have a removable hard drive.
Question: What are the slot requirements for the PXI 8840?
Answer: The slot requirements for the PXI 8840 are one system slot and three controller expansion slots.
Question: What is the PXI-8840 driver software called?
Answer: The PXI-8840 driver software is called NI-DAQmx.
PXI-8840 PDF Manuals
NI PXI-8840 GETTING STARTED GUIDE.PDF
NI PXI-8840 QUAD CORE GETTING STARTED GUIDE.PDF
NI PXI-8840 QUAD CORE USER MANUAL.PDF
PXI-8840 GETTING STARTED GUIDE.PDF
PXI-8840 LETTER OF VOLATILITY.PDF
PXI EXPRESS EMBEDDED CONTROLLERS PRODUCT FLYER.PDF
Driver Downloads for PXI-8840
OS Compatibility:
Win XP 32-bit, Win 7 32-bit, Win 10 32-bit
