PXIe-8105 In Stock | Ships Today
PXIe-8105, 2.0 GHz, Dual-Core Processor, PXI Embedded Controller
Need an Official Quote?

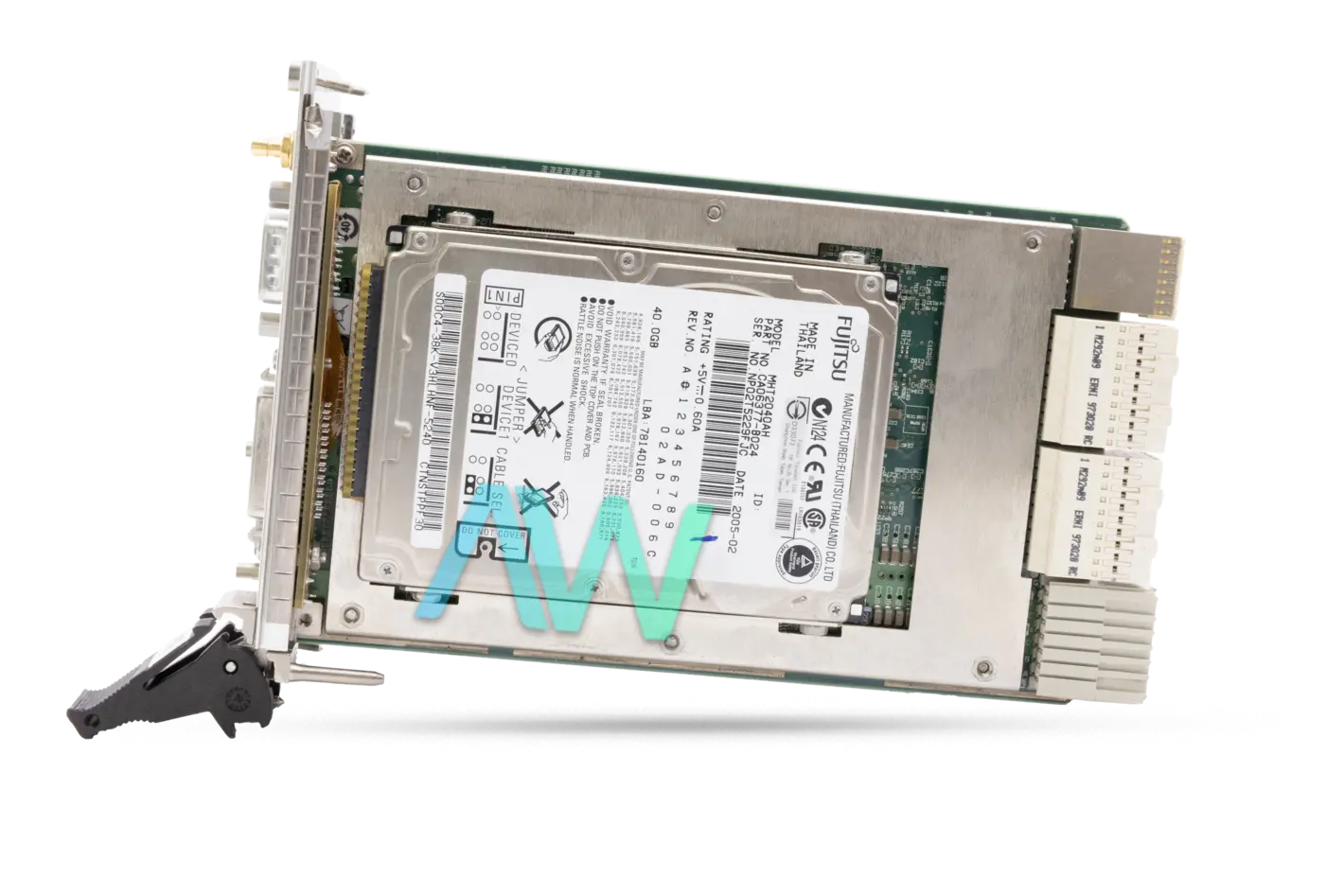

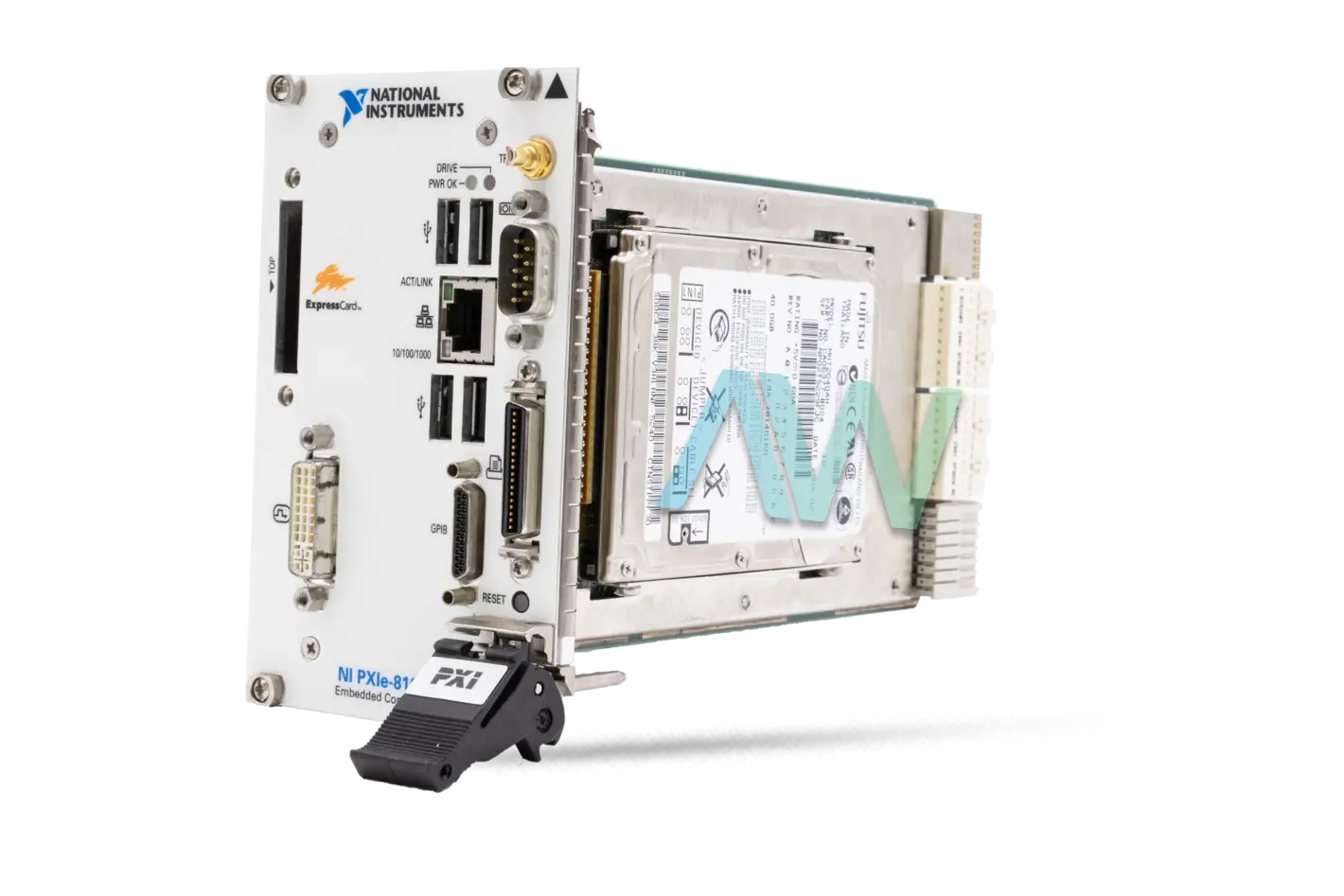

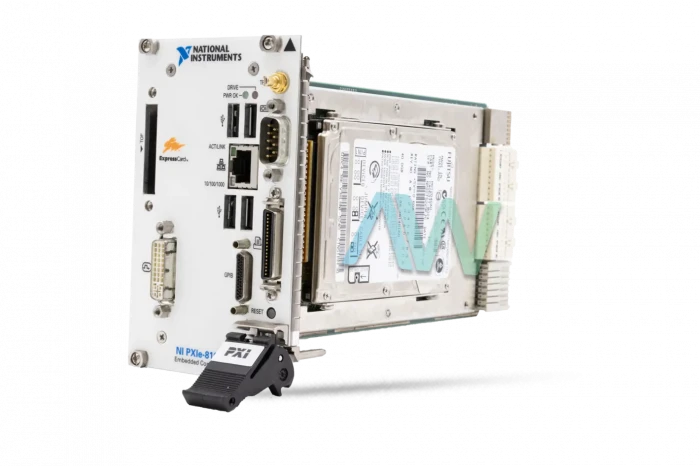

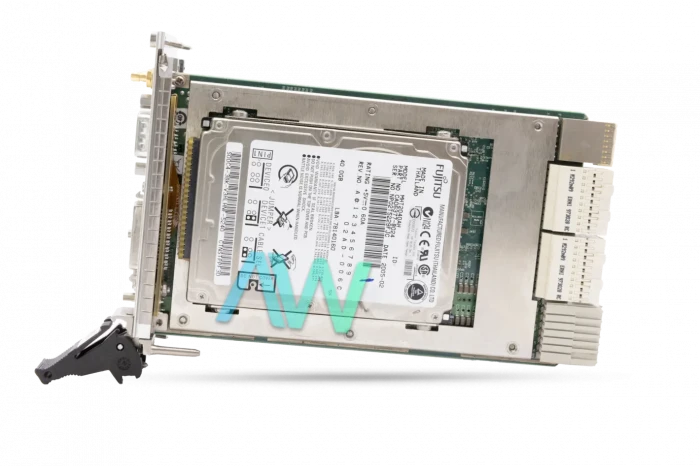

National Instruments PXIe-8105 PXI Controller
The PXIe-8105 (Part Numbers: 779710-00, 779710-01, 779711-00, and 779711-01) PXI Controller incorporates two strategies for reestablishing the original factory condition of the hard drive. Hard drive-based recovery stores a factory backup on a separate segment of the hard drive, enabling the user to reestablish the controller without extra media. The NI PXIe-8105 Controller also has an OS Recovery CD available that enables the user to reinstall the working framework on their hard drive through an outer complement USB CD/DVD-ROM.
For applications that are processing two threads, the CPU puts the two unused cores into an idle state and expands the dynamic core's clock frequency from 12.3 to 3.2 GHz. For applications utilizing four threads, the CPU increments from 2.3 to 3.1 GHz. Turbo Boost gives execution increments to a wide range of utilizations and can fundamentally lessen 11 times for applications that are processor-intensive.
The PXIe-8105 will consequently perceive the ExpressCard and load the proper driver(s). Third-party cards may require that the user introduces extra drivers. The NI PXIe-8105 Controller incorporates a preinstalled OS. At times, the user might need to introduce an alternate OS.
This model comes with load setup defaults. This setting reestablishes all BIOS settings to the factory default. This is valuable if the controller displays erratic conduct because of off base or wrong BIOS settings. Notice that any non-default settings, such as boot request, passwords, and keyboardless tasks are reestablished to their production line defaults. This may deliver undesirable conduct, and in heavily customized cases, may make the controller malfunction or fail to boot.
| Model | PXIe-8105 |
|---|---|
| Part Numbers | 779710-00, 779710-01, 779711-00, 779711-01 |
| Manufacturer | National Instruments |
| Type | PXI Controller |
| Processor Core | Intel Core Duo Processor T2500 |
| On-die L2 Cache | 2048 kB |
| CPU Frequency | 667 MHz |
| Board Dimensions | Four-wide 3U PXI Express module |
| Weight | 2.14 lb. |
| Warranty | 2-3 Year Warranty |
| PXIe-8105 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for the PXIe-8105:
1.93682E-07, 1.93682E-18, 193220A-01, 193220A-01L, 193220B-01L, 193220C-01L, 193220D-01L, 193220E-01L, 193220F-01L, 193682A-012, 193682A-012L, 193682A-023, 193682A-712, 193682A-712L, 193682A-723, 193682B-012, 193682B-023, 193682B-712, 193682B-723, 193682C-012, 193682C-023, 193682C-712, 193682C-723, 193682C-812, 193682D-012, 193682D-023, 193682D-712, 193682D-723, 193682D-812, 193682D-823, 193682E-712, 193682E-723, 193682E-812, 193682E-823, 193682F-023, 193682F-723, 193682F-823, 193682G-012, 193682G-023, 193682G-712, 193682G-723, 193682G-812, 193682G-823, 193682H-012, 193682H-023, 193682H-712, 193682H-723, 193682H-812, 193682H-823, 193682J-012, 193682J-023, 193682J-712, 193682J-723, 193682J-812, 193682J-823, 193682K-012, 193682K-712, 193682K-812, 779710-00, 779710-01, 779710-02, 779711-00, 779711-01, 779711-02
Associated NSNs for the PXIe-8105:
5998-01-565-3225 (5998015653225)
National Instruments PXIe-8105 Frequently Asked Questions
Question: What are the system and slot bandwidth for the PXIe-8105?
Answer: Both the system and slot bandwidth for the PXIe-8105 are 1 GB/s maximum.
Question: Does the NI PXIe-8105 have an ExpressCard/34 slot?
Answer: Yes, the NI PXIe-8105 has an ExpressCard/34 slot.
Question: What is the maximum RAM capacity for the PXIe-8105?
Answer: The maximum RAM capacity for the PXIe-8105 is 4 GB.
Question: Why are there four part numbers for the NI PXIe-8105?
Answer: The NI PXIe-8105 has a base model and an extended temperature model. Both models have a few installed OS choices also. For example, part number 779710-01 is the base model with Windows XP Professional (English) installed, while part number 779711-01 is the extended temperature version with Windows XP Professional (English) installed. Part number 779710-00 is the base model with Localized Windows XP or another OS installed. Finally, part number 779711-00 is the extended temperature model with Localized Windows XP or another OS installed.
PXIe-8105 PDF Manuals
ARCHIVED NI PXIE 8105 INSTALLATION GUIDE.PDF
ARCHIVED NI PXIE 8105 USER MANUAL AND SPECIFICATIONS.PDF
NI 5663E CALIBRATION PROCEDURE.PDF
NI PXI 5663 CALIBRATION PROCEDURE.PDF
NI PXI 5670 5671 SPECIFICATIONS.PDF
NI PXIE 5601 CALIBRATION PROCEDURE.PDF
NI PXIE 5672 SPECIFICATIONS.PDF
PXI EXPRESS EMBEDDED CONTROLLERS PRODUCT FLYER.PDF
PXIE 5665 CALIBRATION PROCEDURE.PDF
