PXIe-8130 In Stock | Ships Today
PXIe-8130, 2.3 GHz, Dual-Core Processor, PXI Controller
Need an Official Quote?

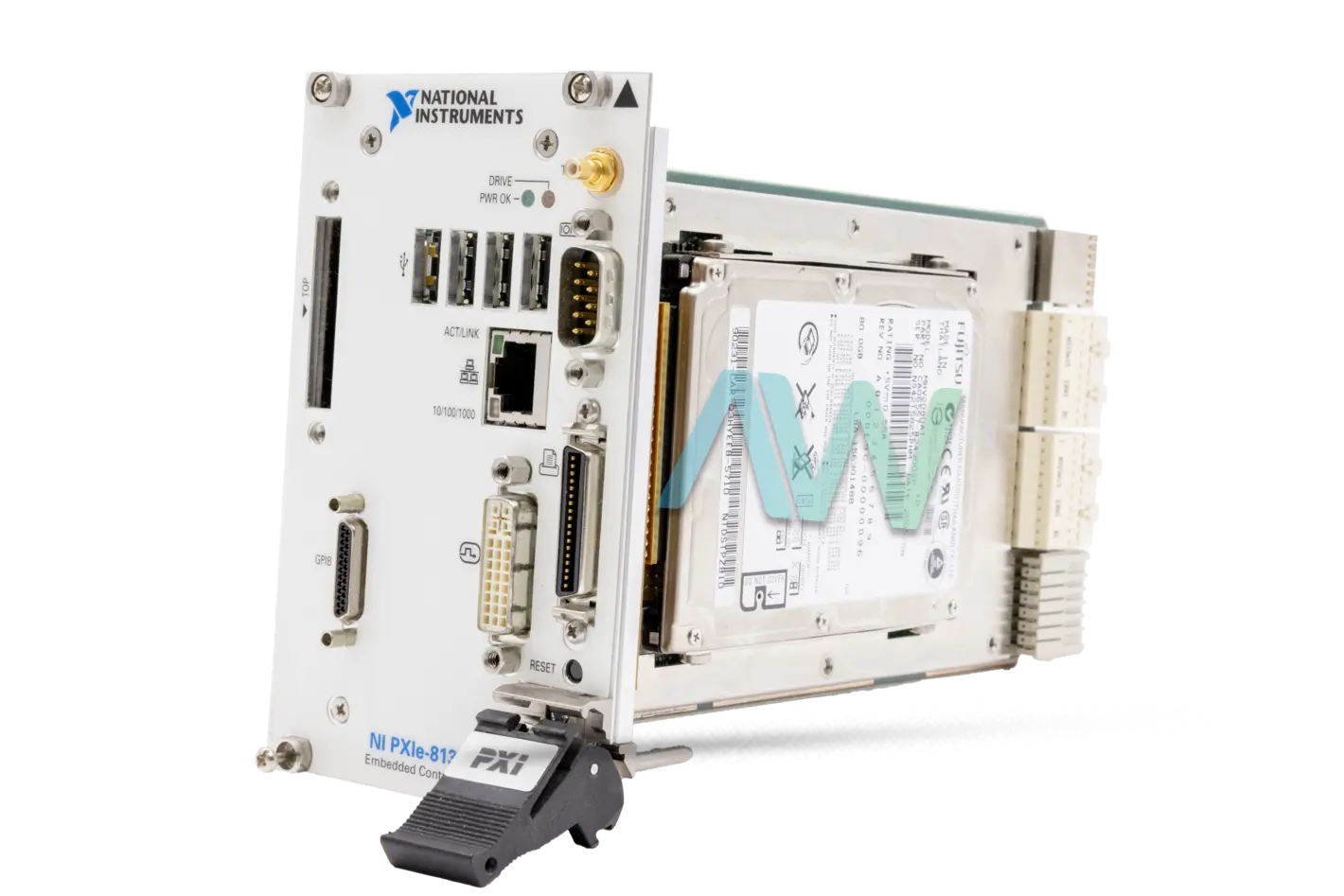

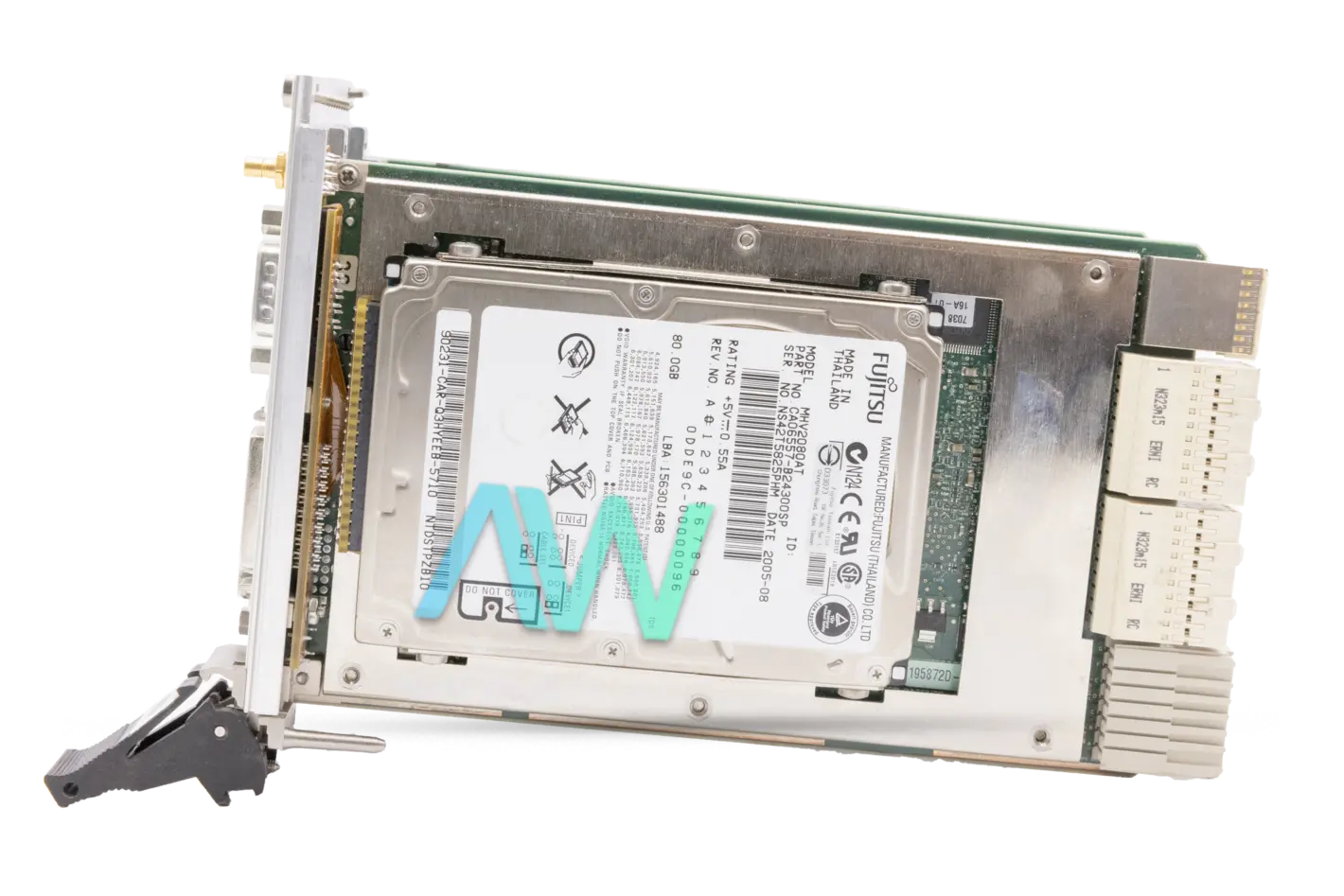

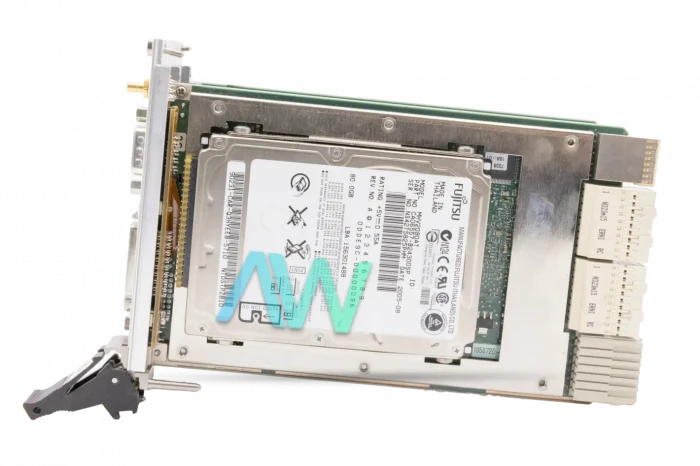

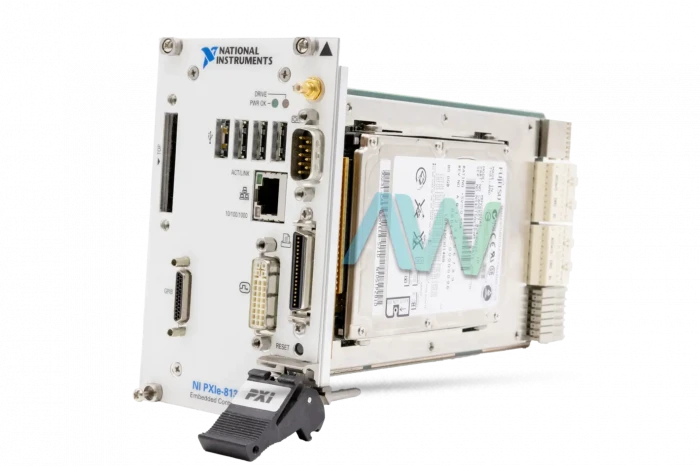

National Instruments PXIe-8130 PXI Controller
The PXIe-8130 (Part Number: 198078E-022) is a superior and high-data transfer capacity AMD Turion 64 X2 processor-based Embedded Controller for use in PXI Express frameworks. With the 2.3 GHz double core processor, double channel 667 MHz DDR2 memory, and 800 MHz HyperTransport interface, the NI PXIe-8130 Controller is perfect for measured instrumentation and data acquisition applications.
The National Instruments PXIe-8130 Controller incorporates the double core AMD Turion 64 X2 processor. Double core processors contain two cores, or registering engines, in one physical bundle. They can at the same time execute two computing tasks, which is favorable in multitasking situations, including Windows XP, where numerous applications run at the same time. Two applications, such as NI LabVIEW and Microsoft Excel, can each execute on a different core in the meantime, which enhances the general framework execution.
This installed controller highlights a nVidia MCP55 Pro chipset that is associated with the AMD processor by means of 800 MHz HyperTransport connect. This chipset gives four x4 PCI Express paths that are sent to the PXI suspension backplane to make four x4 PXI Express slots. Every one of these slots has up to 1 GB/s of dedicated data transfer capacity with the general framework transmission capacity of 4 GB/s. To upgrade the RAM, users can expel the NI PXIe 8130 PXI Controller from the PXI frame. To optimize both the memory limit and framework execution, it is recommended to utilize a similar size and speed memory module in each of the two module slots.
| Model | PXIe-8130 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 198078E-022 |
| Type | PXI Controller |
| Processor | 2.3 GHz Dual-Core AMD Turion 64 X2 Processor |
| Standard RAM | 1 GB |
| Maximum RAM | 4 GB |
| Slot Requirements | 1 system slot and 3 controller expansion slots |
| Board Dimensions | Four-wide 3U PXI Express module |
| Weight | 2.15 lb. |
| Warranty | Three Year Warranty |
| PXIe-8130 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for the PXIe-8130:
1.96269E-07, 1.98078E-05, 1.98078E-17, 195872A-01L, 195872B-01L, 195872B-01X, 195872B-02L, 195872C-01L, 195872D-01L, 195875A-01L, 195875A-01X, 195875B-01L, 195875C-01L, 196269A-01, 196269A-012, 196269A-712, 196269A-812, 196269B-012, 196269B-712, 196269B-812, 196269C-012, 196269C-712, 196269C-812, 196269D-012, 196269D-712, 196269D-812, 196269E-712, 196269E-716, 196269E-812, 196269E-912, 196269F-012, 196269F-712, 196269F-812, 196269F-912, 198078A-010, 198078A-022, 198078A-722, 198078A-822, 198078B-010, 198078B-022, 198078B-722, 198078C-010, 198078C-022, 198078C-722, 198078C-822, 198078D-010, 198078D-022, 198078D-722, 198078D-822, 198078E-722, 198078E-822, 198078F-022, 198078F-722, 198078F-822, 198078F-922, 501636B-00, 780031-00, 780031-01, 780031-02, 780031-04, 780031-11, 780032-00, 780032-01, 780032-02, 780032-04, 780032-33
Associated NSNs for the PXIe-8130:
5998015833086, 5998015833086, 5998-01-583-3086 (5998015833086)
National Instruments PXIe-8130 Frequently Asked Questions
Question: What is the bandwidth of the PXIe-8130?
Answer: The bandwidth of the PXIe-8130 is 4 GB/s maximum for the system bandwidth and 1 GB/s maximum for the slot bandwidth.
Question: How many 10/100/1000BASE-TX (Gigabit) Ethernet ports are on the NI PXIe-8130?
Answer: The NI PXIe-8130 has one 10/100/1000BASE-TX (Gigabit) Ethernet port.
Question: What are the minimum types of software that the PXIe-8130 has installed?
Answer: The PXIe-8130 has at least these software types installed: drivers for every built-in I/O port, Microsoft Windows XP Professional OS, NI-VISA and NI-488.2 drivers, and a hard-drive-based recovery image.
Question: Does the NI PXIe-8130 have any serial ports?
Answer: Yes, the NI PXIe-8130 has one RS-232 serial port.
PXIe-8130 PDF Manuals
2.53 GHZ INTEL CORE 2 DUO REAL TIME EMBEDDED CONTROLLERS FOR PXI EXPRESS DATASHEET.PDF
ARCHIVED NI PXIE 8130 INSTALLATION GUIDE.PDF
ARCHIVED NI PXIE 8130 LETTER OF VOLATILITY.PDF
ARCHIVED NI PXIE 8130 USER MANUAL AND SPECIFICATIONS.PDF
HIGH BANDWIDTH 2.3 GHZ DUAL CORE EMBEDDED CONTROLLER FOR PXI EXPRESS DATASHEET.PDF
NI PXIE 5641R SPECIFICATIONS.PDF
NI PXIE 5663 SPECIFICATIONS.PDF
PXI EXPRESS EMBEDDED CONTROLLERS PRODUCT FLYER.PDF
Driver Downloads for PXIe-8130
OS Compatibility:
Win XP 32-bit, Win 7 32-bit, Win 10 32-bit
