PXIe-8821 Request for Availablility
PXIe-8821, 2.6 GHz Dual-Core Processor, PXI Controller
Need an Official Quote?

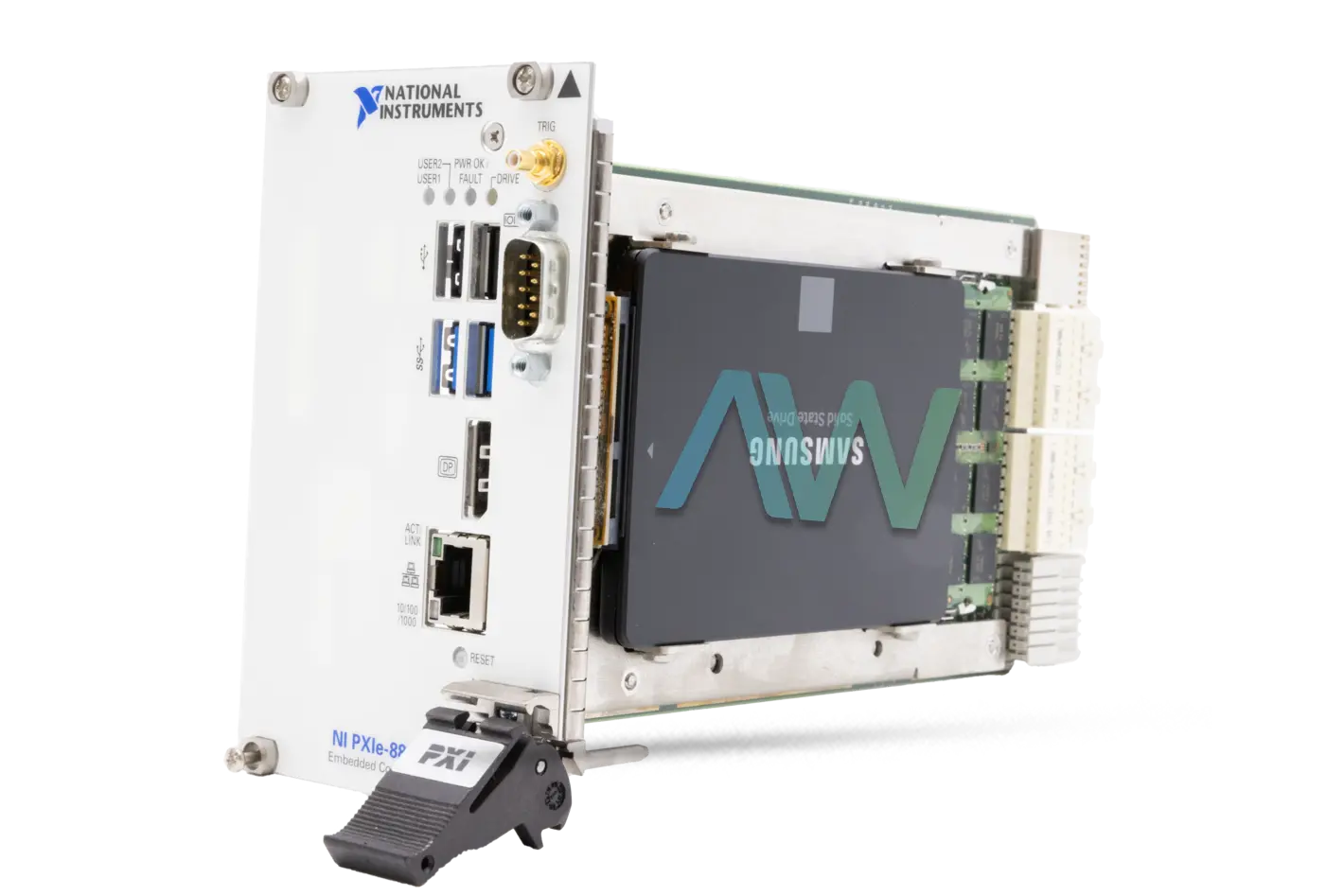

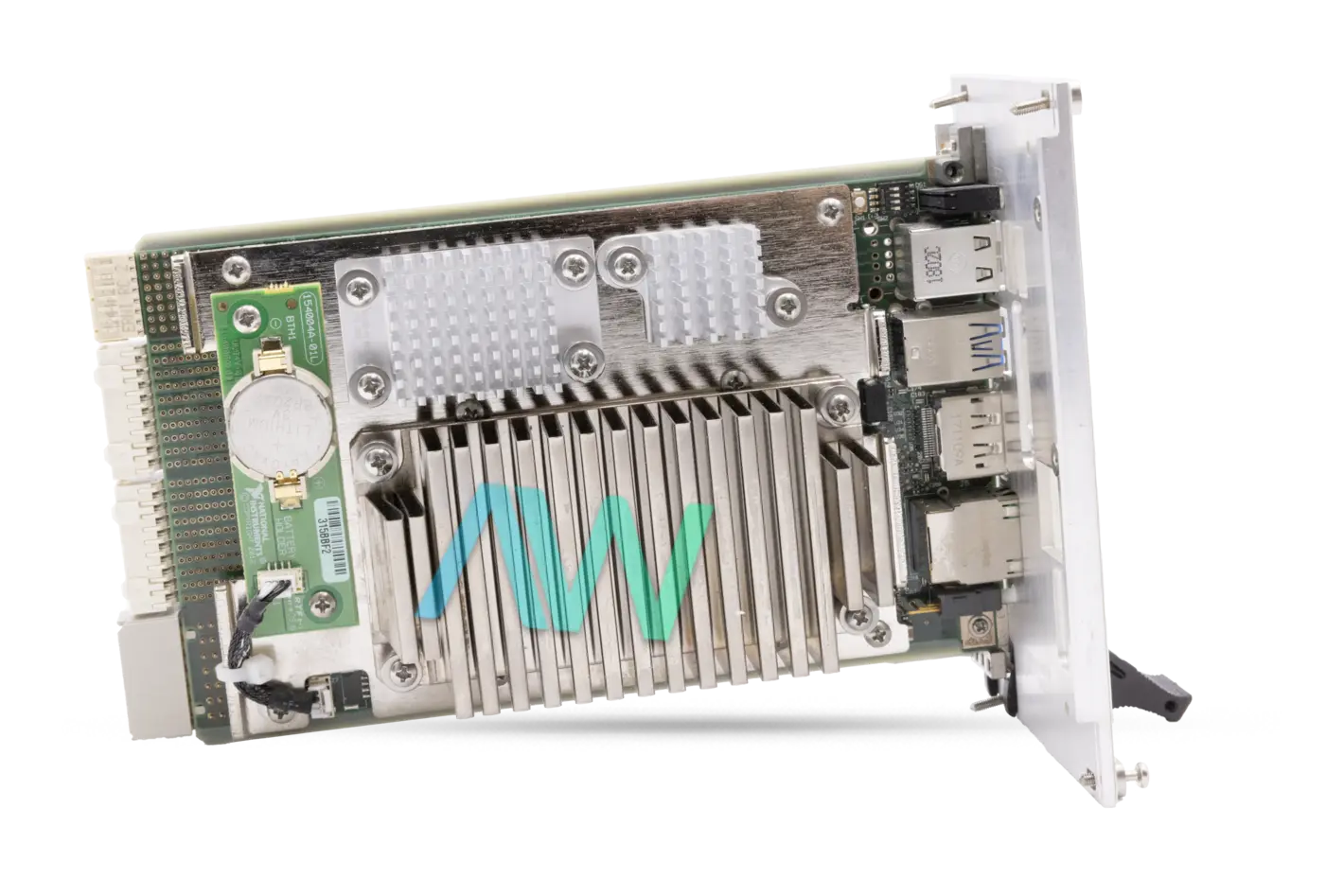

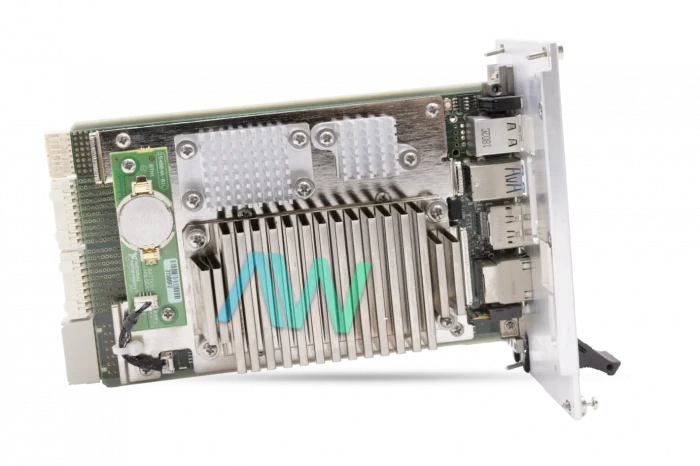

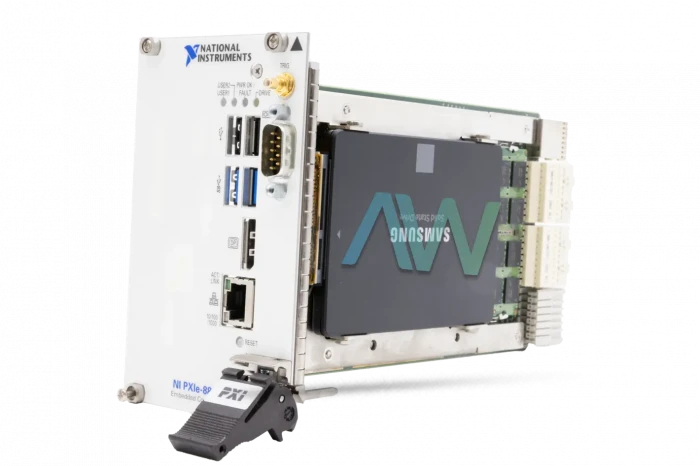

National Instruments PXIe-8821 PXI Controller
The PXIe-8821 (Part Numbers: 785158-04, 785545-01, 785158-33, 142292C-311L) is a Dual-Core, 2.6 GHz PXI Controller. This Controller supports development in LabVIEW, making it easy to integrate a variety of I/O within the user’s application. It is possible to build a custom real-time system by using the NI PXIe-8821 with a mix of PXI Express and CompactPCI Express modules. With LabVIEW libraries, users can create applications involving data acquisition, dynamic signal acquisition, motion control, image acquisition, reconfigurable I/O, and instrumentation. With this model, users can communicate with peripheral devices via Ethernet or serial protocols. CAN and GPIB support can be added through additional PXI modules. In addition, users can utilize NI-VISA software to incorporate outsider PXI/CompactPCI modules into an application.
For remaining solitary tasks, users can install code in the framework with the goal that it begins naturally when the framework boots, requiring no human cooperation. Users can additionally take advantage of the LabVIEW Professional Development System and LabVIEW Real-Time Module to aggregate the LabVIEW application into an executable and download it to the National Instruments PXIe-8821 Controller.
This PXI Controller enables users to look over a few hard drive alternatives for an NI PXIe 8821 to address distinctive ecological and utilization conditions. To accomplish broadened temperature and day in and day out tasks, select a strong state drive (SSD) that is intended for both unwavering qualities in low-and high-temperature conditions and day in and day out activities. Rotating disk drives give the Controller a working temperature of 5 ° C to 50 ° C and a capacity temperature of - 40 ° C to 65 ° C. Controllers with broadened temperature SSDs have a working temperature of 0 ° C to 55 ° C and a capacity temperature of - 40 ° C to 70 ° C.
The PXIe-8821 has a "Last Time Buy" date of November 30, 2024 from NI- but it will remain available for purchase and repair with Apex Waves.
| Model | PXIe-8821 |
|---|---|
| Part Numbers | 785545-01, 785158-04, 785158-33, 142292C-311L |
| Manufacturer | National Instruments |
| Type | PXI Controller |
| Processor Core | Intel Core i3 |
| Memory (RAM) Capacity | 2 GB Standard, 8 GB Max (single-channel DDR3L 1600 MHz SO-DIMM) |
| Slot Requirements | One system slot and three controller expansion slots |
| Board Dimensions | Four-wide 3U PXI Express module |
| Weight | 2.16 lb. |
| USB Ports | 2 Hi-Speed USB 2.0 Ports and 2 SuperSpeed USB 3.0 ports |
| Ethernet | One 10/100/1000 BaseT Gigabit Ethernet Port |
| Operating Temperature | 5 °C to 50 °C |
Associated part numbers for the PXIe-8821:
132819A-01L, 133593A-01L, 142206A-112L, 142292A-011L, 142292A-111L, 142292A-112L, 142292A-211L, 142292A-251L, 142292A-281L, 142292A-311L, 142292A-351L, 142292A-411L, 142292B-011L, 142292B-111L, 142292B-311L, 142292B-351L, 142292C-111L, 142292C-311L, 142292C-351L, 142994A-01L, 142994A-02L, 200221A-01, 200750A-01, 785158-00, 785158-04, 785158-33, 785545-01, 785545-0115, 785545-0118, 787895-33
National Instruments PXIe-8821 Frequently Asked Questions
Question: Which type of USB ports are on the PXIe-8821?
Answer: The PXIe-8821 has two Hi-Speed USB (2.0) Ports and two SuperSpeed USB (3.0) Ports.
Question: What is the difference between the multiple part numbers for the NI PXIe-8821?
Answer: The different part numbers for the NI PXIe-8821 each have a different OS installed. Part number 785545-01 has Windows 10 64-bit installed, part number 785158-04 has Windows 7 64-bit installed, and part number 785158-33 has LabVIEW Real-Time installed.
Question: What type of data storage features are on the PXIe 8821?
Answer: The PXIe 8821 has two types of data storage features: USB storage support via USB CD/DVD-ROM, mass storage device, or floppy drive and a 2.5 in. SATA notebook internal drive.
Question: Can I link a VGA monitor to the NI PXIe 8821?
Answer: A VGA monitor can be linked to the NI PXIe 8821 with a DisplayPort-to-VGA adapter. The part number is 782271-01.
PXIe-8821 PDF Manuals
PXI EXPRESS EMBEDDED CONTROLLERS PRODUCT FLYER.PDF
PXIE 8821 GETTING STARTED GUIDE.PDF
PXIE 8821 LETTER OF VOLATILITY.PDF
PXIE 8821 USER MANUAL AND SPECIFICATIONS.PDF
