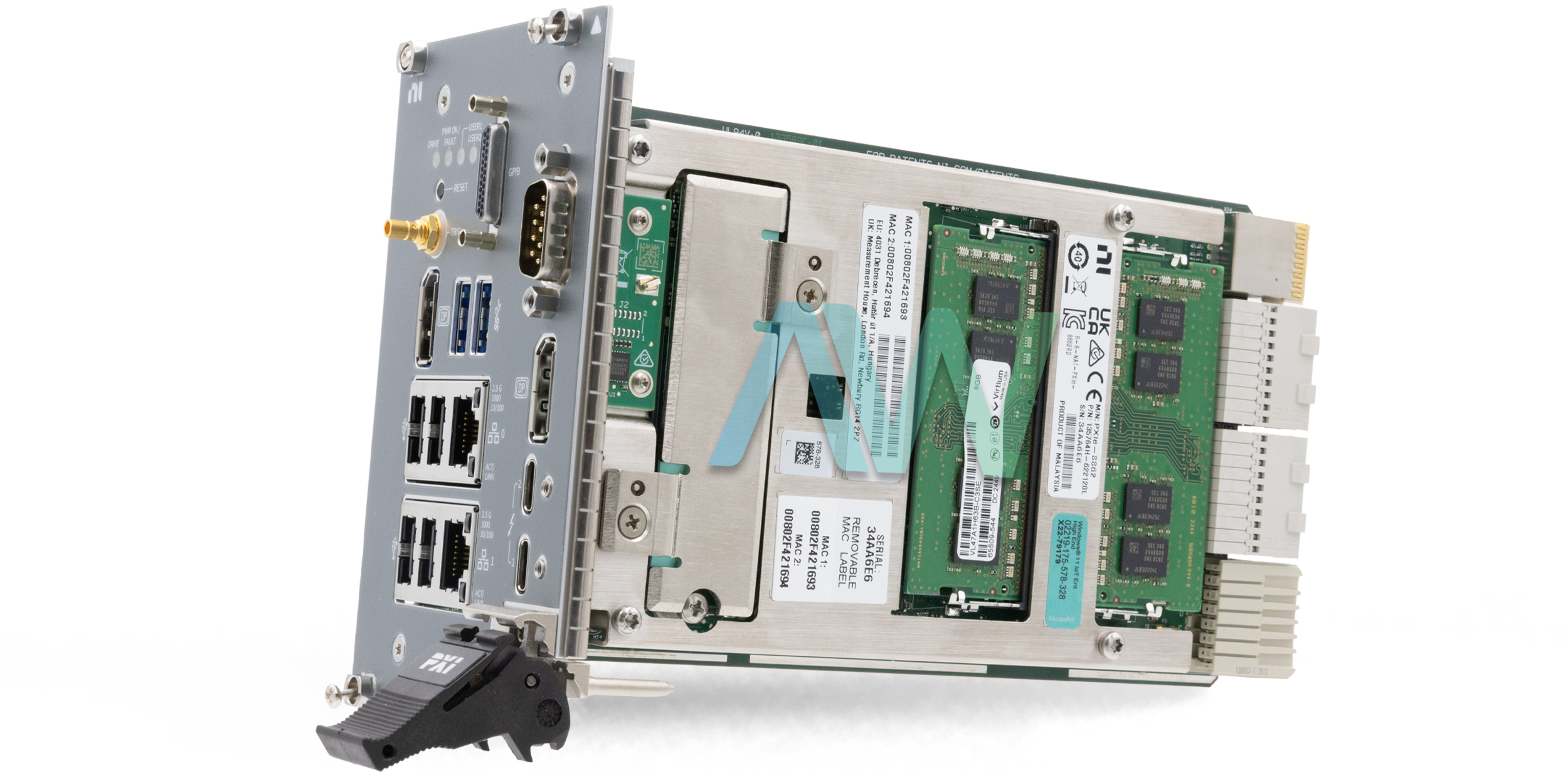

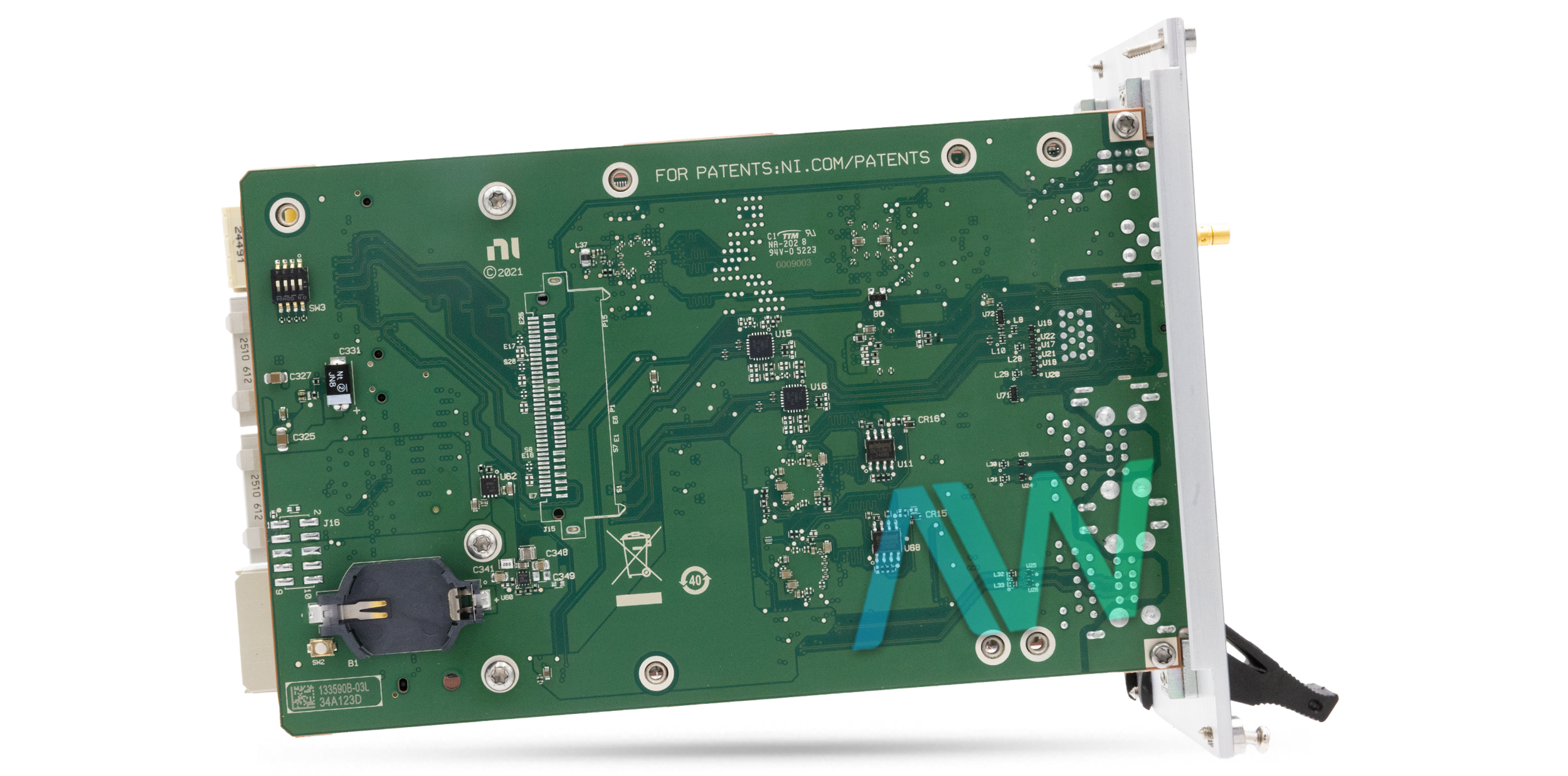

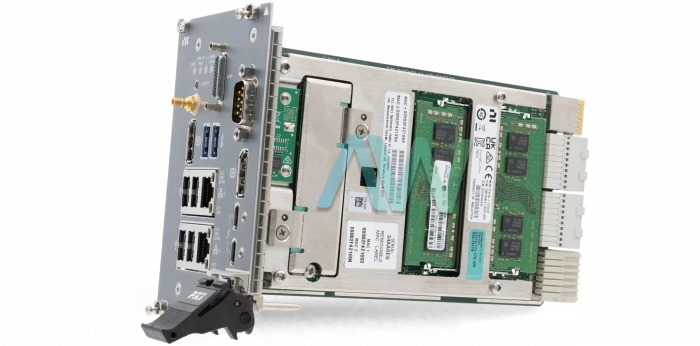

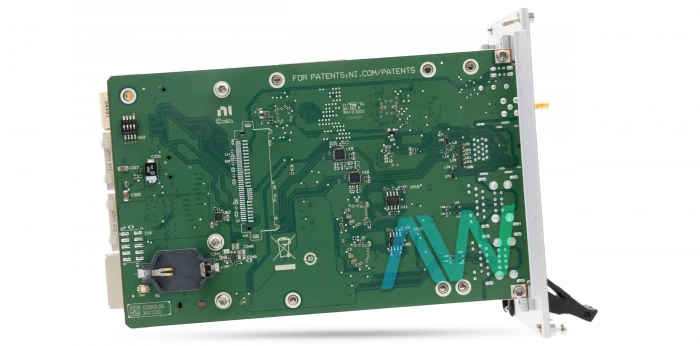

National Instruments PXIe-8862 PXI Embedded Controller
The National Instruments PXIe-8862 is an embedded controller with an Intel Core i7 8-Core processor. It has been crafted specifically for the PXI Express systems, providing exceptional computing power. The advanced capabilities of the controller make it ideal for processor-heavy workflows such as RF, modular instrumentation and data acquisition. This powerful controller offers a great performance and is the perfect solution for these applications. The PXIe-8862 is equipped with a range of features to help you get the most out of your system. This device is equipped with two ports that support 10/100/1000/2500BASE-T (Gigabit) Ethernet. In addition, the controller boasts an integrated hard drive, serial port, two Thunderbolt™ 4 ports, and other peripheral I/O, ensuring you have all the connectivity options you need to get your work done efficiently.
The front panel of the PXIe-8862 is designed with user convenience in mind. Two LEDs show PC status and two user LEDs can be defined to meet the needs of your LabVIEW application. The DRIVE LED indicates when an access to the internal drive is occurring, while the PWR OK/FAULT LED indicates the controller status, displaying various states through different colors. These include steady green, blinking green, fading green, blinking red, solid red, and off.
The PXIe-8862 embedded controller is available in a variety of part options. Part number 787987-00 indicates the version of the controller with no OS. The following part numbers each use the 64-bit version of Windows 10; 787987-01, 787987-0118 (China), and 788167-01 (removable drive). Part numbers 787987-33 and 788167-33 both utilize LabVIEW RT with no TPM, but the latter includes a removable drive.
If you encounter any issues with your PXIe-8862, recovery is made easy with the option to use NI external recovery media or Windows Recovery tools. The front panel of the PXIe-8862 is also equipped with multiple external connector options, including a GPIB connector and a RS-232 Serial Connector. In addition, it includes an ethernet port, as well as both a 2.0 and 3.2 USB port. The trigger and reset button, and two 1.4 Display Ports, are also conveniently located on the front panel- providing easy access to all the important features of the controller.
| Model | PXIe-8862 |
|---|---|
| Part Numbers | 787987-00, 787987-01, 787987-0118, 788167-01, 787987-33, 788167-33 |
| Type | Embedded Controller |
| Ethernet Port | 10/100/1000/2500BASE-T (2.5G Base-T) |
| CPU | Intel Core i7-11850HE |
| Memory | 2 x 8 GB Standard |
| Serial Port | 1 DB-9 |
| Weight | 1.73 lb, 2 lb (with removable drive) |
| Warranty | Three Year Warranty |
| PXIe-8862 Manuals | Manuals Available for Download |
Associated part numbers for the PXIe-8862:
133587C-03L, 133587C-04L, 133587A-03L, 133590A-03L, 133587B-03L, 133590A-04L, 133587B-99L, 133590B-03L, 133590B-04L, 133590B-99L, 133590C-04L, 134243A-01L, 134247A-01L, 134247B-01L, 135764A-021120L, 135764A-320120L, 135764A-321120L, 135764A-321320L, 135764A-322120L, 135764A-420120L, 135764A-420320L, 135764A-520120L, 787987-00, 787987-01, 787987-0118, 787987-33, 788108-01, 788167-01, 788167-33, 788817-01, 788817-0118, 788818-01, 789546-01
National Instruments PXIe-8862 Frequently Asked Questions
Question: Why does the PXIe-8862 have different part numbers?
Answer: The different part numbers represent different versions/models of the PXIe-8862 that vary by their operating system (OS) and the removability of their hard drive. The part numbers and their specifications are as follows: 787987-00: no OS, 787987-01 Windows 10 64-Bit, 787987-0118 Windows 10 64-Bit China, and 788167-01 Windows 10 64-Bit (removable drive). Part numbers 787987-33 and 788167-33 both utilize LabVIEW RT with no TPM, but the latter includes a removable drive.
Question: What ports does the PXIe-8862 feature?
Answer: This PXI Controller features four 10/100/1000/2500 BASE‑T Gigabit Ethernet ports, four Hi‑Speed USB ports, two USB 3.0 ports, an RS-232 serial port, two DisplayPort 1.4, a mini-GPIB port, and two thunderbolt ports.
Question: What is the difference between the PXIe-8862 and the PXIe-8842?
Answer: The PXIe-8862 is more powerful than the PXIe-8842. It has a Core i7 CPU, 24 MB cache, and 16 to 32 GB memory, compared to the PXIe-8842's Core i5 CPU, 12 MB cache, and 8 to 16GB memory. Furthermore, the PXIe-8862 has all the ports on the PXIe-8842 plus an extra two ethernet ports, one DisplayPort 1.4, and one thunderbolt port. It's hard drive is also removable.
Question: Can I upgrade the PXIe-8862's memory?
Answer: You can change the amount of installed RAM on the PXIe-8862 by augmenting or replacing the preinstalled SO-DIMM. Consult the Getting started guide for the steps to replace the RAM.
