PXIe-8880 In Stock | Ships Today
PXIe-8880, 2.3 GHz Eight-Core, PXI Controller
Need an Official Quote?

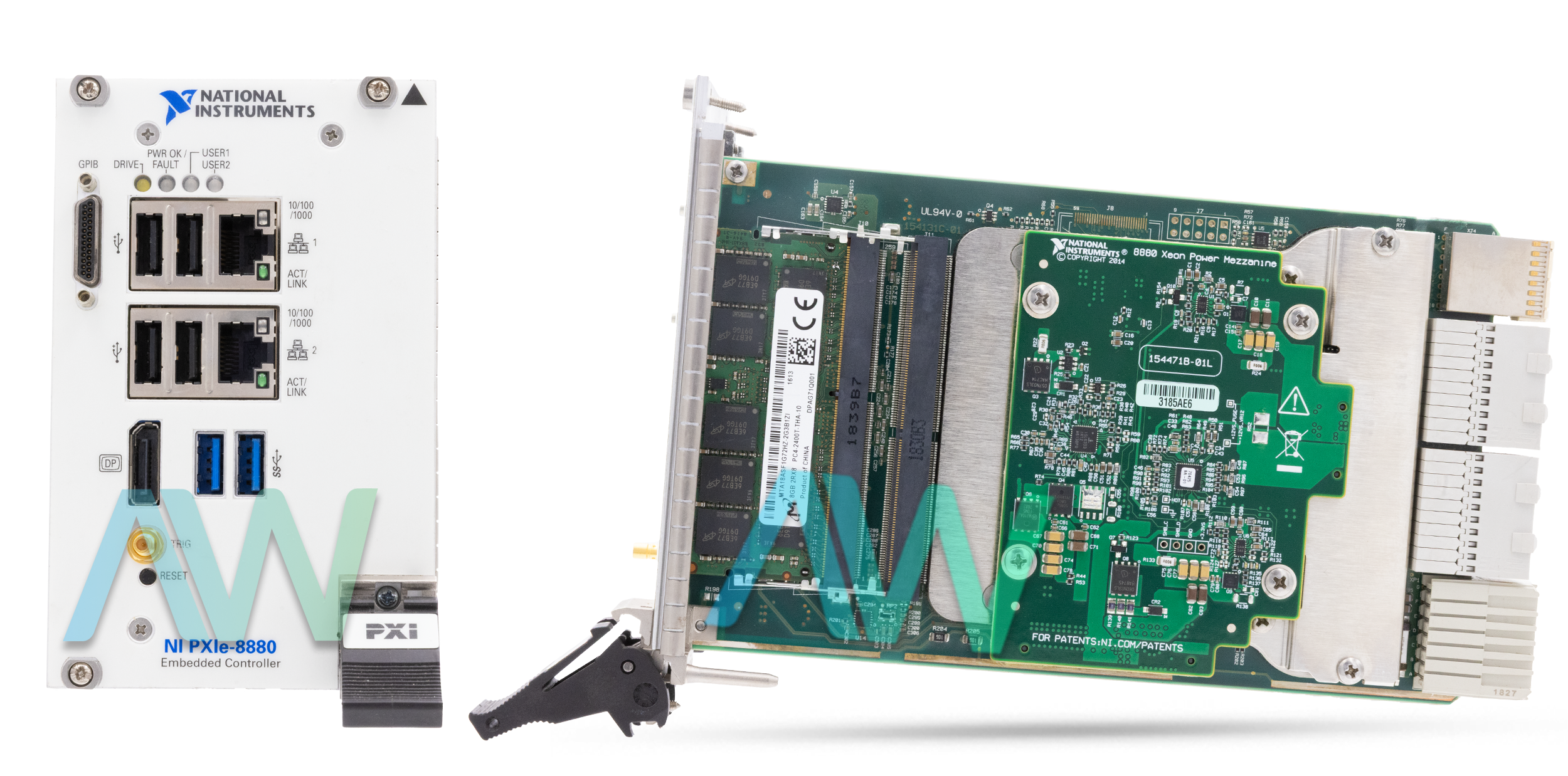

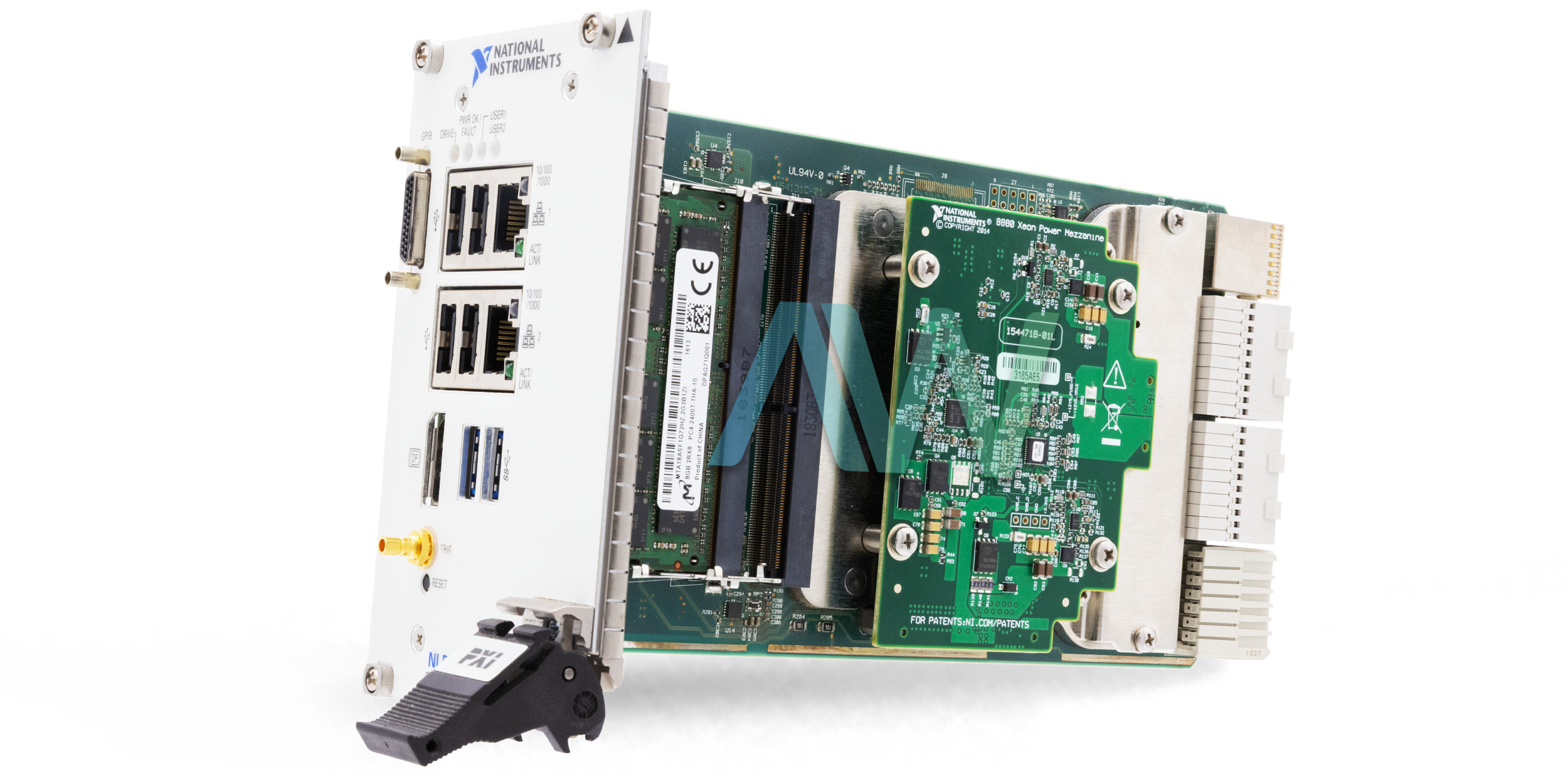

National Instruments PXIe-8880 PXI Controller
The NI PXIe-8880 (Part Numbers: 783513-05, 783513-04, 783513-33, and 154471B-01L) is an 8-core PXI Express embedded controller designed for high-performance test, measurement, and control applications. The controller features an Intel Xeon E5-2618L v3 processor, triple-channel 1866 MHz DDR4 RAM, and 240 GB or larger Serial ATA solid-state storage. It integrates standard I/O connectivity, including DisplayPort 1.2, two Gigabit Ethernet ports, four USB 2.0 ports, two USB 3.0 ports, an SMB PXI trigger connector, and a 25-pin Micro-D GPIB connector
The SMB connector on the front panel can be routed to or from any PXI Express backplane trigger line. However, a trigger allocation process is necessary to prevent multiple resources from connecting to the same trigger line, avoiding double activation and potential hardware damage. The PXIe-8880 provides a system bandwidth of 24 GB/s and a slot bandwidth of 8 GB/s, ensuring fast data throughput for demanding applications such as 5G research, semiconductor testing, and RF record/playback. The controller comes standard with 8 GB DDR4 RAM (1 x 8 GB DIMM), which is expandable up to 24 GB using three SO-DIMM slots. It operates at 2.3 GHz base frequency, with a single-core turbo frequency of 3.4 GHz.
Upgrading RAM requires removing the PXIe-8880 from the PXI Express chassis. While using different-sized modules in each slot is supported, system performance is optimal when using three identical memory modules. If mismatched modules are used, the system may perform better than a single module but will be slower than a set of matched modules.
The PXIe-8880 is designed for high-throughput computing and time-sensitive applications, including real-time processing with LabVIEW Real-Time (LabVIEW RT). The controller supports NI-DAQmx, NI-VISA, NI Modular Instruments, and NI-Industrial Communications for EtherCAT, which are compatible with software environments such as LabVIEW, LabWindows/CVI, Measurement Studio, Microsoft Visual Basic, and Visual C++
As a 3U PXI Express embedded controller, the PXIe-8880 fits in a single system slot and requires three controller expansion slots. It weighs 3.4 lbs and operates within a temperature range of 0 to 50 °C, with a storage temperature range of -40 to 71 °C. It is compatible with PXI Express chassis, such as the NI PXIe-1085, and supports a maximum altitude of 2,000 meters when chassis fans are set to high.
| Model | PXIe-8880 |
|---|---|
| Part Numbers | 783513-05, 783513-04, 783513-33, 154471B-01L |
| Manufacturer | National Instruments |
| Type | PXI Controller |
| Processor | Intel Xeon E5-2618L v3 (8-core) |
| Maximum Bandwidth | 24 GB/s |
| Slot Requirements | 1 system slot and 3 controller expansion slots |
| Board Dimensions | Four-wide 3U PXI Express module |
| Weight | 3.4 lb. |
| Operating Systems | Windows 7 Professional (64-bit), LabVIEW RT |
| Form Factor | 3U PXI Express, requires one system slot and three controller expansion slots |
| Price | Contact a sales representative for a quote. |
Associated part numbers for the PXIe-8880:
200410A-01, 200473A-01, 200490A-01, 200621A-01, 200656A-01, 200788A-01, 200896A-01, 783513-00, 783513-04, 783513-05, 783513-0515, 783513-0518, 783513-33, 784204-00, 141570A-31L, 154129A-01L, 154129B-01L, 154129C-01L, 784204-04, 154129D-01L, 784204-33, 154129D-11L, 784425-04, 154129E-02L, 786963-01, 154129E-12L, 787076-00, 154132A-01L, 787174-01, 154132A-99L, 787892-33, 154132B-01L, 154132B-99L, 154132C-01L, 154132D-01L, 154132D-02L, 154132D-11L, 154132E-01L, 154132E-02L, 154471A-01L, 154471B-01L, 154471B-11L, 155275B-01L, 156521A-011L, 156521A-111L, 156521B-011L, 156521B-111L, 156521C-011L, 156521C-012L, 156521C-111L, 156521C-112L, 156521C-211L, 156521D-011L, 156521D-012L, 156521D-111L, 156521D-112L, 156521D-211L, 156521D-252L, 156521D-281L, 156521E-011L, 156521E-012L, 156521E-111L, 156521E-112L, 156521E-211L, 156521E-252L, 156521E-281L, 156521F-011L, 156521F-012L, 156521F-111L, 156521F-112L, 156521F-211L, 156521F-252L, 156521F-281L, 156521G-011L, 156521G-012L, 156521G-021L, 156521G-022L, 156521G-111L, 156521G-112L, 156521G-211L, 156521G-252L, 156521G-281L, 156521G-311L, 156521G-313L, 156521G-352L, 156521G-411L, 156521G-412L, 156521H-011L, 156521H-012L, 156521H-021L, 156521H-022L, 156521H-111L, 156521H-112L, 156521H-311L, 156521H-313L, 156521H-352L, 156521H-412L, 156521J-111L, 156521J-112L, 156521J-311L, 156521J-313L, 156521J-352L, 200014A-01, 200061B-01, 200160A-01, 200216A-01, 200257A-01, 200367A-01, 200405A-01
Associated NSNs for the PXIe-8880:
5998-01-678-1737 (5998016781737)
National Instruments PXIe-8880 Frequently Asked Questions
Question: What are the differences between the three part numbers for the PXIe 8880 Controller?
Answer: The PXIe 8880 Controller has three part numbers with varying types of OS installed. Part number 783513-05 has Windows 10 64-bit installed, part number 783513-04 has Windows 7 64-bit installed, and part number 783513-33 has LabVIEW Real-Time installed.
Question: Is the NI PXIe-8880 TPM enabled?
Answer: Yes, all three part numbers for the NI PXIe-8880 are TPM enabled.
Question: What is the SO-DIMM block comprised of on the PXIe-8880?
Answer: The SO-DIMM block on the PXIe-8880 is comprised of three 72-bit DDR4 SDRAM sockets that can each hold 8 GB maximum, with a total of 24 GB.
Question: What are the NI PXIe 8880 drivers called?
Answer: The NI PXIe 8880 drivers are NI-488.2, NI-DAQmx, and NI-VISA.
PXIe-8880 PDF Manuals
ATCA 3671 GETTING STARTED GUIDE.PDF
HDD 8261 GETTING STARTED GUIDE AND SPECIFICATIONS.PDF
MMWAVE OTA VALIDATION TEST REFERENCE ARCHITECTURE USER GUIDE.PDF
NI PXIE 8880 GETTING STARTED GUIDE.PDF
PXI EXPRESS EMBEDDED CONTROLLERS PRODUCT FLYER.PDF
PXIE 5831 GETTING STARTED GUIDE.PDF
PXIE 8880 LETTER OF VOLATILITY.PDF
Driver Downloads for PXIe-8880
OS Compatibility:
Win XP 32-bit, Win 7 32-bit, Win 10 32-bit
Why Buy From Apex Waves:
Verified
"Hand carrying parts to fedex directly to make sure I get them overnight. Great service"
"They were very helpful to get me the test equipment that I need."
PXIe-8880
Modular Systems > National Instruments > PXI Controllers
PXIe-8880, 2.3 GHz Eight-Core, PXI Controller
1-800-915-6216
- Description
- Technical Specifications
- FAQ
- Manuals & PDFs
- Drivers

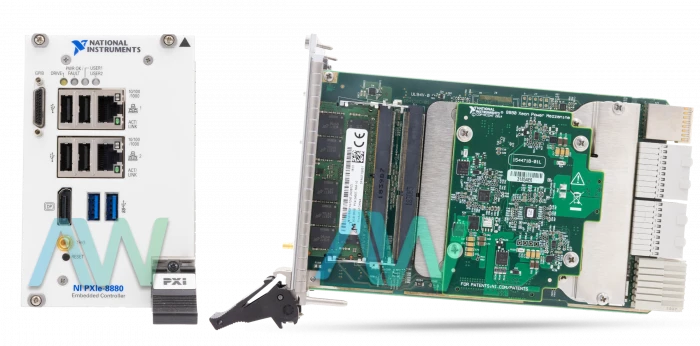

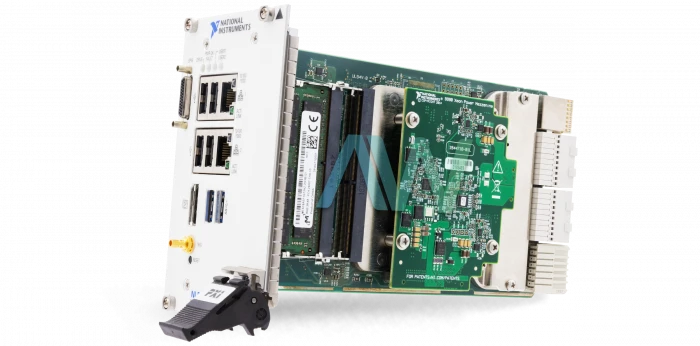

National Instruments PXIe-8880 PXI Controller
