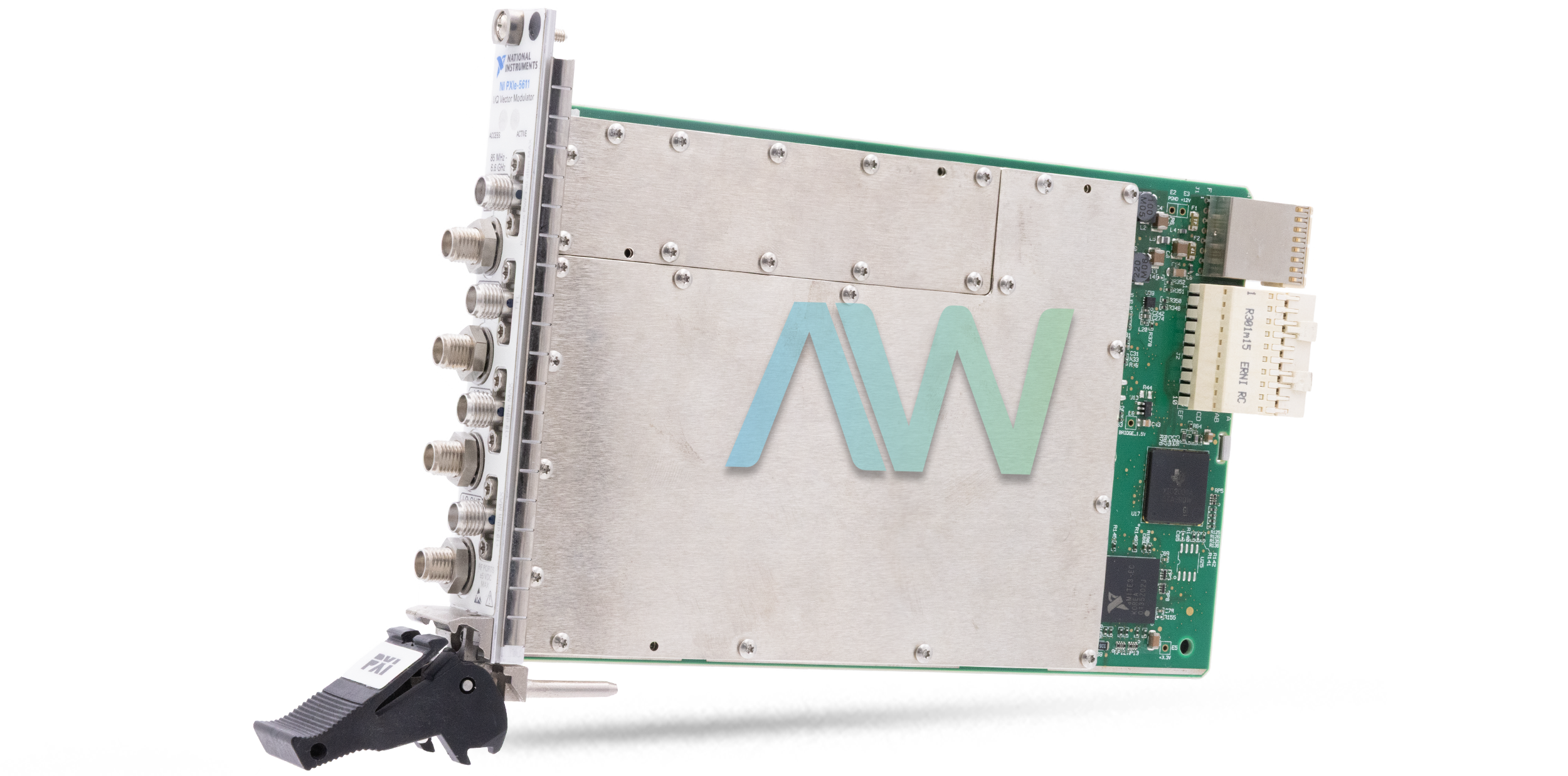

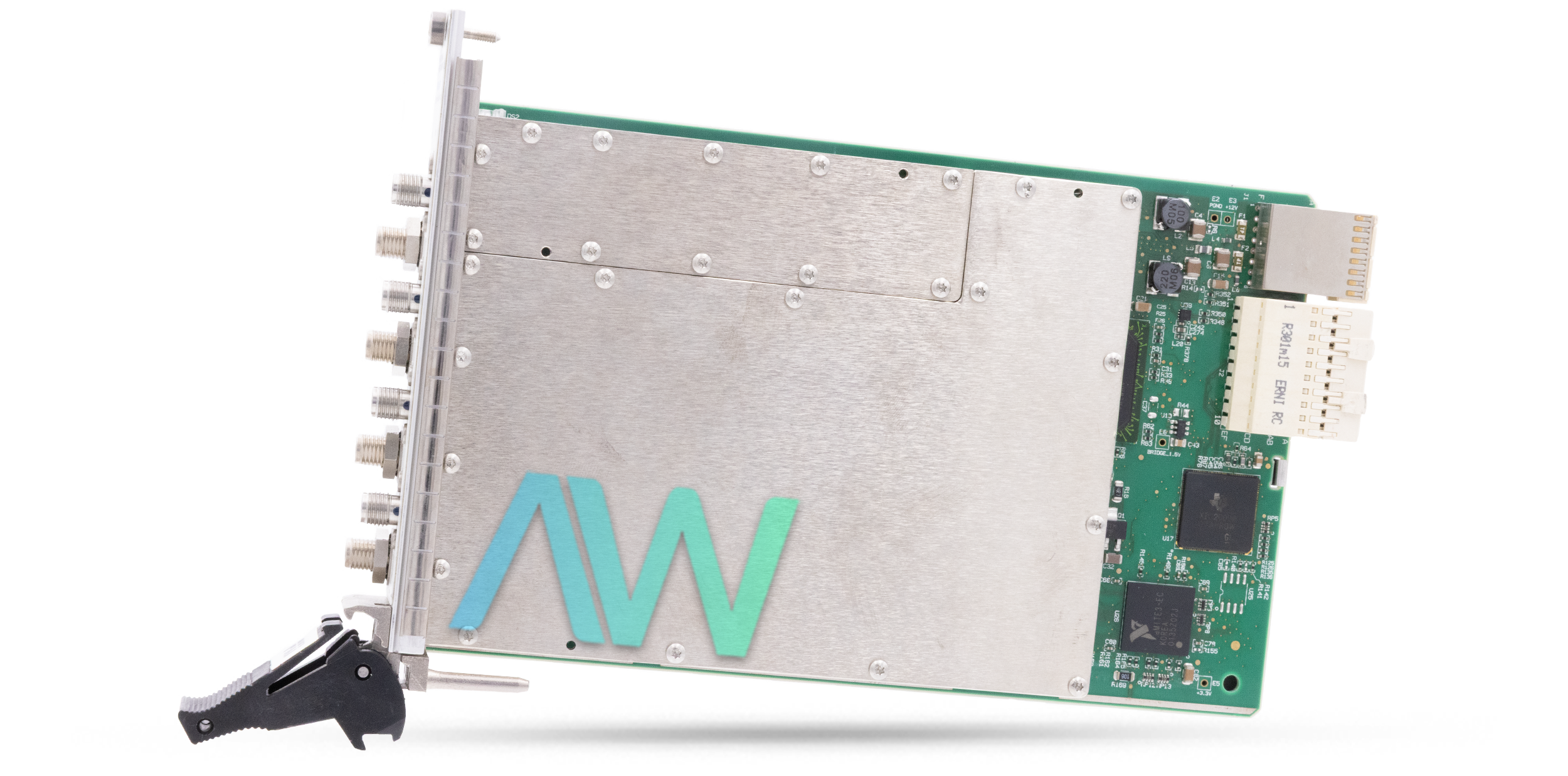

PXIe-5611 National Instruments I/Q Modulator Module | Apex Waves | ImagePXIe-5611 National Instruments I/Q Modulator Module | Apex Waves | ImagePXIe-5611 NewPXIe-5611 | Legacy, Refurbished and New Surplus

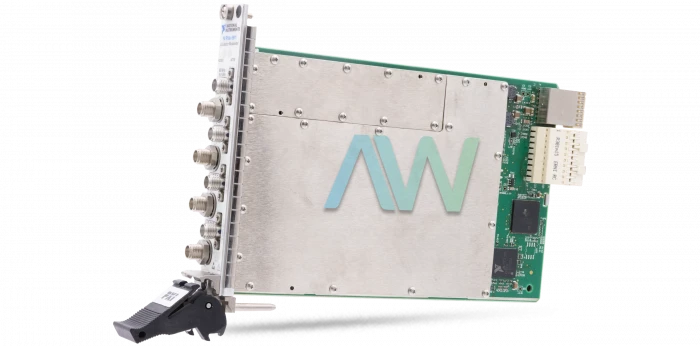

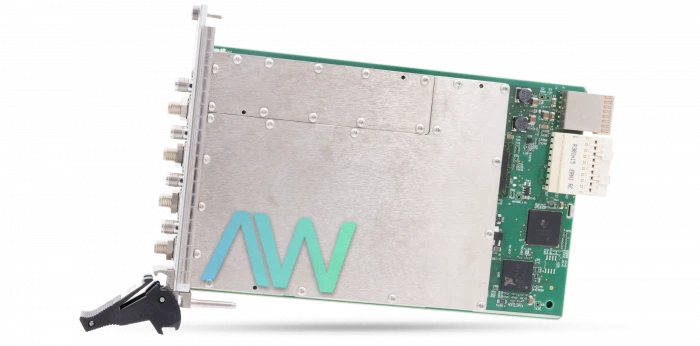

PXIe-5611 National Instruments I/Q Modulator Module | Apex Waves | Image
PXIe-5611 National Instruments I/Q Modulator Module | Apex Waves | Image
PXIe-5611 New
PXIe-5611 | Legacy, Refurbished and New Surplus
Same Day Calibration Available
2-3 Year Warranty Included
Free Ground Shipping

Or speak to a sales representative for additional information:


PXIe-5611 In Stock | Ships Today

PXIe-5611, 6.6 GHz Frequency, 8 Front Panel Connectors, I/Q Modulator Module
4.5/5 | 19 ratings
Fast Quote
Quoted Price

Need an Official Quote?



National Instruments PXIe-5611 I/Q Modulator Module

The PXIe-5611 (Part numbers: 780277-01, 780277-11) is an I/Q Modulator Module from National Instruments that functions as part of the PXIe-5673E Vector Signal Generator Module. Part number 780277-01 of the PXIe-5611 represents the standard 6.6 GHZ version of the I/Q Modulator, while part number 780277-11 represents the enhanced version of the device. The PXIe-5673E that incorporates the PXIe-5611 also includes the PXIe-5450/5451 Waveform Generator and the PXIe-5650/5651/5652 RF Analog Signal Generator.

This I/Q Modulator Module is run using the NI-RFSG 1.6 driver software, which can be programmed with software packages or application development environments (ADEs) such as LabVIEW, LabWindows, and C/C++. The NI PXIe-5611 module is inserted into a PXI Express slot, and used with Windows Vista/XP/7 operating systems. The frequency range of the module is 50 MHz to 6.6 GHz, and it utilizes 0.6 A current at +3.3 VDC. For this specification, the power is typically 10.5 W.

The RF output of the NI PXIe-5611 module is 1 dB typical, and a maximum of +19 dB. The DC input power is ±5 VDC (Max). The front panel of this module is equipped with eight SMA female connectors and two multicolor LEDs. It is recommended by the manufacturer to calibrate the PXIe-5611 once a year- however, if your application demands greater accuracy, the module can be calibrated more often. The I/Q Modulator Module can be calibrated if NI-RFSG version 1.6 or later is installed on the calibration system, because this driver software has all of the Vis needed for calibration.

The NI device weighs 20 oz, and measures 8.5 x 0.8 x 5.1 in. in physical dimensions. It has recommended operating and storage temperature ranges of 0 °C to 55 °C and -40 °C to 71 °C respectively. The non-condensing humidity ranges from 10% to 90% when operational and 5% to 95% for storage. The operating and non-operating random vibrations are 0.3 grms and 2.4 grms respectively–all at a frequency range of 5 to 500 Hz. The module is designed to comply with the following electrical safety standards: IEC 61010-1, EN 61010-1, UL 61010-1, and CSA C22.2 No. 61010-1.

Apex Waves will continue to Buy, Sell, and Repair EOL NI Hardware in perpetuity. While the PXIe-5611 has been declared obsolete by NI, it will remain available with Apex Waves. Request your quote today!

ModelPXIe-5611
ManufacturerNational Instruments
Part Numbers780277-01, 780277-11
TypeI/Q Modulator Module
RF Output1 dB, typical
Driver SoftwareNI-RFSG version 1.6 or later
DC Input Power±5 VDC, maximum
Frequency Range50 MHz to 6.6 GHz
I/Q Inputs Maximum RF Power (each)+19 dBm
Dimensions8.5 in. × 0.8 in. × 5.1 in.
Weight20 oz.
WarrantyThree Year Warranty
PXIe-5611 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for the PXIe-5611:

190759D-01, 190769D-01, 190773D-01, 190793A-01L, 190793D-01L, 190793E-01L, 190793F-01L, 190793G-01L, 193374A-01, 193374B-01, 193374C-01, 193374D-01L, 193374E-01L, 193374F-01L, 193374G-01L, 193374H-01L, 193959A-01L, 193959C-01L, 193959D-01L, 193959E-01L, 193959F-01L, 193959G-01L, 194613C-01L, 19497.6, 19497.7, 194975D-01, 196385A-01, 196385A-01L, 196385B-01L, 196385F-01L, 196385G-01L, 196385H-01L, 196385J-01L, 196385K-01L, 196385L-01L, 196385M-01L, 196385N-01L, 196447A-01L, 780277-01, 780277-11

National Instruments PXIe-5611 Frequently Asked Questions



Question: What is the difference between the two part numbers of the PXIe-5611?

Answer: Part number 780277-01 is the standard version of the I/Q Modulator Module, while part number 780277-11 is the enhanced version.



Question: What software is required to calibrate the NI PXIe-5611?

Answer: The calibration system must have NI-RFSG version 1.6 or later installed.



Question: What is the difference in configuration of the slave NI-5663E and the master?

Answer: Because the LO signal is shared by all NI-5663E devices. External must be selected as the LO source for each slave NI-5601 module.



Question: How can you interconnect the modules?

Answer: The NI-5450 and NI-5611 modules can be interconnected by connecting their I+, I–, Q+, and Q– terminals using the four semi-rigid cables labeled A,
