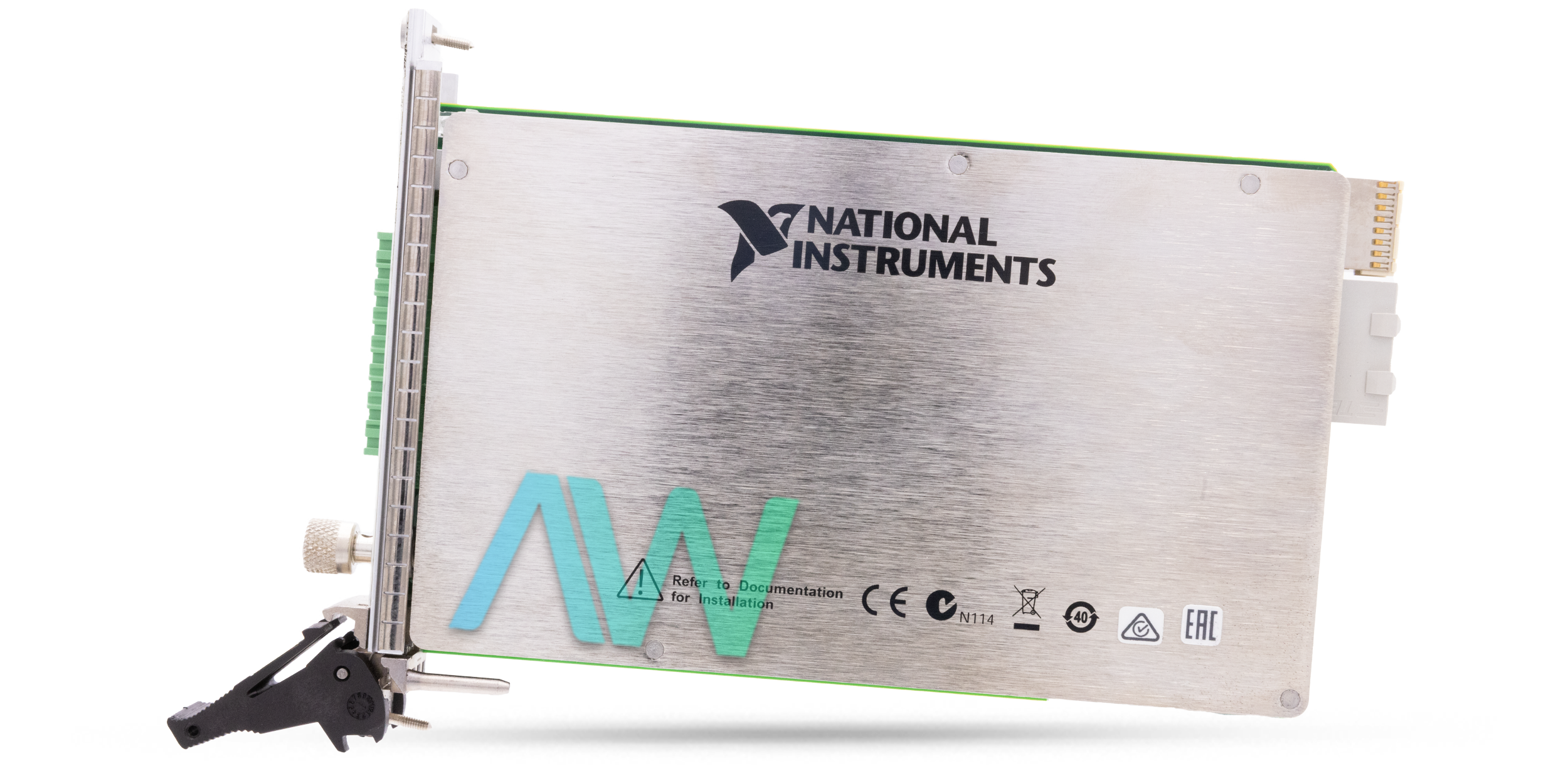

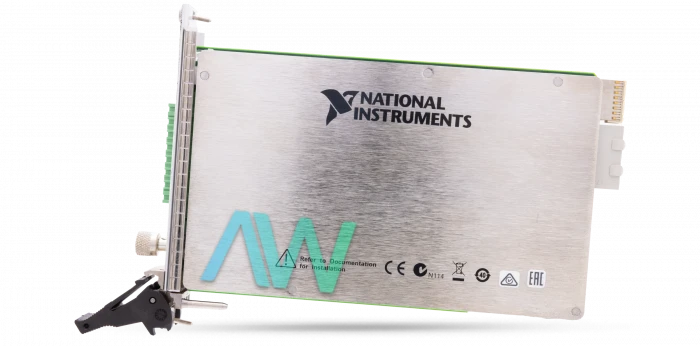

PXIe-4138 National Instruments PXI Source Measure Unit | Apex Waves | Image

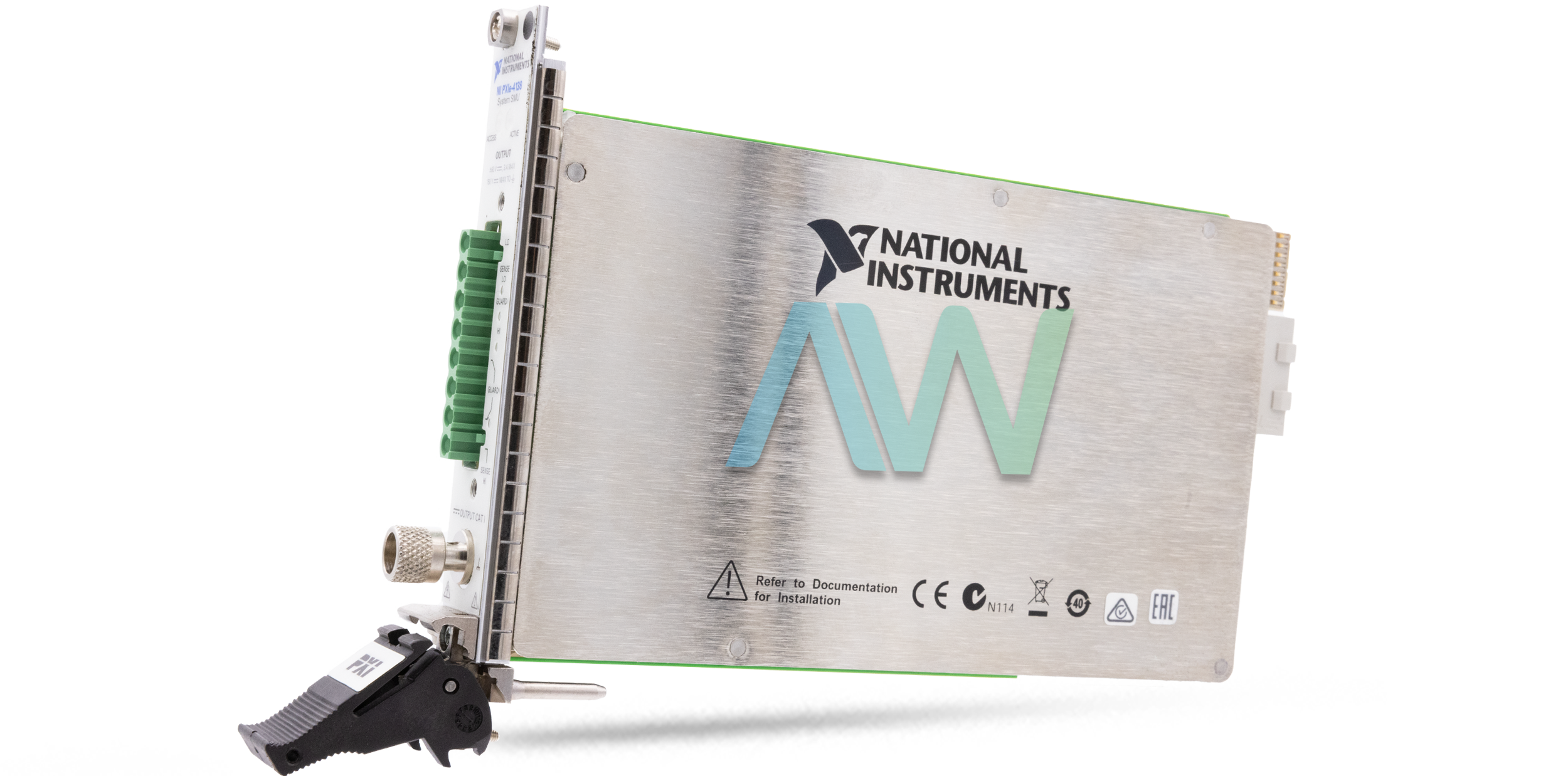

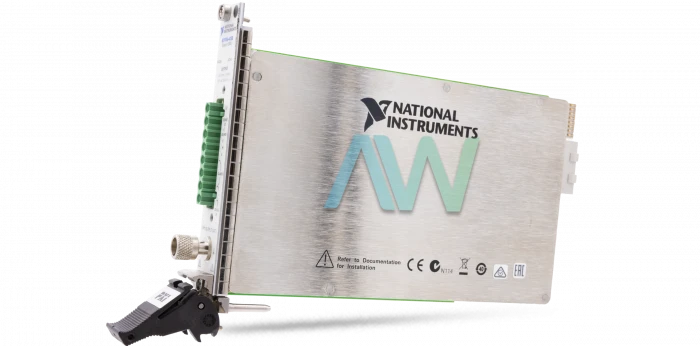

PXIe-4138 National Instruments PXI Source Measure Unit | Apex Waves | Image
PXIe-4138 New
PXIe-4138 | Legacy, Refurbished and New Surplus
Same Day Calibration Available
2-3 Year Warranty Included
Free Ground Shipping

Or speak to a sales representative for additional information:


PXIe-4138 In Stock | Ships Today

PXIe-4138, ±3 A Maximum DC Current, ±60 V, PXI Source Measure Unit
4.5/5 | 19 ratings
Fast Quote
Quoted Price

Need an Official Quote?



National Instruments PXIe-4138 PXI Source Measure Unit

The PXIe-4138 (Part Number: 782856-01) is a high-power, high-precision, and high-speed Source Measure Unit (SMU) designed for a wide range of applications, including manufacturing test and characterization. This single-channel SMU combines a digital control loop design with precision components to enable voltage-controlled or current-controlled sourcing while simultaneously measuring voltage and current output.

One key advantage of the PXIe-4138’s digital control loop architecture is its ability to provide programmable regulation for fast transient response and stability adjustments, ensuring optimal performance across varying load conditions. It can operate in constant voltage (CV) mode or constant current (CC) mode, where it accurately regulates either voltage or current while limiting the complementary parameter.

The PXIe-4138 supports local and remote sense measurement modes. The integrating ADCs provide simultaneous voltage and current readings at the output or remote sense terminals, ensuring accurate power delivery and load compensation. The NI-DCPower driver software supports LabVIEW, LabWindows/CVI, Microsoft Visual Studio (C, C++), and Python via the NI-DCPower API.

This SMU has a recommended operating temperature range of 0 °C to 55 °C, a storage temperature range of -40 °C to 70 °C, and can withstand up to 30 g peak operating shock and 0.3 grms random vibration (5 Hz to 500 Hz).

ModelPXIe-4138
Part Number782856-01
ManufacturerNational Instruments
TypePXI Source Measure Unit
SMU Channels1
Connector8-Position Combicon
Voltage Range±600 mV, ±6 V, ±60 V
Current Range±1 μA, ±10 μA, ±100 μA, ±1 mA, ±10 mA, ±100 mA, ±1 A, ±3 A
Voltage Measurement Resolution1 μV (600 mV range), 10 μV (6 V range), 100 μV (60 V range)
Current Measurement Resolution1 pA (1 μA range), 10 pA (10 μA range), 100 pA (100 μA range), 1 μA (1 A range), 10 μA (3 A range)
Transient Response<70 μs to recover within 0.1% of voltage range after a load current step from 10% to 90%
Settling Time<200 μs for 50 V step (unloaded), <70 μs for 5 V step (unloaded)
Power Requirements2.5 A from +3.3 V rail, 2.2 A from +12 V rail
Dimensions0.8 × 5.1 × 8.5 in.
Weight14.8 oz.
WarrantyThree Year Warranty
PXIe-4138 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for the PXIe-4138:

153276A-01L, 153276B-01L, 153276C-01L, 153276D-01L, 153276D-02L, 153276E-01L, 153276F-01L, 153276G-01L, 153276H-01L, 153276J-01L, 153276K-01L, 153276L-01L, 782856-01

National Instruments PXIe-4138 Frequently Asked Questions



Question: Which types of output trigger events are available on the PXIe-4138?

Answer: The PXIe-4138 has the following output trigger events available: Ready for Pulse, Source Complete, Pulse Complete, Sequence Iteration Complete, Measure Complete, and Sequence Engine Done.



Question: Does the NI PXIe-4138 have a self-calibration feature?

Answer: Yes, the NI PXIe-4138 has a self-calibration feature.



Question: What is the maximum sampling rate of the PXIe-4138?

Answer: The maximum sampling rate of the PXIe-4138 is 1.8 MS/s.



Question: What is the continuous isolation voltage, channel-to-earth ground on the NI PXIe-4138?

Answer: The NI PXIe-4138 has a continuous isolation voltage, channel-to-earth ground of 150 VDC, CAT I.

Accessory TypeModel NamePart Number
Screw Terminal Accessory  Screw Terminal Connector Kit  784068-01
CableTriaxM-TriaxM
AdapterSA-413T784000-01
---
