PXIe-5673E In Stock | Ships Today
NI PXIe-5673E, SMA Female Connector, 50 MHz to 6.6 GHz, 1 or 2 Slot PXI Vector Signal Generator
Need an Official Quote?
National Instruments PXIe-5673E PXIe Vector Signal Generator

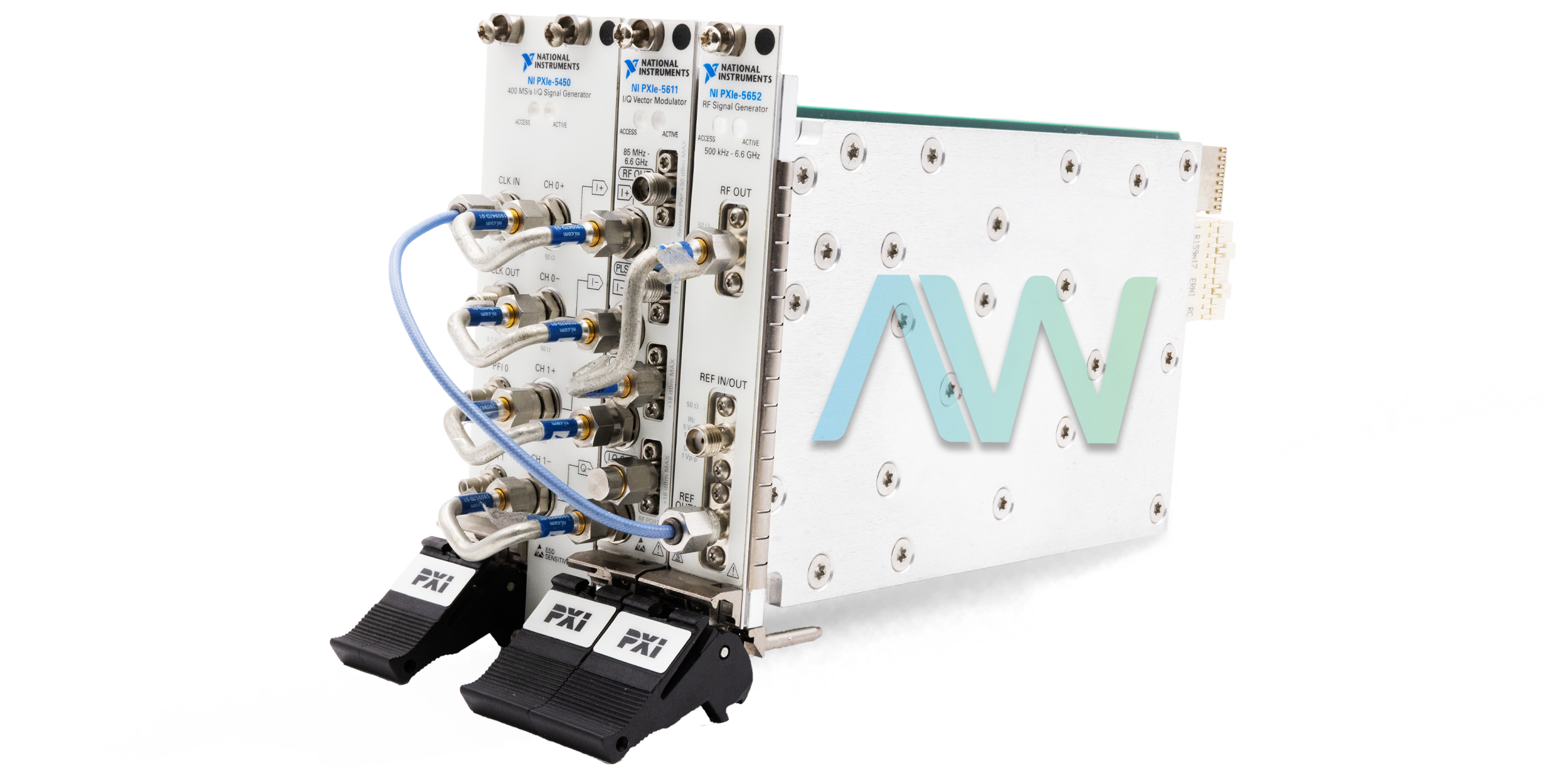

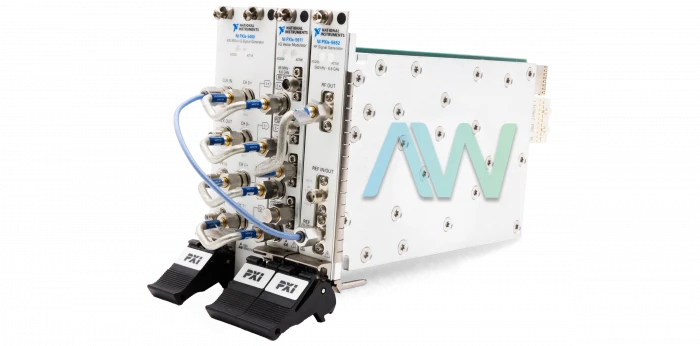

The PXIe-5673E (Part Numbers: 781262-01, 781263-01, 781262-02, 781263-02, 781263-03, 781340-02, 781340-03, 781340-04) is a Vector Signal Generator from National Instruments. This model is not a singular device, but instead refers to the combination of an IQ modulator (the PXIe-5611), a Waveform Generator (the PXIe-5450 or 5451), and a LO source (the PXIe-5650 or 5651/5652). As a combined unit, the PXIe-5673E offers extensive bandwidth for frequency measurements in ranges from 50 MHz to 6.6 GHz. The generator also boasts a memory capacity of 512 MB per channel, providing plenty of space for test and measurement applications of all sizes.

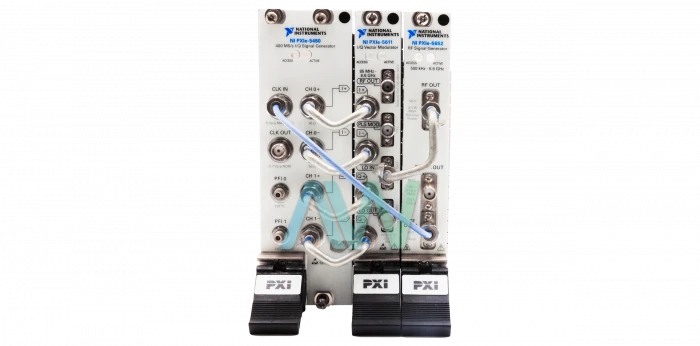

The front panel of the NI PXIe-5673E is equipped with a selection of SMA female connector types across all of the modules, as well as two SMB connectors that are found only on the AWG module. To safeguard against potential damage, the IQ modulator of the PXIe-5673E features a maximum overload protection of 1 W for a maximum RF power greater than or equal to 4 GHz. For RF power less than 4 GHz, this overload protection is doubled to 2 W. The maximum overload protection available for the DC input of the NI PXIe-5673E is ±5 VDC.
The NI PXIe-5673E utilizes the NI-RFSG Instrument driver which is compatible with application development environments such as LabVIEW, LabWindows/CVI, or Microsoft Visual C/C++. The device hardware can be configured using the Measurement & Automation Explorer (MAX) tool, and it is recommended to calibrate the generator once a year. A modulation kit included with the NI PXIe-5673E Vector Signal Generator enables users to generate different signal types. The device is capable of generating CPM, ASK, FSK, and many other arbitrary waveforms.
When all the modules are combined, the NI PXIe-5673E weighs a total of 1,458 g (52 oz). Physically, the IQ modulator and the LO source module are designed as One Slot 3U PXIe modules, while the waveform generator is built as a Two Slot 3U PXIe module. The vector signal generator has a recommended operating temperature range of 0 °C to 55 °C and a storage temperature range of -40 °C to 71 °C.
| Model | PXIe-5673E |
|---|---|
| Part Numbers | 781262-01, 781263-01, 781262-02, 781263-02, 781263-03, 781340-02, 781340-03, 781340-04 |
| Manufacturer | National Instruments |
| Type | PXI Vector Signal Generator |
| Bandwidth | >100 MHz |
| Onboard Memory Size | Up to 512 MB |
| Channels | 1, 2, 3, or 4 |
| Dimensions | PXIe-5611: 8.5 x 0.8 x 5.1 in.; PXIe--5450/5451: 8.5 x 1.6 x 5.1 in.; PXIe-5650/5651/5652: 8.5 x 0.8 x 5.1 in. |
| Weight | 52 oz. (combined unit) |
| Warranty | Three Year Warranty |
| PXIe-5673E Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for the PXIe-5673E:
781262-02, 781263-01, 781263-02, 781263-03, 781340-02, 781340-03, 781340-04, 780485-01, 780485-02, 780567-01, 780567-02, 781261-01, 781261-02, 781262-01
National Instruments PXIe-5673E Frequently Asked Questions:
Question: What are the differences between the eight part numbers for the PXIe-5673E?
Answer: The PXIe-5673E has different frequency ranges, onboard memory sizes, and channel counts available. Part number 781262-01 has 128 MB onboard memory, 50 MHz to 3.3 GHz frequency range, and 1 channel. Part number 781263-01 has the same specifications but with 50 MHz to 6.6 GHz frequency range. Part number 781262-02 has 512 MB onboard memory, 50 MHz to 3.3 GHz frequency range, and 1 channel. Next, part number 781263-02 has 512 MB onboard memory, 50 MHz to 6.6 GHz frequency range, and 1 channel. Part number 781263-03 has the same specifications as the former part number but with 2 GB onboard memory instead. Part number 781340-02 has 512 MB onboard memory, 50 MHz to 6.6 GHz frequency range, and 2 channels. Then, part number 781340-03 has the same specifications as the previous part number but with 3 channels. Lastly, part number 781340-04 has 512 Mb onboard memory, 50 MHz to 6.6 GHz frequency range, and 4 channels.
Question: Which modules comprise the NI PXIe-5673E?
Answer: The NI PXIe-5673E is comprised of the PXIe-5450/5451 Arbitrary Waveform Generator Module, PXIe-5611 I/Q Modulator Module, and PXIe-5650/5651/5652 Local Oscillator (LO) Source Module.
Question: What type of front panel connectors are on the PXIe-5673E?
Answer: The PXIe-5673E has SMA female front panel connectors on the PXIe-5611, SMA female and SMB front panel connectors on the PXIe-5450/5451, and SMA female front panel connectors on the PXIe-5650/5651/5652.
Question: What are the sizes of the modules comprising the PXIe-5673E?
Answer: Each of the modules comprising the PXIe-5673E are 3U.
| Part Number | Unique Attribute(s) |
|---|---|
| 781262-01 | 3.3 GHz, 128 MB of RAM |
| 781262-02 | 3.3 GHz, 512 MB of RAM |
| 781263-01 | 6.6 GHz, 128 MB of RAM |
| 781263-02 | 6.6 GHz, 512 MB of RAM |
| 781263-03 | 6.6 GHz, 2 GB of RAM |
| 781340-02 | 2 Channels, Phase Coherent, 6.6 GHz, 512 MB of RAM per Channel |
| 781340-03 | 3 Channels, Phase Coherent, 6.6 GHz, 512 MB of RAM per Channel |
| 781340-04 | 4 Channels, Phase Coherent, 6.6 GHz, 512 MB of RAM per Channel |
PXIe-5673E PDF Manuals
GETTING STARTED WITH THE NATIONAL INSTRUMENTS 6.6 GHZ MIMO PLATFORM.PDF
NI FM RDS TOOLKIT SPECIFICATIONS.PDF
NI GSM EDGE TOOLKIT 1.1 SPECIFICATIONS.PDF
NI LTE TOOLKIT SPECIFICATIONS.PDF
NI PXIE 5611 CALIBRATION PROCEDURE.PDF
NI PXIE 5663 GETTING STARTED GUIDE.PDF
NI PXIE 5663E GETTING STARTED GUIDE.PDF
NI PXIE 5673E GETTING STARTED GUIDE.PDF
NI WCDMA HSPA TOOLKIT SPECIFICATIONS.PDF
NOTE TO USERS RETROFITTING YOUR PXI MODULE.PDF
PXI VECTOR SIGNAL GENERATORS PRODUCT FLYER.PDF
PXIE 5644 CALIBRATION PROCEDURE.PDF
PXIE 5645 CALIBRATION PROCEDURE.PDF
PXIE 5646 CALIBRATION PROCEDURE.PDF
PXIE 5673 LETTER OF VOLATILITY.PDF
