PXIe-6545, 32-Channel, 200 MHz, PXI Digital Waveform Instrument
Need an Official Quote?

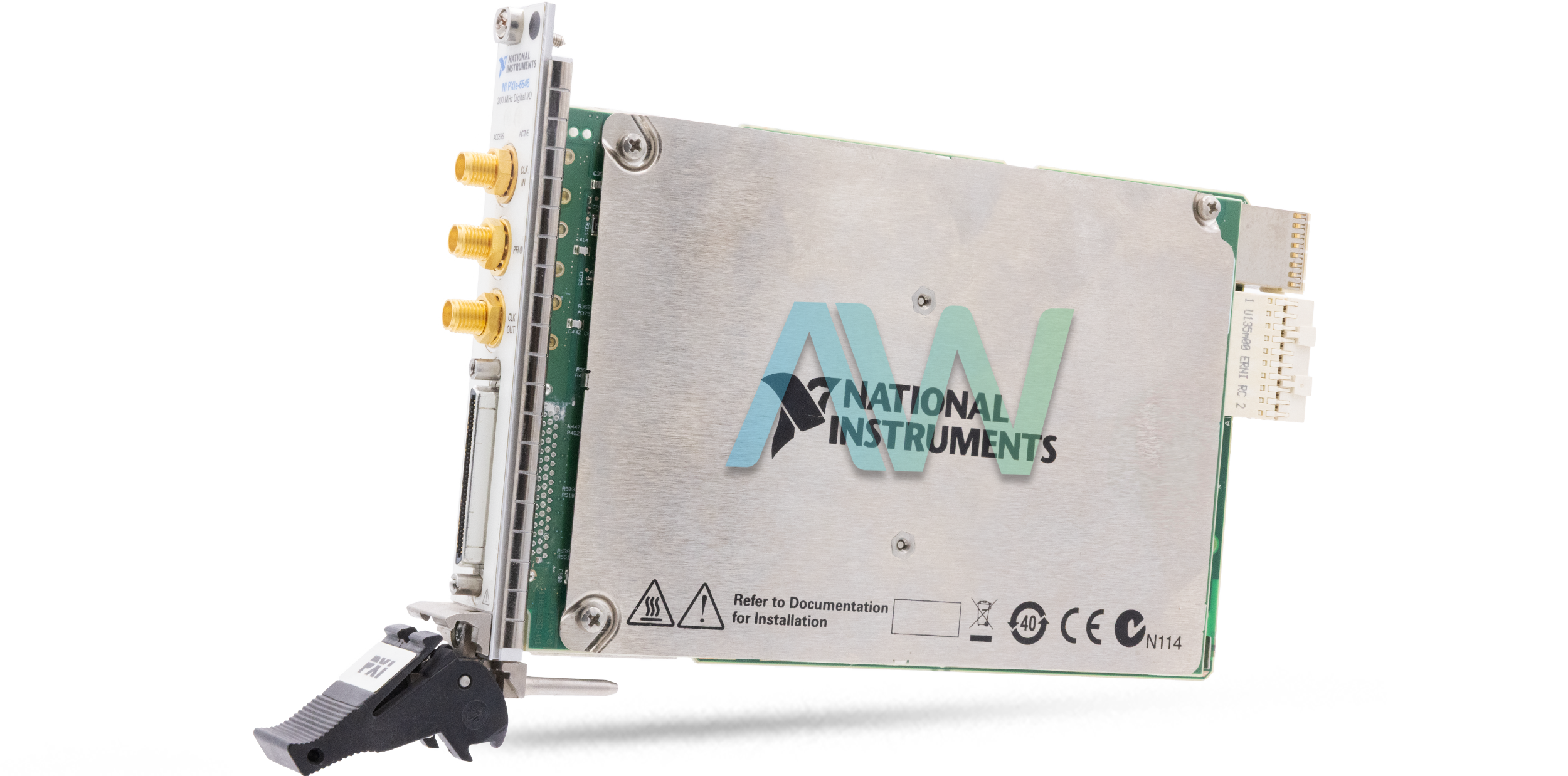

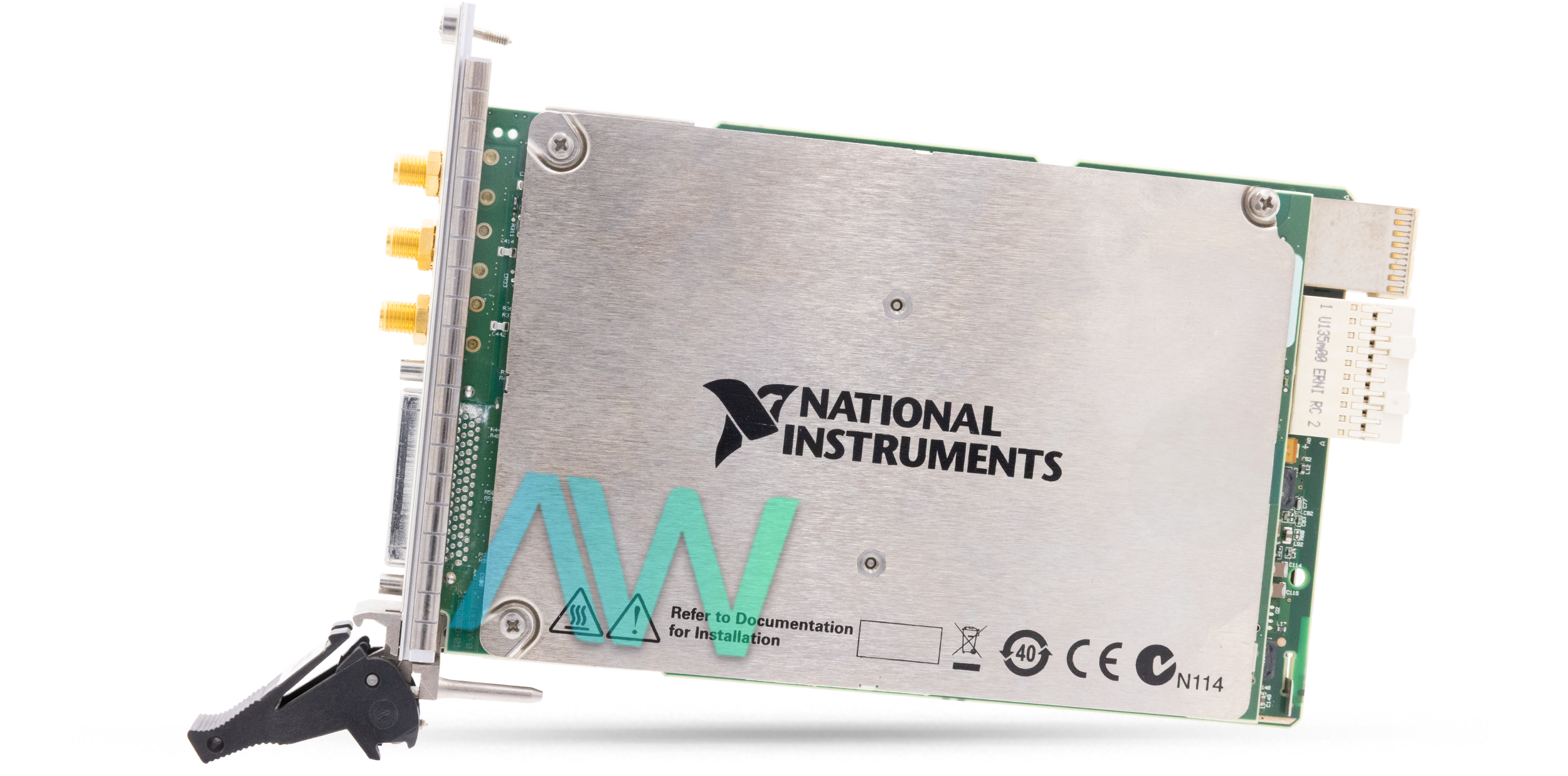

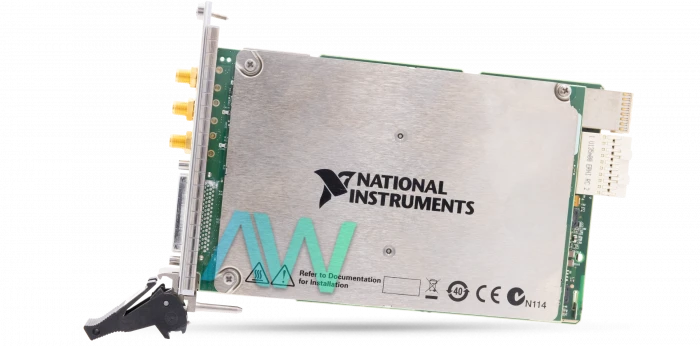

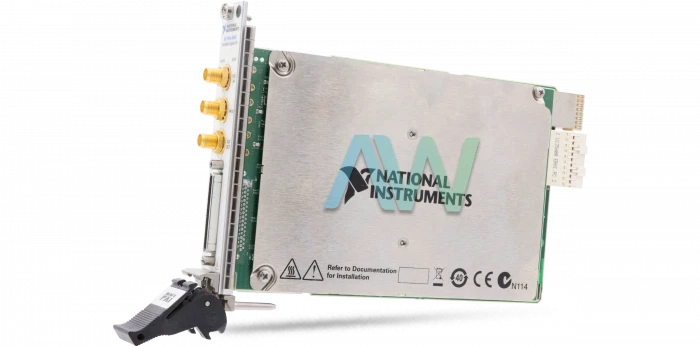

National Instruments PXIe-6545 PXI Digital Waveform Instrument
The 200 MHz, 32-channel PXIe-6545 (Part Numbers: 780993-01, 780993-02, and 780993-03) is a high-speed digital waveform generator and analyzer. The NI PXIe-6545 enables the user to synchronize with other analog or digital instruments by clocking data using an external clock through the front panel SMA connector (CLK IN) or the PXI Express backplane reference clock (PXI_CLK100). The device has 32 bidirectional digital I/O channels and consumes a maximum power of 33.5 W.
The device operates using the NI-HSDIO driver software and is compatible with application development environments (ADEs) such as LabVIEW and LabWindows/CVI. Additional software includes the NI Script Editor, which facilitates waveform generation operations, and the NI Digital Waveform Editor (NI DWE), which helps in creating, importing, and editing digital test vectors. The device can be configured using NI Measurement & Automation Explorer (MAX).
The PXIe-6545 module features advanced architecture, providing higher clock rates of up to 200 MHz, improved signal integrity, and configurable voltage levels from 1.2V to 3.3V for impedance matching. It can interface with high-speed digital components that require precise setup and hold times. At the maximum clock rate, signal quality is crucial for maintaining data integrity. With the x4 PXI Express architecture, the user can stream at 660 MB/s (input) and 400 MB/s (output) to and from a host PC or a high-speed storage solution, such as the NI HDD-8264 3 TB RAID array, or use the onboard memory (up to 64 Mbits per channel, totaling 256 MB for the device) for waveform storage.
Additionally, the PXIe-6545 supports applications such as testing LCD screens, TV components, high-definition signals (up to 1080p at 60 Hz), RF baseband devices, and high-fidelity audio. It allows for the generation and acquisition of terabyte-scale digital waveforms, making it ideal for applications in RF and baseband recording/playback, signal intelligence, and communication system design, validation, and verification. The device weighs 519 g and has dimensions of 21.6 × 2.0 × 13.0 cm.
| Model | PXIe-6545 |
|---|---|
| Part Numbers | 780993-01, 780993-02, 780993-03 |
| Manufacturer | National Instruments |
| Type | PXI Digital Waveform Instrument |
| Bidirectional Digital Channels | 32 |
| Maximum Clock Rate | 200 MHz |
| Total Power | 33.5 W (Maximum, as per NI specifications) |
| Dimensions | 21.6 x 2.0 x 13.0 cm. |
| Weight | 519 g. |
| Warranty | 2-3 Year Warranty |
| PXIe-6545 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for the PXIe-6545:
195906A-27L, 196525A-01, 196525A-01L, 196525A-02, 196525A-02L, 196525A-03, 196525A-03L, 196525B-01L, 196525B-02L, 196525B-03L, 196525C-01L, 196525C-02L, 196525C-03L, 196525D-01L, 196525D-02L, 196525D-03L, 196525E-01L, 196525E-02L, 196525E-03L, 198204C-01L, 198204D-02L, 198204E-02L, 198204F-02L, 199450A-01L, 199450A-02L, 199450A-03L, 780433-02, 780993-01, 780993-02, 780993-03
National Instruments PXIe-6545 Frequently Asked Questions
Question: What is the difference between the multiple part numbers for the PXIe-6545?
Answer: The PXIe-6545 is available in three models with different onboard memory capacities:
- Part number 780993-01: 1 Mbit per channel (4 MB total memory)
- Part number 780993-02: 8 Mbit per channel (32 MB total memory)
- Part number 780993-03: 64 Mbit per channel (256 MB total memory)
Each model has the same functionality, except for the difference in onboard memory capacity for waveform storage.
Question: What type of I/O panel connectors are on the NI PXIe-6545?
Answer: The NI PXIe-6545 features the following connectors on its front panel:
- SMA connectors for CLK IN, PFI 0, and CLK OUT
- A 68-pin VHDCI connector labeled DIGITAL DATA & CONTROL (DDC) for digital I/O channels, triggers, and clocking signals
Question: Does the PXIe-6545 support PMU?
Answer: No, the PXIe-6545 does not support PMU.
Question: How many clock terminals does the NI PXIe-6545 have?
Answer: The PXIe-6545 has four clock terminals, including:
Two inputs
- CLK IN (SMA connector) – Accepts an external sample clock or reference clock
- STROBE (DDC connector, acquisition only) – Used as a clock source for dynamic data acquisition
- Two outputs:
- CLK OUT (SMA connector) – Outputs the exported sample clock or reference clock
- DDC CLK OUT (DDC connector, generation only) – Outputs the generated sample clock for synchronization with other instruments
These clock terminals provide flexible clocking options for external synchronization and data acquisition.
PXIe-6545 PDF Manuals
MAINTAIN FORCED AIR COOLING NOTE TO USERS.PDF
NI HIGH SPEED DIGITAL WAVEFORM GENERATOR ANALYZER GETTING STARTED GUIDE.PDF
NI PXIE 6544 6545 6547 6548 GETTING STARTED GUIDE.PDF
NI PXIE 6544 6545 6547 6548 SPECIFICATIONS.PDF
PXIE 6544 6545 6547 6548 LETTER OF VOLATILITY.PDF
Driver Downloads for PXIe-6545
OS Compatibility:
