783484-01
Modular Systems > National Instruments > R Series
Description: | 783484-01, Kintex 7 160T FPGA, 128 DIO, PXIe-7820 Digital Reconfigurable I/O Module |
Need an Official Quote?
Or speak to a sales representative for additional information:

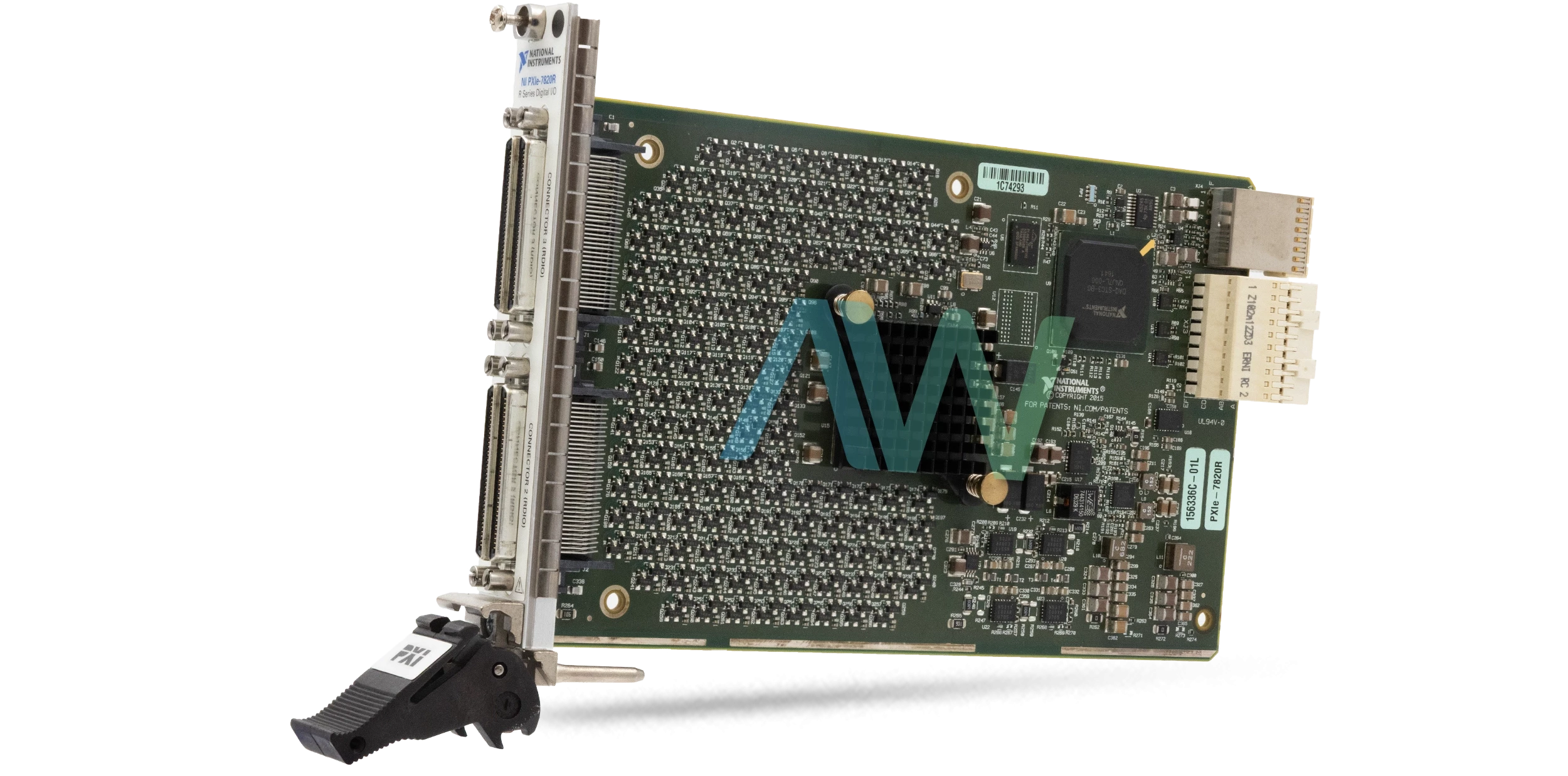

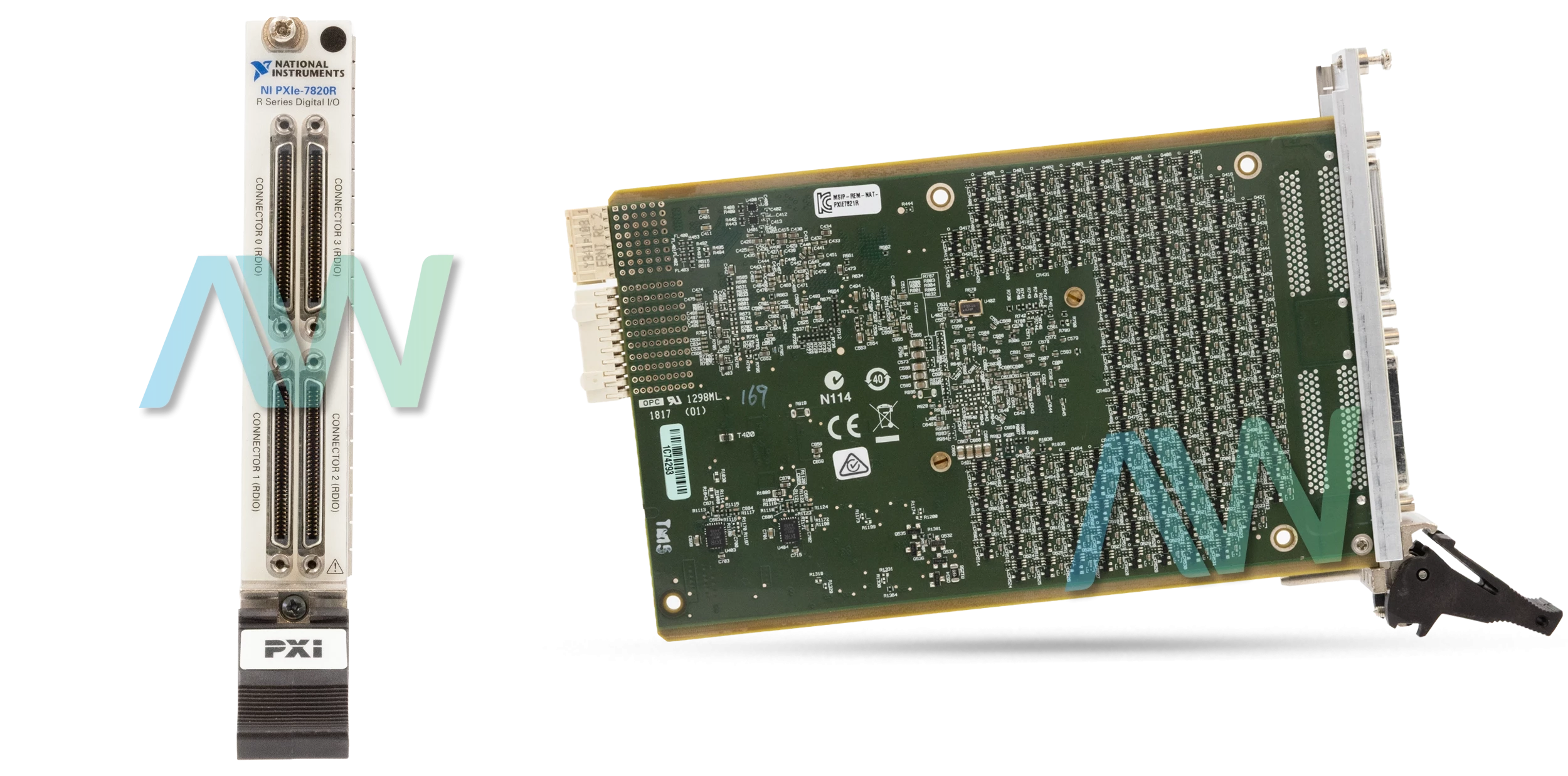

National Instruments 783484-01 Reconfigurable I/O Module
National Instruments part number 783484-01 is an identifying part number for the PXIe-7820, a Digital Reconfigurable I/O Module. The NI 783484-01 is a Digital Reconfigurable I/O Module with a Kintex 7 160T FPGA and 128 Digital Inputs/Outputs. With LabVIEW FPGA, users can configure digital lines individually as inputs, outputs, counter/timers, PWM, encoder inputs, or specialized communication protocols.
Additionally, you can program custom onboard decision-making processes that execute with hardware-timed speed and reliability. Each line offers software-selectable logic levels. This module supports peer‑to‑peer streaming for direct data transfer between PXI Express modules. It is ideal for a wide variety of applications, such as high-speed waveform generation, sensor simulation, hardware‑in‑the‑loop (HIL) testing, bit error rate testing, and other applications requiring precise timing and control. It is ideal for a wide variety of applications, including high-speed waveform generation, hardware-in-the-loop (HIL) testing, sensor simulation, and other tasks that require precise timing and control. The device features 128 digital I/O lines and 16 DMA channels.
The part number 783484-01 comes with four connectors, each supporting 32 channels, for a total of 128 channels. It operates at a maximum frequency of 80 MHz and is compatible with LVTTL and LVCMOS logic families. The logic family is software-selectable, with a default software setting of 3.3 V.
The RIO center can perform local integer-based or fixed-point signal processing and decision-making, directly passing signals from one module to another. It connects to the CompactRIO real-time controller via a local PCI bus interface. The real-time controller can retrieve data from any control or indicator on the RIO FPGA application front panel through an easy-to-use scan interface or simple FPGA Read/Write function.
Part Number | 783484-01 |
---|---|
Model Name | PXIe-7820 |
Part Type | Kintex 7 160T FPGA, 128 DIO, PXI Digital Reconfigurable I/O Module |
FPGA Type | Kintex-7 160T |
Digital I/O | 128 |
Number of DSP48 Slices | 600 |
Number of DMA Channels | 16 |
Power Requirement | +3.3 VDC, 12 VDC - 03 A, 02 A |
Embedded Block RAM | 11,700 kbits |
I/O Connector | 4 × 68-pin Female High-Density VHDCI |
Why Buy From Apex Waves:
"The business transaction was super easy and friendly."
"Hand carrying parts to fedex directly to make sure I get them overnight. Great service"
"They were very helpful to get me the test equipment that I need."
783484-01
Modular Systems > National Instruments > R Series
1-800-915-6216
- Description
- Technical Specifications

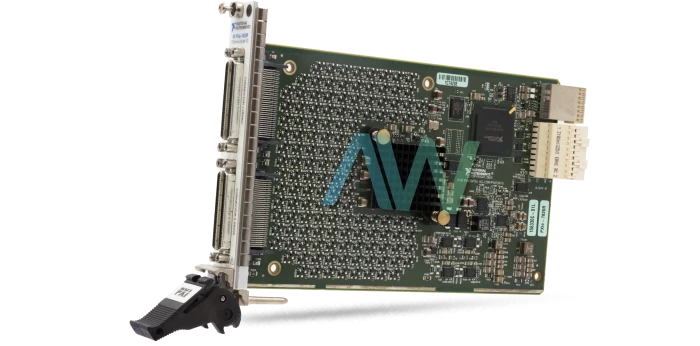

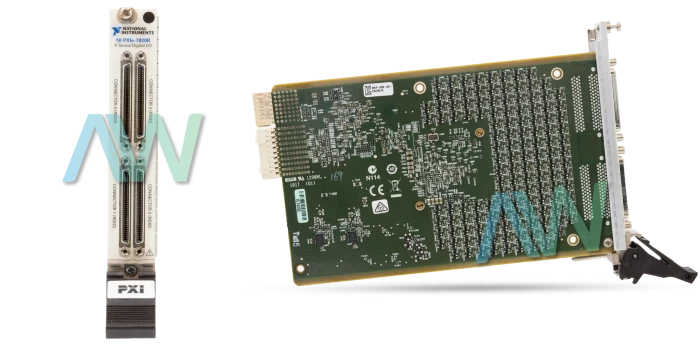

National Instruments 783484-01 Reconfigurable I/O Module
