PCI-7813R
Modular Systems > National Instruments > R Series
| Description: | PCI-7813R, 40 MHz, Virtex-II 3M FPGA, Digital Reconfigurable I/O Device |
Need an Official Quote?
Or speak to a sales representative for additional information:
Phone:1-800-915-6216
Email:sales@apexwaves.com

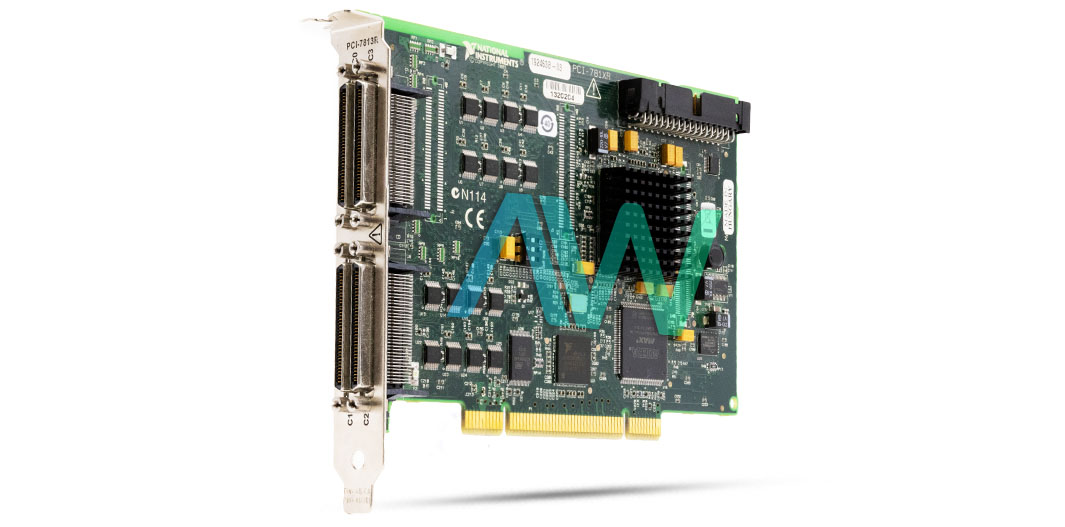

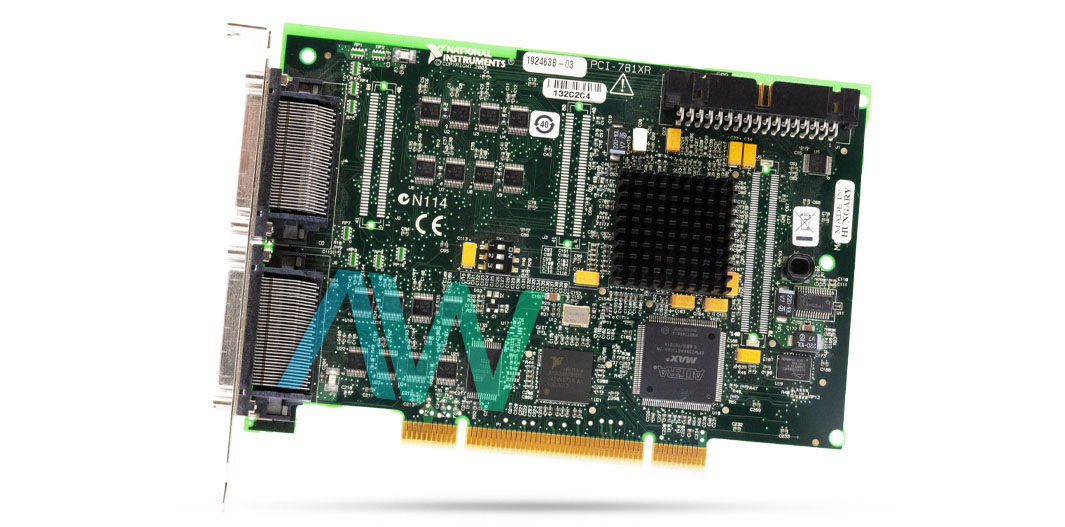

National Instruments PCI-7813R Digital Reconfigurable I/O Device
The PCI-7813R (Part number: 779370-01) is a Digital Reconfigurable I/O Device from the R Series by National Instruments. This device uses the Real-Time System Integration (RTSI) bus. R Series PCI gadgets get to the RTSI transport through a RTSI link associated between gadgets. On the other hand, R Series PXI gadgets get to the RTSI bus through the PXI trigger lines executed on the PXI backplane. The CompactPCI determination grants merchants the power to create sub-buses that exist together with the fundamental PCI interface on the CompactPCI bus. Perfect activity is not ensured between CompactPCI gadgets with various sub-buses nor between CompactPCI gadgets with sub-buses and PXI. The standard usage for CompactPCI does exclude these sub-buses. The R Series gadget works in any standard CompactPCI undercarriage holding fast to the PICMG CompactPCI 2.0 R3.0 center detail.
This model comes with an NSC68-262650 link that interfaces the signals on the NI PCI-7813R RMIO connector straightforwardly to 5B and SSR backplanes. This link has a 68-stick male VHDCI connector toward one side that fits into the NI PCI-7813R RMIO connector. The opposite end of this link gives two 26-stick female connectors, in addition to one 50-stick female connector. One of the 26-stick connectors contains all the NI PCI-7813R simple info signals. The user can link this connector straightforwardly to a 5B backplane for simple input signal molding. The device is further equipped with 4 68-pin female high-density VHDCI I/O connectors. The NI PCI-7813R AI<0..n> relate to the 5B backplane and directs <0..n> in a successive request. The user can arrange the AI channels to utilize the NRSE input mode when utilizing 5B signal molding. The PCI-7813R has 160 digital I/O lines, with an embedded block RAM of 1.728 kbits.
The NI device weighs 0.25 lb, and measure 6.7 x 4.3 in. in physical dimensions. It has a recommended operating temperature range of 0 °C to 55 °C, a storage temperature range of –20 °C to 70 °C, and an operating and non-operating random vibration of 0.3 grms and 2.4 grms respectively–all at a frequency range of 5 to 500 Hz.
PCI-7813R Mature Status has been announced by National Instruments, but will still be available for purchase and repairs by Apex Waves.
| Model | PCI-7813R |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 779370-01 |
| Series | R Series |
| Type | Digital Reconfigurable I/O Device |
| FPGA Type | Virtex-II V3000 |
| Number of Flip-flops | 28,672 |
| Number of 18 × 18 Multipliers | 96 |
| Embedded Block RAM | 1,728 kbits |
| Digital I/O | 160 |
| Timebase | 40, 80, 120, 160, or 200 MHz |
| I/O Connector | 4x68-pin Female High-Density VHDCI type |
| Power Requirements | +3.3 VDC,+5 VDC -- 850 mA, 9 mA |
| Dimensions | 6.7 in. by 4.3 in. |
| Weight | 0.25 lb. |
| Software Driver | NI-RIO |
| Warranty | Three Year Warranty |
| PCI-7813R Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
National Instruments PCI-7813R Frequently Asked Questions
Question: Are the D GND, AI GND, and AO GND connected to the chassis/building ground with the PCI-7813R?
Answer: Yes, the D GND, AI GND, and AO GND are connected to the chassis ground using a DMM for the PCI-7813R.
Question: What's the maximum current load for the 5V terminal on the connector 0 of the PCI 7813R board?
Answer: The maximum current load for the 5V terminal on the connector of the 0 of the PCI 7813R board is rated 1A max.
Question: What's the fuse ampere rating of the NI PCI-7813R board?
Answer: The fuse ampere rating of the NI PCI-7813R board is 4A.
PCI-7813R PDF Manuals
GETTING STARTED WITH R SERIES MULTIFUNCTION RIO.PDF
NI 78XXR PINOUT LABELS FOR THE SCB 68 NOTE TO USERS.PDF
NI 78XXR PINOUT LABELS FOR THE SCB 68A NOTE TO USERS.PDF
NI R SERIES INTELLIGENT DAQ USER MANUAL.PDF
NI R SERIES MULTIFUNCTION RIO SPECIFICATIONS.PDF
NI R SERIES MULTIFUNCTION RIO USER MANUAL.PDF
PCI 7811R 13R LETTER OF VOLATILITY.PDF
