RMX-10011 Request for Availablility
RMX-10011, 24U or 40U Rack-Mounted Enclosure, 320 lb. , Automated Test Equipment Core Configuration
Need an Official Quote?
National Instruments RMX-1001

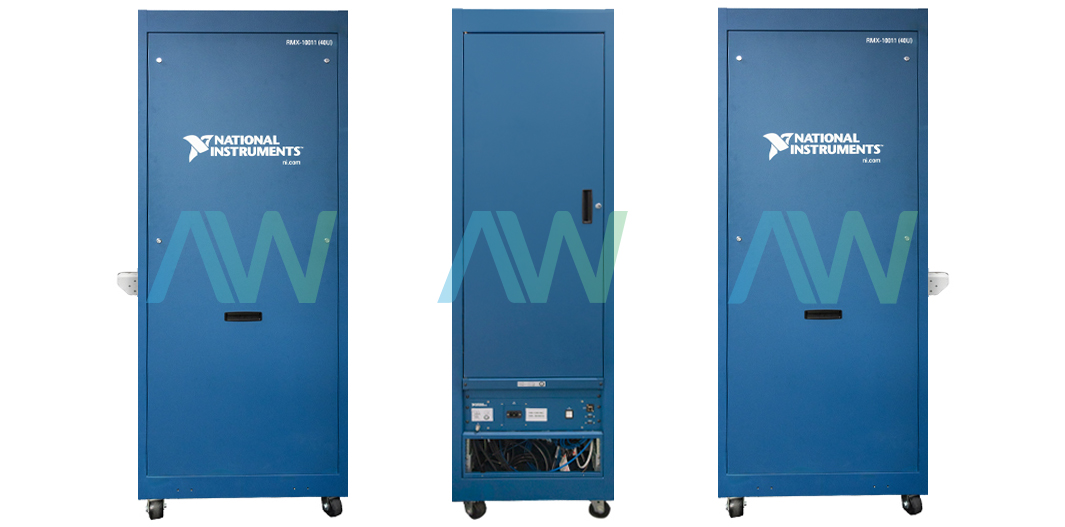

The National Instruments RMX-10011 is a modular Automated Test Equipment (ATE) Core Configuration designed to provide a standardized yet customizable infrastructure for automated test systems. Modules included in the NI RMX-10011 are the ATE-116H-A (part number 785297-01), ATE-116F-A (part number 785298-01), ATE-130H-A (part number 785299-01), ATE-130F-A (part number 785300-01), ATE-3D16H-A (part number 785303-01), ATE-3D16F-A (part number 785304-01), ATE-3W16H-A (part number 785301-01), and ATE-3W16F-A (part number 785302-01).
The RMX-10011 integrates core mechanical, power, and safety features to support both National Instruments and third-party instrumentation. It also features a 24U or 40U rack-mounted enclosure and a dual-fan cooling system with both a high-speed and low-speed fan panel (1350 CFM and 540 CFM). Additionally, the RMX-10011 is equipped with several safety features such as temperature-controlled auto shutdown to prevent overheating and circuit protection with independent power breakers.
The NI RMX-10011’s connectivity includes two USB 3.0 ports with pre-routed internal cables as well as a Gigabit Ethernet port connected to a rack-integrated switch. The ATE Core Configuration weighs 320 lbs (145 kg) and its maximum supported weight is 1,000 lbs (453.5 kg). The RMX-10011 is ideal for environments where high-power instrumentation and modular configurations are required. It ensures efficient power management, thermal stability, and reliable operation in aerospace, defense, and industrial automation applications.
| Model Name | RMX-10011 |
|---|---|
| Modules | ATE-116H-A, ATE-116F-A, ATE-130H-A, ATE-130F-A, ATE-3D16H-A, ATE-3D16F-A, ATE-3W16H-A, ATE-3W16F-A |
| Part Numbers | 785297-01, 785298-01, 785299-01, 785300-01, 785303-01, 785304-01, 785302-01 |
| Manufacturer | National Instruments |
| Form Factor | 24U or 40U Rack-Mounted Enclosure |
| Connectivity | Two USB 3.0 Ports with Pre-Routed Internal Cables, Gigabit Ethernet Port Connected to a Rack-Integrated Switch |
| Weight | Base Weight: 320 lb. (145 kg), Maximum Supported Weight: 1,000 lb. (453.5 kg) |
| Power Distribution Unit (PDU) | Single-Phase or Three-Phase PDUs with Global Voltage Support. Power Outputs Support up to 16A per C19 outlet |
