SCXI-1124 In Stock | Ships Today
SCXI-1124, 6-Channel, Analog Output Module
Need an Official Quote?

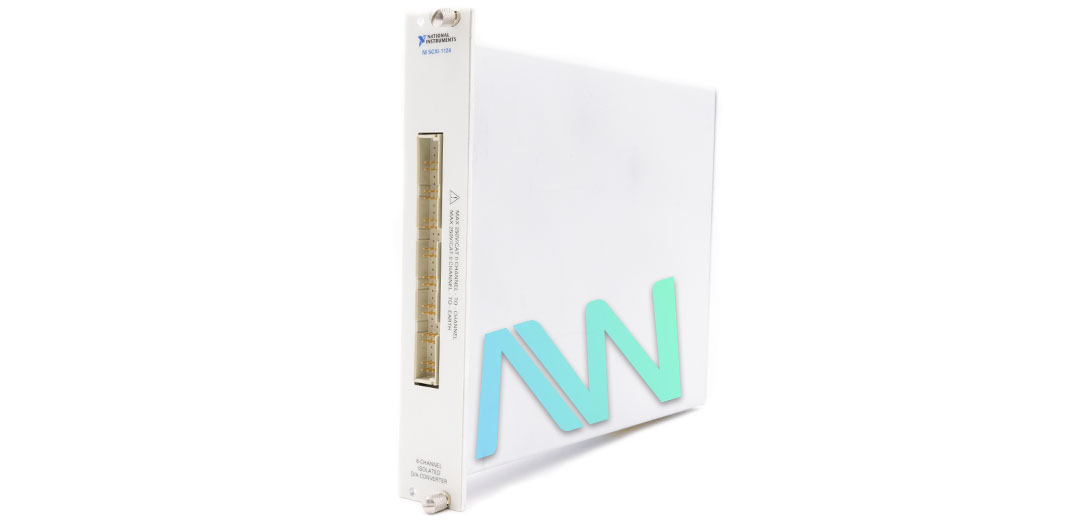

National Instruments SCXI-1124 Analog Output Module
The SCXI-1124 (Part Number: 776572-24) is a 6-channel isolated Analog Output Module for static DC (low bandwidth) voltage or current signals. The maximum update rate is 555 S/s for one channel and 125 S/s per channel for all six channels. The NI SCXI-1124 incorporates six autonomously isolated, 12-bit digital-to-analog converter (DAC) channels. The user can arrange each channel for voltage or current output. For voltage, the user has the option to pick any of the accessible three unipolar or three bipolar ranges. For current, each channel outputs between 0 to 20 mA.
This Analog Output Module is software configurable and incorporates a locally available EEPROM for saving calibration constants. This module is perfect for applications requiring confined voltage or current outputs to control a procedure. For more channels, the user can utilize a few NI SCXI 1124 modules in a SCXI framework, alongside other signal conditioning I/O modules.
With this module, the user can software program each channel for the following voltage output ranges: 0 to 1, 0 to 5, 0 to 10, ±1, ±5, or ±10 V. Within a single module, the user can progressively associate channels to make output signals up to 60 VDC per module. Every voltage channel incorporates a low impedance output buffer that can drive up to 5 mA.
The SCXI-1124 is run using the NI-DAQmx driver software which is compatible with software packages/application development environments (ADEs) such as LabVIEW, LabWindows/CVI, or Measurement Studio.
The SCXI-1124 is digitally over the SCXIbus, so a single DAQ gadget can control a few NI SCXI-1124 modules. In multiplexed serial mode, one DAQ gadget controls at least one SCXI-1124 module through the SCXIbus by utilizing a serial computerized information convention. This method of activity utilizes a maximum of five computerized I/O lines of the module DAQ gadget. The device is equipped with a 48-pin DIN C male front connector and a 50-pin male ribbon-cable back connector. The NI device measures 1.2 x 6.8 x 8.0 in. in physical dimensions.
SCXI-1124 Obsolete Status has been announced by National Instruments, but the module will still be available for purchase and repairs by Apex Waves.
| Model | SCXI-1124 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 776572-24 |
| Series | SCXI Series |
| Type | Analog Output Module |
| Channels | 6 |
| Resolution | 12 bits |
| Dimensions | 1.2 by 6.8 by 8.0 in. |
| I/O Connectors | Back Connector: 50-pin male ribbon-cable Front Connector: 48-pin DIN C male |
| Warranty | Three Year Warranty |
| SCXI-1124 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for the SCXI-1124:
18234.6, 182346-01, 182346-01B, 182346C-01, 182346D-01, 182346F-01, 182346G-01L, 182350-01B, 182350C-01, 182350D-01, 776572-24
Associated NSNs for the SCXI-1124:
5998-01-579-4759 (5998015794759), 5963-01-662-2253 (5963016622253)
National Instruments SCXI-1124 Frequently Asked Questions
Question: What is the current output range for the SCXI-1124?
Answer: The SCXI-1124 has a current output range from 0 to 20 mA.
Question: What is the maximum update rate for the NI SCXI-1124?
Answer: The NI SCXI-1124 has a maximum update rate of 200 Hz for one channel and 30 Hz for all six channels.
Question: Does the SCXI-124 have multiple voltage output ranges?
Answer: Yes, the SCXI-1124 has several software selectable voltage output ranges: 0 to +1 V, 0 to +5 V, 0 to +10 V, -1 to +1 V, -5 to +5 V, and -10 to +10 V.
Question: How can I limit noise when measuring current or voltage from the NI SCXI-1124?
Answer: By using a voltmeter a current meter that integrates its readings, the noise from the NI SCXI-1124 will be greatly reduced.
