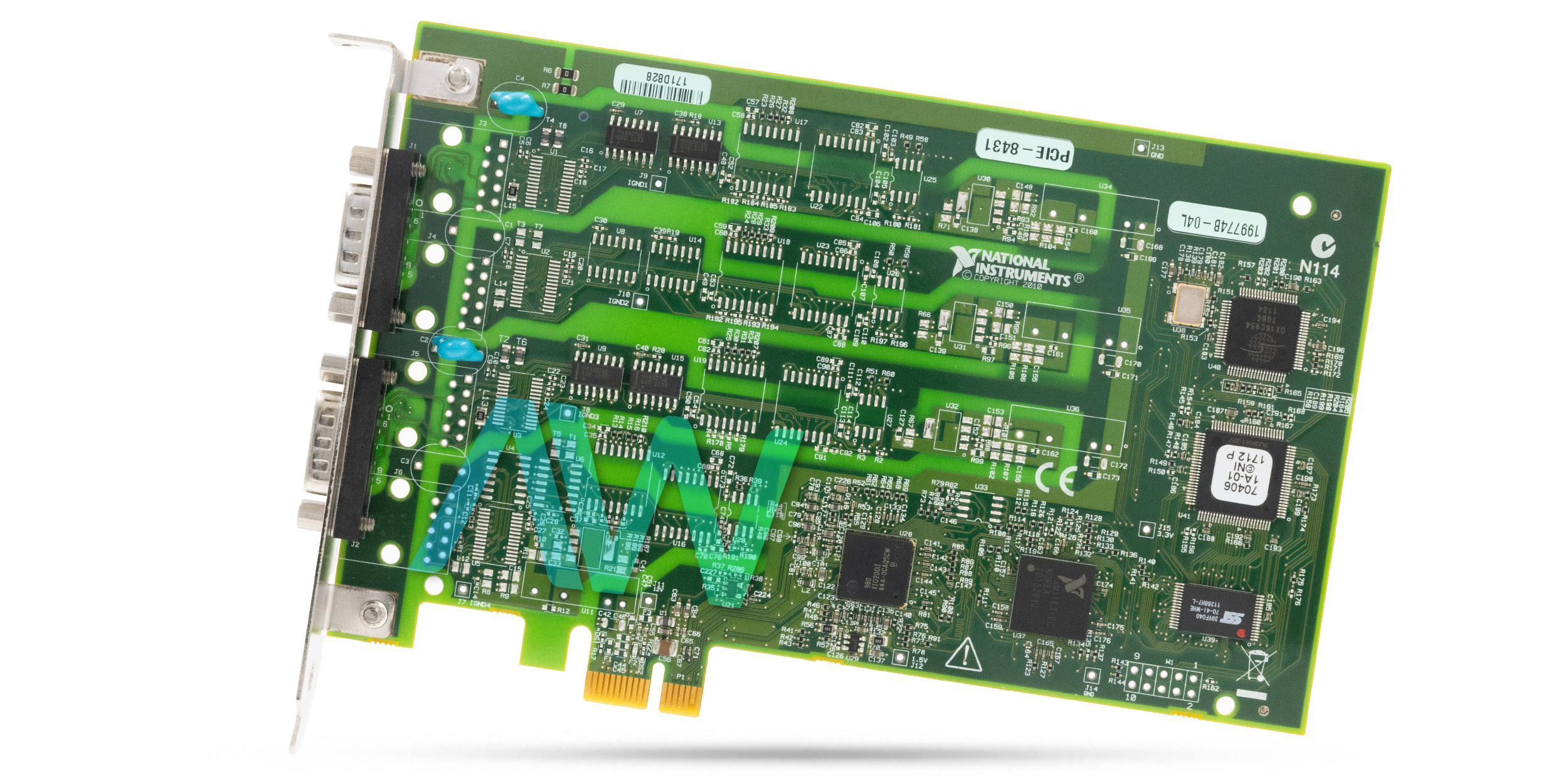

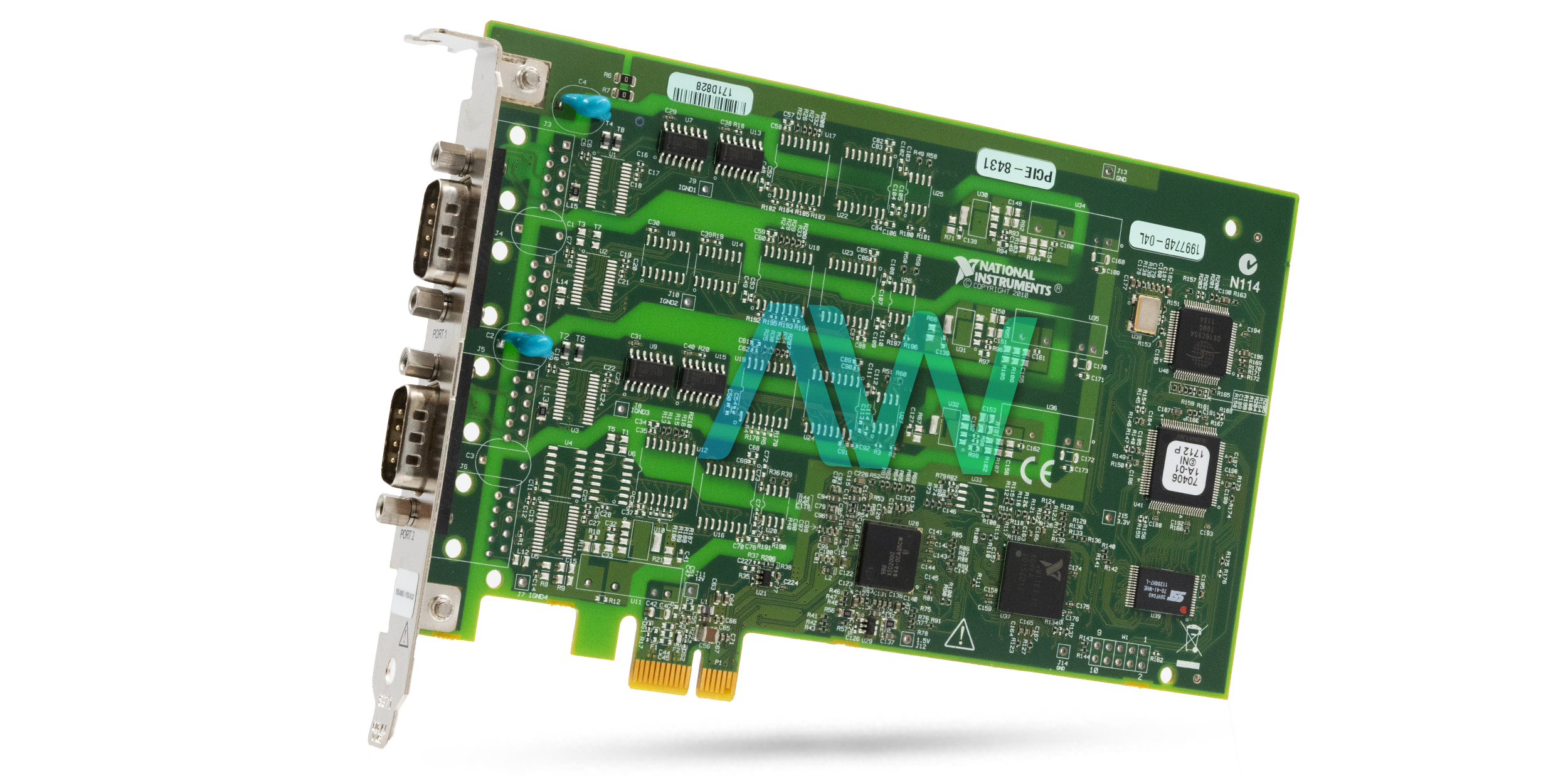

National Instruments 782124-01 Serial Interface Device
Part Number 782124-01 is the identifying part number for the National Instruments PCIe-8431/2 Serial Interface Device. It is a 2-port serial interface used in high-speed communication with RS485 and RS422 devices. On the other hand, it can also work as a standard COM port for programs that use serial communication. Users can choose between 2-wire or 4-wire transceiver modes for either half-duplex or full-duplex communications.
The 782124-01 comes with advanced features like DMA transfers, multithreading, and microprocessor support. Since DMA allows direct access to the memory without CPU overhead, data transfer is faster. Likewise, it also features standard and nonstandard baud rates from the range of 2 baud up to a maximum of 3000 kbaud. It has an onboard FIFO buffer of size 128 bytes. When operated in normal conditions, it draws 325 mA of current at +5 VDC.
To configure and program the 782124-01, you will need NI serial drivers that ships with the device. The driver eases the configuration and programming of the device. Likewise, it also has the NI-VISA API, which is NI’s programming interface to control peripherals like Ethernet/LXI, GPIB, serial, USB, PXI, etc. in NI devices using application development environments like LabVIEW and Measurement Studio.
The 782124-01 measures 4.38 x 6.9 in. in physical dimensions and also comes with a male DB-9 connector for RS485/RS422 connections. Likewise, it also features a 68 VHDCI I/O connector. The recommended operating temperature range for the module is 0 to 55 °C at a relative humidity of 10 to 90%. However, it can be stored at a much wider temperature range of –20 to 70 °C and a relative humidity range of 5 to 95%. Furthermore, the module is recommended for operation in indoor use only and up to a maximum altitude of 2000m.
The 782124-01 meets the following standards of safety for electrical equipment for measurement, control, and laboratory use: IEC 61010-1, EN 61010-1 • UL 61010-1, CSA 61010-1. Likewise, it meets several electromagnetic compatibility standards when operated properly with shielded cabling.
| Part Number | 782124-01 |
|---|---|
| Model Name | PCIe-8431/2 |
| Part Type | Serial Interface Device |
| Number of Ports | 2 |
| Connector | 68-pin VHDCI |
| FIFO Size | 128 Bytes |
| Maximum Baud Rate | 3 Mbps |
| Standard | RS-485/RS-422 |
| Physical Dimensions | 4.38 x 6.9 in. |
| Operating Temperature | 0 to 55 °C |
Why Buy From Apex Waves:
Verified
"Hand carrying parts to fedex directly to make sure I get them overnight. Great service"
"They were very helpful to get me the test equipment that I need."
782124-01
Modular Systems > National Instruments > Serial Interface Devices
782124-01, 2 Ports, 68-pin VHDCI, PCIe-8431-2 Serial Interface Device
1-800-915-6216
- Description
- Technical Specifications
- Manuals & PDFs

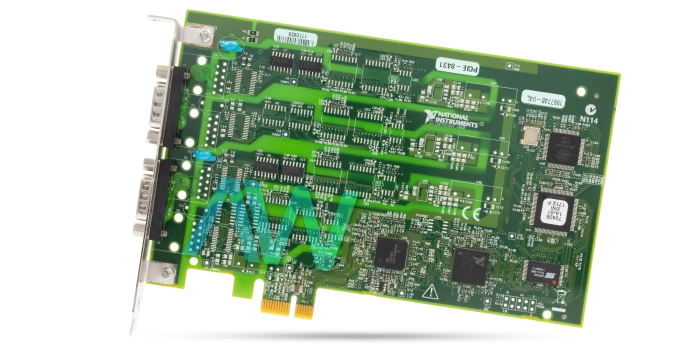

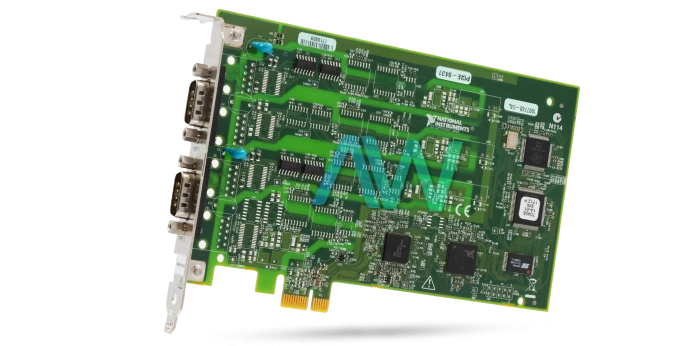

National Instruments 782124-01 Serial Interface Device
Part Number 782124-01 is the identifying part number for the National Instruments PCIe-8431/2 Serial Interface Device. It is a 2-port serial interface used in high-speed communication with RS485 and RS422 devices. On the other hand, it can also work as a standard COM port for programs that use serial communication. Users can choose between 2-wire or 4-wire transceiver modes for either half-duplex or full-duplex communications.
The 782124-01 comes with advanced features like DMA transfers, multithreading, and microprocessor support. Since DMA allows direct access to the memory without CPU overhead, data transfer is faster. Likewise, it also features standard and nonstandard baud rates from the range of 2 baud up to a maximum of 3000 kbaud. It has an onboard FIFO buffer of size 128 bytes. When operated in normal conditions, it draws 325 mA of current at +5 VDC.
To configure and program the 782124-01, you will need NI serial drivers that ships with the device. The driver eases the configuration and programming of the device. Likewise, it also has the NI-VISA API, which is NI’s programming interface to control peripherals like Ethernet/LXI, GPIB, serial, USB, PXI, etc. in NI devices using application development environments like LabVIEW and Measurement Studio.
The 782124-01 measures 4.38 x 6.9 in. in physical dimensions and also comes with a male DB-9 connector for RS485/RS422 connections. Likewise, it also features a 68 VHDCI I/O connector. The recommended operating temperature range for the module is 0 to 55 °C at a relative humidity of 10 to 90%. However, it can be stored at a much wider temperature range of –20 to 70 °C and a relative humidity range of 5 to 95%. Furthermore, the module is recommended for operation in indoor use only and up to a maximum altitude of 2000m.
The 782124-01 meets the following standards of safety for electrical equipment for measurement, control, and laboratory use: IEC 61010-1, EN 61010-1 • UL 61010-1, CSA 61010-1. Likewise, it meets several electromagnetic compatibility standards when operated properly with shielded cabling.
| Part Number | 782124-01 |
|---|---|
| Model Name | PCIe-8431/2 |
| Part Type | Serial Interface Device |
| Number of Ports | 2 |
| Connector | 68-pin VHDCI |
| FIFO Size | 128 Bytes |
| Maximum Baud Rate | 3 Mbps |
| Standard | RS-485/RS-422 |
| Physical Dimensions | 4.38 x 6.9 in. |
| Operating Temperature | 0 to 55 °C |
