PCI-232-8 In Stock | Ships Today
PCI-232/8, 8-Port, +5 VDC, Serial Interface
Need an Official Quote?
National Instruments PCI-232/8 Serial Interface

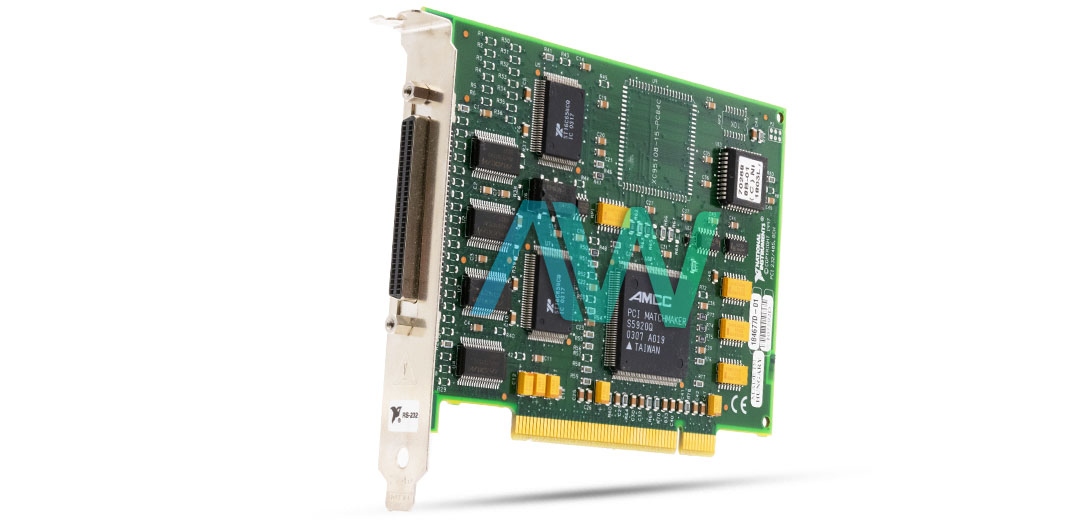

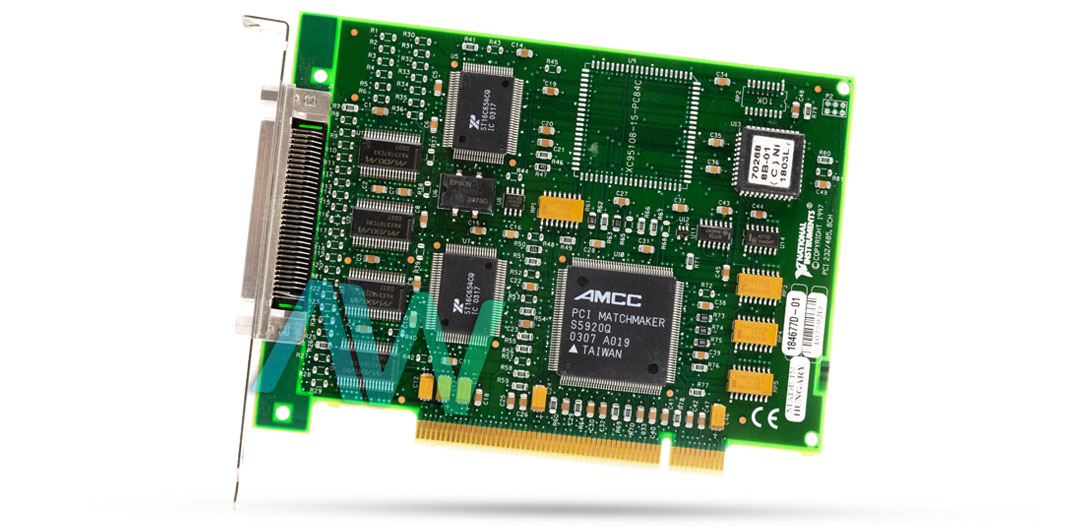

The PCI-232/8 (Part number: 777642-08) is an advanced Serial Interface Board from National Instruments. This model offers an asynchronous interface for communicating with instruments. The communication is carried out with the help of serial ports. This interface can communicate for the maximum distance of 50 ft. There are 8 ports available on this model. It is an easy to use, plug and play device. The NI PCI-232/8 is compatible with full Windows 2000 and is also viable for NT, XP, ME, and 9x versions. This helps provide auto configuration for maintenance and installation. This Serial Interface is equipped with an SCSI 68-pin connector. This is structured on the PCI-232/8 board. An adapter cable helps convert this SCSI 68-pin connector to eight male DB9 connectors.
The National Instruments PCI-232/8 is a non-isolated interface. This model has dimensions of 4.2 inches × 5.7 inches. This Serial Interface consumes power from typically 100 mA, up to a maximum 180 mA. The power consumption is at +5 VDC. The NI PCI-232/8 has power consumption from typical 80 mA, up to a maximum 800 mA. The consumption range is at ±12 VDC. The maximum size of the adapter cable is 2500 pF. This model also has an ESD protection feature for data lines. The PCI-232/8 can be protected up to ± 15 kV.
The NI PCI-232/8 can operate at the maximum height of 2000 meters. The instrument also complies with the EMC standards to fulfill various requirements for its users. The PCI-232/8 is run using the NI-Serial driver software which can be programmed using application development environments (ADEs) such as LabVIEW or LabWindows/CVI.
The NI device measures 4.2 x 5.7 in. in physical dimensions. It has recommended operating and storage temperature ranges of 0 to 55 °C and –20 to 70 °C respectively, non-condensing operating and storage humidity ranges of 10 to 90% RH and 5 to 95% RH respectively. The serial interface is designed to comply with the following electrical safety standards: IEC 61010-1, EN 61010-1, UL 61010-1, and CSA 61010-1.
PCI-232/8 Obsolete Status has been announced by National Instruments, but will still be available for purchase and repairs by Apex Waves.
| Model | PCI-232/8 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 777642-08 |
| Type | Serial Interface |
| Ports | 8 |
| I/O Connector | 68-pin, SCSI |
| FIFO Size | 64 Bytes |
| Dimensions | 4.2 x 5.7 in. |
| Driver Software | NI-Serial |
| Warranty | Three Year Warranty |
| PCI-232/8 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated NSNs for the PCI-232-8:
5998015885990
National Instruments PCI-232/8 Frequently Asked Questions
Question: Is the PCI-232/8 compatible with XP? The datasheet doesn’t specify.
Answer: Yes, the PCI-232/8 is compatible with XP.
Question: Does the NI PCI-232/8 have isolation?
Answer: The NI PCI-232/8 does not have isolation.
Question: Which type of serial ports are on the PCI-232/8?
Answer: The PCI-232/8 has RS-232 serial ports.
Question: What is the maximum baud rate of the NI PCI-232/8?
Answer: The maximum baud rate of the NI PCI-232/8 is 115.2 kbps.
PCI-232-8 PDF Manuals
ARCHIVED GETTING STARTED WITH YOUR PCI SERIAL HARDWARE AND SOFTWARE FOR WINDOWS 2000.PDF
ARCHIVED GETTING STARTED WITH YOUR PCI SERIAL HARDWARE AND SOFTWARE FOR WINDOWS 95.PDF
ARCHIVED GETTING STARTED WITH YOUR PCI SERIAL HARDWARE AND SOFTWARE FOR WINDOWS 98 95.PDF
ARCHIVED GETTING STARTED WITH YOUR PCI SERIAL HARDWARE AND SOFTWARE FOR WINDOWS ME 9X.PDF
ARCHIVED GETTING STARTED WITH YOUR PCI SERIAL HARDWARE AND SOFTWARE FOR WINDOWS NT.PDF
ARCHIVED NI SERIAL HARDWARE SPECIFICATIONS GUIDE.PDF
NI SERIAL HARDWARE SPECIFICATIONS GUIDE.PDF
NI SERIAL LEGACY HARDWARE SPECIFICATIONS AND FEATURES GUIDE.PDF
SERIAL QUICK REFERENCE GUIDE.PDF
USING PCI SERIAL WITH LINUX.PDF
