SET-1240 In Stock | Ships Today
SET-1240, 8 Independent Channels, 6-Wire or 4/5-Wire, Smart E Tech xVDT Emulation Module
Need an Official Quote?

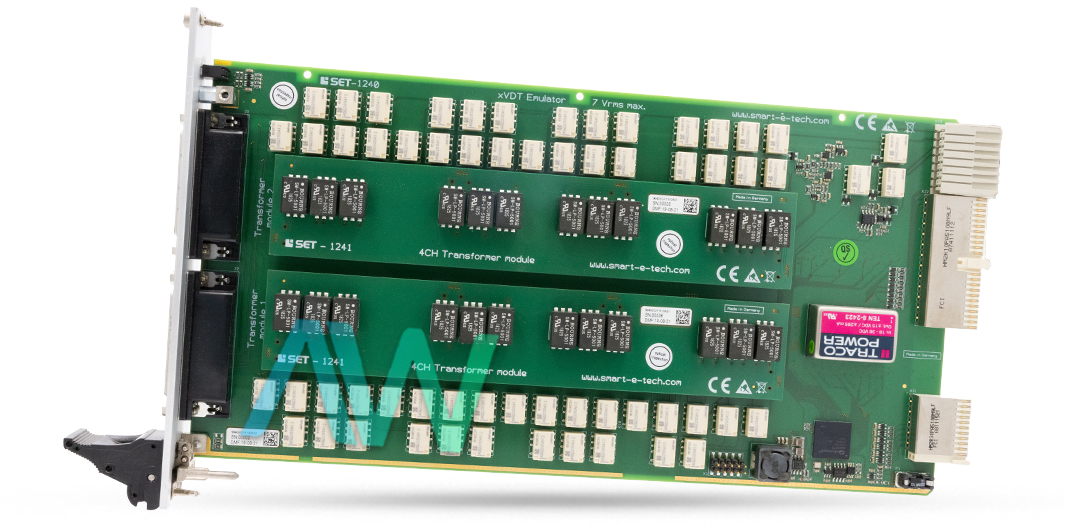

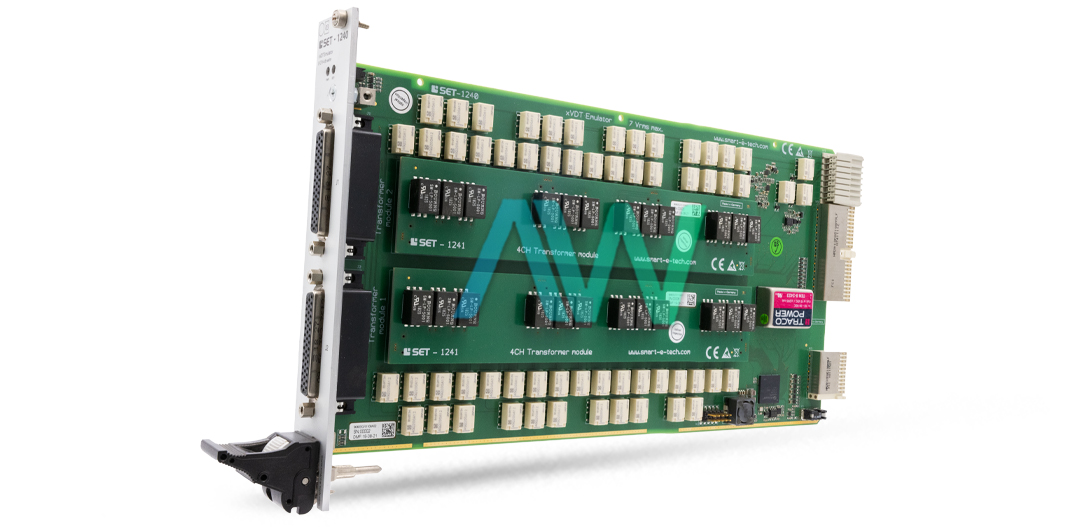

Smart E Tech SET-1240 xVDT Emulation Module
The SET-1240 xVDT Emulation Module (part number: 787756-01) from Smart E Tech is an advanced technical product meticulously crafted for emulation and testing in demanding industrial environments. This versatile tool is engineered to provide highly accurate and reliable emulation of resolvers and simulating voltage faults, crucial for testing and validation in various industrial settings. The key to its design are the eight independent xVDT emulator channels which support a 4/6-wire configuration, allowing for robust and flexible testing scenarios. Each channel is equipped with galvanic isolated I/O to enhance safety and performance, particularly in applications where electrical interference or potential circuit faults could pose a risk to both the device and its surroundings.
The SET-1240 also features a broad excitation frequency range, which spans from 400 Hz to 10 kHz. This ensures that the emulator is compatible with a wide array of industrial equipment and can handle various testing and operational demands. The device also allows for precise control over the emulated A and B signals, enabling detailed, scenario-specific testing that is critical for fine-tuning equipment performance.
The inclusion of self-test capabilities adds a layer of reliability and maintenance ease. Technicians can utilize built-in excitation signals or external signals from the Real-Time Interface (RTI) to conduct thorough checks and ensure the emulator is functioning correctly before deploying it in a live setting. From a compliance and operational safety standpoint, the SET-1240 meets electromagnetic compatibility regulations, ensuring minimal interference in sensitive industrial environments. It is designed to be used strictly within the guidelines provided to maintain its integrity and safety standards.
Physically, the device conforms to the standard SLSC card size, with dimensions of 144.32 mm x 30.48 mm x 302 mm, and requires forced-air cooling to operate effectively within a temperature range of 0°C to 40°C. It includes various connectors such as J1, J2, XJ2, and XJ3 for versatile connectivity options, catering to both front and rear connection setups. LED indicators on the device provide immediate visual feedback on power status, readiness, and error states, simplifying troubleshooting and maintenance.
Overall, the SET-1240 xVDT Emulator is a sophisticated tool designed to meet the rigorous demands of industrial testing and validation, offering precise control, extensive functionality, and robust safety features to enhance the performance and reliability of industrial systems.
Part Number | 787756-01 |
---|---|
Model Name | SET-1240 |
Part Type | xVDT Emulation Module |
Frequency Range | 400 Hz to 10 kHz |
Channels | 8 Independent xVDT Emulator Channels |
Maximum Excitation Voltage | 3 Vrms (Min), 7 Vrms (Max) |
Configuration | 6-Wire or 4/5-Wire |
Front Panel Connector | Two Female DB-44 High Density D-SUB |
Update Time | 10 ms |
LEDs | PWR and RDY |
Common Mode Excitation Voltage | -45 VDC (Min), 45 VDC (Max) |
RTI Connector | 2 mm Hard Metric Connector |
Operating Temperature Range | 0°C to 40°C (forced-air cooling). |
Storage Temperature Range | -40°C to 85°C |
Physical Dimensions | 144.32 mm x 30.48 mm x 302 mm, fitting standard SLSC card size. |
Manufacturer | Smart E Tech |
Smart E Tech SET-1240 Frequently Asked Questions
Question: What are the environmental specifications for the SET-1240 regarding humidity?
Answer: The relative operating humidity for the device ranges from 10%-90%, while the relative storage humidity is 5%-95%. Both are non-condensing.
Question: What LEDs are featured on the SET-1240?
Answer: This xVDT Emulation Module features both Power (PWR) and Status (RDY) LED Indicators.
Question: What is the excitation frequency of the module?
Answer: When within the recommended operation range, the SET-1240 has an excitation frequency of 400 Hz – 10 kHz.
Question: What type of RTI connector does the SET-1240 have?
Answer: The RTI connector is a 2 mm hard metric connector.
Why Buy From Apex Waves:
"Hand carrying parts to fedex directly to make sure I get them overnight. Great service"
"They were very helpful to get me the test equipment that I need."
SET-1240
Modular Systems > National Instruments > SLSC Series
SET-1240, 8 Independent Channels, 6-Wire or 4/5-Wire, Smart E Tech xVDT Emulation Module
1-800-915-6216
- Description
- Technical Specifications
- FAQs
- Manuals & PDFs

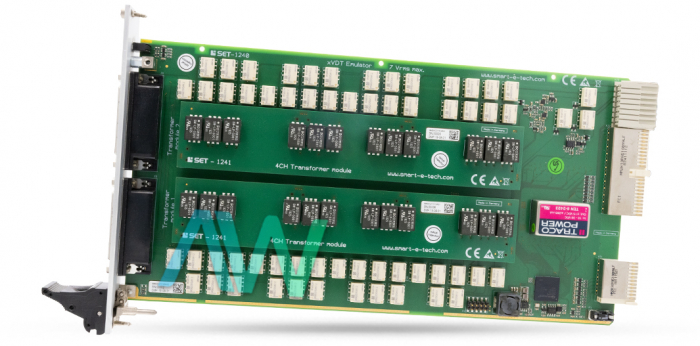

Smart E Tech SET-1240 xVDT Emulation Module
