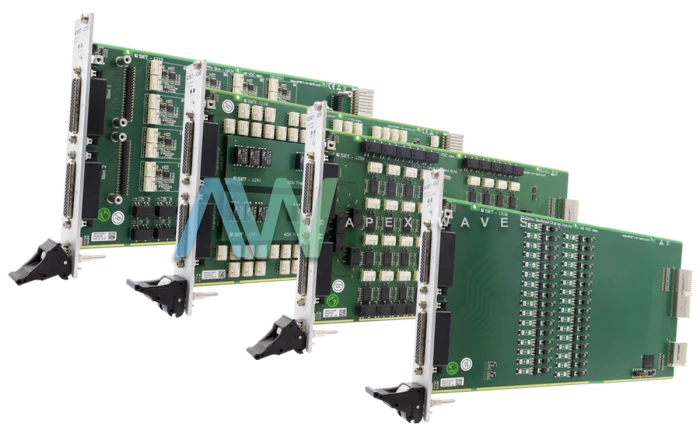

Smart E Tech SET-2210 SLSC Daughter Module

The SET-2210 (Part Number: 786434-01) is an SLSC Daughter Module from Smart E Tech, also known as a Routing Instrument Connect Daughter Module. The SET-2210 is produced by the manufacturer SET and can be used with NI products. The NI SET-2210 module belongs to the series of accessories for Switch, Load, and Signal Conditioning (SLSC) devices.

The SET-2210 SLSC Daughter Module is designed with 16 differential channels or 32 single-ended channels. This device is ideal for multiplex testing in a small form factor. The SET-2210 module is fabricated as a removable routing module. The module can easily be mounted into the SET-2010 Routing Card to enhance signal routing tasks, and it is capable of connecting only one module for each bus.

The SET-2210 SLSC Daughter Module is designed with an architecture of hardware-in-the-loop (HIL). By this architecture, an oscilloscope or a multimeter can be connected with an instrument bus. This kind of topology permits self-testing and self-calibration techniques. The SET-2210 module is assembled with robust monitoring options. The module comes with a maximum current rating of 1.5 Amperes, and it is utilized in an environment where the operating temperature is in the range 0 °C to 40 °C. The SET-2210 module has an update time of 10 ms.

SET-2210 Obsolete Status has been announced, but the SLSC Daughter Module will still be available for purchase and repairs by Apex Waves.
