ISC-1774C In Stock | Ships Today
ISC-1774C, 1,280 x 960 Pixels , Color Smart Camera
Need an Official Quote?

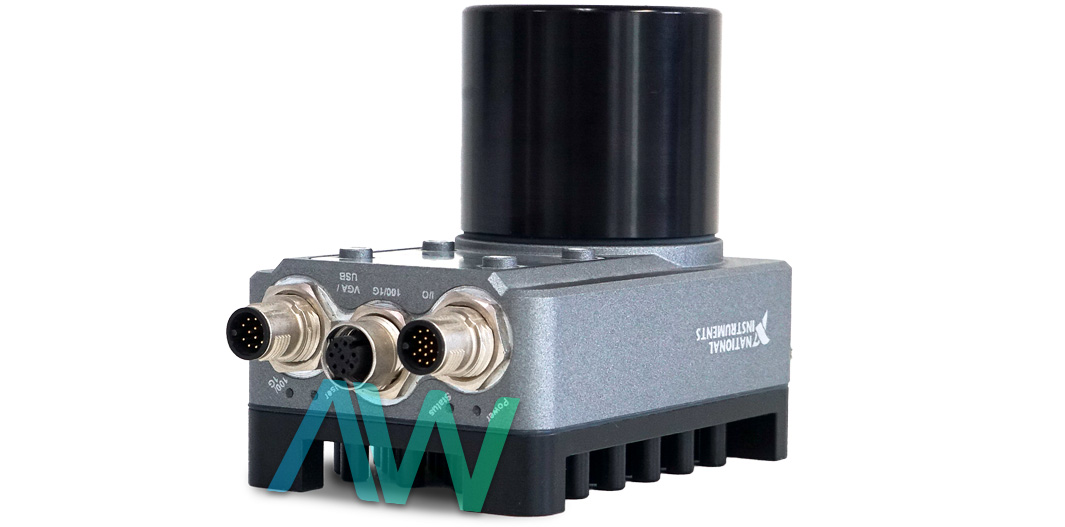

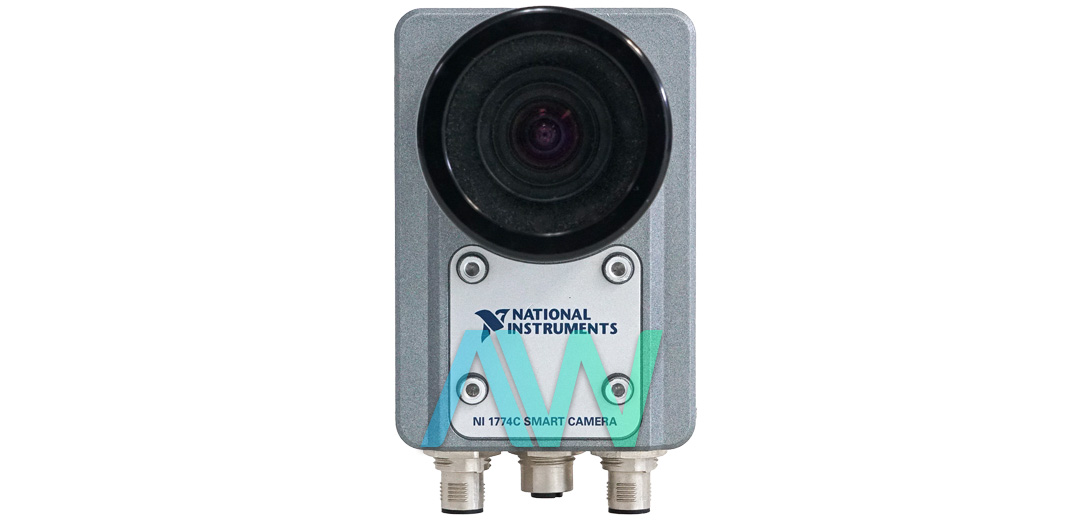

National Instruments ISC-1774C Smart Camera
Featured with a powerful Sony ICX445AQ CCD sensor, Ethernet and Serial communication, the NI ISC-1774C (part number: 152650A-04L) is a Smart Camera from National Instruments NI Vision Series. This Smart Camera comes equipped with an onboard processor and flash storage. The processor used in this Smart Camera is an Intel® Atom™ Z530 that can operate at a maximum clock rate of 1.60 GHz. The ISC-1774C is considered a powerful solution for industrial applications since it can connect to various kinds of industrial controls. The NI ISC-1774C is offered in a specially designed metallic housing. You can mount this Smart Camera in a variety of configurations to suit your requirements.
The image sensor incorporated in the National Instruments ISC-1774C Smart Camera is capable of taking high-quality SXGA images at a resolution of 1,280 × 960 pixels. With this Smart Camera, you can take images at a maximum frame rate of 17 fps. The NI ISC-1774C is in IP 67 rated device. However, it is designed to be used in indoor environments only. The controlled current output can operate over an output voltage range of 2.4 to 21 V.
This industrial Smart Camera has a VGA video out port that can be used to display images on a real-time basis. The NI ISC-1774C comes with 4 LED indicators for power, status, Ethernet, and a user-configurable LED indicator. The National Instruments ISC-1774C Smart Camera can be operated with a 12 W 24 DC external power supply. For simplification of the I/O signal and power connection, you can consider acquiring a power and I/O accessory offered by National Instruments separately.
ISC-1774C Maintenance Status has been announced by National Instruments, but the Smart Camera will still be available for purchase and repairs by Apex Waves.
| Model | ISC-1774C |
|---|---|
| Manufacturer | National Instruments |
| Type | Smart Camera |
| Resolution | 1,280 × 960 pixels (SXGA) |
| Color Support | Yes |
| Processor | 1.6 GHz |
| Input Current | 1.6 mA |
| Serial Baud Rates | Up to 115.2 Kbps |
| Sensor | Sony ICX445AQ |
| Dimensions | 4.33 in. × 2.95 in. × 1.96 in. |
| Warranty | 2-3 Year Warranty |
| ISC-1774C Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for the ISC-1774C:
748074-01, 781856-01
National Instruments ISC-1774C Frequently Asked Questions
Question: Can I integrate the ISC-1774C with other systems?
Answer: The ISC-1774C has built-in digital I/O and industrial communication options, including Ethernet and Serial communication, for dynamic, real-time communication and integration with industrial automation devices.
Question: Does the ISC-1774C require an external processor?
Answer: No, the ISC-1774C smart camera is an all‑in‑one system equipped with an onboard 1.6 GHz Intel Atom processor and flash storage.
Question: Is the ISC-1774C reconfigurable?
Answer: Yes. You can configure ISC-1774C Smart Camera with the included Vision Builder for Automated Inspection (AI) software or program the camera with the LabVIEW Real‑Time Module and the Vision Development Module.
