784427-01 Request for Availablility

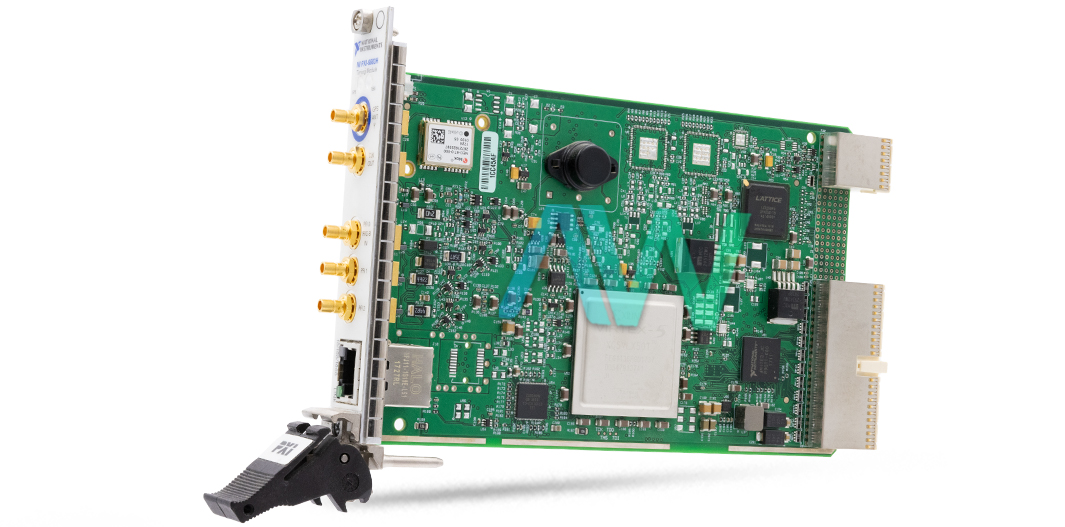

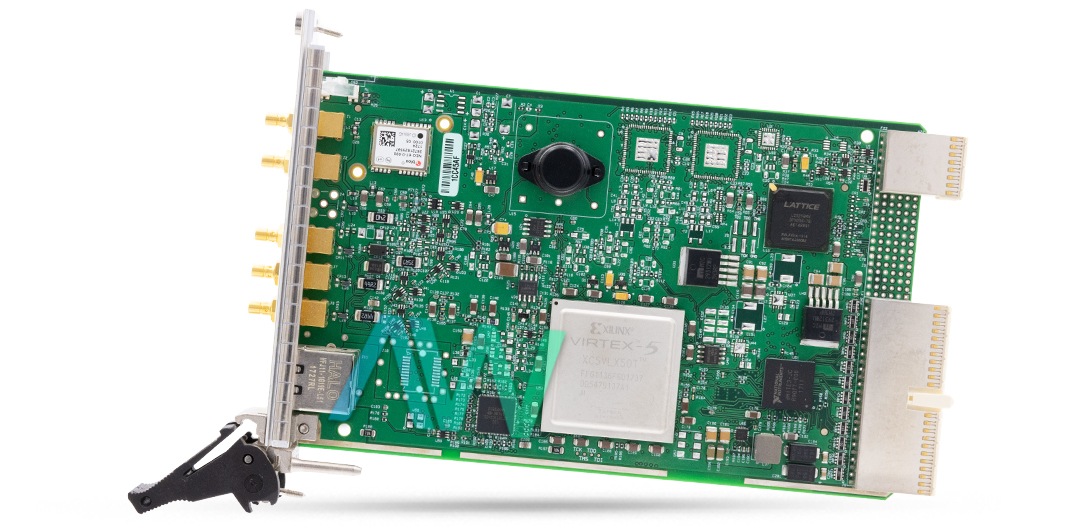

784427-01, 10 MHz, 50 Ω, 186 grams, PXI-6683H PXI Synchronization Module
Need an Official Quote?
National Instruments 782110-01 PXI Synchronization Module.
The part number 782110-01 from National Instruments is the identifying part number for the PXI-6683H PXI Synchronization Module. This module belong to the H-series designed by the national instruments. This module is made to synchronize with the PXI and Compact PCI systems. This module features advanced GPS synchronization that offers precise time and position information using the L1 frequency and GPS C/A code.
This synchronization module's GPS operates at maximum output current of 60 mA, while for the antenna it requires a DC voltage output of +5 V, ±5% with a minimum current for antenna presence detection of 4.7 mA typical, 7.9 mA max. The module is designed to handle recommended signal strengths between -130 dBm and +3 dBm, with a maximum RF power input of +3 dBm and an input impedance of 50 Ω, nominal. This module also has a PPS (pulse per second) with an accuracy of 15 ns, this makes it suitable for applications requiring stringent timing accuracy.
The 782110-01 Synchronization Module is designed to operate within a wide temperature range of 0 degrees Celsius to 55 degrees Celsius and can be stored at temperatures ranging from -40 degrees Celsius to 70 degrees Celsius. It supports operating humidity levels of 10% RH to 90% RH, non-condensing, and storage humidity levels of 5% RH to 95% RH, non-condensing. The module does not have an ingress protection rating this means that it cannot be operated in areas of moisture and dust, and is rated for Pollution Degree 2 environments. It can operate at altitudes up to 5,000 meters. It weighs 186 grams and consist of six SMB male, 50 Ω; one standard RJ-45 Ethernet connector that is front panel connector with front panel indicators as well.
This module has a recommended maximum cable length of 200 meters for PFI, DC to 1.5 MHz and 200 meters for CLKOUT to CLKIN. This module is designed with operating vibrations of 5 to 500 Hz, 0.3 grms and nonoperating of 5 to 500 Hz, 2.4 grms tested under the IEC-60068-2-64 standard. Its operating shock are 30 g peak, half-sine, 11 ms pulse that is tested under IEC-60068-2-27 standard.
| Part Number | 784427-01 |
| Model Name | PXI-6683H |
| Part Type | PXI Synchronization Module |
| Clock Output Frequency | 10 MHz |
| Duty Cycle Distortion | <1%, typical |
| Output impedance | 50 Ω, nominal |
| Output coupling | AC |
| Load Square Wave | 5 Vp-p (open load), 2.5 Vp-p (50 Ω load), typical |
| Square Wave Rise/Fall Time | <1 ns, typical |
| Weight | 186 grams |
784427-01 PDF Manuals
NI PXI 6683 SERIES INSTALLATION GUIDE.PDF
NI PXI 668328H29 DOCUMENTATION UPDATE.PDF
NI PXI 668328H29 LETTER OF VOLATILITY.PDF
PXI 6683 SERIES CALIBRATION PROCEDURE 28129.PDF
PXI 6683 SERIES USER MANUAL AND SPECIFICATIONS.PDF
