TSM-1015 Request for Availablility
TSM-1015, 15 in., 1024 x 768, Touch Screen Monitor
Need an Official Quote?
National Instruments TSM-1015 Touch Screen Monitor

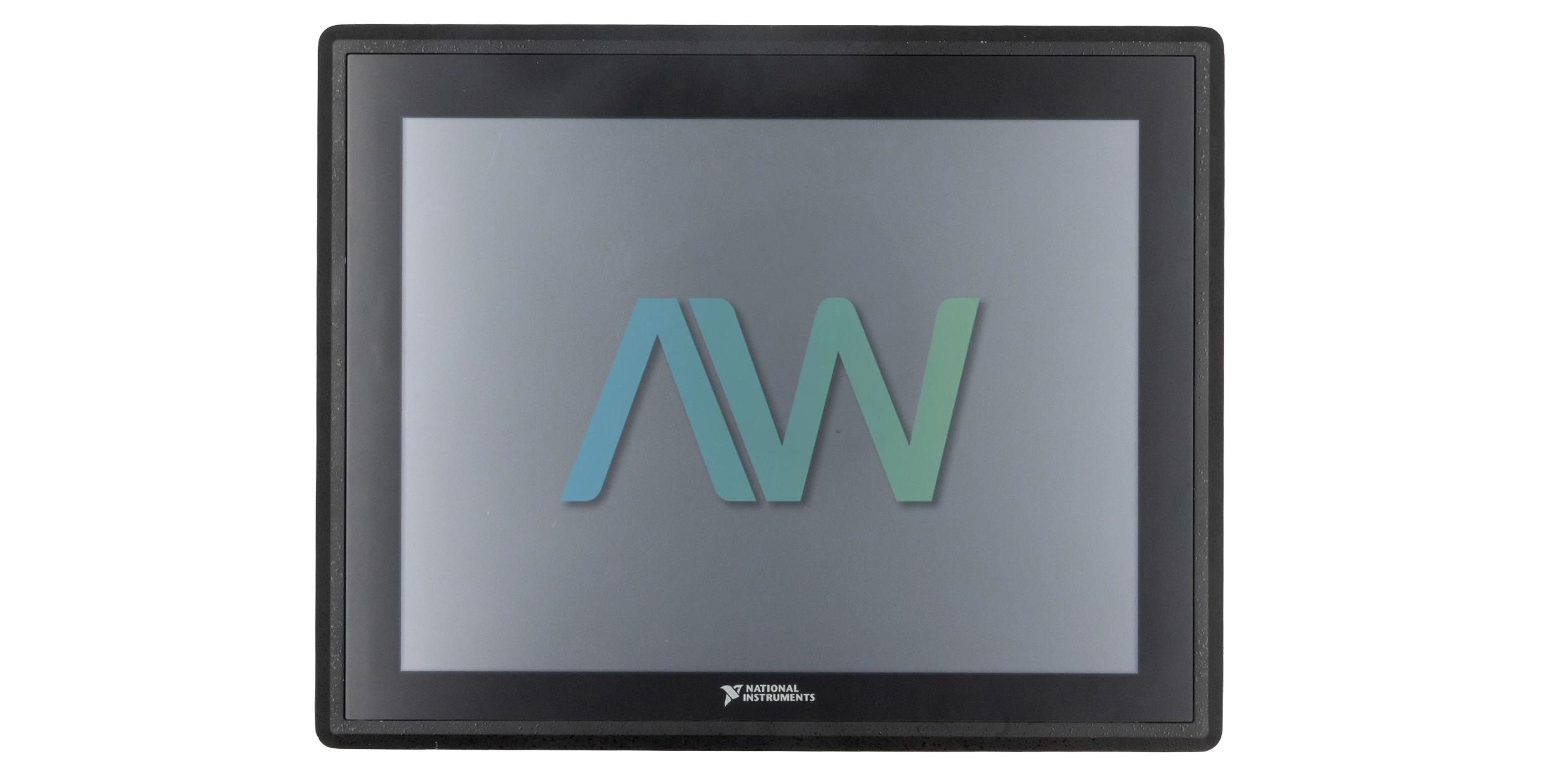

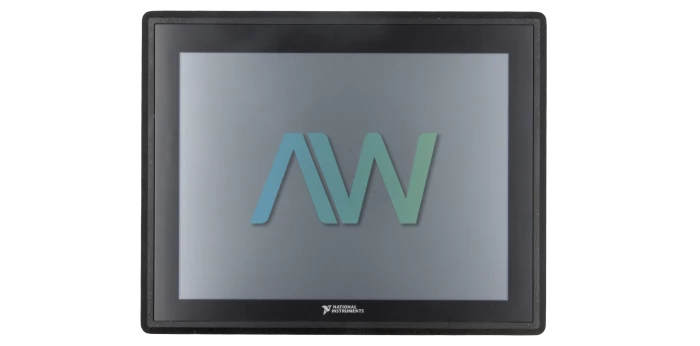

Featured with a 16.2 M Color LCD, the NI TSM-1015 (Part Number: 783636-01) is an industrial, Bezel-less Touch Screen Monitor. The touch interface used in the TSM-1015 is specially designed for industrial applications and can be operated by users wearing personal protective equipment such as gloves. The NI TSM-1015 has a broad range of I/O ports and is compatible with DVI, DisplayPort, and other display interfaces.
The resistive touch screen interface in the National Instruments TSM-1015 Touch Screen Monitor supports communication with the host device via USB or serial. This flat, industrial Touch Screen Monitor has a 15-in LCD with 160°/140° horizontal-vertical viewing angle and 0.29 mm × 0.29 mm pixel pitch. The brightness, contrast, sharpness, and various other parameters of the built-in LCD are user-configurable through software. However, you can operate the NI TSM-1015 with factory-default, optimum settings by selecting the Auto mode.
The National Instruments TSM-1015 Touch Screen Monitor can receive an input video signal from various sources. You can configure the NI TSM-1015 to operate with the desired input source by accessing the input menu in the software. However, by selecting auto-scan you can set the device to select an input device automatically. This Touch Screen Monitor is designed to support numerous mounting options.

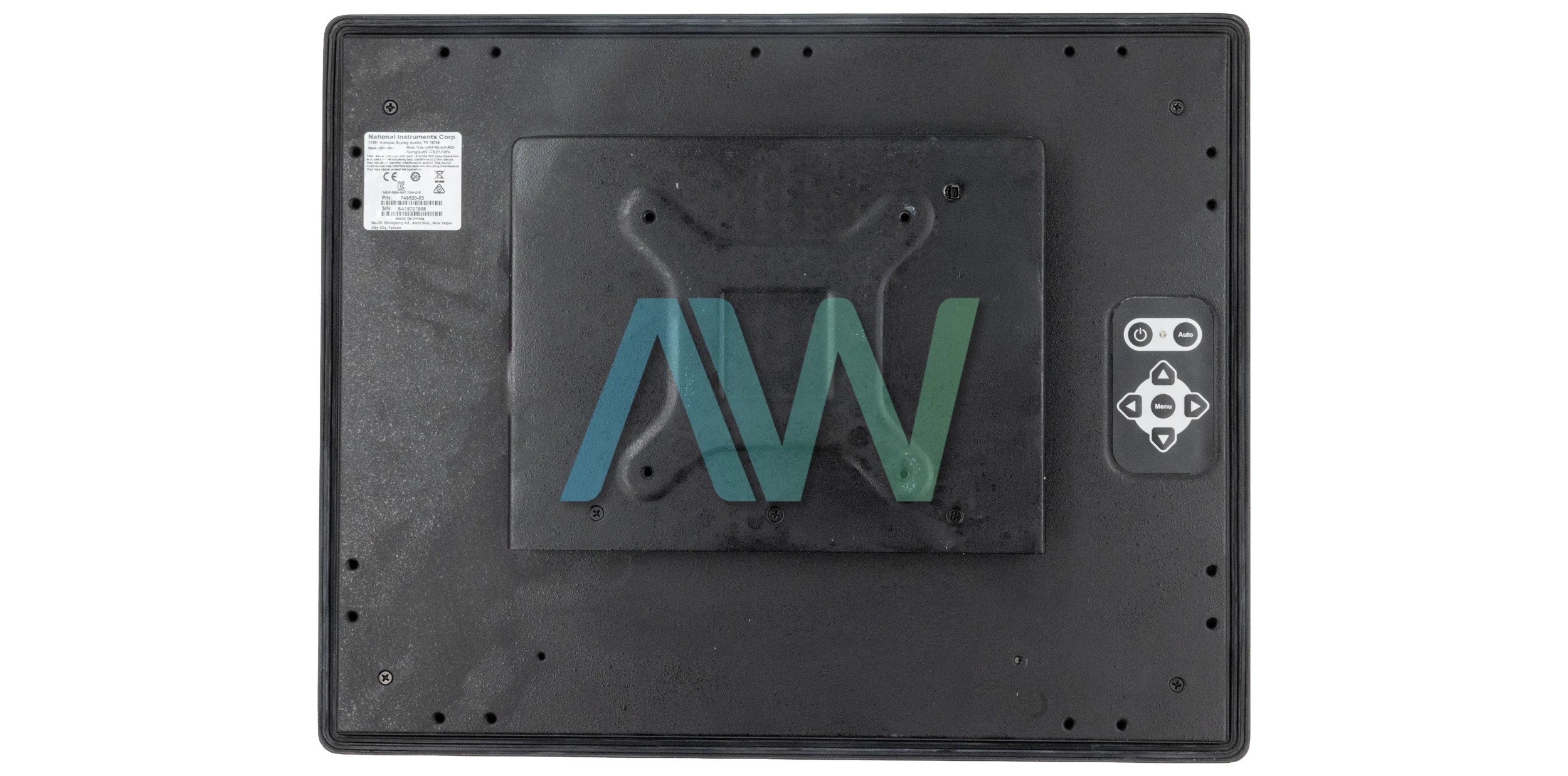

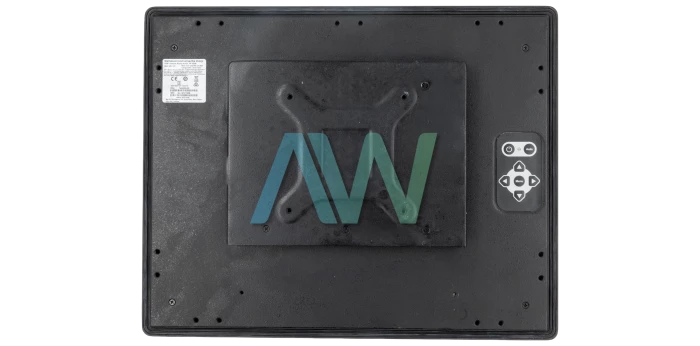

The VESA mounting holes provided in the rear panel enable you to attach a different type of mounting plate to achieve the desired mounting configuration. National Instruments also offers accessories for the TSM-1015, including a DisplayPort Cable, a power adapter, a desktop power supply, and mounting accessories.
| Model | TSM-1015 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 783636-01 |
| Type | Touch Screen Monitor |
| LCD Display Size | 15 in. |
| Maximum Resolution | 1024 × 768 |
| LCD Color | 16.2 M |
| Power Input Range | 9 to 36 VDC |
| Dimensions | 11.93 in. × 14.90 in. × 1.70 in. |
| Weight | 7.72 lb. |
| Warranty | 2-3 Year Warranty |
| TSM-1015 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for the TSM-1015:
749520-02, 749520-03, 783636-01
TSM-1015 PDF Manuals
NI CDAQ 9132 9133 9134 9135 9136 9137 USER MANUAL.PDF
NI TSM 101X GETTING STARTED GUIDE.PDF
NI TSM 101X SPECIFICATIONS.PDF
