TSM-1017 Request for Availablility
TSM-1017, 17 in., 1280 x 1024, Touch Screen Monitor
Need an Official Quote?

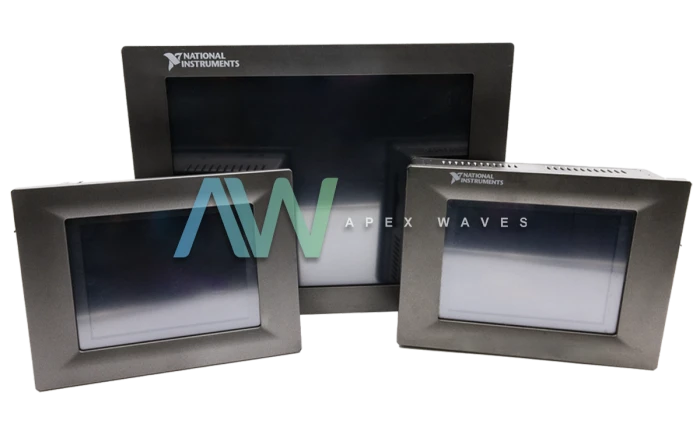

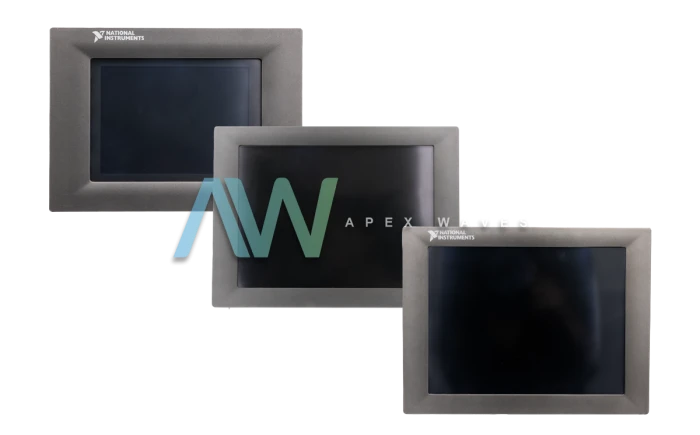

National Instruments TSM-1017 Touch Screen Monitor
Featured with a 17-inch display, the NI TSM-1017 (Part Number: 783637-01) is an Industrial LCD (liquid color display) Monitor from National Instruments. This Touch Screen Monitor can be controlled through a serial or USB bus. The NI TSM-1017 is an ideal solution to be deployed as an HMI (human-machine interface) in challenging industrial environments.
The touch panel of the TSM-1017 has characteristics that make it highly responsive. An operator with a gloved hand can still easily interact with the control system through the NI TSM-1017. This Touch Screen Monitor is designed to work with multiple types of display interfaces, including VGA and DVI. The NI TSM-1017 has dedicated ports to receive video signals from these interfaces. This Touch Screen Monitor is provided with powerful software that allows straightforward and quick configuration of the device. Various parameters of the LCD display can also be altered or adjusted by the user through software.
The NI TSM-1017 Touch Screen Monitor is delivered with optimum settings to provide you with the finest possible results. If desired, you can adjust the color, brightness contrast, and other parameters. This industrial Touch Screen Monitor can be mounted in a variety of configurations with the help of additional accessories that are offered separately. You can not only acquire Panel and V-Mount kits for this device, but also monitor arm or monitor stands are. This Touch Screen Monitor can operate with a maximum display resolution of 1280 × 1024 pixels and has a contrast ratio of 1000:1.
Model | TSM-1017 |
---|---|
Manufacturer | National Instruments |
Part Number | 783637-01 |
Type | Touch Screen Monitor |
LCD Display Size | 17 in. |
Maximum Resolution | 1280 × 1024 |
LCD Color | 16.7 M |
Power Input Range | 9 to 36 VDC |
Dimensions | 13.44 in. × 16.08 in. × 1.94 in. |
Weight | 9.70 lb. |
Warranty | 2-3 Year Warranty |
TSM-1017 Manual | User Manual and Maintenance Manual Available for Download |
Price | Contact a sales representative for a quote. |
Associated part numbers for the TSM-1017:
749521-01, 749521-02, 783637-01
TSM-1017 PDF Manuals
NI CDAQ 9132 9133 9134 9135 9136 9137 USER MANUAL.PDF
NI TSM 101X GETTING STARTED GUIDE.PDF
NI TSM 101X SPECIFICATIONS.PDF
