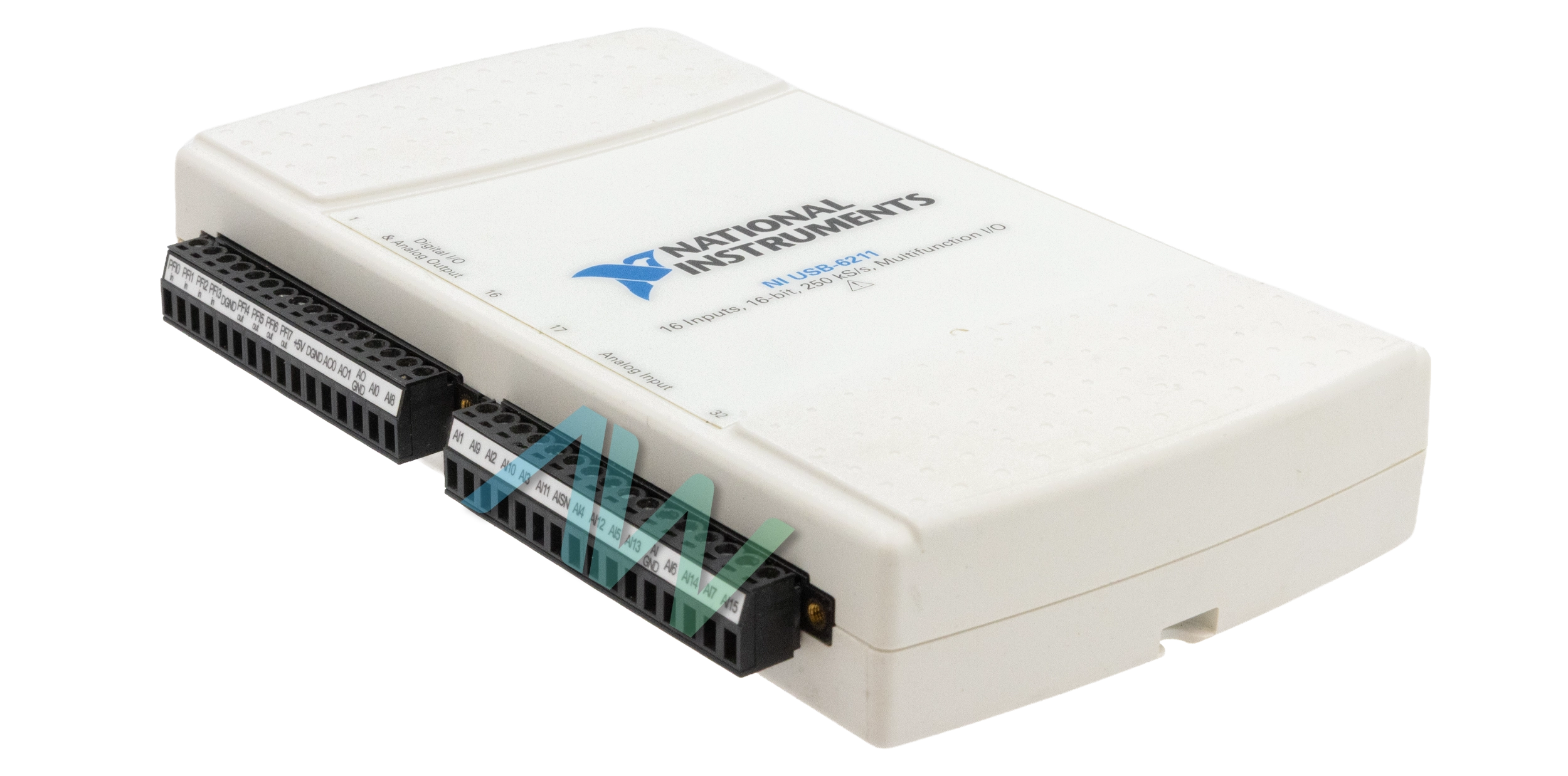

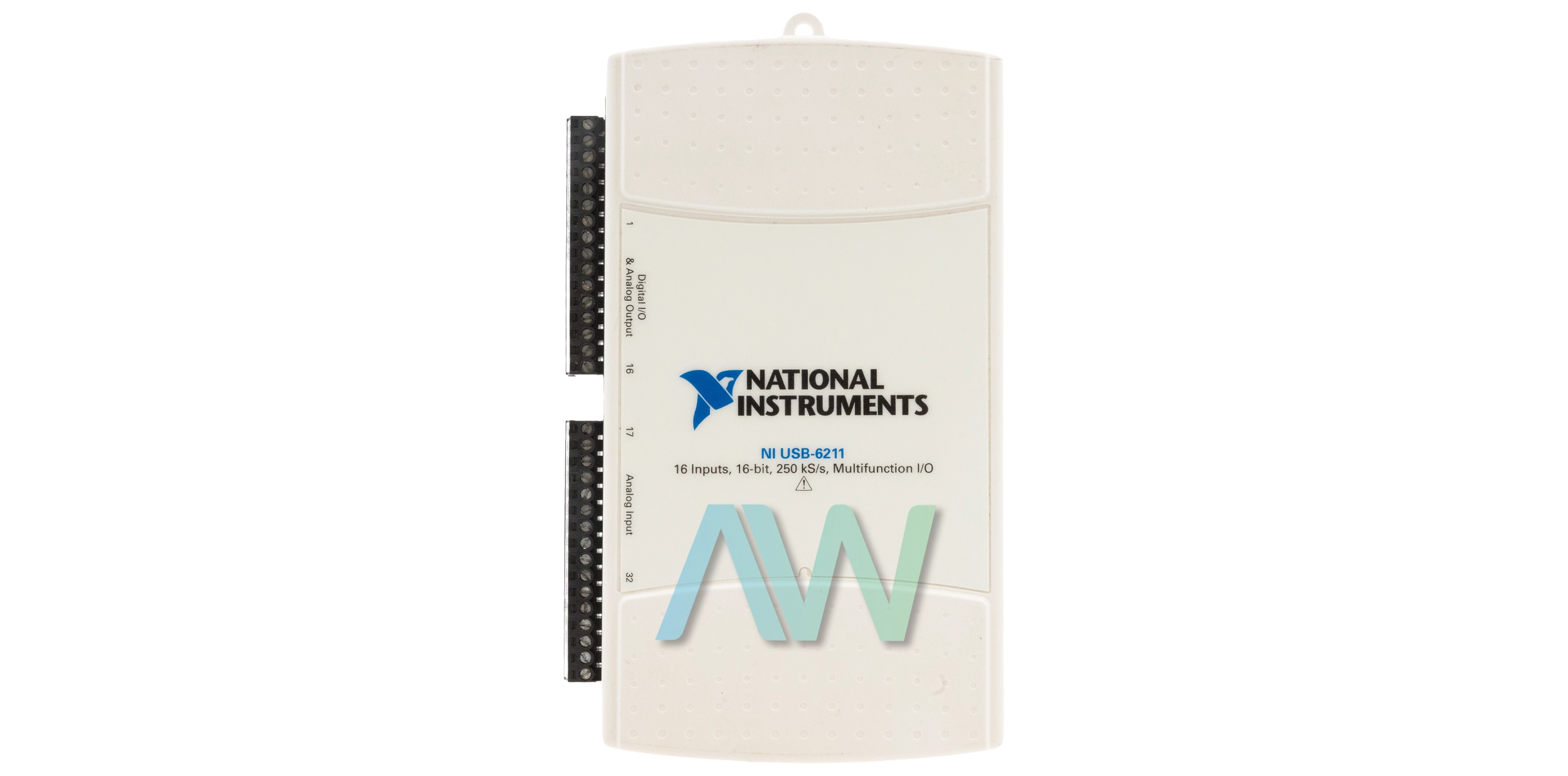

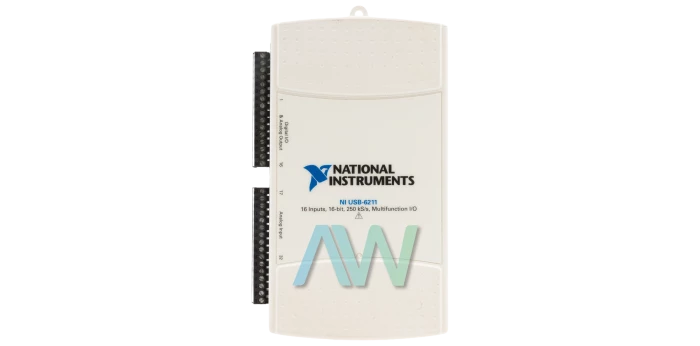

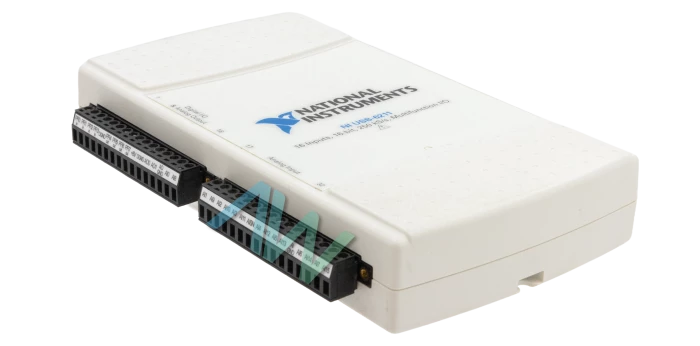

National Instruments USB-6211 Multifunction I/O Device
The National Instruments USB-6211 (part numbers: 779676-01, 780104-01, and 196203-03) is a portable Multifunction I/O Device from the M Series. Boasting a wide range of connectivity options, the device features 16 single-ended analog input channels that are configurable as 8 differential channels. In addition, the NI USB-6211 is equipped with 2 analog output, 4 digital input, and 4 digital output channels. The maximum sampling rate of the channels is 250 kS/s, offering a high-resolution performance for a variety of test and measurement applications.
The difference between the part numbers for the NI USB-6211 Multifunction I/O Device is that part number 780104-01 is designed for Linux and Mac, while part number 196203-03 is the variation of the device with no enclosure (board only kit). Part number 779676-01 is the standard version of the device. The NI USB-6211 has 2 general purpose counters/timers that have 32 bits of resolution. These allow for a range of counter measurements- including edge counting, two-edge separation, period, semi-period, and pulse.
The front connectors of the NI USB-6211 are designed with screw terminals, which have a wiring of 16 AWG to 28 AWG. The internal base clocks of the I/O device range in frequency from either 80 MHz, 20 MHz, or 0.1 MHz. For external base clocks, the frequency ranges from 0 MHz to 20 MHz. When in a configured state, the USB port has an input voltage of 4.5 V to 5.25 V. The maximum load for the typical current is 400 mA at 4.5 V, while a suspend current of the USB-6211 has a maximum load of 260 μA (typically).
The physical specifications of the NI USB-6211 includes a 15 minute warm up time recommended for annual calibration. Designed for indoor use only, the device should be operated within a temperature range of 0 ºC to 45 ºC. When nonoperational, it should be kept within storage temperatures ranging from -20 ºC to 70 ºC. The USB-6211 Multifunction I/O Device, along with its connectors, measures 16.9 cm × 9.4 cm × 3.1 cm (6.65 in. × 3.70 in. × 1.20 in.) and weighs a total of 206 g (7.2 oz).
| Model | USB-6211 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 779676-01 |
| Type | Multifunction I/O Device |
| Analog Input Channels | 16 single-ended, 8 differential |
| Maximum Sample Rate | 250 kS/s |
| Analog Input Resolution | 16 bits |
| Front Connection Type | Screw Terminal |
| Dimensions | 6.65 in. × 3.70 in. × 1.20 in. |
| Weight | 7.2 oz. |
| Warranty | Three Year Warranty |
| USB-6211 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for the USB-6211:
194710B-03, 194710C-03, 194710D-03L, 194710E-03L, 194710F-03L, 196203-03, 196203A-03L, 196203B-03L, 196203C-03L, 779676-01, 779803-01, 780104-01, 780127-01
Associated NSNs for the USB-6211:
7025-01-598-8895 (7025015988895)
National Instruments USB-6211 Frequently Asked Questions
Question: What is the timing accuracy and resolution of the USB-6211?
Answer: The timing accuracy of the USB-6211 is 50 ppm of the sample rate, while the timing resolution is 50 ns.
Question: What is the input FIFO size of the USB-6211?
Answer: The input FIFO size is 4.095 samples.
Question: What is the sample rate for the USB-6211?
Answer: The maximum sample rate for both single channels and multi-channels of the USB-6211 is 250 kS/s. The minimum is 0 S/s.
USB-6211 PDF Manuals
DAQ GETTING STARTED GUIDE FOR BUS POWERED USB.PDF
DAQ GETTING STARTED GUIDE FOR PCI PCI EXPRESS.PDF
DAQ GETTING STARTED READ ME FIRST NI DAQMX AND DAQ DEVICE INSTALLATION GUIDE.PDF
NI USB 621X DEVICE LABELS NOTE TO USERS.PDF
NI USB 621X LETTER OF VOLATILITY.PDF
NI USB 621X OEM USER GUIDE.PDF
