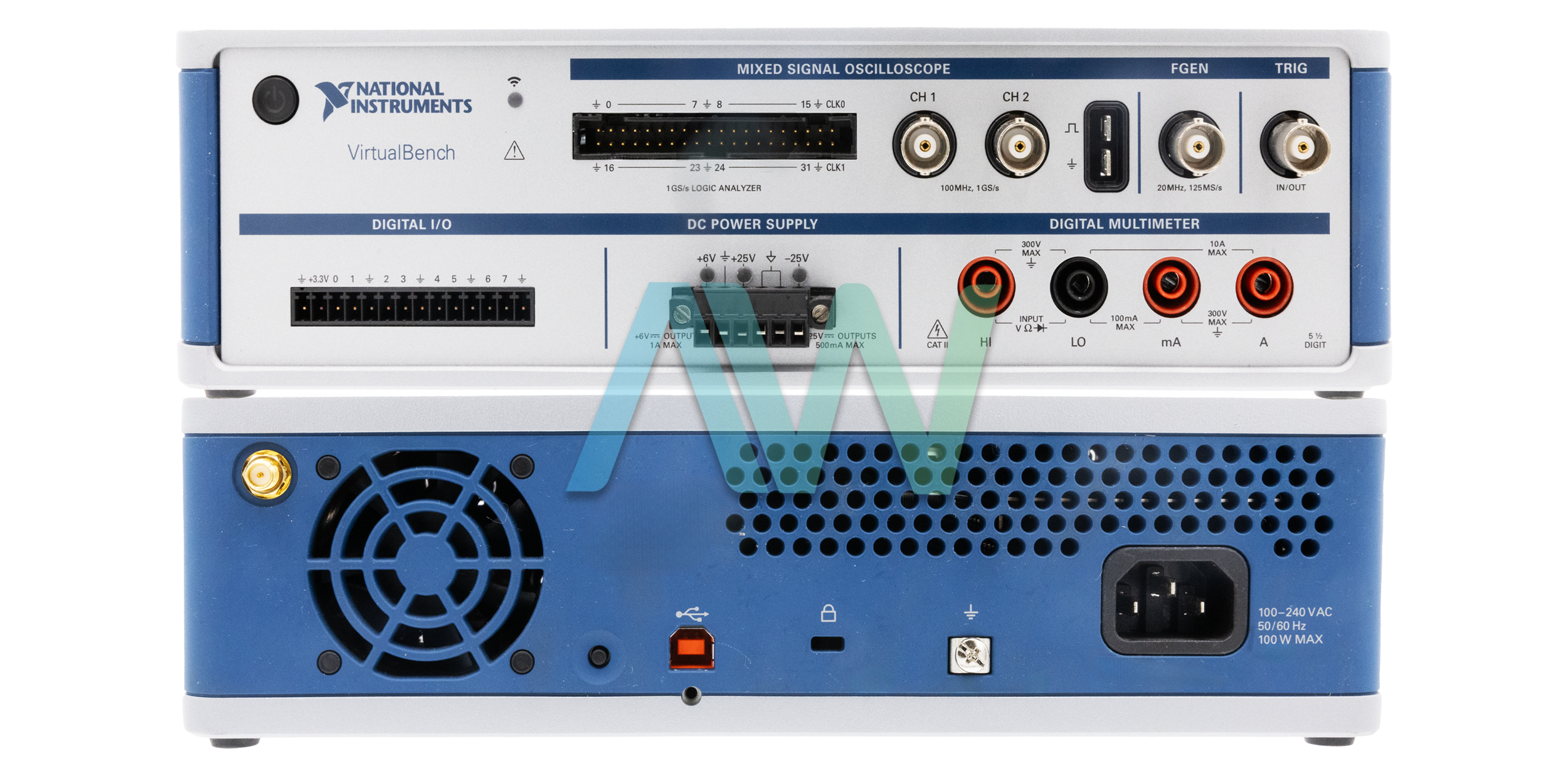

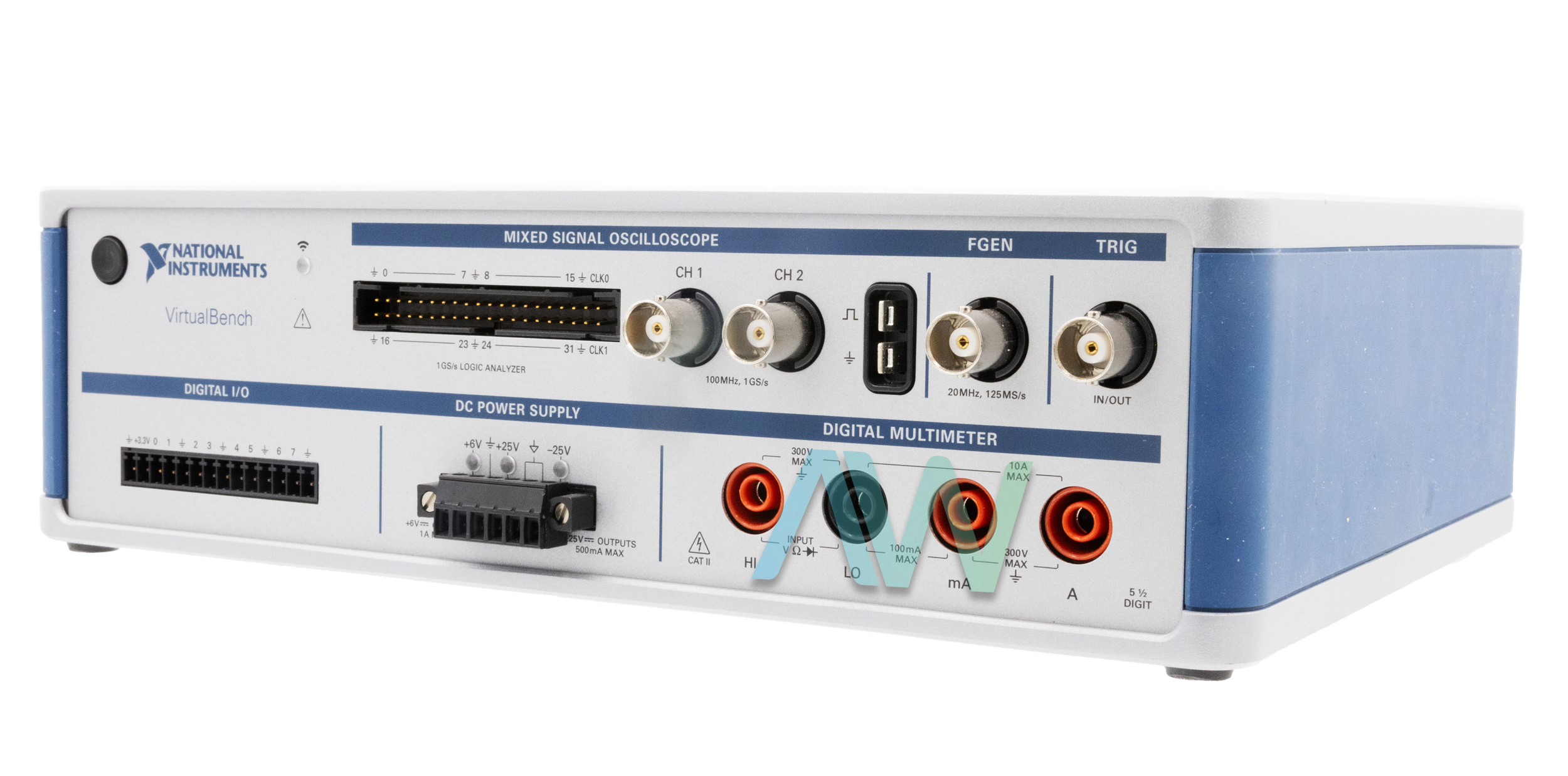

National Instruments VB-8012 VirtualBench All-in-One Instrument
Featured with a programmable power supply (DC), an arbitrary waveform generator, and other instruments, the NI VB-8012 (Part Numbers: 783555-05, 783555-02, 783555-11, 783555-04, 783555-12, 783555-01, 154321F-01L, 154321B-01L) is a 100 MHz bandwidth, 2-Channel VirtualBench All-in-One Instrument. This instrument comes with a specially designed software program that allows you to view your measurements interactively. The NI VB-8012 offers protocol analysis through its 100 MHz, two-channel oscilloscope. This instrument has an integrated digital multimeter as well.
This VirtualBench All-in-One Instrument is designed to provide you with a variety of measurement and analysis tools in a single package. Thus, you can save a lot of money and time that otherwise will be required for the acquisition and configuration of several devices. The oscilloscope incorporated in the National Instruments VB-8012 VirtualBench All-in-One Instrument has a resolution of 8-bits and supports both AC and DC coupling. This instrument features a 34-channel digital logic analyzer as well. The waveform function generation incorporated in the NI VB-8012 can generate arbitrarily, sine, square, ramp/triangle, and DC waveforms with an update rate of 125 MS/s and 14-bits resolution.
The VB-8012 VirtualBench All-in-One Instrument not only provides you with five essential tests and measurement devices but is capable of integrating with your personal computer as well. Thus, you can easily import your measurements and other data from this device to your computer. The programmable DC power supply incorporated in the NI VB-8012 has three channels. Each channel has a different range of voltage/current. The digital multimeter has a wide range of measurement functions including: AC voltage, DC voltage, DC current, AC current, resistance, etc.
Model | VB-8012 |
---|---|
Manufacturer | National Instruments |
Part Numbers | 783555-05, 783555-02, 783555-11, 783555-04, 783555-12, 783555-01, 154321F-01L, 154321B-01L |
Type | VirtualBench All-in-One Instrument |
Voltage Input Channels | 2 |
Bandwidth | 100 MHz |
Resolution | 8 bits |
Analog Input Coupling | AC and DC |
Dimensions | 10.00 in. × 7.50 in. × 3.06 in. |
Weight | 4 lb 8.3 oz. |
Warranty | 2-3 Year Warranty |
VB-8012 Manual | User Manual and Maintenance Manual Available for Download |
Price | Contact a sales representative for a quote. |
Associated part numbers for the VB-8012:
154119A-01L, 154119A-02L, 154119B-01L, 154119B-11L, 154119C-01L, 154119C-11L, 154119C-22L, 154119D-01L, 154119D-22L, 154119E-01L, 154258A-01L, 154258B-01L, 154261A-01L, 154261A-11L, 154261B-01L, 154261B-11L, 154261C-01L, 154261C-11L, 154261C-22L, 154261D-01L, 154261E-01L, 154261F-01L, 154321A-01L, 154321B-01L, 154321C-01L, 154321D-01L, 154321E-01L, 154321F-01L, 154321G-01L, 154321G-02L, 168369A-01L, 168369B-01L, 168378A-01L, 783555-01, 783555-02, 783555-03, 783555-04, 783555-05, 783555-06, 783555-07, 783555-08, 783555-09, 783555-10, 783555-11, 783555-12, 787942-01, 787948-04, 787948-06, 787948-07, 787948-09
VB-8012 PDF Manuals
DC3A9MARRAGE RAPIDE DU NI VIRTUALBENCH VB-8012.PDF
NI VB-8012 LETTER OF VOLATILITY.PDF
NI VB-8012 SAFETY ENVIRONMENTAL AND REGULATORY INFORMATION.PDF
NI VIRTUALBENCH CALIBRATION PROCEDURE.PDF
NI VIRTUALBENCH DESKTOP MOUNTING KIT USER GUIDE.PDF
NI VIRTUALBENCH RACK MOUNT KIT INSTALLATION GUIDE.PDF
NI VIRTUALBENCH VB-8012 QUICK START.PDF
NI VIRTUALBENCH VB-8012 SPECIFICATIONS.PDF
SPC3A9CIFICATIONS DU NI VIRTUALBENCH VB-8012.PDF
VIRTUALBENCH ALL IN ONE INSTRUMENT PRODUCT FLYER.PDF
Why Buy From Apex Waves:
"Hand carrying parts to fedex directly to make sure I get them overnight. Great service"
"They were very helpful to get me the test equipment that I need."
VB-8012
Modular Systems > National Instruments > VirtualBench Instruments
VB-8012, 2 Voltage Input Channel, 8 bits, VirtualBench All-in-One Instrument
1-800-915-6216
- Description
- Technical Specifications
- Manuals & PDFs

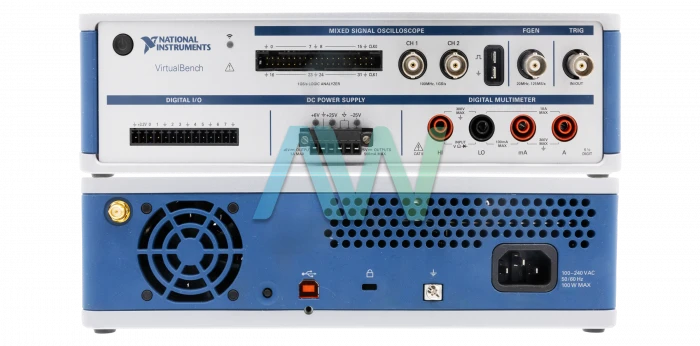

National Instruments VB-8012 VirtualBench All-in-One Instrument
