WSN-3226, 4-Channel, 20 Bits, Combo Node for WSN
Need an Official Quote?

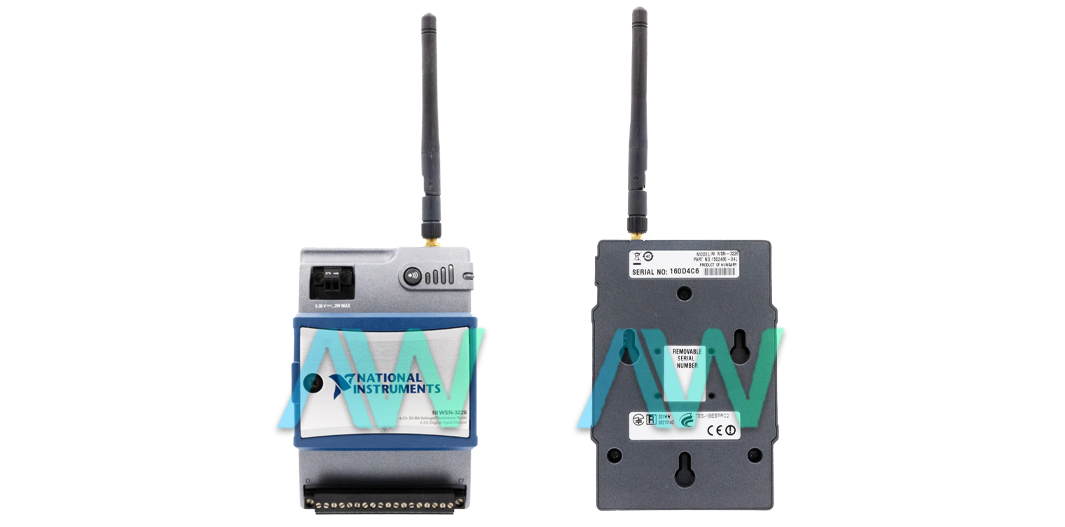

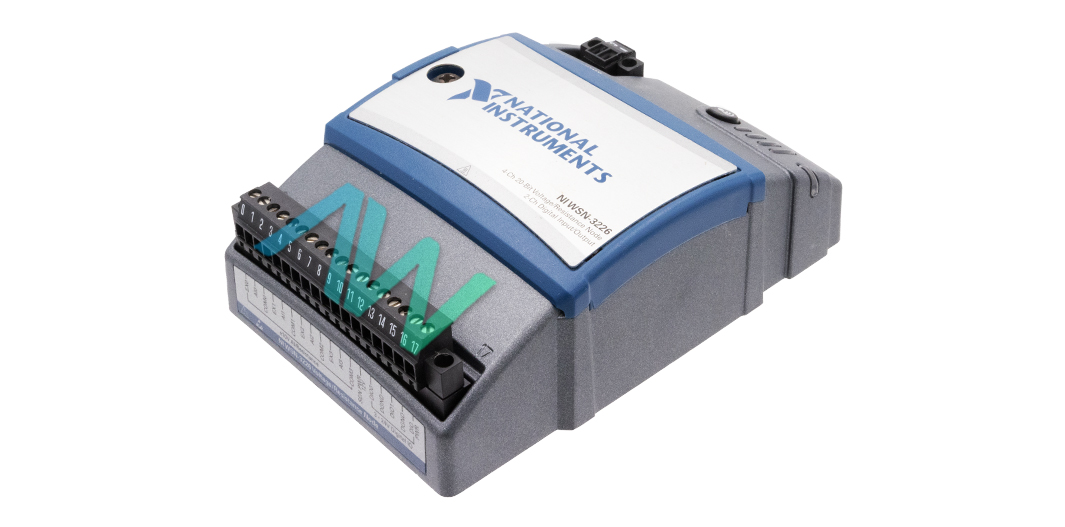

National Instruments WSN-3226 Combo Node for WSN
The National Instruments WSN-3226 (Part Numbers: 781295-01, 781295-02, 150248E-04L) is a 4-Channel, 20-bit Combo Node for Wireless Sensor Networks. This Combo Node is a low-power voltage/resistance device with two bidirectional digital channels and four single-ended channels. A regular wireless sensor network contains one or more wired gateways, PACs, and /or PCs. In these networks, various kinds of wireless nodes are used. Each node operates independently. The measurement acquired by the wireless nodes is transmitted to the host computer or controller through a wireless gateway.
The NI WSN-3226 can be operated in two modes: 3-wire RTD and voltage mode. You can select a different mode for each channel of this Combo Node. The inputs of the WSN-3226 are sampled at an ADC resolution up to 20 bits.
This Combo Node offers single-ended DC measurements, while operating in voltage mode. You can connect a voltage signal to each analog input channel. The WSN-3226 supports 3-wire RTDs, while operating in resistance mode and has three selectable ranges. However, in resistance/RTD mode, all channels operate at the same resistance range. To provide you with precise measurements, the NI WSN-3226 offers integrated compensation for the probable lead resistance errors.
This Combo Node can be powered by 4 AA size 1.5 V batteries. National Instruments recommends lithium or alkaline batteries for the WSN-3226. Rechargeable batteries are not recommended. Where applicable, the NI WSN-3226 Combo Node can also be operated employing a 5–30 V external power supply.
WSN-3226 Mature Status has been announced by National Instruments, but the combo node will still be available for purchase and repairs by Apex Waves.
Model | WSN-3226 |
---|---|
Manufacturer | National Instruments |
Part Numbers | 781295-01, 781295-02, 150248E-04L |
Type | Combo Node for WSN |
Channels | 4 |
ADC Resolution | Up to 20 bits |
Overvoltage Protection | ±30 VDC |
Voltage Range | 3.6 to 7.5 V |
Weight | Without antenna: 8.5 oz. With antenna: 9 oz. |
Warranty | 2-3 Year Warranty |
WSN-3226 Manual | User Manual and Maintenance Manual Available for Download |
Price | Contact a sales representative for a quote. |
Associated part numbers for the WSN-3226:
150248A-01L, 150248A-04L, 150248B-01L, 150248B-04L, 150248C-01L, 150248C-04L, 150248D-01L, 150248D-04L, 150248E-01L, 150248E-04L, 150248F-01L, 150248F-04L, 150248G-01L, 150248G-04L, 199779A-01L, 199779A-04L, 199779B-01L, 199779C-01L, 199779D-01L, 199779E-01L, 199779F-01L, 781295-01, 781295-02, 781295-11, 781295-12
