PXIe-6363 In Stock | Ships Today
PXIe-6363, 32 Single Ended Analog Input Channels, X Series, Multifunction I/O Module
Need an Official Quote?

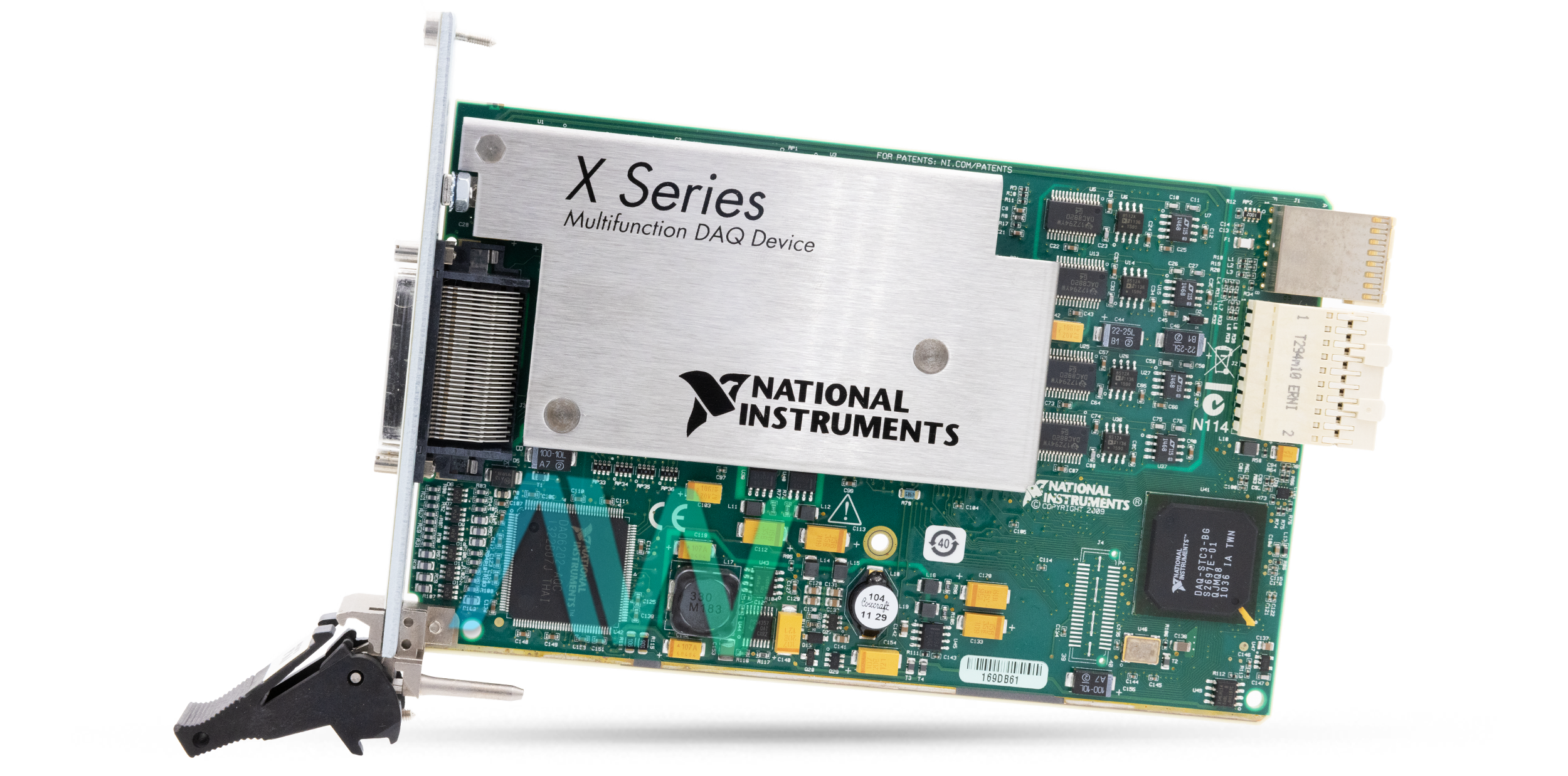

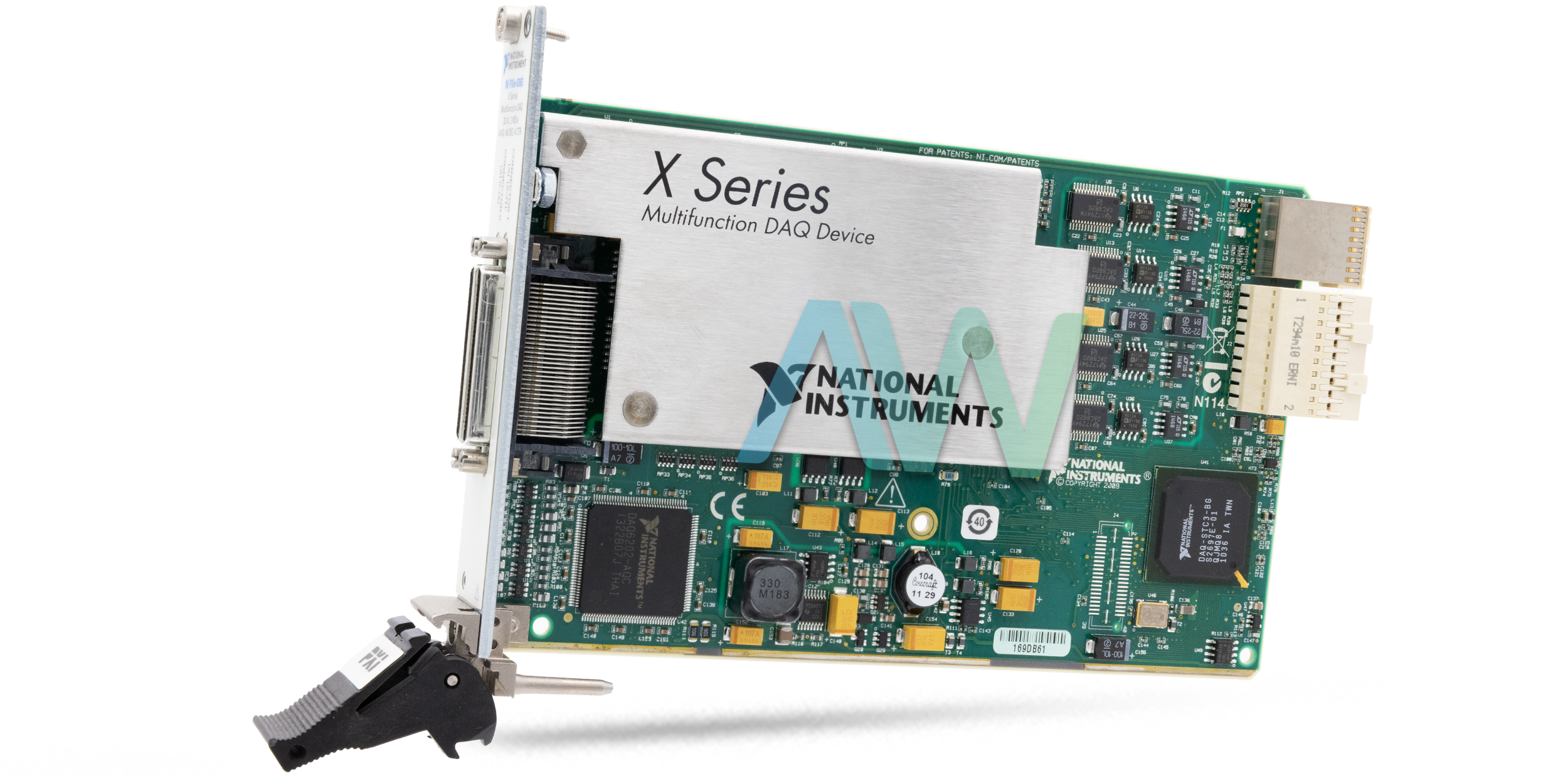

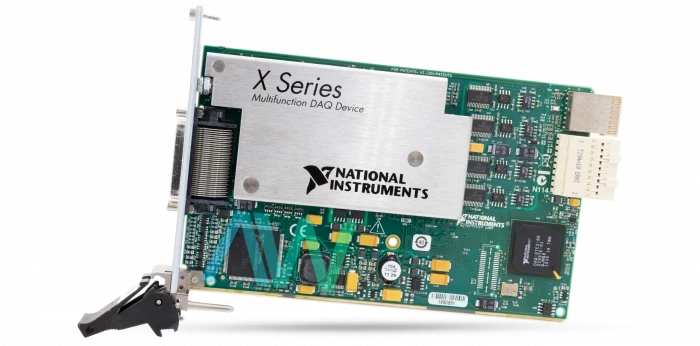

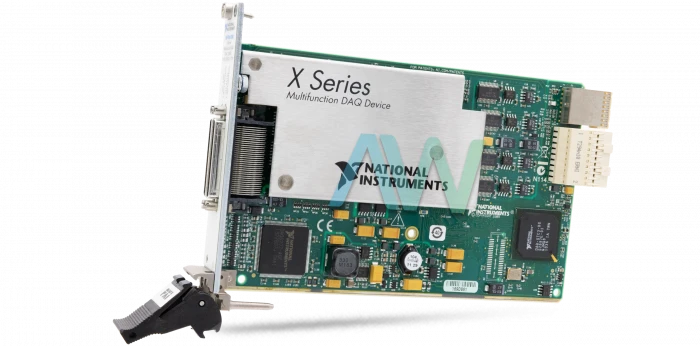

National Instruments PXIe-6363 PXI Multifunction I/O Module
The PXIe-6363 (Part Number: 781056-01) is a Multifunction I/O Module from the X Series by National Instruments. Equipped with 16 bits of ADC resolution, the device utilizes application software and a multicore-optimized driver to offer high performance functionality. The onboard NI-STC3 technology of the PXIe-6363 offers versatile timing and synchronization capabilities for applications involving independent digital and analog timing engines. Designed for easy connectivity, this I/O module features 4 analog output channels, 48 digital I/O channels, and 32 analog input channels that can be configured as either 16 differential or 32 single-ended channels. The NI PXIe-6363 is an excellent choice for a wide range of test and measurement applications- from simple data recording to complex scenarios.
To get the most out of the NI PXIe-6363’s performance, it is recommended that the input high voltage remains within a range of 2.2 V to 5.25 V during operation. For the input low voltage, a range from 0 V to 0.8 V is recommended. The I/O connectors of the PXIe-6363 include a 68 position, right angle, dual stack PCB-Mount VHDCI connector for modules. For connecting with cables, the device features a 68 position Offset IDC Cable Connector.
The power required by the NI PXIe-6363 depends on the voltage used. A voltage of +3.3 V draws in 1.6 W of power, while +12 V draws in 19.8 W. In order to safeguard the device from damage caused by overvoltage or overcurrent, the PXIe-6363 is equipped with current limitations. For each of the +5 V terminals of the device, Connector 0 and Connector 1, there is a maximum current limit of 1 A. When the terminals are combined, or for the PFI/P0/P1/P2 terminals, the maximum current limit is 2 A.
In terms of the operating environment of the PXIe-6363, it should be operated within temperatures ranging from 0 °C to 55 °C. When nonoperational, it can be stored in temperatures ranging from -40 °C to 71 °C. The physical dimensions of the PXIe-6363’s printed circuit board are the same as a standard 3U PXI, and the device weighs 215 g (7.6 oz).
| Model | PXIe-6363 |
|---|---|
| Part Number | 781056-01 |
| Manufacturer | National Instruments |
| Type | PXI Multifunction I/O Module |
| Single-Ended Analog Input Channels | 32 |
| Differential Analog Input Channels | 16 |
| Maximum Sample Rate | 2 MS/s |
| Board Dimensions | Standard 3U PXI |
| Weight | 7.6 oz. |
| Warranty | Three Year Warranty |
| PXIe-6363 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for the PXIe-6363:
193435A-01L, 193435B-01L, 193435C-01L, 193435D-01L, 200057A-01, 200193A-01, 200772A-01, 781056-01
Associated NSNs for the PXIe-6363:
5998-01-599-7556 (5998015997556), 5998016581360, 5998-01-658-1360 (5998016581360)
National Instruments PXIe-6363 Frequently Asked Questions
Question: What is the timing accuracy for the NI PXIe-6363 X Series DAQ?
Answer: The timing accuracy for the NI PXIe-6363 X Series DAQ is 50 ppm of the sample rate.
Question: What is the input FIFO size for the PXIe-6363 NI?
Answer: The PXIe-6363 NI has an input FFIFO size of 2,047 samples.
Question: What is the input impedance of the NI PXIe-6363?
Answer: The NI PXIe-6363 has 10 kΩ input impedance.
Question: What is the maximum update rate for 4 analog output channels on the NI PXIe 6363?
Answer: The maximum update rate for 4 analog output channels on the NI PXIe 6363 is 1.25 MS/s.
| Accessory Type | Model Name | Part Number |
|---|---|---|
| Cable | SHC68-68-EPM | 192061-01 (1 m) |
| 192061-02 (2 m) | ||
| 192061-05 (5 m) | ||
| 192061-0R5 (0.5 m) | ||
| RC68-68 | 187252-01 (1 m) | |
| 187252-0R25 (0.25 m) | ||
| 187252-0R5 (0.5 m) | ||
| Shielded Connector Block | SCB-68A | 782536-01 |
| Shielded BNC Connector | BNC-2110 | 777643-01 |
| Rack-Mountable Accessory | BNC-2090A (Rackmount) | 779556-01 |
| Terminal Block | TB-2706 | 779183-01 |
| Connector Block | TBX-68 | 777141-01 |
| CB-68LP (Vertical Mount) | 777145-01 | |
| CB-68LPR (Right Angle Mount) | 777145-02 | |
| - | - | - |
PXIe-6363 PDF Manuals
DAQ GETTING STARTED GUIDE FOR PXI PXI EXPRESS.PDF
DAQ GETTING STARTED READ ME FIRST NI DAQMX AND DAQ DEVICE INSTALLATION GUIDE.PDF
NI 62XX 63XX PINOUT LABELS FOR THE SCB 68 NOTE TO USERS.PDF
NI 62XX 63XX PINOUT LABELS FOR THE SCB 68A NOTE TO USERS.PDF
NI PXIE 6361 63 LETTER OF VOLATILITY.PDF
