USB-6363 In Stock | Ships Today
NI USB-6363, 32 Single Ended Analog Input Channels, 2 MS/s Max Sample Rate, USB Multifunction I/O Device
Need an Official Quote?

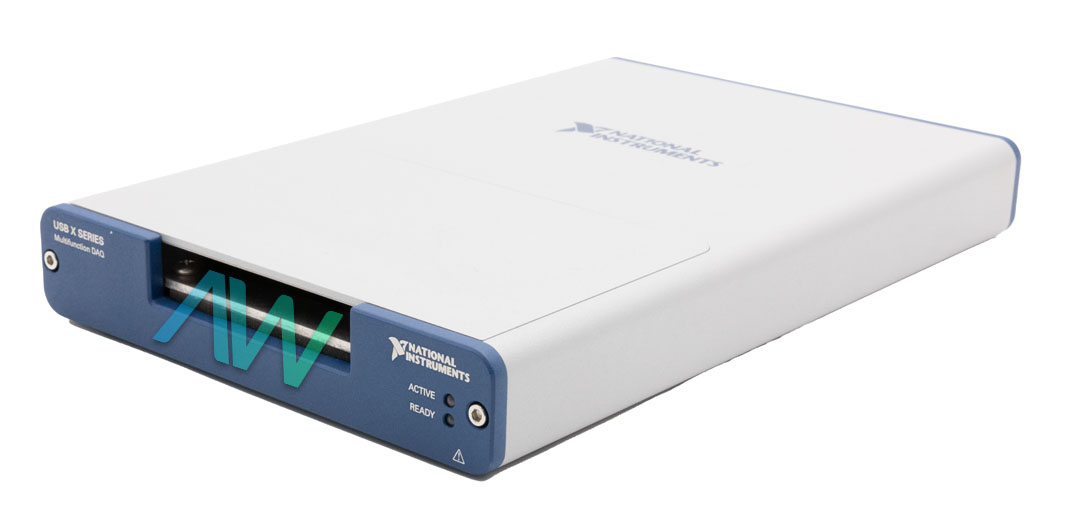

National Instruments USB-6363 Multifunction I/O Device
The USB-6363 (Part Numbers: 782257-01, 782258-01, 782259-01, 781443-01) is a Multifunction I/O Device for the X Series manufactured by National Instruments. This device has 32 single ended analog input channels that can be easily configured as 16 differential channels, offering a max sample rate of 2.00 MS/s. The 4 analog output channels of the device boast 64 bits of DAC resolution, while the 48 Digital I/O/PFI channels allow each individual terminal to be programmed as either input or output.
There are 4 variations of the USB-6363 I/O device, differentiated by their connector types. Part number 782258-01 has BNC connectors, while part number 782259-01 has mass termination connector types and part number 781443-01 is equipped with screw terminal connector types. The final part number, 782257-01, represents the board only kit of the device. These different versions of the NI USB-6363 feature different I/O connectors, providing users with versatile connectivity options.
The BNC connector version of the I/O device includes 30 BNCs in addition to 60 screw terminals with a screw terminal wiring gauge of 16 AWG to 24 AWG. The mass termination version of the USB-6363 is designed with 2 68-Position VHDCI I/O connectors, boasting an additional 68-Position Offset IDC cable connector. Lastly, the screw terminal variation of the device 128 screw terminals with a wiring gauge of 16 AWG to 24 AWG.
Designed to meet the specifications set by various environmental standards, the NI USB-6363 has a maximum working voltage of 11 V for channel-to-earth. Featuring a quick 15 minute warm up time, it is recommended to calibrate the device every two years to ensure accuracy.
Physical, the BNC version of the NI USB-6363 I/O device weighs 1.803 kg (3 lb 15 oz) and measures 20.3 cm × 18.5 cm × 6.8 cm (8.0 in. × 7.3 in. × 2.7 in.). The mass termination version weighs in at 971 g (2 lb 2.2 oz), measuring dimensions of 18.5 cm × 17.3 cm × 3.6 cm (7.3 in. × 6.8 in. × 1.4 in.). Finally, the screw terminal variation of the USB-6363 weighs in at 1.459 kg (3 lb 3.4 oz) and has dimensions of 26.4 cm × 17.3 cm × 3.6 cm (10.4 in. × 6.8 in. × 1.4 in.).
| Model | USB-6363 |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 782259-01, 781443-01, 782258-01, 782257-01 |
| Type | Multifunction I/O Device |
| Analog Input Channels | 32 single-ended or 16 differential |
| Analog Output Channels | 4 |
| Maximum Sample Rate | 2 MS/s |
| Dimensions | BNC: 8.0 in. × 7.3 in. × 2.7 in.; Mass Termination: 7.3 in. × 6.8 in. × 1.4 in.; Screw Terminal: 10.4 in. × 6.8 in. × 1.4 in. |
| Weight | BNC: 3 lb 15 oz.; Mass Termination: 2 lb 2.2 oz.; Screw Terminal: 3 lb 3.4 oz. |
| Warranty | Three Year Warranty |
| USB-6363 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for the USB-6363:
150099A-01L, 150099B-01L, 150099C-01L, 151944A-01L, 151944A-02L, 151944B-01L, 151944B-02L, 151944C-02L, 151944D-02L, 152805A-01L, 152805A-02L, 152805B-01L, 200513A-01, 781443-01, 782257-01, 782258-01, 782259-01
National Instruments USB-6363 Frequently Asked Questions
Question: What is the difference between the part numbers for the NI USB-6363?
Answer: There are three types of front connectors available for the NI USB-6363: part number 782259-01 with VHDCI front connectors, part number 781443-01 with screw terminal front connectors, and part number 782258-01 with BNC front connectors. Part number 782257-01 is for the board only kit of the USB-6363.

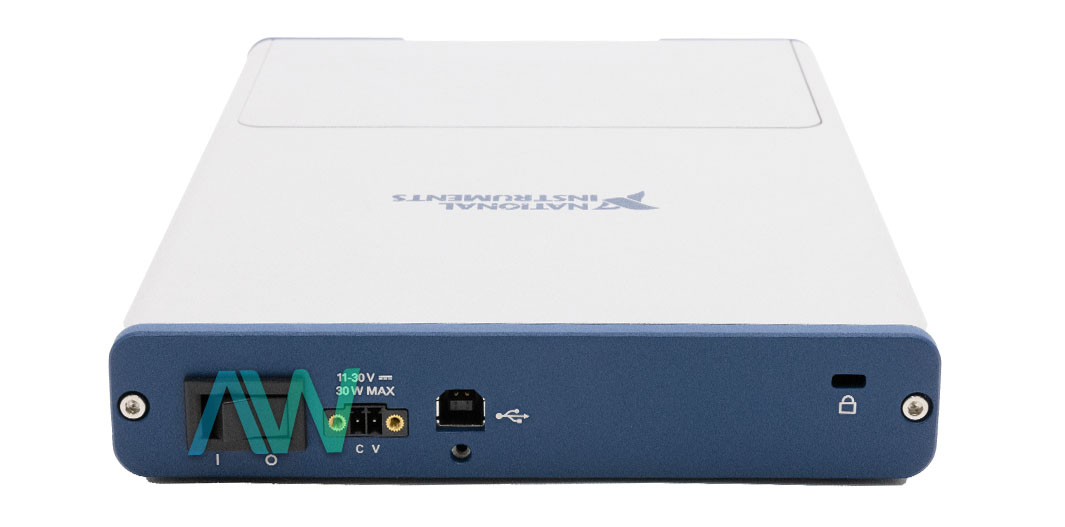

Question: What does the pin labeling of “C” and “V” on the back of the USB X Series 6363 mean?
Answer: The “C” pin labeling on the back of the USB X Series 6363 stands for Common = Ground = Negative Terminal. The “V” is the positive terminal.
Question: Does the National Instruments NI USB-6363 need an external power supply?
Answer: Yes, the National Instruments NI USB-6363 needs an external power supply.
Question: What type of electrical signal does the NI USB-6363 X Series DAQ measure?
Answer: The NI USB-6363 X Series DAQ measures voltage electrical signals.
| Accessory Type | Model Name | Part Number |
|---|---|---|
| Cable | SHC68-68-EPM | 192061-01 (1 m) |
| 192061-02 (2 m) | ||
| 192061-05 (5 m) | ||
| 192061-0R5 (0.5 m) | ||
| RC68-68 | 187252-01 (1 m) | |
| 187252-0R25 (0.25 m) | ||
| 187252-0R5 (0.5 m) | ||
| Shielded Connector Block | SCB-68A | 782536-01 |
| Shielded BNC Connector | BNC-2110 | 777643-01 |
| Rack-Mountable Accessory | BNC-2090A (Rackmount) | 779556-01 |
| Terminal Block | TB-2706 | 779183-01 |
| Connector Block | TBX-68 | 777141-01 |
| CB-68LP (Vertical Mount) | 777145-01 | |
| CB-68LPR (Right Angle Mount) | 777145-02 | |
| - | - | - |
USB-6363 PDF Manuals
DAQ GETTING STARTED GUIDE FOR EXTERNALLY POWERED USB.PDF
DAQ GETTING STARTED GUIDE FOR PCI PCI EXPRESS.PDF
DAQ GETTING STARTED READ ME FIRST NI DAQMX AND DAQ DEVICE INSTALLATION GUIDE.PDF
FERRITE INSTALLATION NOTE TO USERS.PDF
LOCKING LID FOR USB SCREW TERMINAL DEVICES USER GUIDE.PDF
NI 62XX 63XX PINOUT LABELS FOR THE SCB 68 NOTE TO USERS.PDF
NI 62XX 63XX PINOUT LABELS FOR THE SCB 68A NOTE TO USERS.PDF
USB 6341 43 51 53 61 63 LETTER OF VOLATILITY.PDF
USB 634X 635X 636X OEM USER GUIDE.PDF
