Spirent 400309A Interface Module

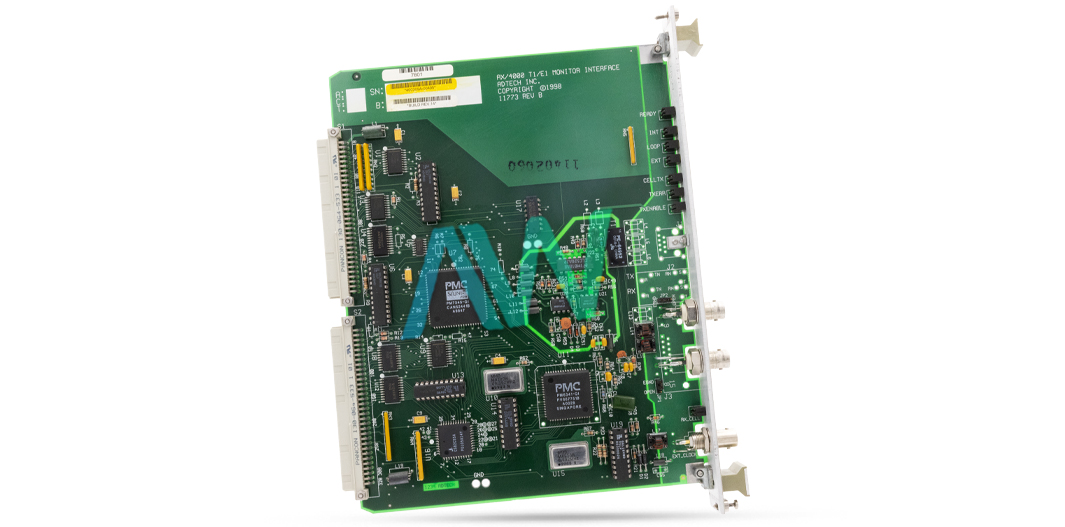

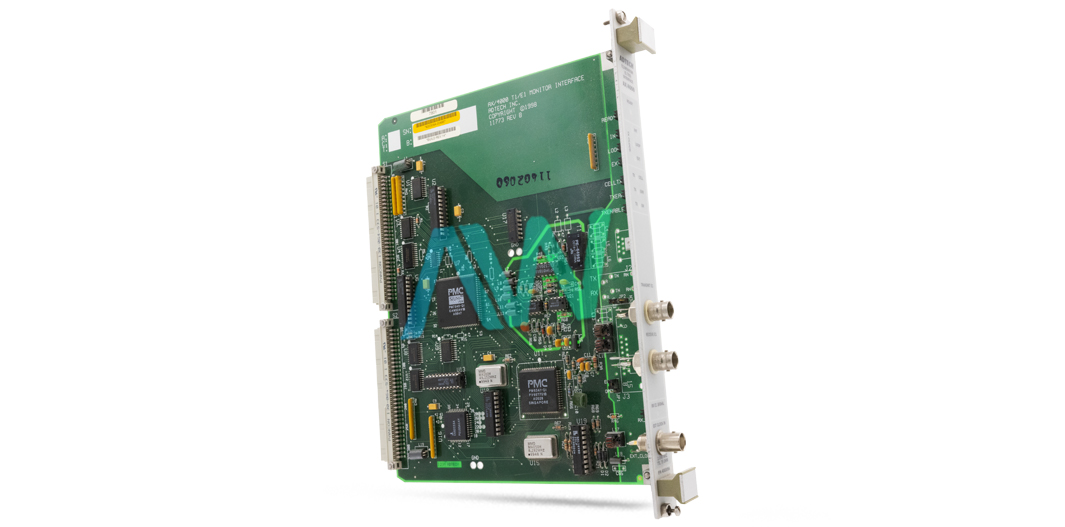

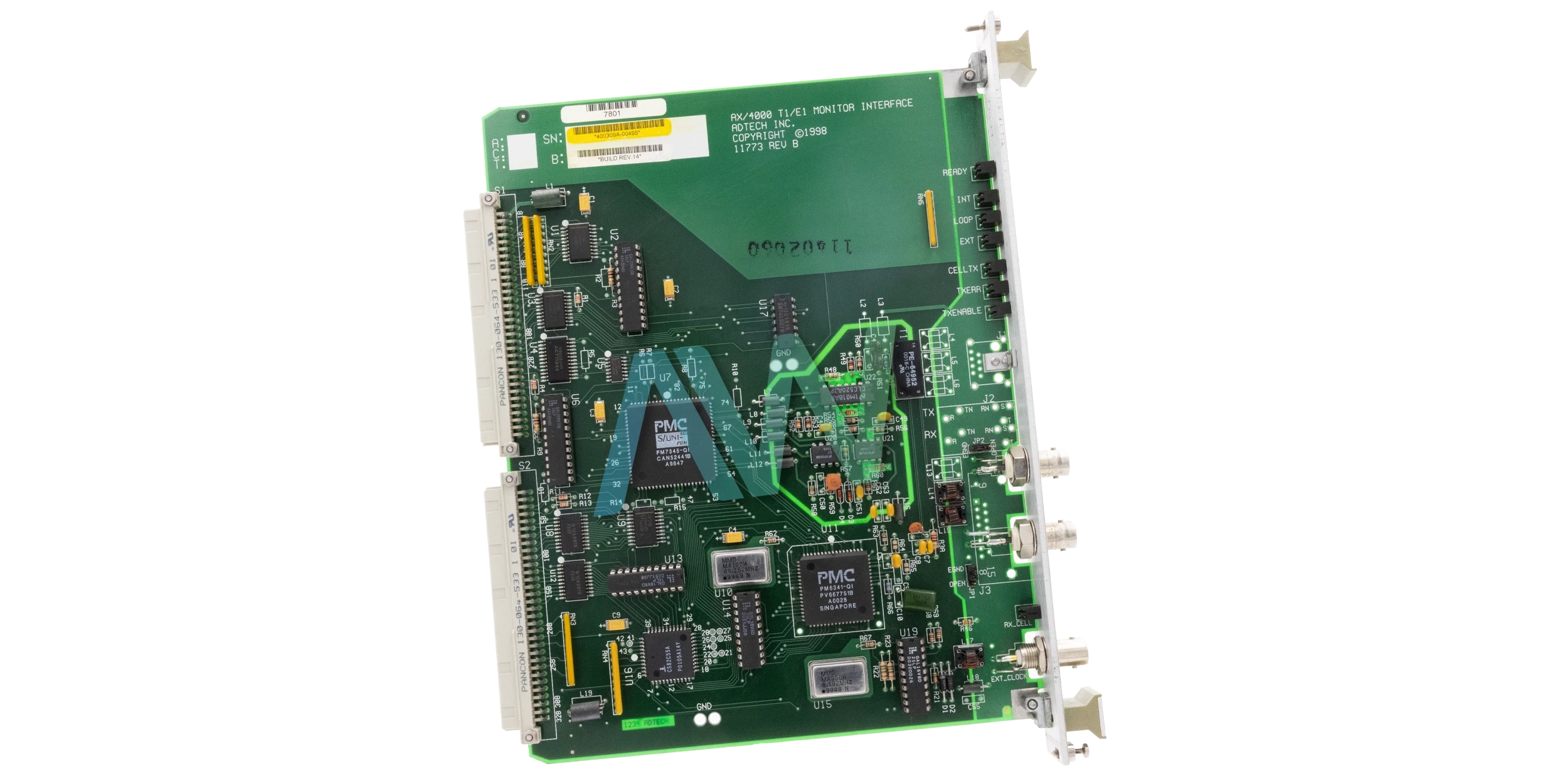

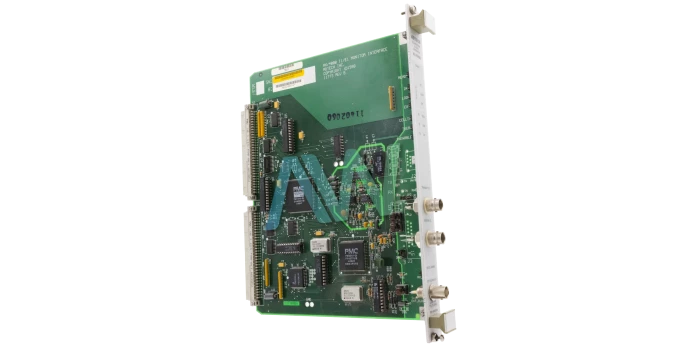

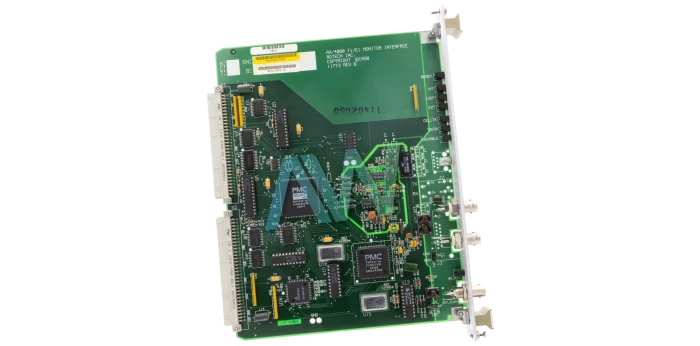

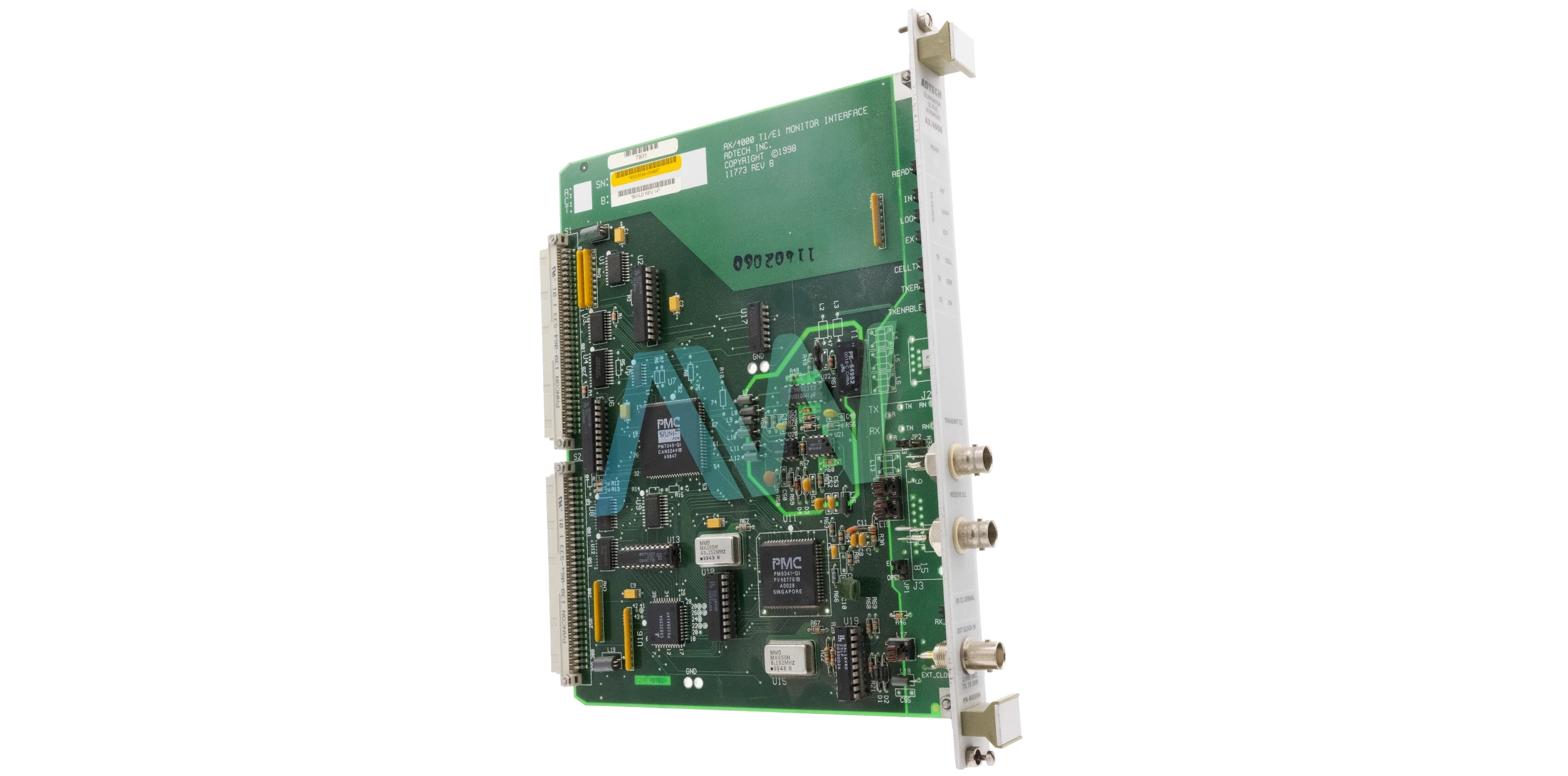

The Spirent 400309A T1/E1 Monitor Interface Module is part of the Adtech AX/4000 Broadband Test System developed to respond to exhaustive testing needs for T1/E1 interfaces in modern telecommunications networks. This module supports G.703, ensuring compatibility with a wide range of transmission systems, allowing for efficient and precise testing and monitoring of the digital signal transmissions over T1 and E1 lines at 1.544 Mbps and 2.048 Mbps, respectively. This module has field-programmable flexibility to aid in gauging network performance by checking on data integrity and line quality through a number of configurations and test scenarios.

The 400309A is primarily designed to give real-time monitoring that should be effective in evaluating a T1/E1 signal accurately without interfering with the primary signal path. This is the functionality that is quite requisite in high-demand environments where one needs an ability to analyze the traffic data or detect errors within a continuous network operation. The advanced error monitoring and event logging feature of this module detects data related to bit slips and framing errors. Timing inconsistencies and jitter diagnostics also come with comprehensive detail, which is both extremely important for real-time communication network reliability.

This module resides on the AX/4000 system, a fully modular platform, designed for supporting a wide range of transmission technologies, thus including, but not limited to, ATM, Frame Relay, and Ethernet. In this context, the 400309A module allows T1/E1 test functionality together with other network elements. For this reason, it is of great value to carry out testing of configurations within complex multi-technology networks. The module integrates with AX/4000 software to enable users to access real-time statistics, threshold setting of performance alerts, and report generation in great detail. For the most part, this has highly automated the process of testing and had it adaptable to the ups and downs in the change in operational requirements.

The 400309A T1/E1 Interface Module finds extensive use in laboratory and field testing by network service providers, telecommunications companies, and hardware developers. Providing precise G.703-compliant testing, it underpins the installation, troubleshooting, and maintenance of high-performance network systems to ensure those systems meet the quality and reliability standards before their deployment.
