AT-9155Cs In Stock | Ships Today
AT-9155Cs, ATM OC-3/STM-1, UNI 3.0/3.1/4.0, Spirent ATM SmartCard
Need an Official Quote?

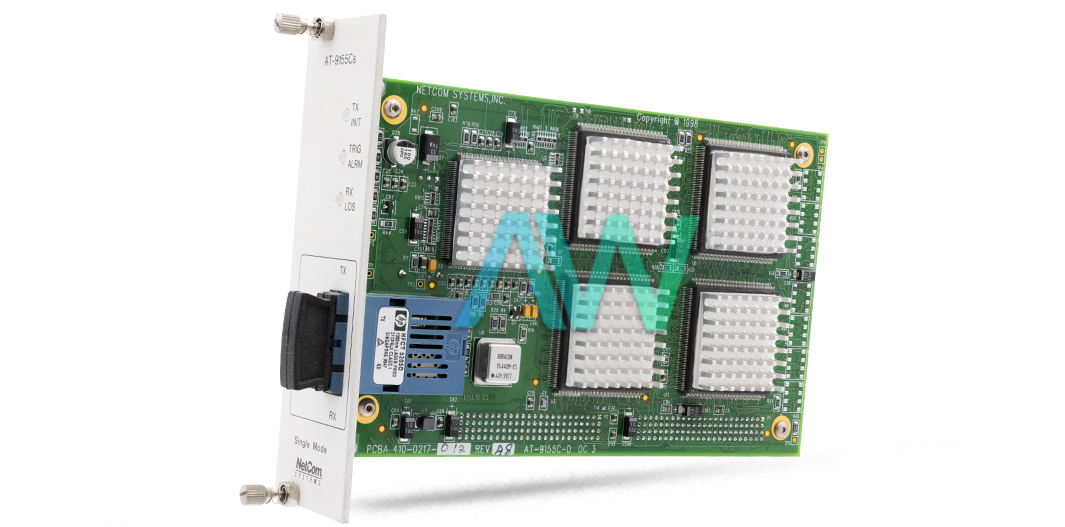

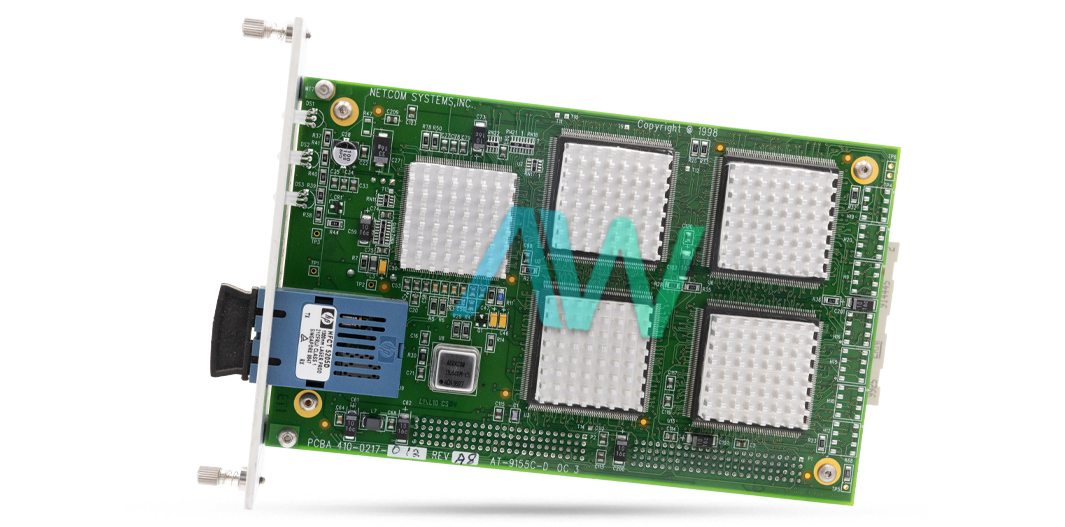

Spirent AT-9155Cs ATM OC-3/STM-1, Single Mode SmartCard
The Spirent AT-9155Cs ATM OC-3/STM-1, 1-port, single mode SmartCard is part of the ATM series and is a great tool for testing and monitoring ATM network traffic. For high performance environments the AT-9155Cs is ideal for testing ATM-to-LAN internetworking devices, high speed ATM backbones, xDSL devices and edge devices for LAN-to-ATM connectivity. This card does full duplex wire rate testing so is good for edge devices, switches and signaling protocols.
For extensive testing scenarios the AT-9155Cs supports Smart Signaling to measure peak call rates, setup latency for Switched Virtual Circuits (SVCs) and can generate frames over up to 2,048 PVCs and SVCs. For advanced performance analysis it supports LANE testing with up to 64 LAN Emulation Clients (LECs) and up to 800 calls per second per port. In a 40 port test suite this scales to 32,000 calls per second. It also supports protocol standards such as ILMI, UNI 3.x and RFCs for Classical IP and PPP so is good for xDSL and end-to-end network testing.
Frame generation on the AT-9155Cs allows for precise testing with customizable payloads, LANE, LLC/SNAP, Classical IP and user defined encapsulation types. The card also supports adjustable traffic parameters CBR and UBR per VCC. The frame latency measurement capability with 100 ns timestamp resolution helps in network performance testing. Smart Signaling extends this with UNI 3.0/3.1/4.0 signaling and high performance benchmarking.
The AT-9155Cs is great for frame level testing across Ethernet LAN-to-ATM and ATM-to-ATM connections. It supports VCC setup and full line rate frame generation with various encapsulation modes, RFC 1483 and 1577 for Classical IP, RFC 2364 for PPP over AAL5 and null encapsulation for custom frame structures. Also has detailed statistics for physical and ATM layer performance, transmit and receive cells, HEC errors and physical layer alarms. The Spirent AT-9155Cs SmartCard is a full featured high capacity ATM testing and performance validation solution.
| Model Name | Spirent ATM SmartCard |
|---|---|
| Part Number | AT-9155Cs |
| Port Configuration | 1-port, single mode |
| Interface Standard | ATM OC-3/STM-1 |
| Connection Capacity | Up to 2,048 PVCs/SVCs; 8.3 million SVCs per port |
| Traffic Classes | Constant Bit Rate (CBR), Unspecified Bit Rate (UBR) |
| Signaling Support | UNI 3.0/3.1/4.0 |
| Latency Precision | 100 ns timestamp resolution |
| Call Setup Rate | 800 calls per second per port; up to 32,000 calls per second with 40-port setup |
| Protocol Compatibility | ILMI, UNI 3.x, LAN Emulation, LLC/SNAP, Classical IP, PPP |
Why Buy From Apex Waves:
Verified
"Hand carrying parts to fedex directly to make sure I get them overnight. Great service"
"They were very helpful to get me the test equipment that I need."
AT-9155Cs
Modular Systems > Spirent > SmartBits
AT-9155Cs, ATM OC-3/STM-1, UNI 3.0/3.1/4.0, Spirent ATM SmartCard
1-800-915-6216
- Description
- Technical Specifications
Spirent AT-9155Cs ATM OC-3/STM-1, Single Mode SmartCard
The Spirent AT-9155Cs ATM OC-3/STM-1, 1-port, single mode SmartCard is part of the ATM series and is a great tool for testing and monitoring ATM network traffic. For high performance environments the AT-9155Cs is ideal for testing ATM-to-LAN internetworking devices, high speed ATM backbones, xDSL devices and edge devices for LAN-to-ATM connectivity. This card does full duplex wire rate testing so is good for edge devices, switches and signaling protocols.
For extensive testing scenarios the AT-9155Cs supports Smart Signaling to measure peak call rates, setup latency for Switched Virtual Circuits (SVCs) and can generate frames over up to 2,048 PVCs and SVCs. For advanced performance analysis it supports LANE testing with up to 64 LAN Emulation Clients (LECs) and up to 800 calls per second per port. In a 40 port test suite this scales to 32,000 calls per second. It also supports protocol standards such as ILMI, UNI 3.x and RFCs for Classical IP and PPP so is good for xDSL and end-to-end network testing.
Frame generation on the AT-9155Cs allows for precise testing with customizable payloads, LANE, LLC/SNAP, Classical IP and user defined encapsulation types. The card also supports adjustable traffic parameters CBR and UBR per VCC. The frame latency measurement capability with 100 ns timestamp resolution helps in network performance testing. Smart Signaling extends this with UNI 3.0/3.1/4.0 signaling and high performance benchmarking.
The AT-9155Cs is great for frame level testing across Ethernet LAN-to-ATM and ATM-to-ATM connections. It supports VCC setup and full line rate frame generation with various encapsulation modes, RFC 1483 and 1577 for Classical IP, RFC 2364 for PPP over AAL5 and null encapsulation for custom frame structures. Also has detailed statistics for physical and ATM layer performance, transmit and receive cells, HEC errors and physical layer alarms. The Spirent AT-9155Cs SmartCard is a full featured high capacity ATM testing and performance validation solution.
| Model Name | Spirent ATM SmartCard |
|---|---|
| Part Number | AT-9155Cs |
| Port Configuration | 1-port, single mode |
| Interface Standard | ATM OC-3/STM-1 |
| Connection Capacity | Up to 2,048 PVCs/SVCs; 8.3 million SVCs per port |
| Traffic Classes | Constant Bit Rate (CBR), Unspecified Bit Rate (UBR) |
| Signaling Support | UNI 3.0/3.1/4.0 |
| Latency Precision | 100 ns timestamp resolution |
| Call Setup Rate | 800 calls per second per port; up to 32,000 calls per second with 40-port setup |
| Protocol Compatibility | ILMI, UNI 3.x, LAN Emulation, LLC/SNAP, Classical IP, PPP |
