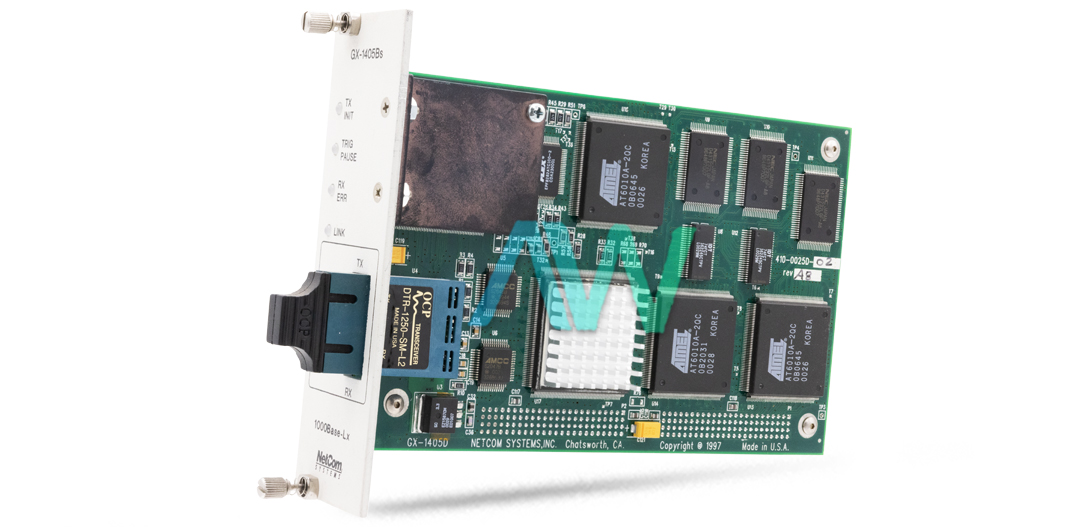

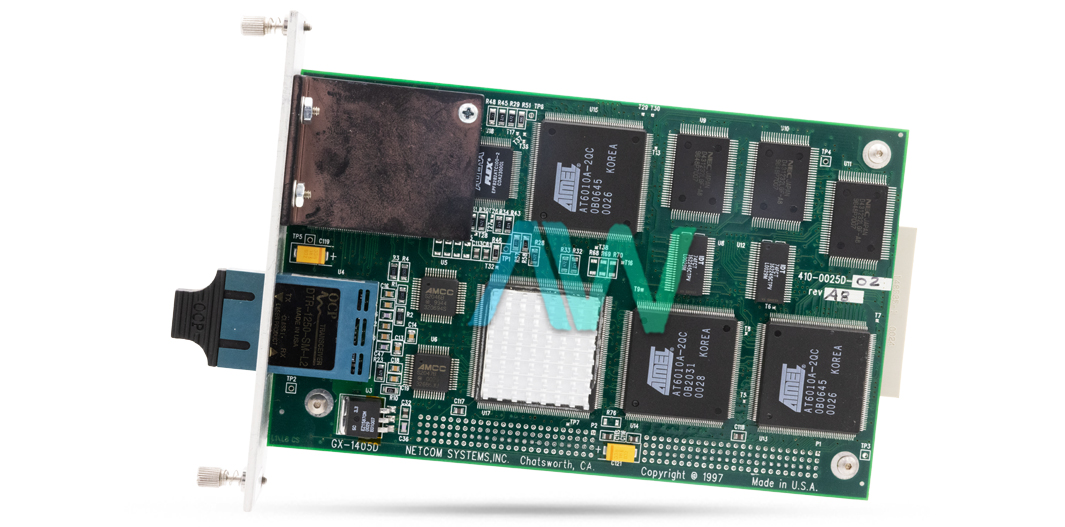

Spirent GX-1405Bs SmartCard

The Spirent GX-1405Bs SmartCard is designed for high-performance Gigabit Ethernet testing at 1 Gbps. This model of SmartCard uses a single-mode 1310 nm wavelength that allows for easy connectivity and enables tests of the Ethernet backbone over full duplex modes. It also supports the IEEE 802.3z standard for compatibility with industry-standard Gigabit Ethernet systems. The GX-1405Bs, designed for specialized testing requirements, uses a real-time generate, monitor, and capture of Ethernet traffic. With full duplex traffic generation supported, it accurately emulates both typical and stress-test scenarios.

The GX-1405Bs is perfect for Gigabit Ethernet conformance and interoperability tests and forms an integral component in the network robustness and compatibility test. It provides for upstream traffic testing and is normally used in conjunction with other SmartCards, like the SX-7410B, for interoperability at 10/100 Mbps. This card provides high port density and is able to replicate real-world network loading to test both valid and errored traffic conditions. It also supports oversized and undersized packet handling, enabling users to see how the network responds to different frame sizes.

This model also supports several transmit modes: Continuous Mode, Single Burst Mode, and Multi-burst Mode-which highly customizes the testing setup. The GX-1405Bs provides an alternate data stream feature that allows secondary traffic streams to be inserted, and it is especially useful for generating controlled errored traffic or management frames within a test sequence.

Advanced functionalities include flow control by using pause commands and up to three variable data fields configured within the transmitted packet to facilitate traffic generation and packet-level tests. Moreover, it has a packet capture function with a depth capacity of up to 2,048 packets depending on frame length, which is highly vital in the analysis of network performance metrics and capturing all detailed traffic data in hexadecimal or decimal formats.

The GX-1405Bs SmartCard integrates seamlessly with a compatible SmartBits 200 or 2000 chassis and supports various applications software such as SmartApplications and Spirent Connect. GX-1405Bs is a card that can easily be used in extensive testing for Ethernet network testing environments. Its performance and ability to adapt deliver good results in terms of how resilient operations are and how effective they are.
