LitePoint z4441 In Stock | Ships Today
z4441, BNC Connectors, 20 MHz or Bypass, 14 bits, Oscilloscope/Digitizer
Need an Official Quote?

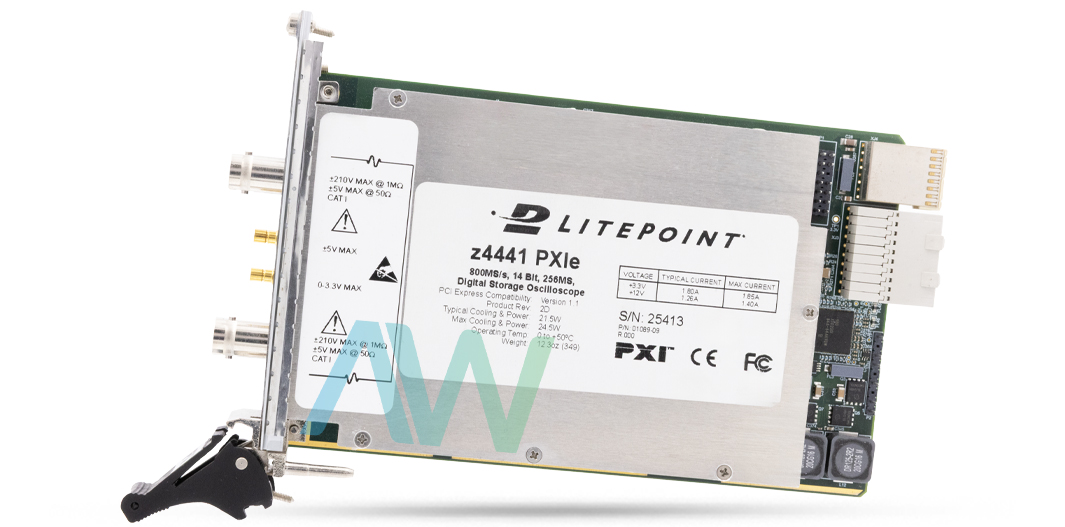

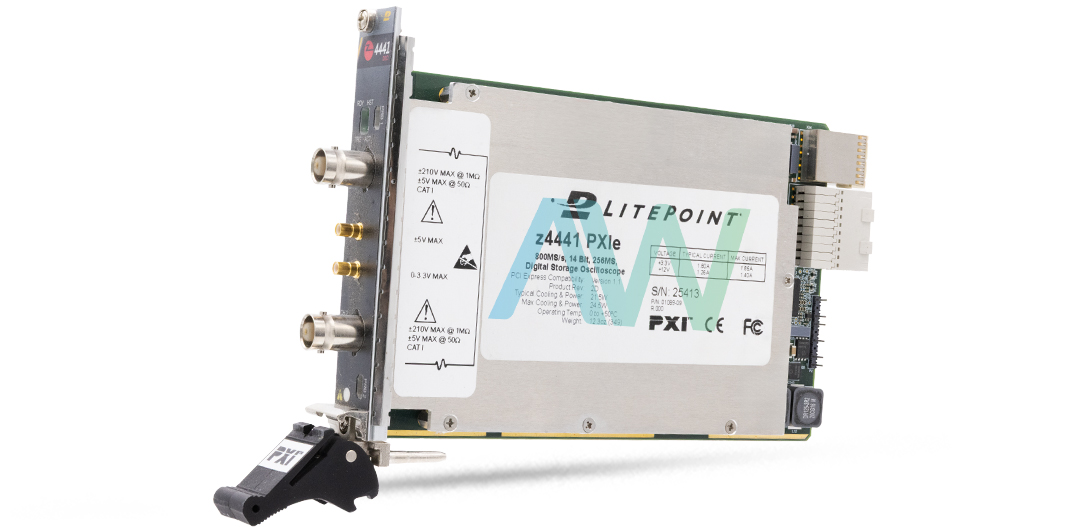

LitePoint z4441 Digitizer/Oscilloscope
The LitePoint z4441 Digitizer/Oscilloscope is a cutting-edge instrument designed to meet the demands of modern signal analysis across a wide range of applications. With a rapid 800 MS/s sampling rate and 300 MHz analog bandwidth, this device offers exceptional performance for tasks such as transient signal capture, audio and video signal analysis, and real-time oscilloscope functionality.
Equipped with two digitizer channels and featuring an impressive on-instrument memory of 256 MiSamples (128 MiSamples per channel), the z4441 provides ample capacity for capturing and analyzing complex waveforms in detail. Its deep memory capabilities support both continuous and segmented memory modes, allowing for extended waveform capture and in-depth analysis of repetitive signals.
One of the standout features of the z4441 is its oscilloscope functionality, which includes onboard measurements of over 40 waveform parameters related to voltage, time, and frequency. With four calculation channels for waveform math, digital filtering, FFT, and more, users have the tools they need to perform advanced signal analysis tasks.
This instrument supports multiple acquisition modes, including averaging, high-resolution, peak detect, and envelope, catering to a diverse range of measurement requirements. Advanced measurement modes such as limit and mask testing, histograms, and gated measurements further enhance its versatility.
The z4441 is well-suited for a variety of applications, including high-resolution transient signal capture, video and radio signal analysis, and differential signal capture for current measurements. Its general-purpose oscilloscope viewing, analysis, and measurement capabilities make it a valuable tool for engineers, scientists, and researchers across various industries.
In terms of technical specifications, the z4441 offers a maximum of 32 Ki waveforms segmented at ≤ 4 KiSamples, with input options including BNC connectors and impressive input load protection. With its high digitizer resolution, flexible impedance options, and advanced analog filtering capabilities, the z4441 sets a new standard for precision and performance in signal analysis instrumentation.
| Product Type | Oscilloscope/Digitizer |
|---|---|
| DC Gain Accuracy | < ±0.25% full scale range |
| Connectors | BNC |
| Maximum Segments | 32 Ki waveforms @ ≤ 4 KiSamples |
| Analog Filters | 20 MHz or Bypass |
| Maximum Input | (50 Ω) ±5 V (DC + peak AC), CAT I |
| Impedance | 1 MΩ || 12 pF or 50 Ω |
| Digitizer Resolution | 14 bits (0.006% of full scale) |
| Filter Stopband Rejection | Approx. 3 dB @ 20 MHz |
| Price | Contact a sales member to recieve a quote. |
Why Buy From Apex Waves:
Verified
"Hand carrying parts to fedex directly to make sure I get them overnight. Great service"
"They were very helpful to get me the test equipment that I need."
LitePoint z4441
Test & Measurement Misc > LitePoint > PXI
z4441, BNC Connectors, 20 MHz or Bypass, 14 bits, Oscilloscope/Digitizer
1-800-915-6216
- Description
- Technical Specifications

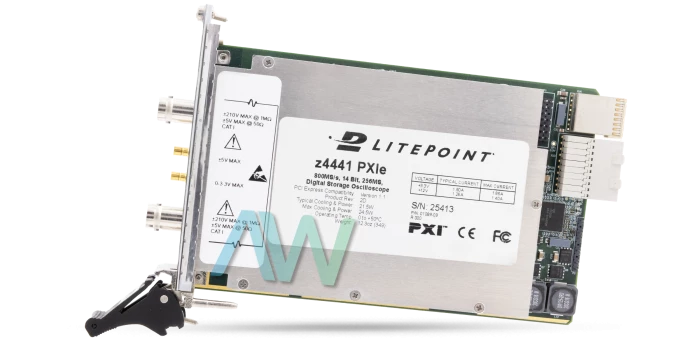

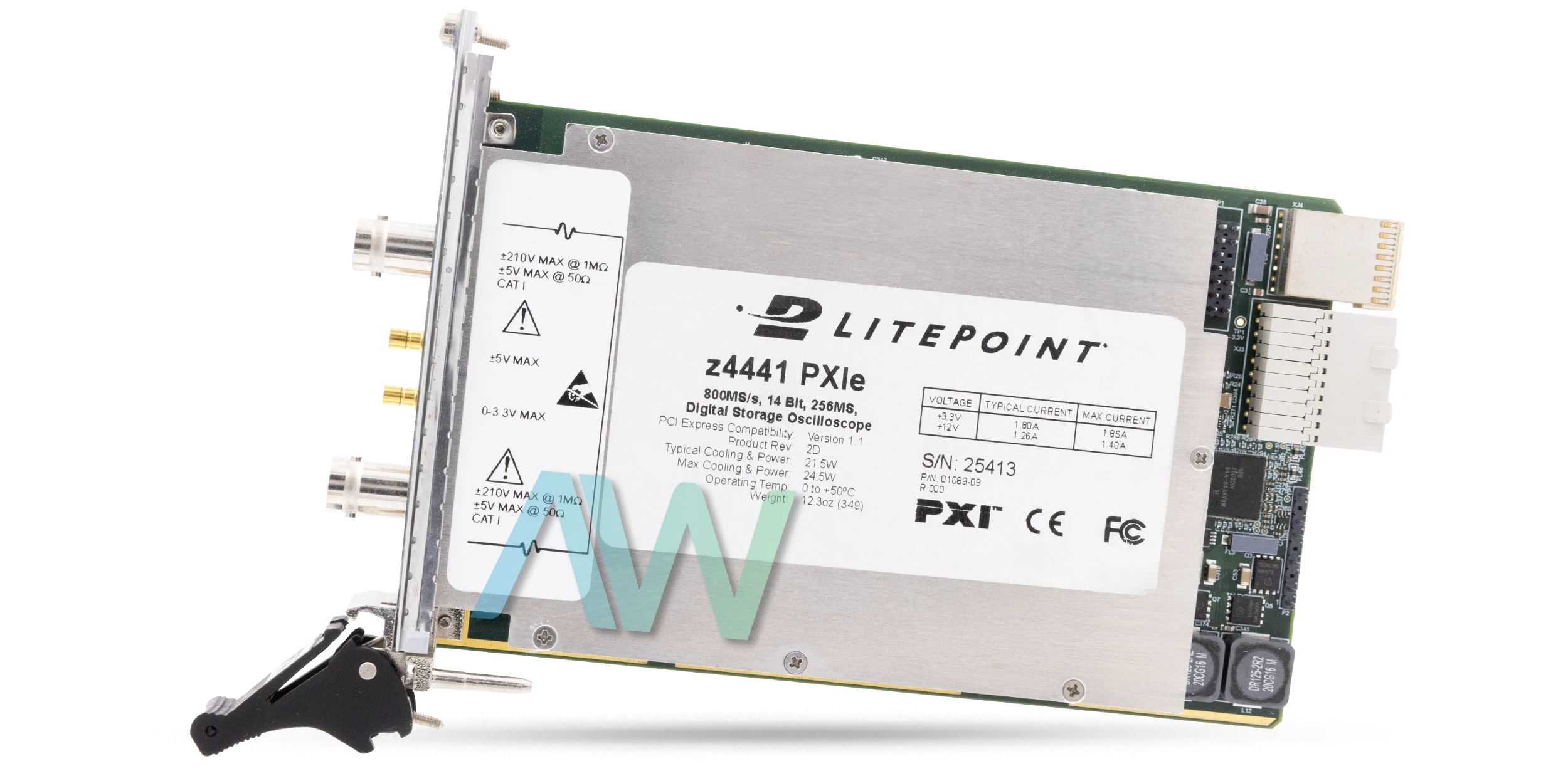

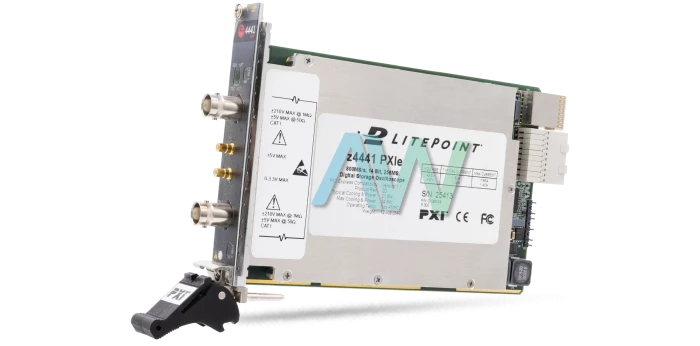

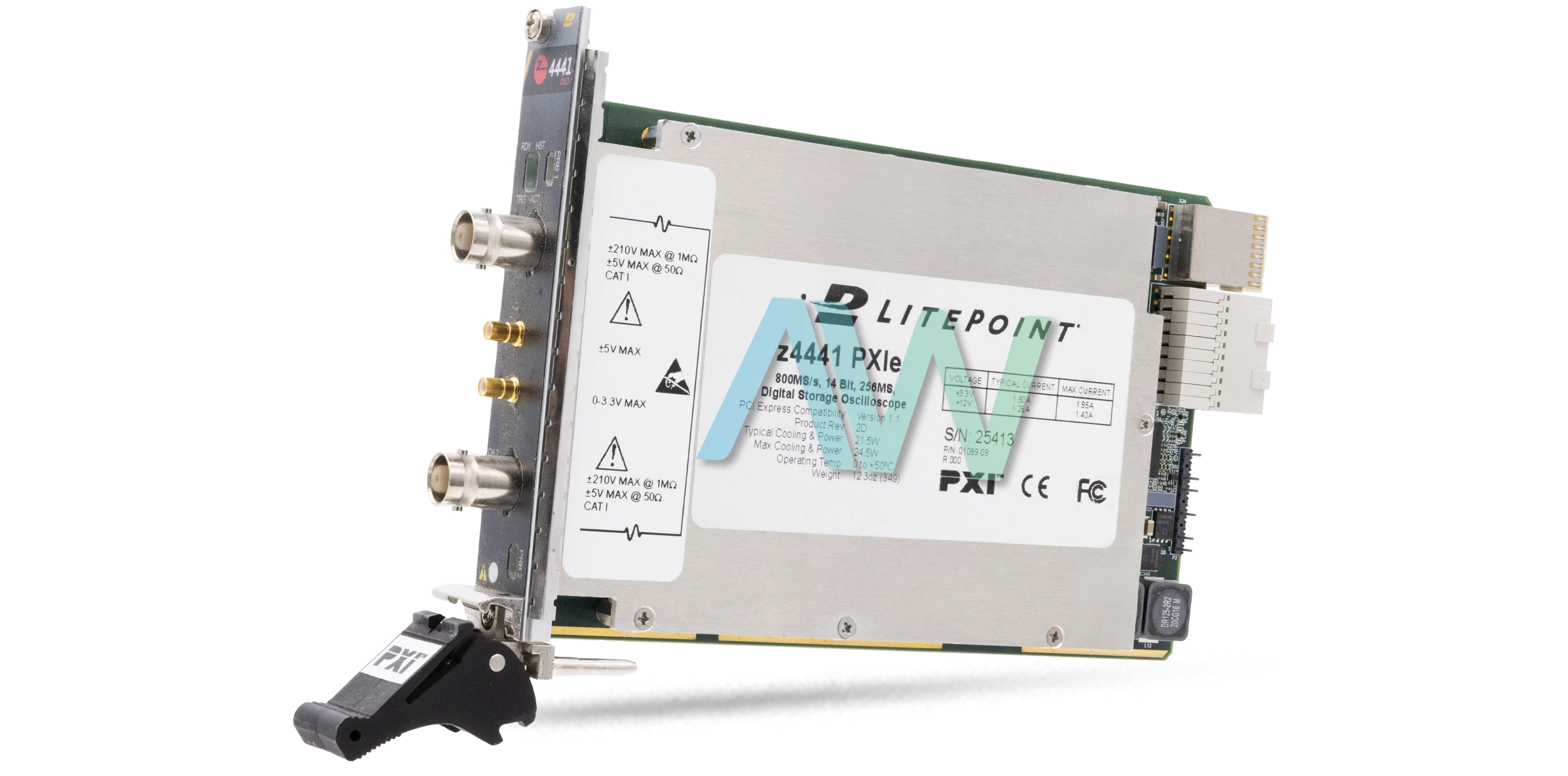

LitePoint z4441 Digitizer/Oscilloscope
