TB-2706
Test & Measurement Misc > National Instruments > Terminal Blocks
| Description: | TB-2706, 70 Screw Terminal, Front Panel Mounted, Terminal Block |
Need an Official Quote?
Or speak to a sales representative for additional information:
Phone:1-800-915-6216
Email:sales@apexwaves.com

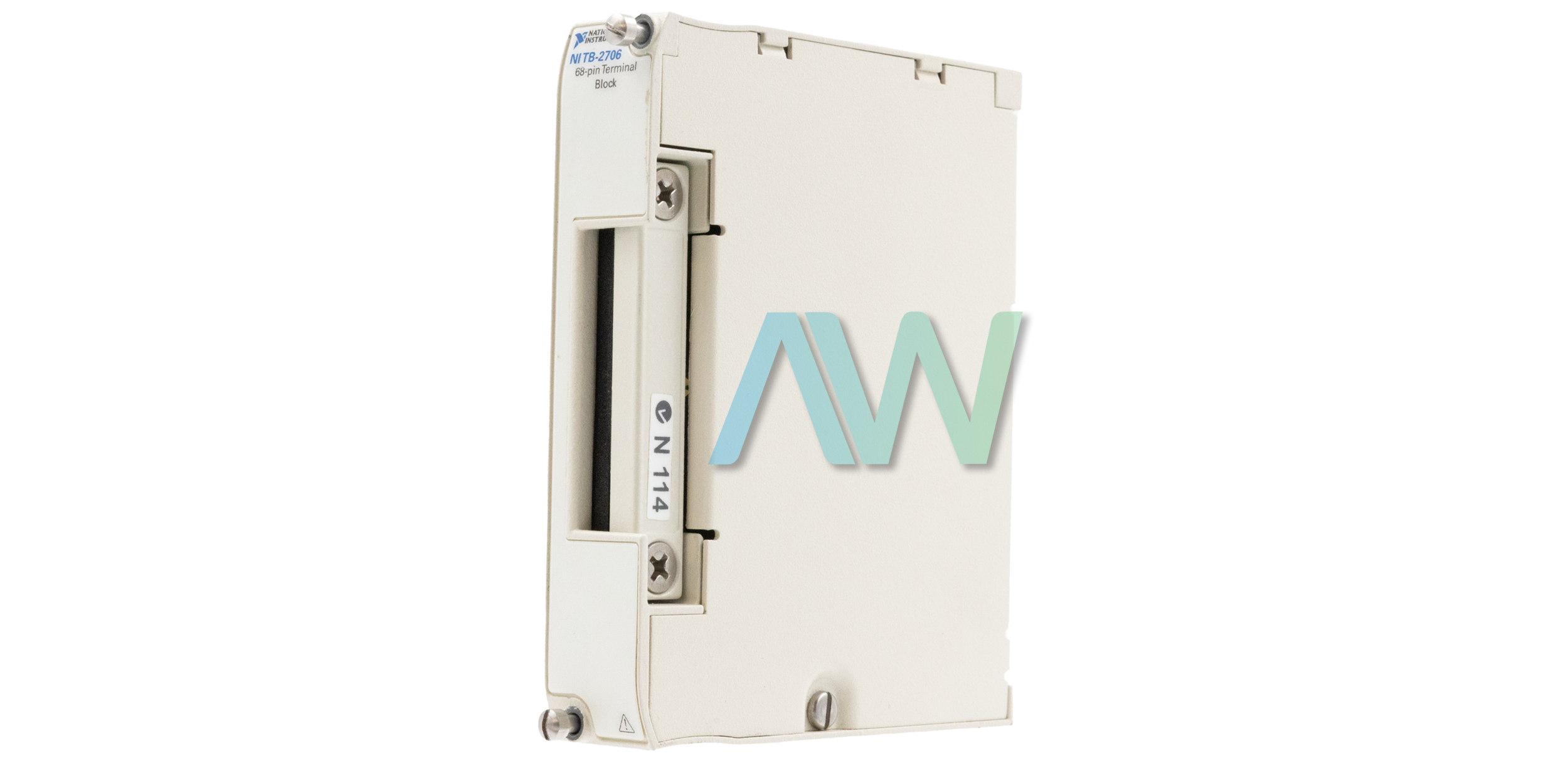

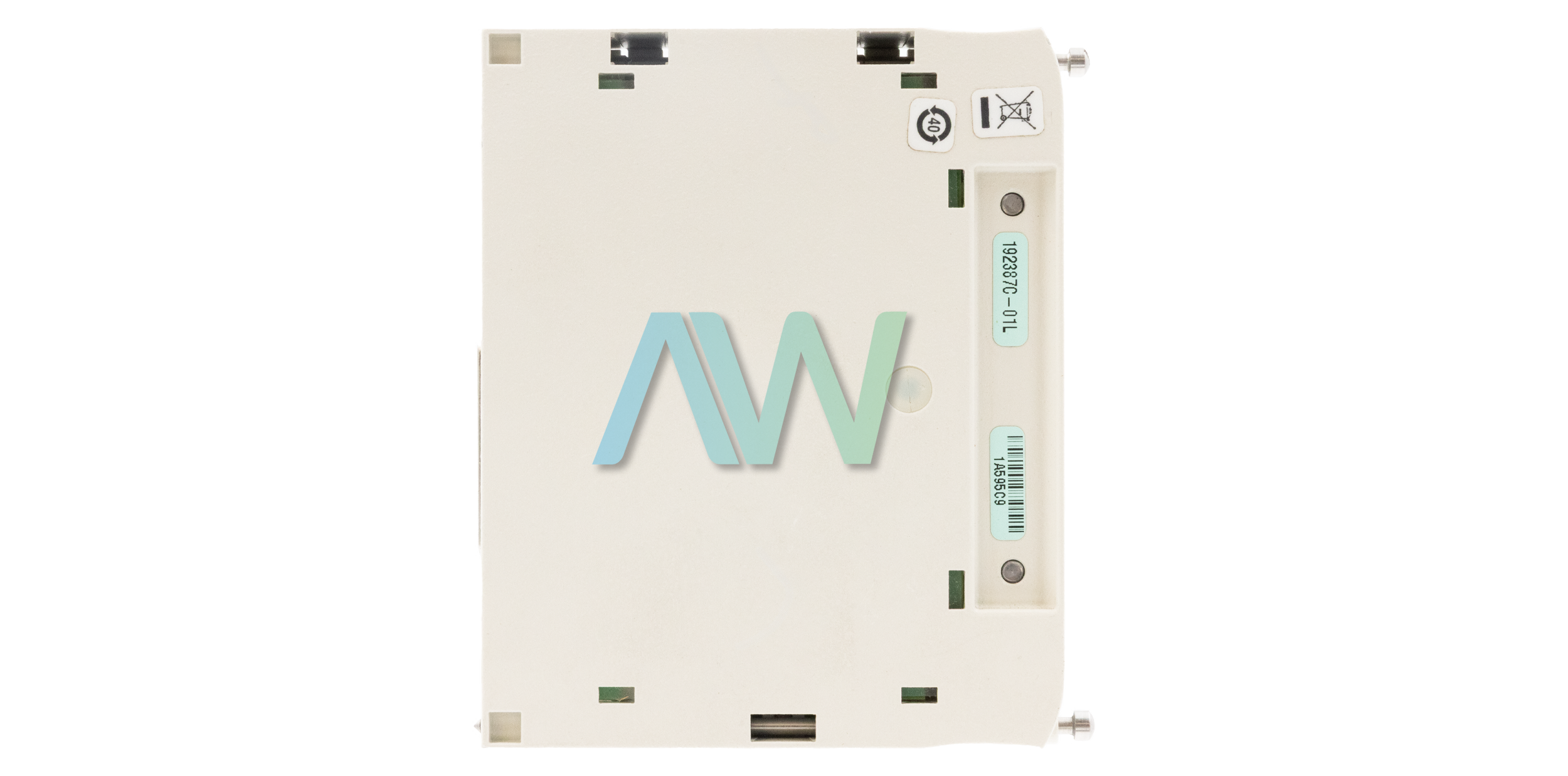

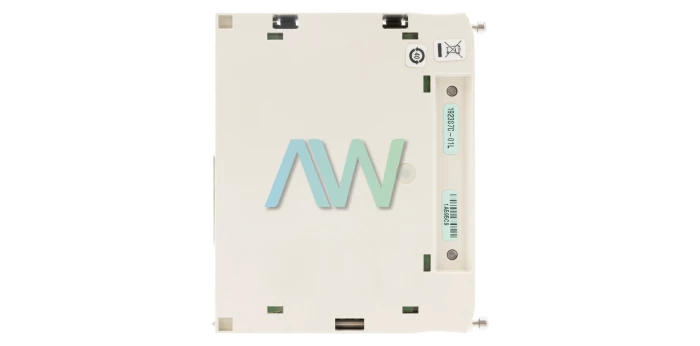

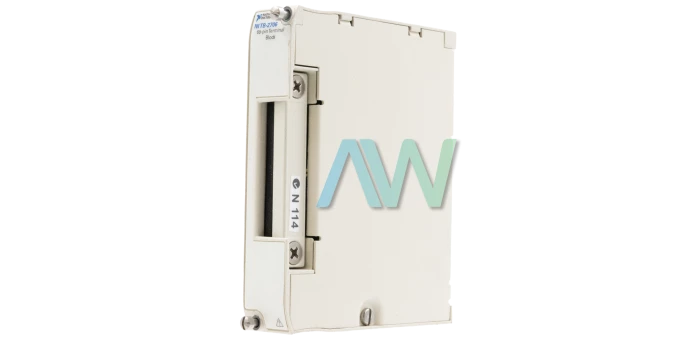

National Instruments TB-2706 Terminal Block
The TB-2706 (Part numbers: 779183-01, 192387A-01) is a metal-enclosed Terminal Block. National Instruments developed the TB-2706 Terminal Block. The NI TB-2706 is released with the part number 779183-01 by National Instruments. The TB-2706 belongs to the TB-270x Series of Terminal Blocks. The hardware of the NI TB-2706 Terminal Block is designed with strain relief. The TB-2706 can be utilized without any external cable requirements. The NI TB-2706 Terminal Block is designed with an electronic PCB board. To use the device, the following equipment are needed: NI TB-2706 Terminal Block Assembly and installation guide, any PXI/PXIe device with a 68-pin VHDCI connector, any PXI/PXIe DAQ device documentation, among others–further information can be gotten from the device installation guide.
The National Instruments TB-2706 Terminal Block is built with 70 screw terminals. These screw terminals are designed to provide connections to various PXI modules. The TB-2706 terminal block is housed within the front panel on the PXI chassis. The NI TB-2706 terminal block works for several PXI instruments including the PXI-622x, PXI-625x, and PXI-628x devices. The TB-2706 Terminal Block also supports connections for the PXIe-625x and PXI-6143 modules. The NI TB-2706 Terminal Block can enable connections for analog inputs and analog outputs to the PXI NI modules.
The NI TB-2706 is designed for use with the M Series of data acquisition modules. The TB-2706 Terminal Block is equipped with a 68-pin male VHDCI connector. The NI TB-2706 Terminal Block works with voltages of 42 Vpeak or 60 VDC or lower. The National Instruments TB-2706 Terminal Block can be operated with a terminal wire of 26-16 AWG. The digital inputs/outputs and timers can be easily accessed through the TB-2706.
The NI device weighs 10.2 oz, and measures 4.2 x 3.4 x 0.8 in. in physical dimensions. It has recommended operating and storage temperature ranges of 0 to 55 °C and –20 to 70 °C respectively, and a non-condensing relative humidity ranges of 10 to 90%. The TB-2706 is designed to comply with the following electrical safety standards: IEC 61010-1, EN 61010-1, UL 61010-1, and CSA 61010-1.
TB-2706 Obsolete Status has been announced by National Instruments, but the Terminal Block will still be available for purchase and repairs by Apex Waves.
| Model | TB-2706 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 779183-01, 192387A-01 |
| Type | Terminal Block |
| Compatible Devices | M Series and NI-6143 Devices |
| Number of Screw Terminals | 70 |
| Type of Screw Terminals | Angled entry, 3.81 mm pitch |
| I/O Connector | One 68-position male VHDCI connector |
| Dimensions | 4.2 × 3.4 × 0.8 in. |
| Weight | 10.2 oz. |
| Warranty | Three Year Warranty |
| TB-2706 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for the TB-2706:
192387A-01, 192387C-01L, 192387D-01L, 779183-01
National Instruments TB-2706 Frequently Asked Questions
Question: What devices are compatible with the TB-2706?
Answer: The TB-2706 terminal block connects to the front panel of the PXI-622x, PXI-625x, PXIe-625x, PXI-628x, and PXI-6143 devices from National Instruments.
Question: Are there any input restrictions for using the TB-2706?
Answer: Even if a voltage divider is used, the TB-2706 is not designed for input voltages greater than 42 Vpk/60 VDC.
Question: How do you install the TB-2706 to a PXI/PXIe module?
Answer: To install the terminal block, first install the module into the chassis. Secondly, guide the terminal block onto the connector. Finally, tighten the two mounting screws to secure the terminal block.
TB-2706 PDF Manuals
NI TB 2705 NI TB-2706 NI TB 2708 NI TB 2709 LETTER OF VOLATILITY.PDF
NI TB-2706 INSTALLATION GUIDE.PDF
